Panduit P14-10R-M - The P14-10R-M Pan-Term Terminal is a non-insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Panduit

P14-10R-M

UPC: 074983802210

Documents & Media
Technical DrawingFull Engineering DrawingVideo Clip

Contact for Pricing

Minimum Qty: 1000

Multiplier: 1000

*Contact for lower quantities*

Overview

The Panduit P14-10R-M Pan-Term® Non-Insulated Ring Terminal is a high-performance wire termination solution engineered for secure, long-lasting connections in industrial and electrical applications. Designed for 14-10 AWG copper conductors with a #10 stud hole size, this terminal ensures reliable performance in high-vibration environments where mechanical integrity is critical. The brazed seam construction prevents terminal barrel splitting during crimping, while internal barrel serrations deliver consistent wire contact and maximum tensile strength. The terminal features an internally beveled barrel for quick and easy wire insertion, reducing installation time and minimizing errors. With a maximum operating temperature of 302°F (150°C) and UL/CSA ratings up to 2000V per UL 486A/B, the P14-10R-M is suitable for demanding power, grounding, and connectivity applications. Compatible with standard crimp tools such as the CT-100, CT-200, and CT-1570, this terminal is available in standard packaging quantities of 100 per box and 1000 per carton. Ideal for use in electrical infrastructure, grounding systems, and high-reliability wiring terminations where durability and performance are non-negotiable.
  • Non-insulated ring terminal for 14-10 AWG copper conductors
  • Brazed seam prevents barrel splitting during crimping
  • Internal serrations ensure optimal wire contact and tensile strength
  • Internally beveled barrel for quick and easy wire insertion
  • UL/CSA rated up to 2000V per UL 486A/B; max operating temp 302°F (150°C)

Specifications

Connection
Standard
Connection Type
Crimp
Enclosure
Ring shape
Finish
Tinned
Insulation
None
Material
Copper
Mounting
9/32 In.
Series
Pan-Term
Size
#10
Size
14 AWG
Standard
UL Listed 587H E52164, CSA Certified LR31212
Temperature Rating
302 Degrees Fahrenheit (150 Degrees Celsius)
Type
Ring Terminal
Voltage Rating
2000 VAC
Wire Size
14 AWG
Package Dimensions (L x W x H)
5.15 IN x 3.35 IN x 3.4 IN
Package Weight (Imperial)
1.9 lbs
The PV14-8F-C Pan-Term Terminal is a vinyl insulated, fork terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.

PV14-8F-C

The PV14-8F-C Pan-Term Terminal is a vinyl insulated, fork terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.
The PV14-8F-M Pan-Term Terminal is a vinyl insulated, fork terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.

PV14-8F-M

The PV14-8F-M Pan-Term Terminal is a vinyl insulated, fork terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.
Panduit DV14-250B-C Female Disconnect

DV14-250B-C

Panduit DV14-250B-C Female Disconnect
The PV14-14R-C Pan-Term Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

PV14-14R-C

The PV14-14R-C Pan-Term Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
The PN14-8F-C Pan-Term Terminal is a nylon insulated, fork terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.

PN14-8F-C

The PN14-8F-C Pan-Term Terminal is a nylon insulated, fork terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.

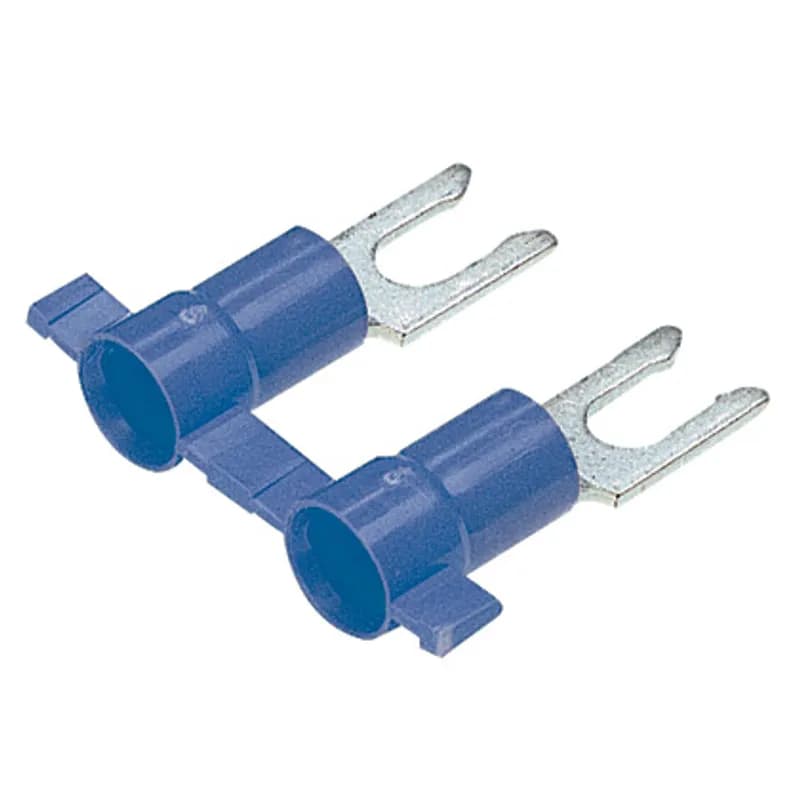

Locking Fork Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 16- 14 AWG wire range, #8 stud size.

PV14-8LFB-3K

Locking Fork Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 16- 14 AWG wire range, #8 stud size.
Reel-Fed Ring Terminal, 1.5 2.5mm wire range, M5 stud size, vinyl insulated, funnel entry.

PMV2-5RB-3K

Reel-Fed Ring Terminal, 1.5 2.5mm wire range, M5 stud size, vinyl insulated, funnel entry.

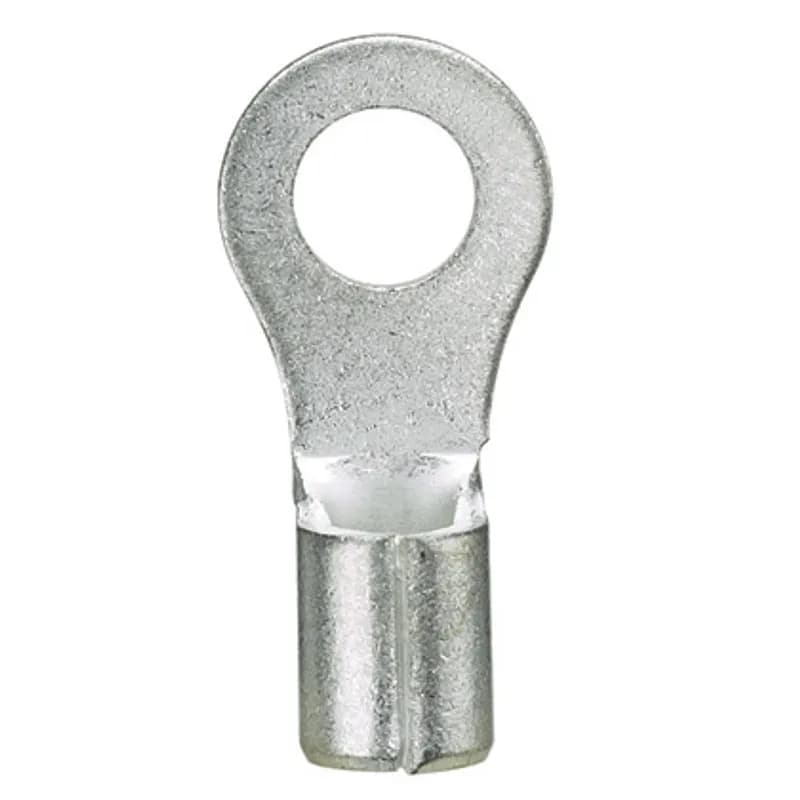

Ring Terminal, 18 14 AWG, 5/16" stud size, non-insulated, standard package.
