Overview
- Eight NEMA 5-20R outlets for device connectivity
- 20 Amp, 120 Volt, single-phase power distribution
- NEMA L5-20P input plug for secure connection
- 10-foot (3-meter) power cord for flexible placement
- Monitored and Switched capabilities for power management
Specifications
Amperage Rating | 20 A |
Control | Monitored Switched |
Current Rating | 20 A |
Frequency Rating, Maximum | 120 V |
Frequency Rating, Minimum | 120 V |
Length | NA In. |
Material | Metal |
Mounting | Horizontal |
Nema Rating | NEMA L5-20P |
Number Of Receptacles | (8)5-20R |
Phase | 1 |
Poles | 1P+G |
Receptacle | NEMA 5-20R |
Series | G5 Monitored Switched PDU |
Standard | UL Listed File number: E218078 |
Type | PDU |
Voltage Rating | 120 V |
Wattage | 1900 |
Width | 17.5 in |
Width | 444.5 mm |
Package Dimensions (L x W x H) | 20.7 IN x 15.7 IN x 8.7 IN |
Package Weight (Imperial) | 13.4 lbs |
P12B19M
This Panduit G5 Basic PDU features (12) 5-20R outlets. It is a 20 amp, 120 V, single phase PDU with a NEMA 5-20P input plug and a 10 foot (3m) power cord. The PDU is black.
P08D11M

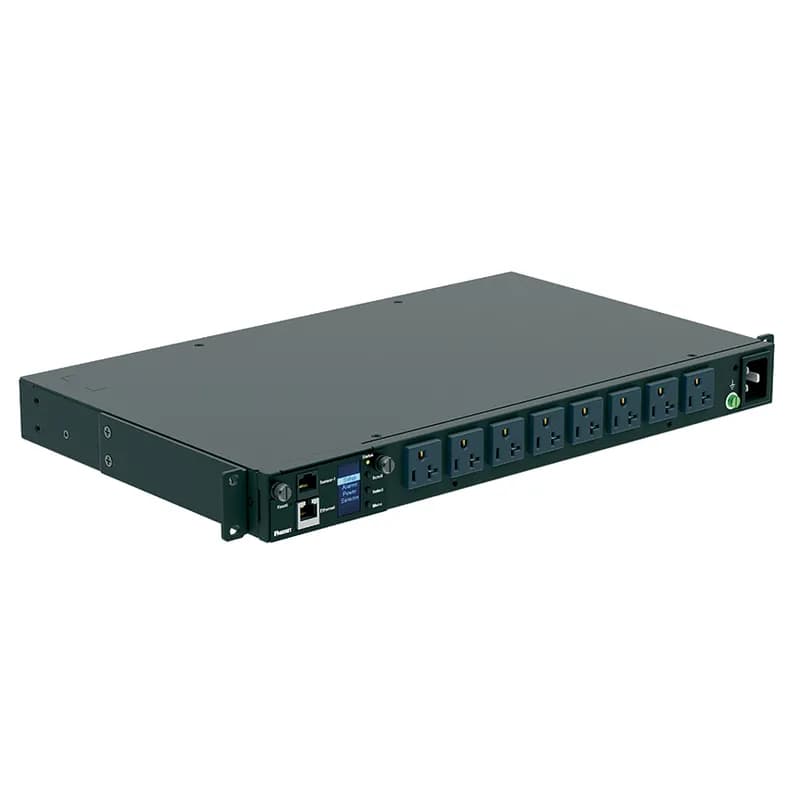

This Panduit G5 Monitored Input PDU features (8) 5-20R outlets. It is a 20 amp, 120 V, single phase PDU with a NEMA L5-20P input plug and a 10 foot (3m) power cord.
P12B30M
This Panduit G5 Basic PDU features (12) 5-20R outlets. It is a 20 amp, 120 V, single phase PDU with a NEMA L5-20P input plug and a 10 foot (3m) power cord. The PDU is black.
P08E15M
This Panduit G5 Monitored Switched PDU features (8) 5-20R outlets. It is a 20 amp, 120 V, single phase PDU with a NEMA 5-20P input plug and a 10 foot (3m) power cord.
P08D10M

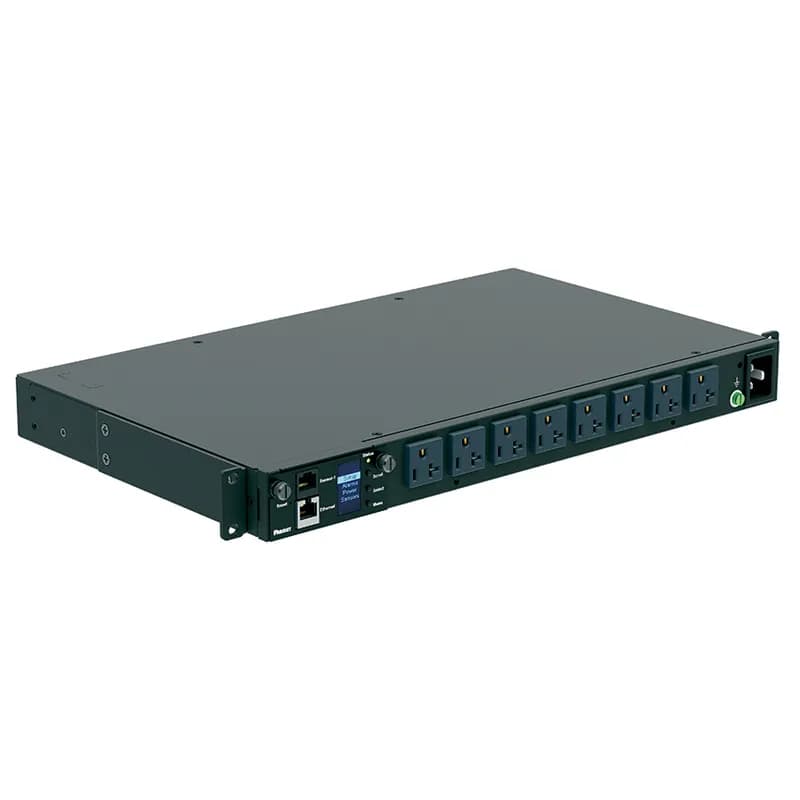

This Panduit G5 Monitored Input PDU features (8) 5-20R outlets. It is a 20 amp, 120 V, single phase PDU with a NEMA 5-20P input plug and a 10 foot (3m) power cord.
P08D09M
This Panduit G5 Monitored Input PDU features (8) 5-20R outlets. It is a 15 amp, 120 V, single phase PDU with a NEMA 5-15P input plug and a 10 foot (3m) power cord.
P12B01M
This Panduit G5 Basic PDU features (12) 5-20R outlets. It is a 15 amp, 120 V, single phase PDU with a NEMA 5-15P input plug and a 10 foot (3m) power cord. The PDU is black.
P08E14M
This Panduit G5 Monitored Switched PDU features (8) 5-20R outlets. It is a 15 amp, 120 V, single phase PDU with a NEMA 5-15P input plug and a 10 foot (3m) power cord.
P16B41M

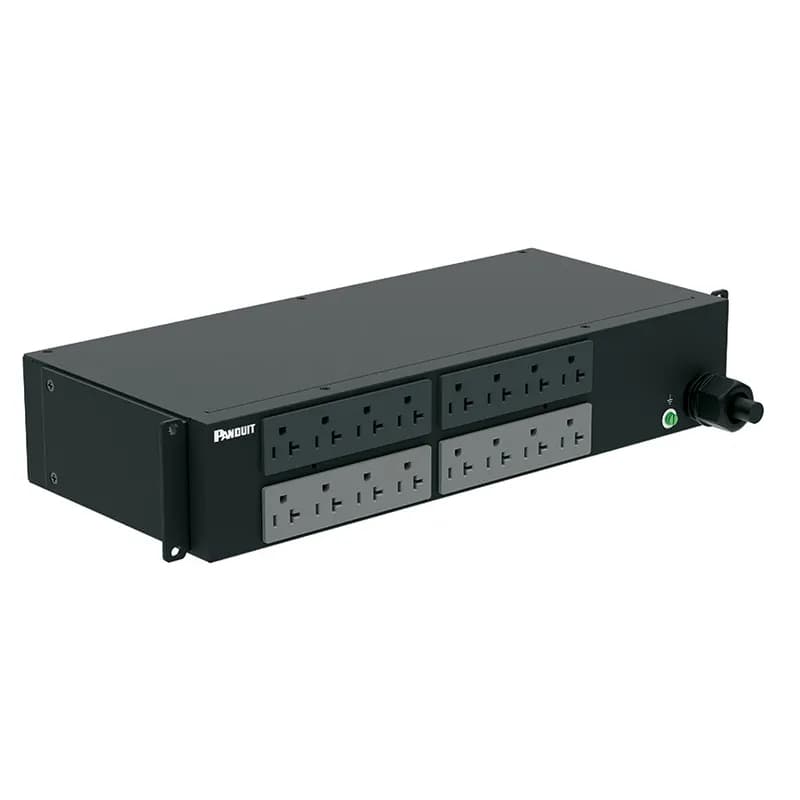

This Panduit G5 Basic PDU features (16) 5-20R outlets. It is a 30 amp, 120 V, single phase PDU with a NEMA L5-30P input plug and a 10 foot (3m) power cord. The PDU is black.
P16E17M

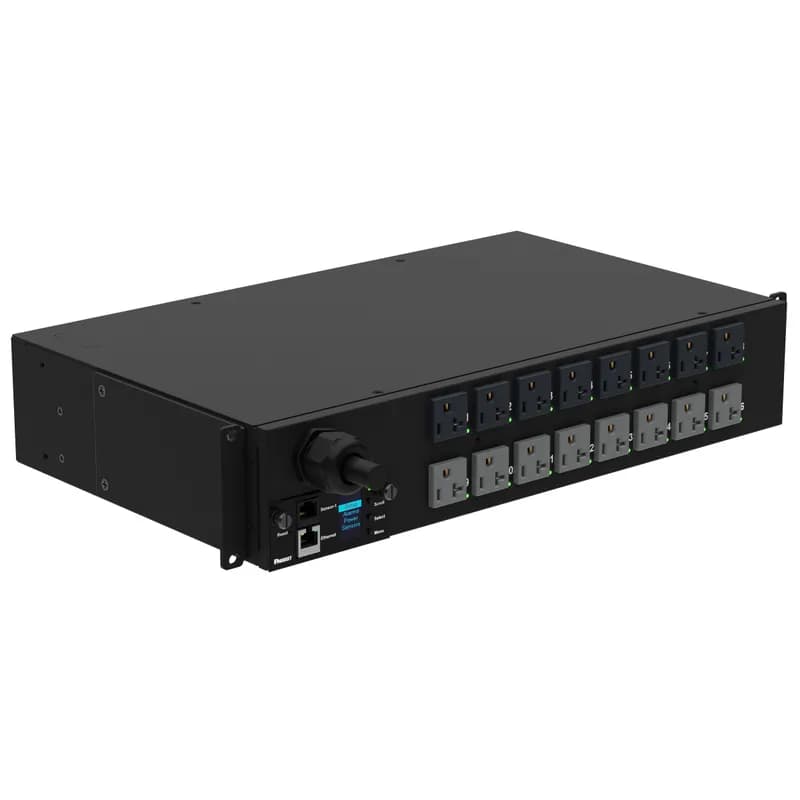

This Panduit G5 Monitored Switched PDU features (16) 5-20R outlets. It is a 30 amp, 120 V, single phase PDU with a NEMA L5-30P input plug and a 10 foot (3m) power cord.
P16D12M

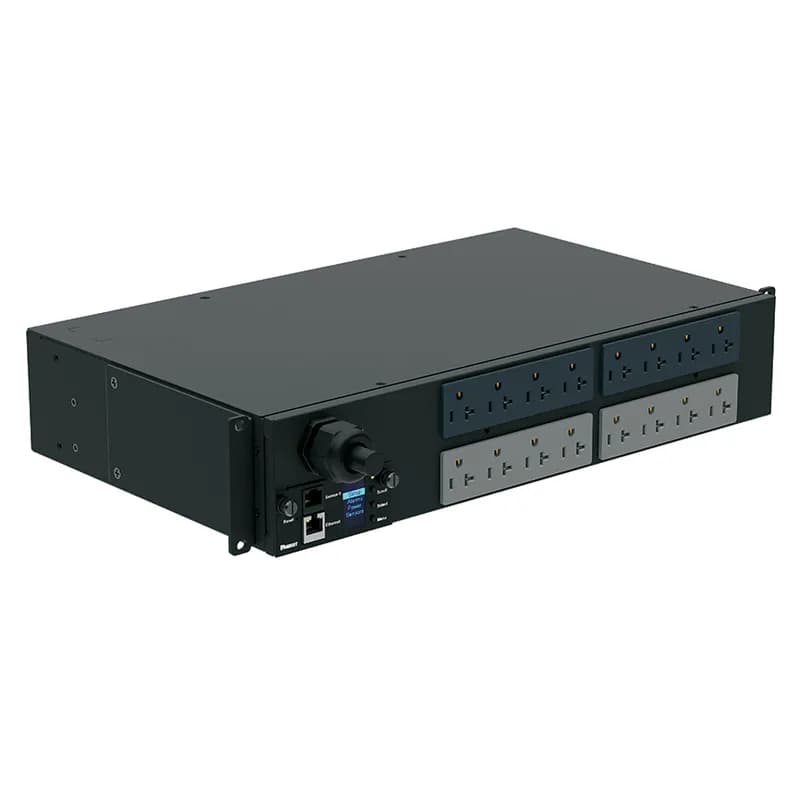

This Panduit G5 Monitored Input PDU features (16) 5-20R outlets. It is a 30 amp, 120 V, single phase PDU with a NEMA L5-30P input plug and a 10 foot (3m) power cord.
P08E18M

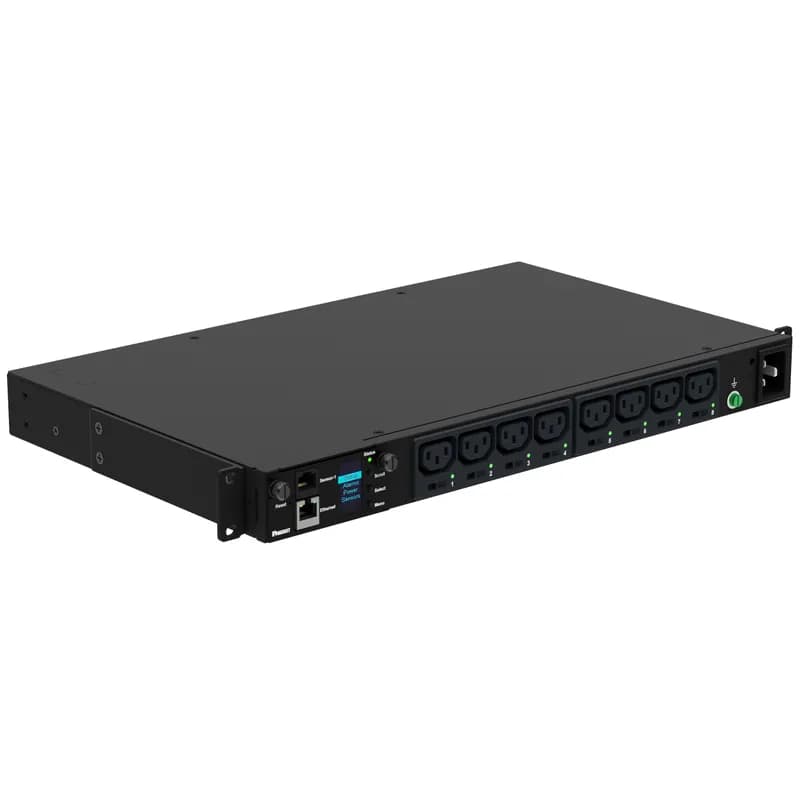

This Panduit G5 Monitored Switched PDU features (8) C13 outlets. It is a 20 amp, 208 V, single phase PDU with a NEMA L6-20P input plug and a 10 foot (3m) power cord.Frequently Asked Questions
What is the form factor of P08E16M?
The P08E16M has a 1U form factor.
What is the apparent power of P08E16M?
The apparent power for P08E16M is 1.9 kVA.
How many outlets does P08E16M have?
The P08E16M has 8 outlets of type 5-20R.
What is the input plug type for P08E16M?
The P08E16M uses an L5-20P input plug type.
What is the input voltage for P08E16M?
The P08E16M operates on 100-240VAC, 1-Phase.
What is the input plug type for P08E16M?
The P08E16M uses an L5-20P input plug type.
What is the form factor of P08E16M?
The P08E16M has a 1U form factor.
What is the apparent power of P08E16M?
The apparent power for P08E16M is 1.9 kVA.
How many outlets does P08E16M have?
The P08E16M has 8 outlets of type 5-20R.
What is the input voltage for P08E16M?
The P08E16M operates on 100-240VAC, 1-Phase.
How to Install the Panduit G5 Power Distribution Unit (PDU)
This guide provides step-by-step instructions for installing and configuring the Panduit G5 PDU in a data center rack.
Estimated time: 1h
Tools needed:
Phillips screwdriver, Torx screwdriver, Multimeter
Supplies needed:
Mounting screws, Cage nuts, Ground bonding cable
- Mount the PDU
Align and install the mounting buttons with the screw holes on the sides of the PDU. Insert the mounting buttons into the keyhole slots on the PDU mounting bracket in the rack.
- Connect the Ground Bonding Cable
Attach the ground bonding cable to the external ground bonding point located on the chassis of the PDU. Ensure it is securely fastened to a known earthed reference terminal.
- Connect the PDU to Power Source
Turn off the feed circuit breaker. Connect the PDU to an appropriately rated branch circuit. Turn on the feed circuit breaker and verify the OLED screen displays the main menu.
- Configure the PDU
Access the Web interface to configure the input cord type. Navigate to the System Management page, select 'Set Input Cord', choose the correct cord type, and save the settings.
