Panduit OMTM-S25-C0 - The multiple gang cable tie mount in black is used to fasten wires and cables at one inch above a mounting surface at equal spaced distances. It uses a 1/4" (M6) screw mounting method and made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. The cable tie mount is 1.09" long x 0.90" wide (27.6 x 22.9 mm). It is designed for outdoor environments and used with cable ties M, I, S, and LH. It is recommended for use with LH cross section cable ties when a cable tie passes around two adjacent rungs. It comes in packages of 100.
Panduit

OMTM-S25-C0

UPC: 074983330607

Documents & Media
Technical DrawingFull Engineering DrawingSpecification SheetVideo Clip

Contact for Pricing

Minimum Qty: 500

Multiplier: 100

*Contact for lower quantities*

Overview

The Panduit OMTM-S25-C0 is a black, weather-resistant multiple gang cable tie mount designed for robust wire and cable management in outdoor environments. Manufactured from durable Nylon 6.6, this mount offers increased mechanical strength, superior heat and wear resistance, and enhanced stiffness, ensuring long-term reliability. It features a 1/4" (M6) screw mounting method, providing a secure attachment to various surfaces. The mount is engineered to fasten wires and cables at a consistent one-inch elevation above the mounting surface, with equally spaced distances between attachment points, promoting organized and efficient cable routing. Its dimensions are 1.09" long by 0.90" wide (27.6 x 22.9 mm), offering a compact yet effective solution for cable bundling. This mount is compatible with Panduit cable ties of M, I, S, and LH cross-sections. It is specifically recommended for use with LH cross-section cable ties when a tie needs to pass around two adjacent rungs, ensuring optimal stability and security for larger cable bundles. The OMTM-S25-C0 is suitable for demanding outdoor applications, maintaining its integrity and performance under various environmental conditions. Each package contains 100 units, making it an economical choice for large-scale installations. This product is manufactured in the USA and adheres to high-quality standards. Its design prioritizes ease of use and secure cable fixation, making it an essential component for industrial, construction, and outdoor infrastructure projects requiring reliable cable tie mounting solutions. The weather-resistant Nylon 6.6 material ensures it can withstand UV exposure and temperature fluctuations without degradation, a critical factor for outdoor deployments. The 1/4" (M6) screw size compatibility allows for straightforward installation with common fastening hardware. The mount's unique design facilitates efficient cable tie entry and management, simplifying the overall wiring process. For applications requiring secure and organized cable management in challenging outdoor settings, the Panduit OMTM-S25-C0 provides a dependable and durable solution.
  • Weather-resistant Nylon 6.6 construction for outdoor durability
  • 1/4" (M6) screw mounting method for secure attachment
  • Fastens wires and cables at 1" above mounting surface with equal spacing
  • Compatible with M, I, S, and LH cross-section cable ties
  • Dimensions: 1.09" L x 0.90" W (27.6 x 22.9 mm)

Specifications

Application
Indoor/Outdoor;To Fasten Wiring And Cables at One Inch Above a Mounting Surface and Spaced Equal Distances (One Inch Center-To-Center) From Each Other. This is Particularly Beneficial for Medium to High Voltage Cables to Address Corona and Other Electrical Effects.
Cable Size
NA
Cable Type
Cable Tie Mount
Color
Black
Insulation
Polyamide (PA)
Material Quality
Nylon 6.6
Mount Size
NA In.
Mounting
Screw-On
Operating Temperature, Maximum
185 F
Operating Temperature, Maximum
85 C
Operating Temperature, Minimum
185 F
Operating Temperature, Minimum
85 C
Screw Holes
NA
Special Features
Fixed bundle separation provides 1 inch offset from mounting surface; the separation between adjacent cables helps to avoid abrasion or interference, ensuring reliable cable performance
Standard
RoHS Compliant
Type
Cable Tie Mount
Used With Cable Ties*
M, I, S, LH
Package Dimensions (L x W x H)
17.956 IN x 11.456 IN x 10.993 IN
Package Weight (Imperial)
7.77 lbs
The cable tie anchor mount is black and is applied with a #8 (M4) screw. It is 0.80" (20.3 mm) long and made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with cable ties Super-Grip miniature, Super-Grip intermediate, and Super-Grip standard adhesive backed cable tie mounts. It comes in packages of 100.

SGTA1S8-C0

The cable tie anchor mount is black and is applied with a #8 (M4) screw. It is 0.80" (20.3 mm) long and made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with cable ties Super-Grip miniature, Super-Grip intermediate, and Super-Grip standard adhesive backed cable tie mounts. It comes in packages of 100.
The cable tie mount is black and is applied with a #8 (M4) screw. It is 0.66" (16.7 mm) long and made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with cable ties Super-Grip miniature, Super-Grip intermediate, and Super-Grip standard adhesive backed cable tie mounts. It comes in packages of 100.

SGTM2S8-C0

The cable tie mount is black and is applied with a #8 (M4) screw. It is 0.66" (16.7 mm) long and made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with cable ties Super-Grip miniature, Super-Grip intermediate, and Super-Grip standard adhesive backed cable tie mounts. It comes in packages of 100.
The cable tie mount is black and is applied with a #6 (M3) screw. It is 0.51" (13.0 mm) long and made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with Super-Grip miniature adhesive backed cable tie mounts. It comes in packages of 100.

SGTM1S6-C0

The cable tie mount is black and is applied with a #6 (M3) screw. It is 0.51" (13.0 mm) long and made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with Super-Grip miniature adhesive backed cable tie mounts. It comes in packages of 100.
The low profile cable tie mount in black is applied with an #8 (M4) screw. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with miniature, intermediate, and standard cable ties. It is designed for indoor environments and comes in packages of 1000.

LPMS-S8-M20

The low profile cable tie mount in black is applied with an #8 (M4) screw. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with miniature, intermediate, and standard cable ties. It is designed for indoor environments and comes in packages of 1000.
StrongHold SSM3S8-3X0 screw applied cable tie have a unique design that provides maximum stability for cable bundles. Install with a #8 (M4) screw. Suitable for miniature, intermediate, standard, and light-heavy cross-section cable ties. Made of Weather Resistant Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. For indoor and outdoor environments, are black in color, and come in packages of 30.

SSM3S8-3X0

StrongHold SSM3S8-3X0 screw applied cable tie have a unique design that provides maximum stability for cable bundles. Install with a #8 (M4) screw. Suitable for miniature, intermediate, standard, and light-heavy cross-section cable ties. Made of Weather Resistant Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. For indoor and outdoor environments, are black in color, and come in packages of 30.
The pan-post standoff is black and requires a #10 (M5) screw. It measures 1.06" long x 0.72" wide x 4.60" high (26.9 x 18.3 x 116.9 mm). It is used with miniature, intermediate, and standard cable ties. It comes in packages of 100.

PP2S-S10-C0

The pan-post standoff is black and requires a #10 (M5) screw. It measures 1.06" long x 0.72" wide x 4.60" high (26.9 x 18.3 x 116.9 mm). It is used with miniature, intermediate, and standard cable ties. It comes in packages of 100.

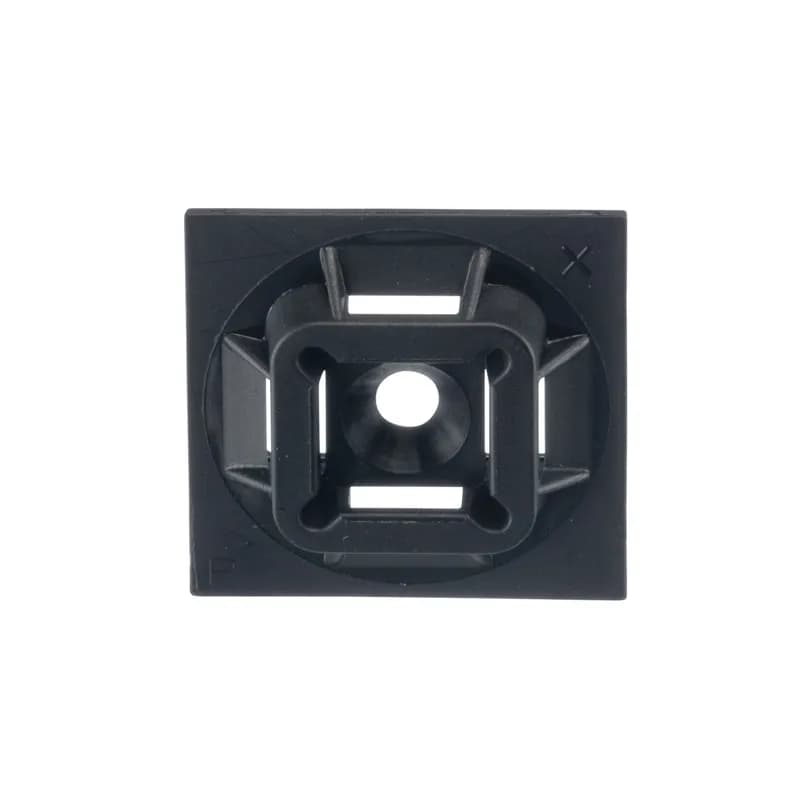

The 4-way mount in black is applied with user-supplied adhesive or a #6 (M3) screw and measures 1" x 1" (25.4 mm x 25.4 mm). It is made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is designed for outdoor environments and comes in packages of 100.

SGABM25-S6-C0

The 4-way mount in black is applied with user-supplied adhesive or a #6 (M3) screw and measures 1" x 1" (25.4 mm x 25.4 mm). It is made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is designed for outdoor environments and comes in packages of 100.
The Panduit SGTM3S10-C0 Super Grip Screw Applied Cable Tie Mounts have a unique cradle design that provides maximum stability and a low profile design that keeps bundles close to the mounting surface. Designed for use in outdoor environments and with miniature, through light-heavy cable ties. They are 0.91 x 0.61 x 0.43 (23.1 x 15.4 x 11.0 mm) in size and require a #10 (M5) screw for application. Made of Weather Resistant Nylon 6.6, are black in color and come in packages of 100.

SGTM3S10-C0

The Panduit SGTM3S10-C0 Super Grip Screw Applied Cable Tie Mounts have a unique cradle design that provides maximum stability and a low profile design that keeps bundles close to the mounting surface. Designed for use in outdoor environments and with miniature, through light-heavy cable ties. They are 0.91 x 0.61 x 0.43 (23.1 x 15.4 x 11.0 mm) in size and require a #10 (M5) screw for application. Made of Weather Resistant Nylon 6.6, are black in color and come in packages of 100.
The Tak-Ty Hook and Loop Cable Tie Mount is mounted with a #6 (M3) Screw. The cable tie mount is made of nylon 6.6 and increases mechanical strength, heat and wear resistance, and stiffness. It is used with HLT/HLS Tak-Ty Hook and Loop Cable Ties. The cable tie mount is 1.12 inches L x 1.12 inches W (28.5mm x 28.5mm). It comes in packages of 100.

ABMT-S6-C20

The Tak-Ty Hook and Loop Cable Tie Mount is mounted with a #6 (M3) Screw. The cable tie mount is made of nylon 6.6 and increases mechanical strength, heat and wear resistance, and stiffness. It is used with HLT/HLS Tak-Ty Hook and Loop Cable Ties. The cable tie mount is 1.12 inches L x 1.12 inches W (28.5mm x 28.5mm). It comes in packages of 100.
The cable tie mount in black uses #6 (M3) screws or user supplied adhesive. It measures 1.12" long x 1.12" wide (28.5 x 28.5 mm). It is used with miniature, intermediate, and standard cable ties. It is made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. The cable tie mount is designed for outdoor environments and comes in packages of 500.

ABM112-S6-D0

The cable tie mount in black uses #6 (M3) screws or user supplied adhesive. It measures 1.12" long x 1.12" wide (28.5 x 28.5 mm). It is used with miniature, intermediate, and standard cable ties. It is made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. The cable tie mount is designed for outdoor environments and comes in packages of 500.
The low profile cable tie mount in black is applied with a #5 (M3) screw. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with cable ties M, is designed for indoor environments, and comes in packages of 1000.

LPMM-S5-M20

The low profile cable tie mount in black is applied with a #5 (M3) screw. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with cable ties M, is designed for indoor environments, and comes in packages of 1000.
StrongHold SSM3S8-C0 screw applied cable tie have a unique design that provides maximum stability for cable bundles. Install with a #8 (M4) screw. Suitable for miniature, intermediate, standard, and light-heavy cross-section cable ties. Made of Weather Resistant Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. For indoor and outdoor environments, are black in color, and come in packages of 100.

SSM3S8-C0

StrongHold SSM3S8-C0 screw applied cable tie have a unique design that provides maximum stability for cable bundles. Install with a #8 (M4) screw. Suitable for miniature, intermediate, standard, and light-heavy cross-section cable ties. Made of Weather Resistant Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. For indoor and outdoor environments, are black in color, and come in packages of 100.

Frequently Asked Questions

What are the dimensions of the OMTM-S25-C0?

The dimensions are 1.09 in length, 0.90 in width, and 1.27 in height.

What is the temperature range for this product?

The continuous temperature range is -31°F (-35°C) to 185°F (85°C).

How is the cable tie mount installed?

It is secured to a flat surface using one 1/4 in (M6) screw installed through the center.

What is the material of the cable tie mount?

The cable tie mount is made of black weather-resistant nylon 6.6.

Is the OMTM-S25-C0 suitable for outdoor use?

Yes, it is designed for both indoor and outdoor applications.

What cable ties are compatible with this mount?

It is compatible with Pan-Ty®, Dome-Top®, Barb Ty, Contour-Ty®, or Super-Grip™ cable ties.

What is the recommended spacing for cables?

Cables should be spaced one inch center-to-center to avoid abrasion or interference.

How many cable tie mounts are in a standard package?

There are 100 cable tie mounts in a standard package.

What is the flammability rating of this product?

The flammability rating of the OMTM-S25-C0 is V-2.

What is the purpose of the dovetail construction?

The dovetail construction allows for fast positioning and securement of multiple mounts.
