Panduit LIAS4-Q - The LIAS4-Q Tin Plated Lay in Lug is used to connect a grounding electrode conductor to a galvanized steel or anodized aluminum I-beam, a metal frame or cable tray. The compression screw penetrates surface paint or oxide to create electrical contact. Eliminates need to pre-drill.
Panduit

LIAS4-Q

UPC: 613056892996

Documents & Media
Technical BulletinTechnical DrawingFull Engineering Drawing

Contact for Pricing

Minimum Qty: 25

Multiplier: 1

*Contact for lower quantities*

Overview

The Panduit LIAS4-Q Tin Plated Lay-in Lug (SKU: LIAS4-Q) is engineered for robust grounding and bonding applications, providing a reliable connection point for grounding electrode conductors. This lug is specifically designed to attach to galvanized steel or anodized aluminum I-beams, metal frames, or cable trays. Its innovative design features a compression screw that effectively penetrates surface paint or oxide layers, ensuring direct electrical contact without the need for pre-drilling. This capability significantly simplifies installation and reduces labor time. Constructed with a tin-plated aluminum body, the LIAS4-Q offers excellent conductivity and corrosion resistance. The compression screw is made of zinc-plated steel, providing durability and a secure grip. The lug is compatible with conductor sizes ranging from #6 AWG to 250 kcmil, accommodating a wide wire range to minimize inventory requirements. It features a stud hole size of 0.33 inches and requires a 0.25-inch hex key for installation. The overall dimensions are 2.20 inches in length, 0.80 inches in width, and 1.70 inches in height. Each standard package contains 25 units. While the LIAS4-Q is not DB (Direct Burial) Rated, it is suitable for general grounding and bonding applications where direct burial is not a requirement. For optimal performance and longevity of pad to conductor connections, the use of Panduit oxide inhibiting joint compound (CMP) is recommended. This lay-in lug is a critical component for ensuring electrical safety and compliance in various industrial and commercial installations. Its ease of use and effective contact mechanism make it a preferred choice for electricians and system designers seeking efficient and dependable grounding solutions.
  • Connects grounding electrode conductor to I-beams, metal frames, or cable trays.
  • Compression screw penetrates surface paint or oxide for direct electrical contact.
  • Eliminates the need for pre-drilling on mounting surfaces.
  • Tin-plated aluminum body for conductivity and corrosion resistance.
  • Accommodates conductor sizes from #6 AWG to 250 kcmil.

Specifications

Clamp Material
Aluminum
Connection Type
Compression Screw
Length
1.39 in
Length
35.306 mm
Material
Aluminum
Material
Tin Plated
Mounting Type
Lay-in
Series
LIAS4
Size
4 AWG
Standard
UL467 and UL2703
Type
Lay-In Lug
Package Dimensions (L x W x H)
17.5 IN x 11.5 IN x 3 IN
Package Weight (Imperial)
19.98 lbs

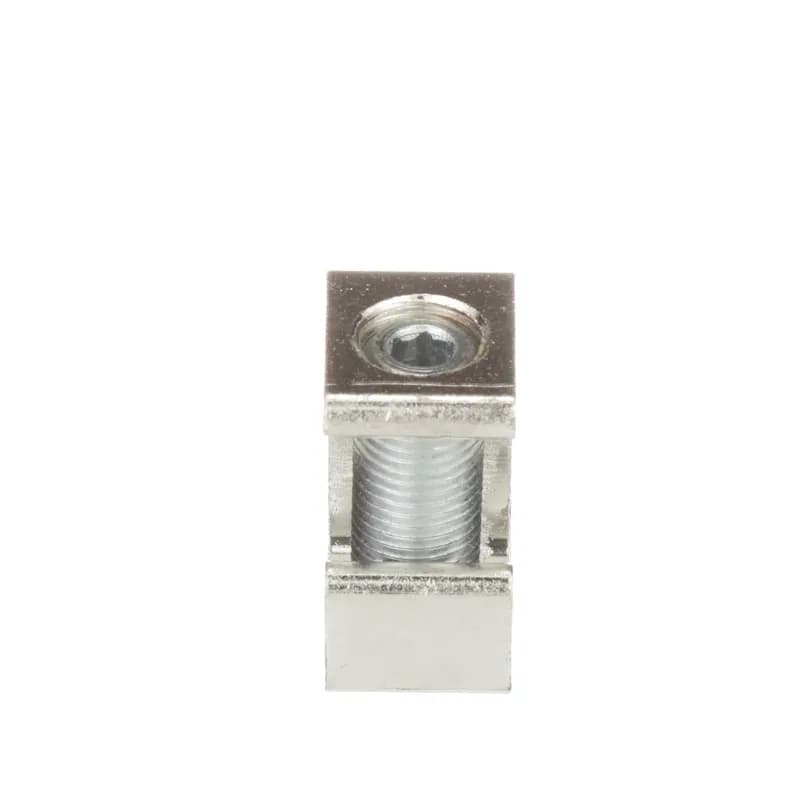

The LIAS250-56-X Tin-Plated Aluminum Lay-In-Lug, one-hole, is designed for quick installation of a continuous grounding conductors. The wide wire range-taking capability minimizes inventory requirements. UL Listed and temperature rated to 90 C.

LIAS250-56-X

The LIAS250-56-X Tin-Plated Aluminum Lay-In-Lug, one-hole, is designed for quick installation of a continuous grounding conductors. The wide wire range-taking capability minimizes inventory requirements. UL Listed and temperature rated to 90 C.
The LIAS250-56-Q Tin-Plated Aluminum Lay-In-Lug, one-hole, is designed for quick installation of a continuous grounding conductors. The wide wire range-taking capability minimizes inventory requirements. UL Listed and temperature rated to 90 C.

LIAS250-56-Q

The LIAS250-56-Q Tin-Plated Aluminum Lay-In-Lug, one-hole, is designed for quick installation of a continuous grounding conductors. The wide wire range-taking capability minimizes inventory requirements. UL Listed and temperature rated to 90 C.
Aluminum dual rated ground clamp, type GC, conduit pipe or water tube size 1/2" 3/4" 1".

GC-15A-Q

Aluminum dual rated ground clamp, type GC, conduit pipe or water tube size 1/2" 3/4" 1".

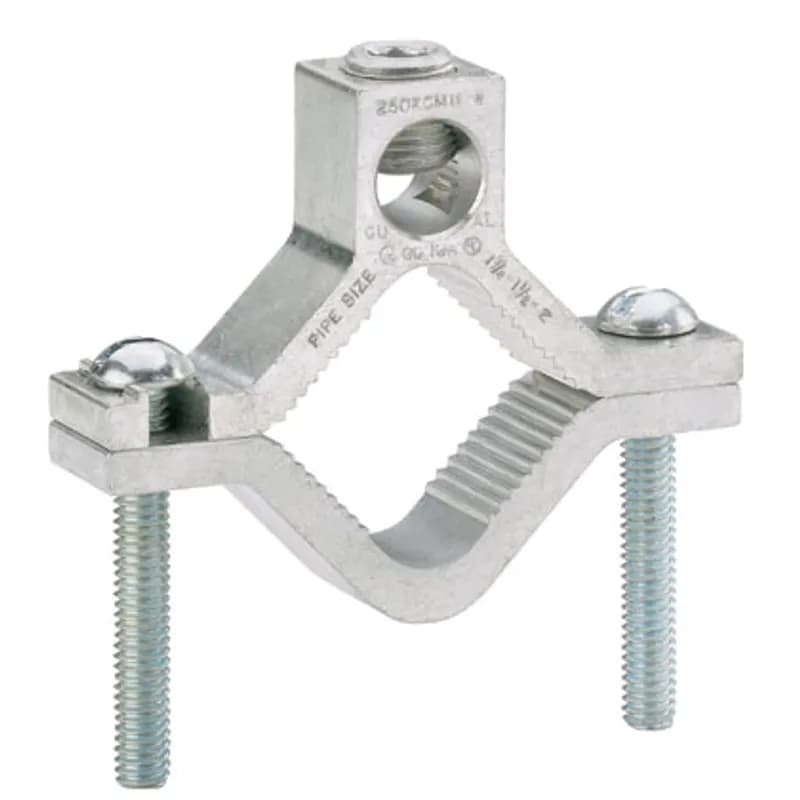

Aluminum dual rated ground clamp, type GC, conduit pipe or water tube size 1 1/4" 1", 1/2" 2".

GC-18A-X

Aluminum dual rated ground clamp, type GC, conduit pipe or water tube size 1 1/4" 1", 1/2" 2".
Aluminum dual rated ground clamp, type GC, conduit pipe or water tube size 2 1/2" 3" 3 1/2" 4".

GC-22A-4

Aluminum dual rated ground clamp, type GC, conduit pipe or water tube size 2 1/2" 3" 3 1/2" 4".
The UGB2/0-414-18 Universal Ground Bar securely terminates the main equipment grounding conductor with a compression or mechanical connector in any control panel or enclosure. The universal ground bar accepts #14 #4 AWG wire in 18 wire ports and up to a 2/0 AWG main equipment grounding conductor with a compression or mechanical connector. Several mounting options are available, including bonding stand-offs, isolation stand-offs, and direct mounting to a panel.

UGB2/0-414-18

The UGB2/0-414-18 Universal Ground Bar securely terminates the main equipment grounding conductor with a compression or mechanical connector in any control panel or enclosure. The universal ground bar accepts #14 #4 AWG wire in 18 wire ports and up to a 2/0 AWG main equipment grounding conductor with a compression or mechanical connector. Several mounting options are available, including bonding stand-offs, isolation stand-offs, and direct mounting to a panel.
The UGB2/0-414-6 Universal Ground Bar securely terminates the main equipment grounding conductor with a compression or mechanical connector in any control panel or enclosure. The universal ground bar accepts #14 #4 AWG wire in 6 wire ports and up to a 2/0 AWG main equipment grounding conductor with a compression or mechanical connector. Several mounting options are available, including bonding stand-offs, isolation stand-offs, and direct mounting to a panel.

UGB2/0-414-6

The UGB2/0-414-6 Universal Ground Bar securely terminates the main equipment grounding conductor with a compression or mechanical connector in any control panel or enclosure. The universal ground bar accepts #14 #4 AWG wire in 6 wire ports and up to a 2/0 AWG main equipment grounding conductor with a compression or mechanical connector. Several mounting options are available, including bonding stand-offs, isolation stand-offs, and direct mounting to a panel.
The FIG6-500-2/0 Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors. Used for tapping conductor to conductor and conductor to ground rod and rebar applications and with copper clad, solid copper and stainless steel ground rod types. Meets UL486A-486B up to for 35kV for power applications temp rated 90C. Meets cULus Listed to UL 467 for direct burial in earth and concrete.

FIG6-500-2/0

The FIG6-500-2/0 Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors. Used for tapping conductor to conductor and conductor to ground rod and rebar applications and with copper clad, solid copper and stainless steel ground rod types. Meets UL486A-486B up to for 35kV for power applications temp rated 90C. Meets cULus Listed to UL 467 for direct burial in earth and concrete.
The GCC8-5/8-500 Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors. Used for tapping conductor to conductor and conductor to ground rod and rebar applications. Use with copper clad, solid copper and stainless steel ground rod types. UL listed per UL486 for use suitable for direct burial in earth and concrete, use with Panduit or industry standard crimp tools and crimp dies.

GCC8-5/8-500

The GCC8-5/8-500 Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors. Used for tapping conductor to conductor and conductor to ground rod and rebar applications. Use with copper clad, solid copper and stainless steel ground rod types. UL listed per UL486 for use suitable for direct burial in earth and concrete, use with Panduit or industry standard crimp tools and crimp dies.
The GCC8-1-500 Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors. Used for tapping conductor to conductor and conductor to ground rod and rebar applications. Use with copper clad, solid copper and stainless steel ground rod types. UL listed per UL486 for use suitable for direct burial in earth and concrete. UL 486A-486B Listed for wire to wire power applications up to 36 Kv and temperature rated 90C with select Panduit or industry standard crimp tools and crimp dies.

GCC8-1-500

The GCC8-1-500 Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors. Used for tapping conductor to conductor and conductor to ground rod and rebar applications. Use with copper clad, solid copper and stainless steel ground rod types. UL listed per UL486 for use suitable for direct burial in earth and concrete. UL 486A-486B Listed for wire to wire power applications up to 36 Kv and temperature rated 90C with select Panduit or industry standard crimp tools and crimp dies.
The GCC8-3/4-500 Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors. Used for tapping conductor to conductor and conductor to ground rod and rebar applications. Use with copper clad, solid copper and stainless steel ground rod types. UL listed per UL486 for use suitable for direct burial in earth and concrete, use with Panduit or industry standard crimp tools and crimp dies.

GCC8-3/4-500

The GCC8-3/4-500 Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors. Used for tapping conductor to conductor and conductor to ground rod and rebar applications. Use with copper clad, solid copper and stainless steel ground rod types. UL listed per UL486 for use suitable for direct burial in earth and concrete, use with Panduit or industry standard crimp tools and crimp dies.

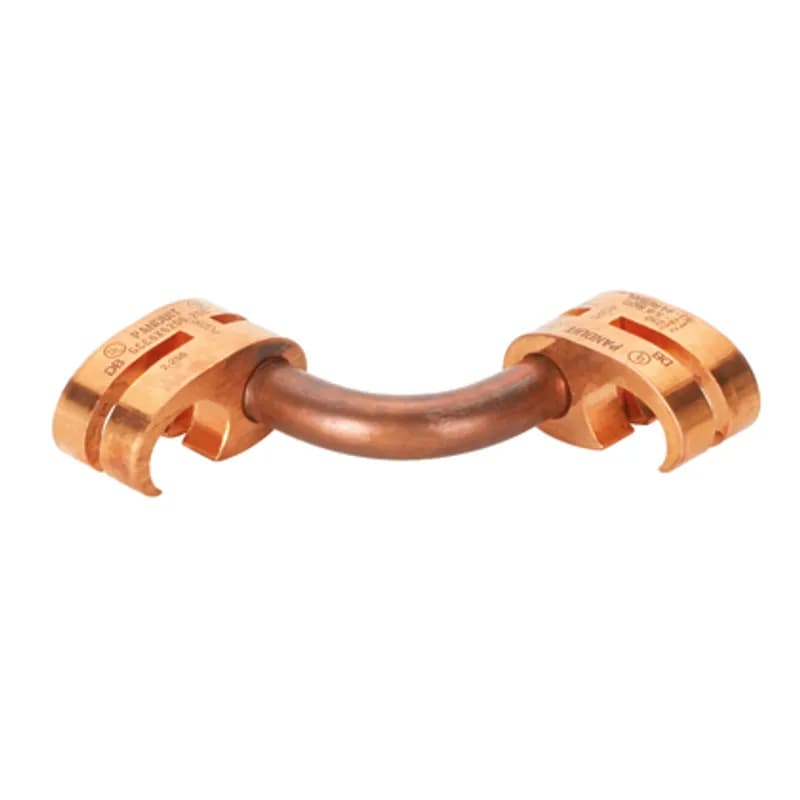

The GCC6X6500-250 Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper code conductors. Used for tapping conductor to conductor and conductor to ground rod and rebar applications. Use with copper clad, solid copper and stainless steel ground rod types. UL 486A-486B up to for 35kV for power applications temp rated 90C. Designed to enhance crimp process meeting IEEE STD 837 - 2002 and REV 2014. cULus Listed to UL 467 for direct burial in earth and concrete.

GCC6X6500-250

The GCC6X6500-250 Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper code conductors. Used for tapping conductor to conductor and conductor to ground rod and rebar applications. Use with copper clad, solid copper and stainless steel ground rod types. UL 486A-486B up to for 35kV for power applications temp rated 90C. Designed to enhance crimp process meeting IEEE STD 837 - 2002 and REV 2014. cULus Listed to UL 467 for direct burial in earth and concrete.
