Panduit LIAS250-56-Q - The LIAS250-56-Q Tin-Plated Aluminum Lay-In-Lug, one-hole, is designed for quick installation of a continuous grounding conductors. The wide wire range-taking capability minimizes inventory requirements. UL Listed and temperature rated to 90 C.
Panduit

LIAS250-56-Q

UPC: 074983390663

Documents & Media
Technical BulletinTechnical DrawingFull Engineering DrawingVideo Clip

Contact for Pricing

Overview

The Panduit LIAS250-56-Q is a tin-plated aluminum lay-in lug designed for efficient and reliable grounding and bonding applications. This single-hole lug facilitates the quick installation of continuous grounding conductors, significantly reducing labor time and complexity. Its robust construction from extruded aluminum alloy ensures premium electrical and mechanical performance, while the tin plating inhibits corrosion, extending the product's lifespan. A key benefit of the LIAS250-56-Q is its wide wire range-taking capability, accommodating conductor sizes from #6 AWG to 250 kcmil. This broad compatibility minimizes inventory requirements for electrical contractors and maintenance professionals, allowing for a streamlined stock of essential grounding components. The lug features a zinc-plated steel set screw that provides a durable electrical contact between the conductor and the connector, ensuring a secure connection. It is UL Listed for grounding and bonding applications and is temperature rated to 90°C, making it suitable for a variety of industrial and commercial environments. The LIAS250-56-Q is UL Listed for use up to 600 V. For optimal performance and longevity, the use of Panduit oxide inhibiting joint compound (CMP) is recommended for pad to conductor connections. This product is manufactured in the USA.
  • Designed for quick installation of continuous grounding conductors.
  • Wide wire range-taking capability (#6 AWG - 250 kcmil) minimizes inventory.
  • Tin-plated aluminum body for corrosion resistance and durability.
  • UL Listed for grounding and bonding, temperature rated to 90°C.
  • Zinc-plated steel set screw ensures secure conductor contact.

Specifications

Clamp Material
Aluminum
Connection Type
Lay-In-Lug
Length
2.2 in
Length
55.88 mm
Material
Tin-plated Aluminum
Material
Aluminum
Size
one-hole
Standard
cULus Listed 467 for Grounding applications
Type
Lay-In Lug
Package Dimensions (L x W x H)
9.15 IN x 4.5 IN x 4.4 IN
Package Weight (Imperial)
4.9 lbs
The LIAS250-56-X Tin-Plated Aluminum Lay-In-Lug, one-hole, is designed for quick installation of a continuous grounding conductors. The wide wire range-taking capability minimizes inventory requirements. UL Listed and temperature rated to 90 C.

LIAS250-56-X

The LIAS250-56-X Tin-Plated Aluminum Lay-In-Lug, one-hole, is designed for quick installation of a continuous grounding conductors. The wide wire range-taking capability minimizes inventory requirements. UL Listed and temperature rated to 90 C.
Aluminum dual rated ground clamp, type GC, conduit pipe or water tube size 1/2" 3/4" 1".

GC-15A-Q

Aluminum dual rated ground clamp, type GC, conduit pipe or water tube size 1/2" 3/4" 1".
Aluminum dual rated ground clamp, type GC, conduit pipe or water tube size 1 1/4" 1", 1/2" 2".

GC-18A-X

Aluminum dual rated ground clamp, type GC, conduit pipe or water tube size 1 1/4" 1", 1/2" 2".
Aluminum dual rated ground clamp, type GC, conduit pipe or water tube size 2 1/2" 3" 3 1/2" 4".

GC-22A-4

Aluminum dual rated ground clamp, type GC, conduit pipe or water tube size 2 1/2" 3" 3 1/2" 4".
The LIAS4-Q Tin Plated Lay in Lug is used to connect a grounding electrode conductor to a galvanized steel or anodized aluminum I-beam, a metal frame or cable tray. The compression screw penetrates surface paint or oxide to create electrical contact. Eliminates need to pre-drill.

LIAS4-Q

The LIAS4-Q Tin Plated Lay in Lug is used to connect a grounding electrode conductor to a galvanized steel or anodized aluminum I-beam, a metal frame or cable tray. The compression screw penetrates surface paint or oxide to create electrical contact. Eliminates need to pre-drill.

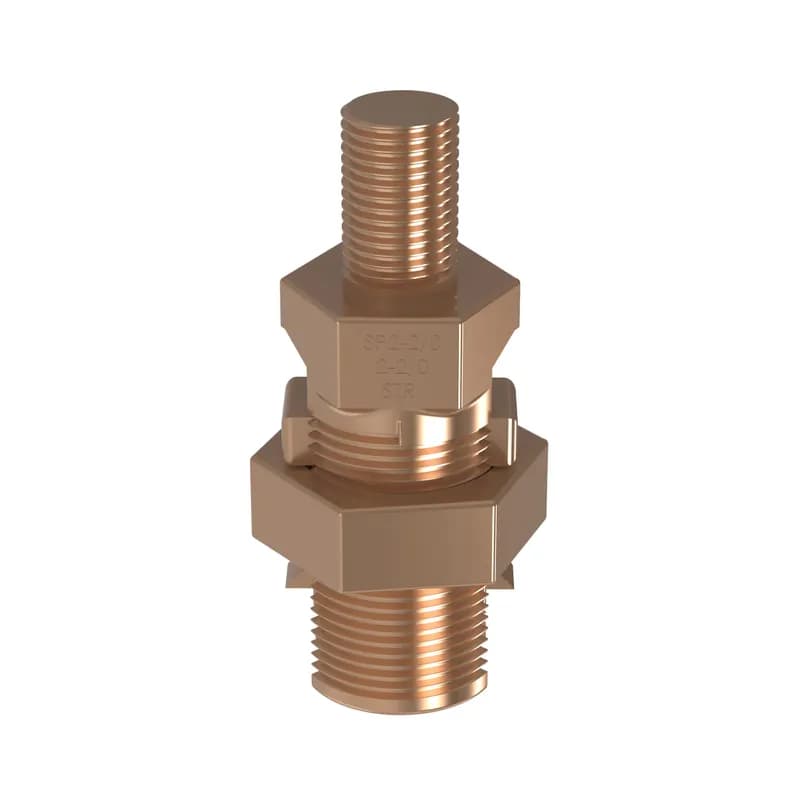

The SP2-2/0-Q Service Post Grounding Lug is designed for grounding two copper code conductors to steel structures, busbars, transformers. The true hex design for body and nut hex provides correct fit with socket, box, or open-end wrenches, resulting in proper torquing of electrical connection. The pressure bar provides a secure connection on a full range of conductor combinations used with each Lug providing a premium wire pull-out strength. UL Listed for grounding and bonding.

SP2-2/0-Q

The SP2-2/0-Q Service Post Grounding Lug is designed for grounding two copper code conductors to steel structures, busbars, transformers. The true hex design for body and nut hex provides correct fit with socket, box, or open-end wrenches, resulting in proper torquing of electrical connection. The pressure bar provides a secure connection on a full range of conductor combinations used with each Lug providing a premium wire pull-out strength. UL Listed for grounding and bonding.
The LICC4-22-C Copper Lay-In-Lug, one-hole, is used for quick installation of a continuous grounding conductor. The wide wire range-taking capability minimizes inventory requirements. Copper body lugs are UL Listed for direct burial in earth or concrete.

LICC4-22-C

The LICC4-22-C Copper Lay-In-Lug, one-hole, is used for quick installation of a continuous grounding conductor. The wide wire range-taking capability minimizes inventory requirements. Copper body lugs are UL Listed for direct burial in earth or concrete.
The LICC4-22TP-TL Tin-plated copper Lay-In-Lug, one-hole, is used for quick installation of a continuous grounding conductor. The wide wire range-taking capability minimizes inventory requirements. Copper body lugs are UL Listed for direct burial in earth or concrete.

LICC4-22TP-TL

The LICC4-22TP-TL Tin-plated copper Lay-In-Lug, one-hole, is used for quick installation of a continuous grounding conductor. The wide wire range-taking capability minimizes inventory requirements. Copper body lugs are UL Listed for direct burial in earth or concrete.
The SP1-4L-C Service Post Grounding Lug is designed for grounding one copper code conductor to steel structures, busbars, transformers. The true hex design for body and nut hex provides correct fit with socket, box, or open-end wrenches, resulting in proper torquing of electrical connection. The pressure bar provides a secure connection on a full range of conductor combinations used with each Lug providing a premium wire pull-out strength. UL Listed for grounding and bonding.

SP1-4L-C

The SP1-4L-C Service Post Grounding Lug is designed for grounding one copper code conductor to steel structures, busbars, transformers. The true hex design for body and nut hex provides correct fit with socket, box, or open-end wrenches, resulting in proper torquing of electrical connection. The pressure bar provides a secure connection on a full range of conductor combinations used with each Lug providing a premium wire pull-out strength. UL Listed for grounding and bonding.
Mechanical Grounding Connector, 2 Cables to Bar, 4 Str. - 300 kcmil, 1/2" Stud

GBC4300-12-X

Mechanical Grounding Connector, 2 Cables to Bar, 4 Str. - 300 kcmil, 1/2" Stud
Bronze, service post connector, 1 SOL-4/0 STR, stud length 1.50", male, two cable, type SP2.

SP2-4/0L-Q

Bronze, service post connector, 1 SOL-4/0 STR, stud length 1.50", male, two cable, type SP2.
The SP2-4/0-Q Service Post Grounding Lug is designed for grounding two copper code conductors to steel structures, busbars, transformers. The true hex design for body and nut hex provides correct fit with socket, box, or open-end wrenches, resulting in proper torquing of electrical connection. The pressure bar provides a secure connection on a full range of conductor combinations used with each Lug providing a premium wire pull-out strength. UL Listed for grounding and bonding.

SP2-4/0-Q

The SP2-4/0-Q Service Post Grounding Lug is designed for grounding two copper code conductors to steel structures, busbars, transformers. The true hex design for body and nut hex provides correct fit with socket, box, or open-end wrenches, resulting in proper torquing of electrical connection. The pressure bar provides a secure connection on a full range of conductor combinations used with each Lug providing a premium wire pull-out strength. UL Listed for grounding and bonding.
