Panduit LD5IG6-A - The LD5 Surface Raceway channel is a one-piece latching channel with integrated cover and is designed to route, protect, and conceal data, voice, and video cabling. It features a factory-applied adhesive backing for fast mounting. It is 6 feet in length and is 1.01 inches wide by 0.58 inches deep. It meets TIA/EIA, used in applications up to 50 V. It is constructed of rigid PVC and is International Gray.
Panduit

LD5IG6-A

UPC: 074983588213

Documents & Media
Technical DrawingFull Engineering DrawingInstallation InstructionsSpecification SheetVideo Clip

Contact for Pricing

Minimum Qty: 120

Multiplier: 6

*Contact for lower quantities*

Overview

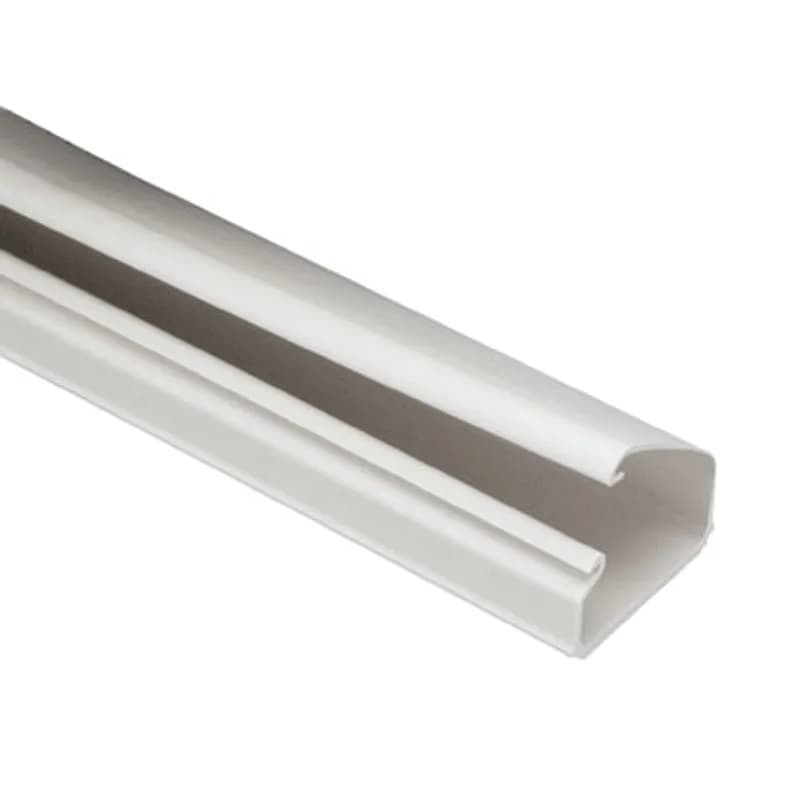

The Panduit LD5IG6-A Surface Raceway is a robust, one-piece latching channel designed for efficient routing, protection, and concealment of data, voice, and video cabling. This 6-foot channel, measuring 1.01 inches wide by 0.58 inches deep, is constructed from rigid PVC in a neutral International Gray color, ensuring a professional appearance in any environment. Its integrated cover simplifies installation and maintenance, while the factory-applied adhesive backing allows for rapid and secure mounting without the need for additional tools or hardware. The LD5IG6-A meets TIA/EIA standards and is rated for applications up to 50V, providing reliable performance for structured cabling systems. This Panduit raceway is ideal for IT infrastructure, telecommunications, and commercial installations where organized and protected cable pathways are essential. The durable PVC material offers long-term stability and resistance to environmental factors. SKU: LD5IG6-A. Country of Origin: US. UNSPSC: 39131710. The LD5 Surface Raceway channel is a one-piece latching channel with integrated cover and is designed to route, protect, and conceal data, voice, and video cabling. It features a factory-applied adhesive backing for fast mounting. It is 6 feet in length and is 1.01 inches wide by 0.58 inches deep. It meets TIA/EIA, used in applications up to 50 V. It is constructed of rigid PVC and is International Gray.
  • One-piece latching channel with integrated cover for easy cable access and management.
  • Factory-applied adhesive backing for fast and secure mounting.
  • Constructed from rigid PVC in International Gray for durability and professional aesthetics.
  • 6-foot length with dimensions of 1.01"W x 0.58"D, suitable for various cable densities.
  • Meets TIA/EIA standards and rated for applications up to 50V.

Specifications

Application
Surface Raceway products provide flexibility for routing, protecting, and consealing Low-Voltage Data, Fiber Optic and Electrical Wiring within any Enterprise Environment
Color
International Gray
Color*
International Gray
Length
NA in
Material
Rigid PVC
Material
Polyvinyl Chloride (PVC)
Material
PVC
Mounting Type
Adhesive backing
Mounting Type
Factory-applied adhesive backing
Series
LD5
Size
6ft length, 1.01"W x 0.58"D
Size
1.01"W x 0.58"D x 6ft
Standard
UL94V-0, FT4, Meets TIA/EIA Standards
Type
Single Channel Surface Raceway
Type
Low Voltage Channel
Voltage Rating
50 V
Width
1.01 in
Width
25.654 mm
Package Dimensions (L x W x H)
72 IN x 1 IN x 0.6 IN
Package Weight (Imperial)
0.472 lbs
