Overview

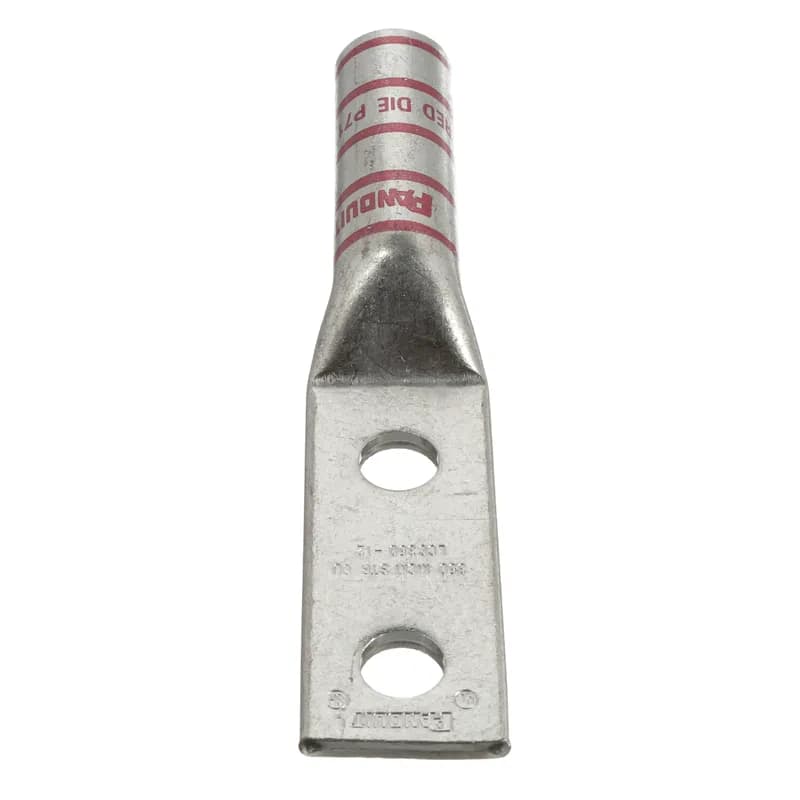

- Designed for #8 AWG and #10 AWG stranded copper conductors
- Two-hole, long-barrel design maximizes crimp points for superior wire pull-out strength
- Color-coded barrels marked with Panduit and competitor die index numbers (P21, Burndy 49, T&B 21) for proper crimp die selection
- Generously beveled wire entry prevents conductor strand damage during installation
- Tin-plated copper construction inhibits corrosion and enclosed barrel prevents corrosive material entry
Specifications
Angle* | Straight |
Barrel Type* | Long |
Color | Red |
Connection Type | Compression Lug |
Material | Tin-plated Copper |
Mounting | 3/4 In. |
Number Of Holes | 2 |
Poles | 2 |
Series | LCC |
Size | 8 AWG |
Size | #8 AWG Code |
Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
Standard | CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3 |
Stud Size | #10 In. |
Type | Compression Lug |
Package Dimensions (L x W x H) | 4.7 IN x 3.3 IN x 3.45 IN |
Package Weight (Imperial) | 1.07 lbs |
OD581
Mechanical Crimp Tool with 5/8 Inch Nose Die APPLICATIONS: Designed for use with wide range and H-Tap connectors. It has fiberglass handles and comes with "O" and "D" Nose Dies. It has an output of 4.5 tons.
CD6A
U-Type Compression Die - Pink 1/0 AWG Copper - 2 AWG Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
CD7
U-Type Compression Die - Black 2/0 AWG Copper U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
E6-PS-D
Non-Insulated Parallel Splice Connector For Wire Range 6 For Circular Mil Range 20,800-33,100 Length .5 Diameter .365,Metallic
AS-K1-H6
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
E989NNJ-5-HD
Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray
1SNK705010R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
1SNK705030R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
How to Install Copper Compression Connectors
This guide provides step-by-step instructions for installing copper compression connectors, ensuring secure and reliable electrical connections.
Estimated time: 30m
Tools needed:
Screwdriver, Wire strippers, Crimping tool, Heat gun or propane torch
Supplies needed:
Copper compression connectors, Heat shrink tubing, Wire
- Prepare the wire
Strip the wire insulation to the appropriate length as indicated in the tool chart. Ensure not to nick or damage the conductor strands.
- Insert wire into connector
Insert the stripped wire into the copper compression connector until it reaches the stop. Ensure a snug fit for a secure connection.
- Crimp the connector
Using the appropriate crimping tool, crimp the connector by placing it in the die and applying pressure. Follow the color bands or knurl markings for proper crimping zones.
- Inspect the connection
After crimping, inspect the connector for any sharp edges, flash, or burrs. Remove any imperfections to ensure a safe and effective connection.
- Apply heat shrink insulation
Cut the heat shrink tubing to the desired length, allowing for at least 1.5 inches of overlap on the wire insulation. Shrink the tubing using a heat gun or propane torch, moving from the crimped portion toward the insulated wire.
