Contact for Pricing
Overview

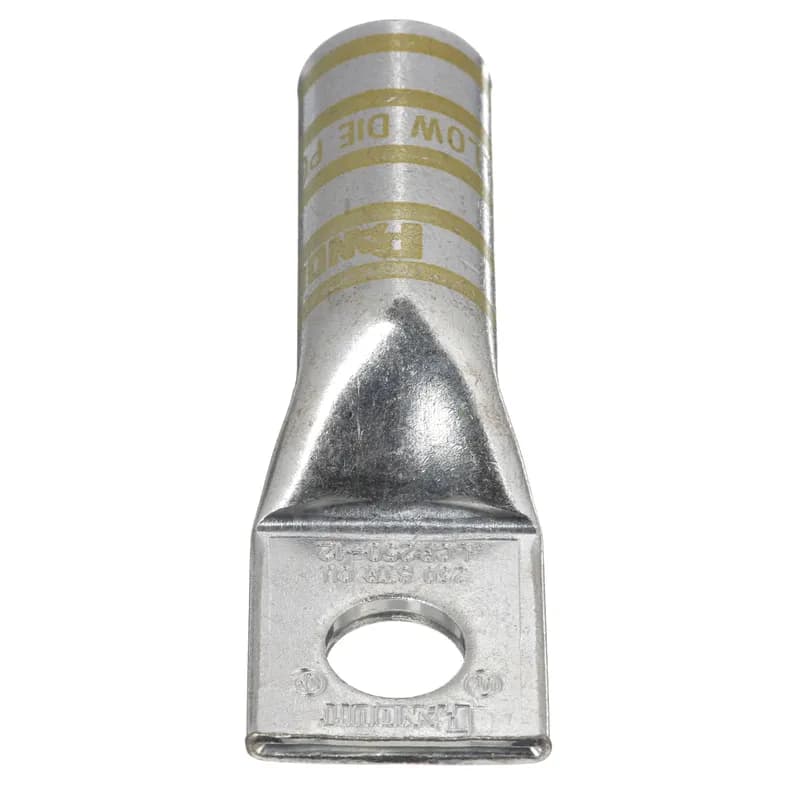

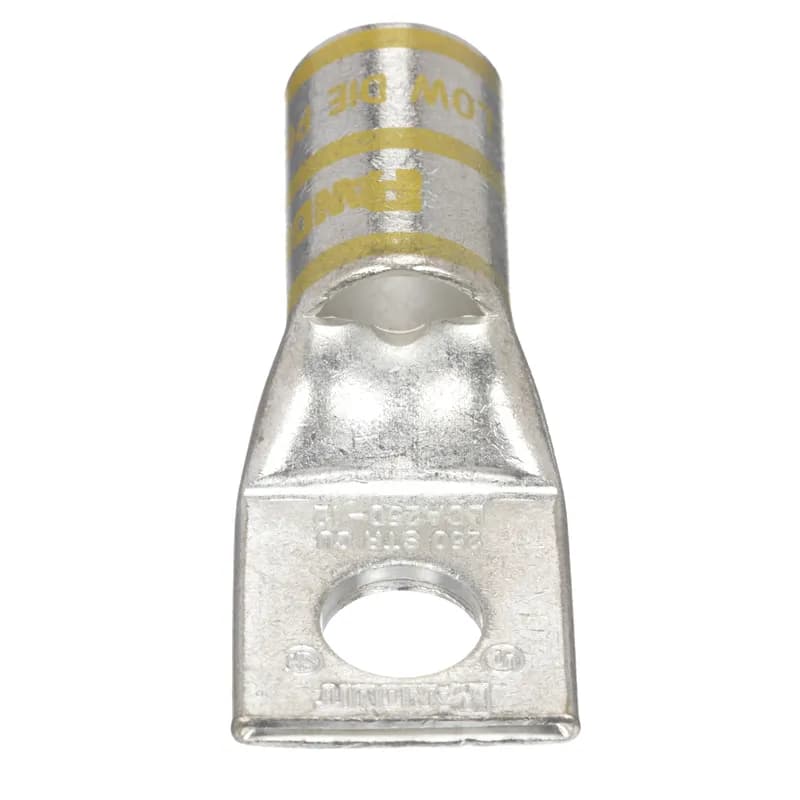

- 250 kcmil wire size for high-current applications
- One-hole design with 1/2-inch stud hole for standard fasteners
- Long barrel accommodates thick conductors for secure crimping
- Made in the USA for consistent quality and reliability
- UNSPSC 39121405 for industrial electrical components
Specifications
Angle* | Straight |
Barrel Type* | Long |
Color | Yellow |
Material | Tin-plated Copper |
Mounting | 2-5/16 In. |
Number Of Holes | 1 |
Size | 250 kcmil Class G, H, I, K, M and 262.6 kcmil DLO |
Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
Standard | UL Listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13 |
Stud Size | 1/2 In. |
Type | Compression Lug |
Package Dimensions (L x W x H) | 5.85 IN x 3.4 IN x 3.35 IN |
Package Weight (Imperial) | 2.75 lbs |
OD581
Mechanical Crimp Tool with 5/8 Inch Nose Die APPLICATIONS: Designed for use with wide range and H-Tap connectors. It has fiberglass handles and comes with "O" and "D" Nose Dies. It has an output of 4.5 tons.
CD6A
U-Type Compression Die - Pink 1/0 AWG Copper - 2 AWG Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
CD7
U-Type Compression Die - Black 2/0 AWG Copper U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
E6-PS-D
Non-Insulated Parallel Splice Connector For Wire Range 6 For Circular Mil Range 20,800-33,100 Length .5 Diameter .365,Metallic
AS-K1-H6
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
E989NNJ-5-HD
Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray
1SNK705010R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
1SNK705030R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
How to Install Copper Compression Connectors
This guide provides step-by-step instructions for installing copper compression connectors, ensuring secure and reliable electrical connections.
Estimated time: 30m
Tools needed:
Wire strippers, Crimping tool, Heat gun or propane torch
Supplies needed:
Copper compression connectors, Heat shrink tubing
- Select the correct connector
Choose a connector that matches the wire size and material. Do not use copper connectors on aluminum wire.
- Prepare the wire
Strip the wire insulation to the length specified in the tool chart without damaging the conductor strands. Clean the wire to ensure a good connection.
- Insert and crimp the connector
Insert the stripped wire into the connector until it stops. Use the crimping tool to crimp the connector, following the markings for proper spacing. Ensure to crimp near the tongue end and move towards the wire end.
- Inspect the crimp
After crimping, inspect the connection for any sharp edges, flash, or burrs and remove them if present.
- Apply heat shrink insulation
Cut the heat shrink tubing to the desired length, allowing for a minimum of 1.5 inches of overlap on the wire insulation. Use a heat gun or propane torch to shrink the tubing, moving from the crimped portion towards the insulated wire until adhesive flow indicates completion.
