Panduit KP-1166 - Includes the following: (18) P18-8R; P14-10R; P18-6F; P14-8F; (10) P10-8R; P10-10R; BS18; BS14; BS10; D18-250; D14-188; (5) JN218-216; (1)ct-160 tool; KP-1000 box
Panduit

KP-1166

UPC: 074983862467

Contact for Pricing

Overview

The Panduit KP-1166 is a comprehensive terminal and tool kit designed for efficient electrical connections. This kit, manufactured by Panduit in the USA, includes a curated selection of high-quality terminals and essential tooling, all conveniently packaged in a KP-1000 box. It is ideal for electrical contractors, maintenance professionals, and industrial facilities requiring reliable wire termination solutions. The kit contains a variety of ring terminals in different sizes, including eighteen P18-8R, ten P10-8R, and ten P10-10R, ensuring compatibility with a broad range of wire gauges and stud sizes. Female disconnect terminals are also included, with six P18-6F and eight P14-8F, offering versatile connection options. For secure and durable connections, the kit features BS18, BS14, and BS10 butt splices, along with D18-250 and D14-188 disconnects. Five JN218-216 connectors are provided for specialized applications. Crucially, the KP-1166 includes the CT-160 crimping tool, a robust piece of equipment designed for precise and secure crimps on the included terminals. This tool is part of Panduit's commitment to providing UL Listed, cULus Listed, and CSA approved tooling/product combinations for enhanced safety and compliance. The KP-1000 box offers organized storage and easy transport of all kit components, making it a practical solution for job sites and workshops. For detailed information on specific terminal specifications, applications, and crimping tool usage, consult the official Panduit catalog or visit their website. Panduit offers bulk and convenience packaging options; contact Customer Service for details. For service and technical support, call 1-800-777-3300.
  • Comprehensive kit for electrical connections
  • Includes assorted Panduit ring terminals (P18-8R, P10-8R, P10-10R)
  • Features female disconnect terminals (P18-6F, P14-8F) and butt splices (BS18, BS14, BS10)
  • Equipped with Panduit CT-160 crimping tool for reliable termination
  • Conveniently packaged in a KP-1000 box for organization and transport

Specifications

Mounting
NA In.
Type
Terminal Kit
Wire Size
10 Awg
Package Dimensions (L x W x H)
15 IN x 10 IN x 2.5 IN
Package Weight (Imperial)
1.67 lbs
Heat Shrink Ring Terminal 12 10 AWG, 3/8" stud size.

PH10-38R-E

Heat Shrink Ring Terminal 12 10 AWG, 3/8" stud size.
Polypropylene insulated ferrules single wire yellow DIN color expanded short circuit protection end sleeve, 10 AWG (6.0mm ), .47(12.0mm) pin length.

FSDXL82-12-C

Polypropylene insulated ferrules single wire yellow DIN color expanded short circuit protection end sleeve, 10 AWG (6.0mm ), .47(12.0mm) pin length.
Ring Terminal, 12 10 AWG, #6 stud size, vinyl insulated, funnel entry, bulk package.

PV10-6R-D

Ring Terminal, 12 10 AWG, #6 stud size, vinyl insulated, funnel entry, bulk package.

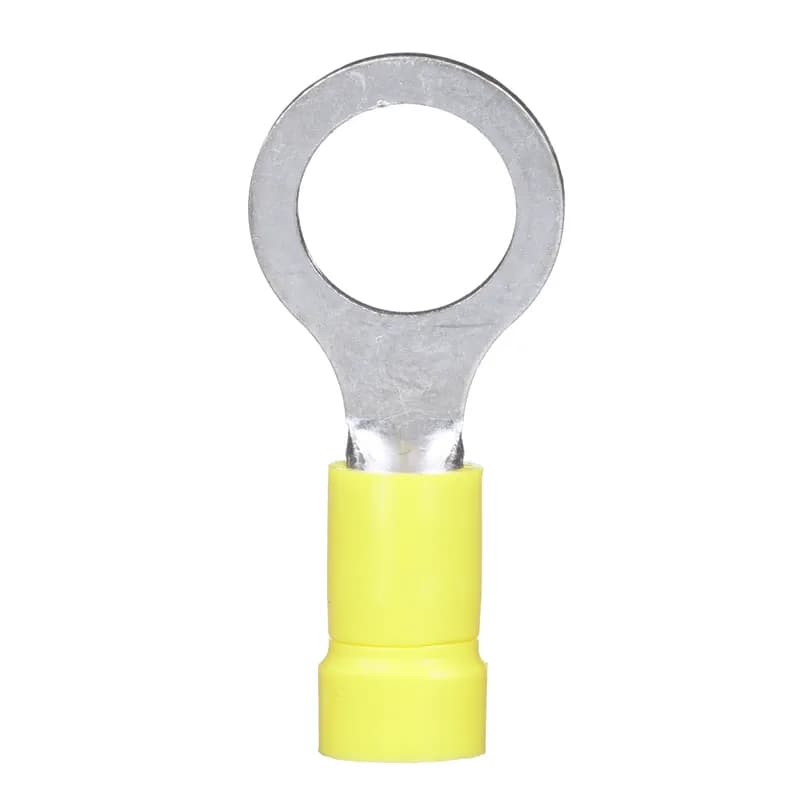

Ring Terminal, 12 10 AWG, 3/8" stud size, vinyl insulated, funnel entry, bulk package.

PV10-38R-D

Ring Terminal, 12 10 AWG, 3/8" stud size, vinyl insulated, funnel entry, bulk package.
Fork Terminal, vinyl insulated, funnel entry, 14- 10AWG, #8 stud size, bulk package.

PV10-8F-D

Fork Terminal, vinyl insulated, funnel entry, 14- 10AWG, #8 stud size, bulk package.

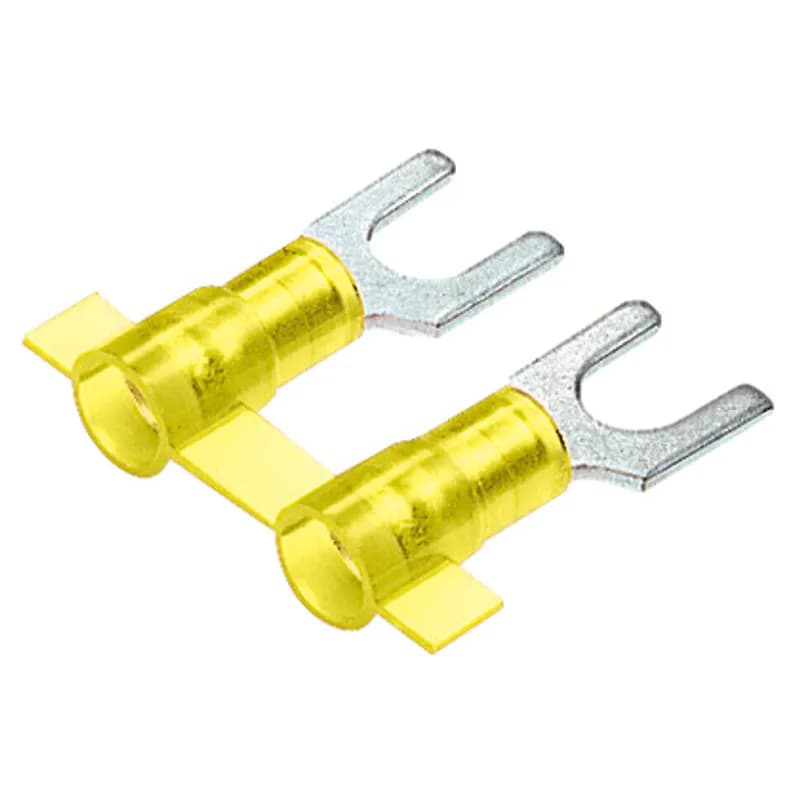

Fork Terminal, nylon insulated, funnel entry, metal insulation grip sleeve, 12 - 10 AWG wire range, #8 stud size.

PNF10-8F-2K

Fork Terminal, nylon insulated, funnel entry, metal insulation grip sleeve, 12 - 10 AWG wire range, #8 stud size.
StrongHold Female Disconnect, nylon fully insulated, 12 - 10 AWG, .250 x .032 tab size.

EDNF10-250FI-Q

StrongHold Female Disconnect, nylon fully insulated, 12 - 10 AWG, .250 x .032 tab size.
StrongHold EV10-14RB-Q Contractor Grade Vinyl Insulated Ring Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. The ring tongue design assures a secure connection in high vibration applications. Accommodates 12-10 AWG, compatible with #1/4 Stud (M6), are yellow in color, and come in packages of 25.

EV10-14RB-Q

StrongHold EV10-14RB-Q Contractor Grade Vinyl Insulated Ring Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. The ring tongue design assures a secure connection in high vibration applications. Accommodates 12-10 AWG, compatible with #1/4 Stud (M6), are yellow in color, and come in packages of 25.

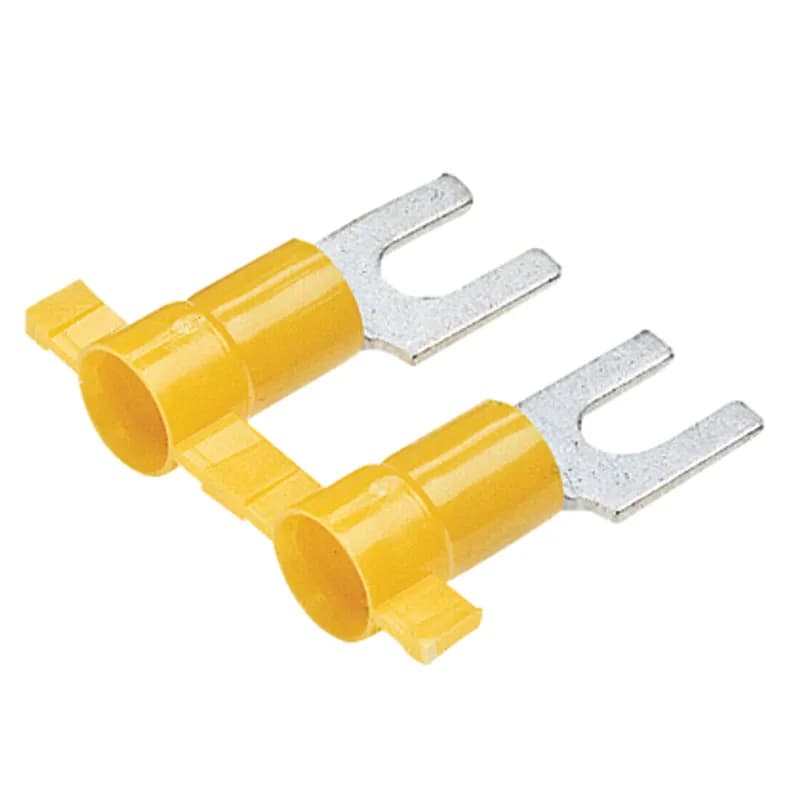

Fork Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 12 - 10 AWG wire range, #8 stud size.

PV10-8FB-2K

Fork Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 12 - 10 AWG wire range, #8 stud size.

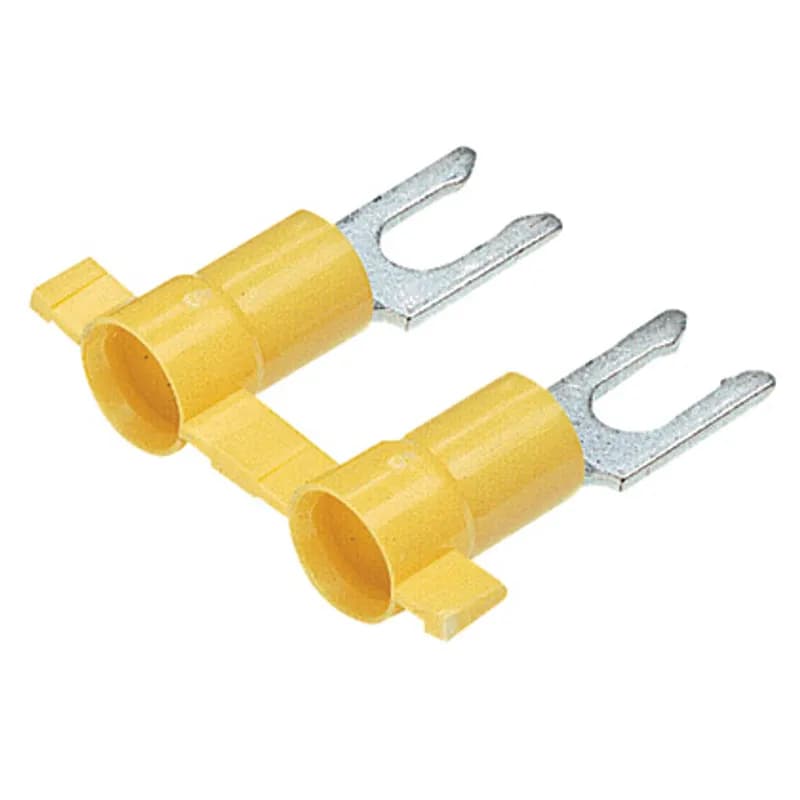

Locking Fork Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 12- 10 AWG wire range, 1/4 stud size.

PV10-14LFB-2K

Locking Fork Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 12- 10 AWG wire range, 1/4 stud size.
The PNF10-10R-D Pan-Term Terminal is a nylon insulated, ring terminal with funnel entry. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.

PNF10-10R-D

The PNF10-10R-D Pan-Term Terminal is a nylon insulated, ring terminal with funnel entry. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.

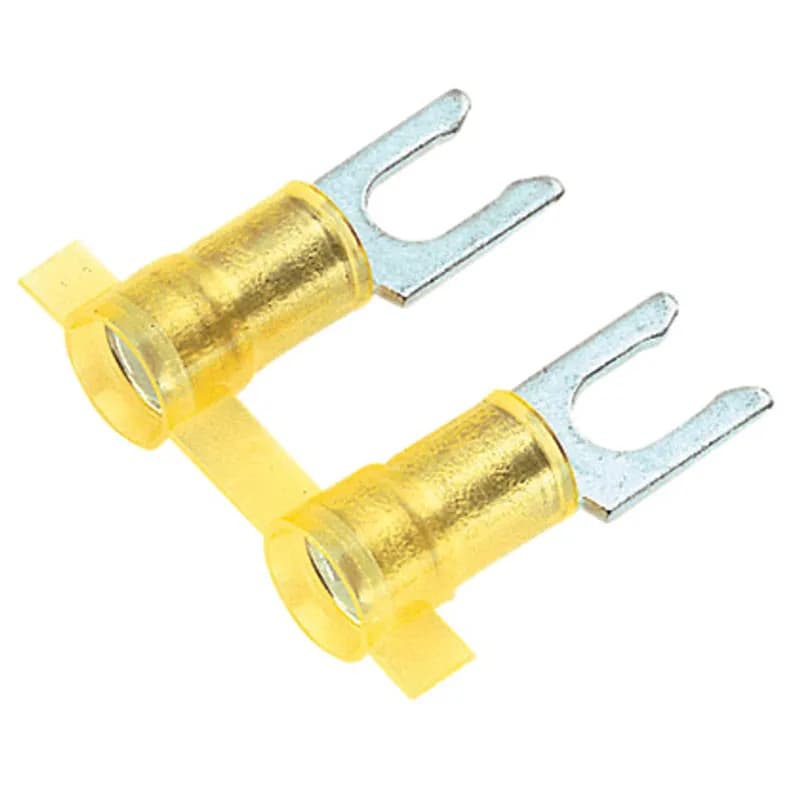

Locking Fork Terminal, nylon insulated, funnel entry, metal insulation grip sleeve, 12 - 10 AWG wire range, #6 stud size.

PNF10-6LF-2K

Locking Fork Terminal, nylon insulated, funnel entry, metal insulation grip sleeve, 12 - 10 AWG wire range, #6 stud size.
