Panduit JP75SBC50-L20 - J-PRO Cable support system, with screw-on beam clamp for use with flanges up to 1/2 (12.7mm) thick, 0.75 (19.0mm) max. bundle capacity, nylon 6.6 with metal attachments, black, 50 pc. package quantity.
Panduit

JP75SBC50-L20

UPC: 074983440238

Documents & Media
Technical BulletinTechnical DrawingFull Engineering DrawingVideo Clip

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Overview

The Panduit J-PRO Cable Support System (SKU: JP75SBC50-L20) offers a robust and reliable solution for securing cable bundles to structural beams. Designed for efficiency and ease of use, this system features a screw-on beam clamp that accommodates flanges up to 1/2" (12.7mm) thick, ensuring a secure attachment in various industrial and commercial environments. The J-PRO system boasts a maximum bundle capacity of 0.75" (19.0mm), making it suitable for managing moderate cable loads. Constructed from durable Nylon 6.6, this component is engineered for longevity and resistance to environmental factors. The integrated metal attachments provide enhanced strength and stability for the clamp mechanism. Available in a neutral black color, the system blends discreetly into most installations. Each package contains 50 pieces, providing ample supply for multiple projects. The one-piece construction ensures consistent performance and reliability, eliminating potential failure points. Its curved tip design facilitates easy pickup from flat surfaces and simplifies initial threading during installation, saving valuable labor time. While the provided catalog data focuses on Pan-Ty® Releasable Lashing Ties, the J-PRO system's material (Nylon 6.6) aligns with the temperature suitability mentioned for those ties, suggesting a potential operating range up to 185°F (85°C) for the J-PRO system itself, though specific temperature ratings for the JP75SBC50-L20 should be confirmed for critical applications. This system is ideal for wire routing, management, and protection in electrical infrastructure, communication racks, and control panels where secure cable management is paramount. Made in the USA.
  • Screw-on beam clamp for flanges up to 1/2" (12.7mm) thick
  • Maximum cable bundle capacity of 0.75" (19.0mm)
  • Durable Nylon 6.6 construction with metal attachments
  • One-piece design for consistent performance and reliability
  • Black color for discreet installation, 50 pc. package quantity

Specifications

Application
Route High Performance Communication Cabling in Air Handling Spaces
Color
Black
Hook Diameter
0.75
Material
Nylon
Material
Nylon 6.6 with metal attachments
Maximum Bundle Diameter
0.75 In.
Mounting
Screw-On
Overall Length
3.71 in
Overall Length
94.234 mm
Size
0.75 (19.0mm) max. bundle capacity
Standard
UL, cULus Listed, RoHS Compliant
Static Load Capacity
15 lb
Style
Screw-On Beam Clamp - Non-Rotational
Type
Cable Support
Width
3.71 in
Width
94.234 mm
Working Load Limit
15
Package Dimensions (L x W x H)
11.1 IN x 9.1 IN x 9 IN
Package Weight (Imperial)
8.6 lbs
StrongHold JP131SBC87RB-L20 J-Pro J hook with Screw-On Beam Clamps have a patented design, featuring complete horizontal and vertical 1" bend radius control as well as 360 degree rotation. This feature prevents pinch points and degradation of cable performance. They are suitable for use in air handling spaces and are UL listed. For use with flanges up to 3/4" (19.1mm) thick and 1.31 (33.3mm) max bundle capacity. Made of Nylon 6.6, are black in color and come in packages of 50.

JP131SBC87RBL20

StrongHold JP131SBC87RB-L20 J-Pro J hook with Screw-On Beam Clamps have a patented design, featuring complete horizontal and vertical 1" bend radius control as well as 360 degree rotation. This feature prevents pinch points and degradation of cable performance. They are suitable for use in air handling spaces and are UL listed. For use with flanges up to 3/4" (19.1mm) thick and 1.31 (33.3mm) max bundle capacity. Made of Nylon 6.6, are black in color and come in packages of 50.
StrongHold JP131SBC87-L20 J-Pro J hook with Screw-On Beam Clamps have a patented design, featuring complete horizontal and vertical 1" bend radius control. This feature prevents pinch points and degradation of cable performance. They are suitable for use in air handling spaces and are UL listed. For use with flanges up to 3/4" (19.1mm) thick and 1.31 (33.3mm) max bundle capacity. Made of Nylon 6.6, are black in color and come in packages of 50.

JP131SBC87-L20

StrongHold JP131SBC87-L20 J-Pro J hook with Screw-On Beam Clamps have a patented design, featuring complete horizontal and vertical 1" bend radius control. This feature prevents pinch points and degradation of cable performance. They are suitable for use in air handling spaces and are UL listed. For use with flanges up to 3/4" (19.1mm) thick and 1.31 (33.3mm) max bundle capacity. Made of Nylon 6.6, are black in color and come in packages of 50.
StrongHold JP131SBC50RB-L20 J-Pro J hook with Screw-On Beam Clamps have a patented design, featuring complete horizontal and vertical 1" bend radius control as well as 360 degree rotation. This feature prevents pinch points and degradation of cable performance. They are suitable for use in air handling spaces and are UL listed. For use with flanges 5/16" to 1/2" (7.9mm - 12.7mm) thick and 1.31 (33.3mm) max bundle capacity. Made of Nylon 6.6, are black in color and come in packages of 50.

JP131SBC50RBL20

StrongHold JP131SBC50RB-L20 J-Pro J hook with Screw-On Beam Clamps have a patented design, featuring complete horizontal and vertical 1" bend radius control as well as 360 degree rotation. This feature prevents pinch points and degradation of cable performance. They are suitable for use in air handling spaces and are UL listed. For use with flanges 5/16" to 1/2" (7.9mm - 12.7mm) thick and 1.31 (33.3mm) max bundle capacity. Made of Nylon 6.6, are black in color and come in packages of 50.
StrongHold JP75SBC50RB-L20 J-Pro J hook with Screw-On Beam Clamps have a patented design, featuring complete horizontal and vertical 1" bend radius as well as 360 degree rotation. This feature prevents pinch points and degradation of cable performance. They are suitable for use in air handling spaces and are UL listed. For use with flanges 5/16" to 1/2" (7.9mm - 12.7mm) thick and 0.75 (19.0mm) max bundle capacity. Made of Nylon 6.6, are black in color and come in packages of 50.

JP75SBC50RB-L20

StrongHold JP75SBC50RB-L20 J-Pro J hook with Screw-On Beam Clamps have a patented design, featuring complete horizontal and vertical 1" bend radius as well as 360 degree rotation. This feature prevents pinch points and degradation of cable performance. They are suitable for use in air handling spaces and are UL listed. For use with flanges 5/16" to 1/2" (7.9mm - 12.7mm) thick and 0.75 (19.0mm) max bundle capacity. Made of Nylon 6.6, are black in color and come in packages of 50.
StrongHold JP75SBC87-L20 J-Pro J hook with Screw-On Beam Clamps have a patented design, featuring complete horizontal and vertical 1" bend radius. This feature prevents pinch points and degradation of cable performance. They are suitable for use in air handling spaces and are UL listed. For use with flanges up to 3/4" (19.1mm) thick and 0.75 (19.0mm) max bundle capacity. Made of Nylon 6.6, are black in color and come in packages of 50.

JP75SBC87-L20

StrongHold JP75SBC87-L20 J-Pro J hook with Screw-On Beam Clamps have a patented design, featuring complete horizontal and vertical 1" bend radius. This feature prevents pinch points and degradation of cable performance. They are suitable for use in air handling spaces and are UL listed. For use with flanges up to 3/4" (19.1mm) thick and 0.75 (19.0mm) max bundle capacity. Made of Nylon 6.6, are black in color and come in packages of 50.
StrongHold JP75SBC87RB-L20 J-Pro J hook with Screw-On Beam Clamps have a patented design, featuring complete horizontal and vertical 1" bend radius as well as 360 degree rotation. This feature prevents pinch points and degradation of cable performance. They are suitable for use in air handling spaces and are UL listed. For use with flanges up to 3/4" (19.1mm) thick and 0.75 (19.0mm) max bundle capacity. Made of Nylon 6.6, are black in color and come in packages of 50.

JP75SBC87RB-L20

StrongHold JP75SBC87RB-L20 J-Pro J hook with Screw-On Beam Clamps have a patented design, featuring complete horizontal and vertical 1" bend radius as well as 360 degree rotation. This feature prevents pinch points and degradation of cable performance. They are suitable for use in air handling spaces and are UL listed. For use with flanges up to 3/4" (19.1mm) thick and 0.75 (19.0mm) max bundle capacity. Made of Nylon 6.6, are black in color and come in packages of 50.
J-PRO Cable support system, with screw-on beam clamp for use with flanges up to 1/2 (12.7mm) thick, 1.31 (33.3 mm) max. bundle capacity, nylon 6.6 with metal attachments, black, 50 pc. package quantity.

JP131SBC50-L20

J-PRO Cable support system, with screw-on beam clamp for use with flanges up to 1/2 (12.7mm) thick, 1.31 (33.3 mm) max. bundle capacity, nylon 6.6 with metal attachments, black, 50 pc. package quantity.
StrongHold JP2SBC87RB-L20 J-Pro J hook with Screw-On Beam Clamps have a patented design, featuring complete horizontal and vertical 1" bend radius control as well as 360 degree rotation. This feature prevents pinch points and degradation of cable performance. They are suitable for use in air handling spaces and are UL listed. For use with flanges up to 3/4" (19.1mm) thick and 2.0 (50.8mm) max bundle capacity. Made of Nylon 6.6, are black in color and come in packages of 50.

JP2SBC87RB-L20

StrongHold JP2SBC87RB-L20 J-Pro J hook with Screw-On Beam Clamps have a patented design, featuring complete horizontal and vertical 1" bend radius control as well as 360 degree rotation. This feature prevents pinch points and degradation of cable performance. They are suitable for use in air handling spaces and are UL listed. For use with flanges up to 3/4" (19.1mm) thick and 2.0 (50.8mm) max bundle capacity. Made of Nylon 6.6, are black in color and come in packages of 50.
J-PRO Cable support system, with screw-on beam clamp for use with flanges up to 1/2 (12.7mm) thick, rotates 360 degrees, 1.31 (33.3 mm) max. bundle capacity, nylon 6.6 with metal attachments, natural, 50 pc. package quantity.

JP131SBC50RB-L

J-PRO Cable support system, with screw-on beam clamp for use with flanges up to 1/2 (12.7mm) thick, rotates 360 degrees, 1.31 (33.3 mm) max. bundle capacity, nylon 6.6 with metal attachments, natural, 50 pc. package quantity.

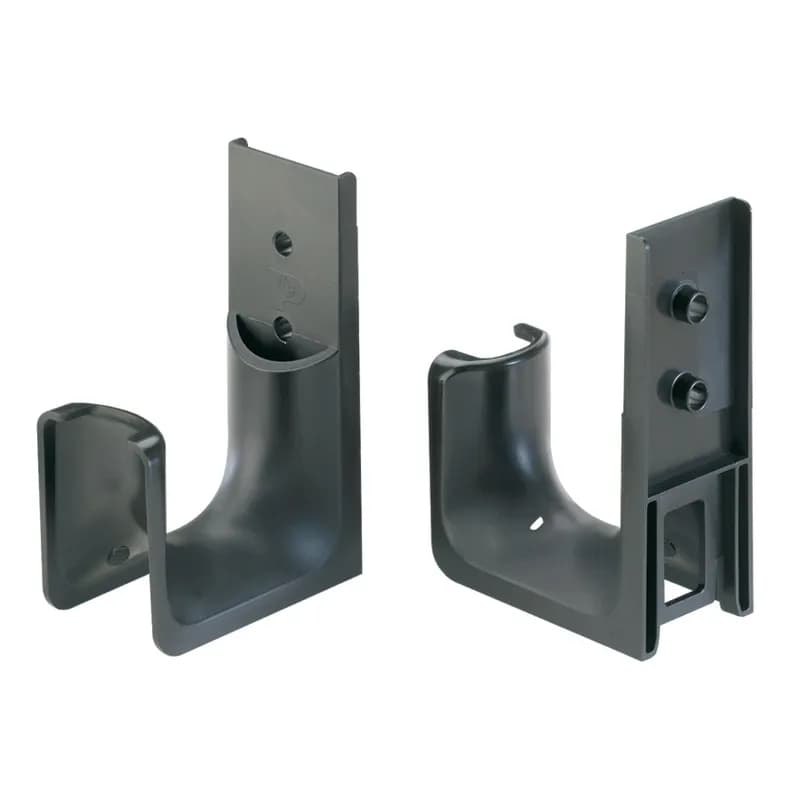

J Hook for wall mount applications only. Two 1/4 (M6) mounting holes for user supplied screws.
