Panduit ISFX5502ATL-LED - The Cat 5e SF/UTP copper cable is constructed of 24/7 AWG stranded copper conductors with PE insulation. The copper conductors are twisted in pairs and wrapped by an overall metallic foil and braided shield and covered with a polyurethane (PUR) jacket which is oil, ozone, and abrasion-resistant. The cable is supplied 500 meters (1640 feet) to a reel and teal.
Panduit

ISFX5502ATL-LED

UPC: 074983615582

Documents & Media
Technical BulletinSpecification Sheet

Contact for Pricing

Minimum Qty: 6

Multiplier: 6

*Contact for lower quantities*

Overview

The Panduit ISFX5502ATL-LED Cat 5e SF/UTP copper cable delivers reliable high-speed data transmission for Gigabit Ethernet (1000 Base-T) and voice wiring applications. Constructed with 24/7 AWG stranded copper conductors insulated with polyethylene (PE), each pair is twisted and shielded with an overall metallic foil and braided shield for superior noise immunity. The cable is encased in a polyurethane (PUR) jacket that resists oil, ozone, and abrasion, ensuring long-term durability in industrial and commercial environments. Color-coded pairs simplify termination and reduce installation errors. Supplied in a 500-meter (1640-foot) reel with a teal jacket, this cable meets UL CM ratings and is ideal for high-density cabling systems. Its shielded design minimizes electromagnetic interference (EMI) and alien crosstalk, making it suitable for mission-critical applications in data centers, industrial automation, and enterprise networks. The SF/UTP construction provides a balance between performance and cost, offering a practical solution for environments where unshielded cables may be insufficient. Compatible with PoE applications up to 100 watts, this cable supports emerging technologies like IoT devices and IP-enabled systems without compromising signal integrity. The PUR jacket ensures resistance to harsh chemicals and physical stress, extending the cable's lifespan in demanding conditions. With a bandwidth capacity of up to 100 MHz, it reliably handles 10/100/1000 Base-T networks, making it a versatile choice for both voice and data applications. The 24/7 AWG stranded conductors enhance flexibility and ease of installation, reducing the risk of conductor breakage during routing. This cable is manufactured in the US, ensuring consistent quality and compliance with industry standards.
  • 24/7 AWG stranded copper conductors with PE insulation for flexibility and durability
  • Overall metallic foil and braided shield for superior noise immunity and EMI protection
  • Polyurethane (PUR) jacket resists oil, ozone, and abrasion for harsh environments
  • Supports Gigabit Ethernet (1000 Base-T) and PoE applications up to 100 watts
  • 500-meter (1640-foot) reel with teal jacket for easy identification and installation

Specifications

Color
Teal
Conductor Material
Copper
Construction
SF/UTP
Insulation Material
Polyethylene
Jacket Material
Polyurethane
Length
1640
Number Of Conductors
2
Outside Diameter
0.252 In.
Resistance
Abrasion-Resistant
Standard
Exceeds the requirements IEC 61156-6 and ANSI/TIA-568-C.2 Category 5e and ODVA EtherNet/IP standards; Standard compliances: Flexure IEC 61935-2Flex Life Test: 1 million cycles at 10x cable diameter; 10 million cycles at 20x cable diameter Torsion Life Test
Standard
10 million cycles at 20x cable diameter Torsion Life Test;Exceeds the requirements IEC 61156-6 and ANSI/TIA-568-C.2 Category 5e and ODVA EtherNet/IP standards;Standard compliances: Flexure IEC 61935-2Flex Life Test: 1 million cycles at 10x cable diameter
Temperature Rating
176 F
Type
Bulk Copper Cable
Voltage Rating
80 V
Weight
28.7 LBS
Package Dimensions (L x W x H)
15.8 IN x 15.8 IN x 11 IN
Package Weight (Imperial)
55 lbs
The Cat 5e SF/UTP copper cable is constructed of 24/7 AWG stranded copper conductors with a HDPE insulation. The copper conductors are twisted in pairs and wrapped with a foam polypropylene tape to form a core. All four pairs are surrounded by an overall braided shield and metallic foil and covered with a thermoplastic elastomer (TPE) jacket. The cable is supplied 305 meters (1,000 feet) to a reel and teal.

ISFCH5C04ATL-XG

The Cat 5e SF/UTP copper cable is constructed of 24/7 AWG stranded copper conductors with a HDPE insulation. The copper conductors are twisted in pairs and wrapped with a foam polypropylene tape to form a core. All four pairs are surrounded by an overall braided shield and metallic foil and covered with a thermoplastic elastomer (TPE) jacket. The cable is supplied 305 meters (1,000 feet) to a reel and teal.
IndustrialNet Copper Cable, Industrial Ethernet, Category 5e, 2-pair, 24/7 AWG, SF/UTP, Flame retardant, High flex, Oil and ozone resistant, Abrasion resistant, PUR jacket, Red, 1640ft/500m reel

ISFX5502ARD-LED

IndustrialNet Copper Cable, Industrial Ethernet, Category 5e, 2-pair, 24/7 AWG, SF/UTP, Flame retardant, High flex, Oil and ozone resistant, Abrasion resistant, PUR jacket, Red, 1640ft/500m reel
This Cat 5e SF/UTP copper cable is constructed of 24/7 AWG stranded copper conductors with HDPE insulation. The copper conductors are twisted in pairs and wrapped with a foam polypropylene tape to form a core. Both pairs are surrounded by an overall braided shield and metallic foil and covered with a thermoplastic elastomer (TPE) jacket. The cable is supplied 305 meters (1,000 feet) to a reel and teal.

ISFCH5C02ATL-XG

This Cat 5e SF/UTP copper cable is constructed of 24/7 AWG stranded copper conductors with HDPE insulation. The copper conductors are twisted in pairs and wrapped with a foam polypropylene tape to form a core. Both pairs are surrounded by an overall braided shield and metallic foil and covered with a thermoplastic elastomer (TPE) jacket. The cable is supplied 305 meters (1,000 feet) to a reel and teal.
IndustrialNet Copper Cable, Industrial Ethernet, Category 5e, 2-pair, 24/7 AWG, SF/UTP, CMX/CM, 600V AWM, High flex, Oil and sunlight resistant, Abrasion and weld splatter resistant, TPE jacket, Black, 1000ft/305m reel

ISFCH5C02ABL-XG

IndustrialNet Copper Cable, Industrial Ethernet, Category 5e, 2-pair, 24/7 AWG, SF/UTP, CMX/CM, 600V AWM, High flex, Oil and sunlight resistant, Abrasion and weld splatter resistant, TPE jacket, Black, 1000ft/305m reel
IndustrialNet Copper Cable, Industrial Ethernet, Category 6, 4-pair, 24/7 AWG, SF/UTP, Flame retardant, High flex, Oil and ozone resistant, Abrasion resistant, PUR jacket, Yellow, 1640ft/500m reel

ISX6004AYL-LED

IndustrialNet Copper Cable, Industrial Ethernet, Category 6, 4-pair, 24/7 AWG, SF/UTP, Flame retardant, High flex, Oil and ozone resistant, Abrasion resistant, PUR jacket, Yellow, 1640ft/500m reel
The Cat 6A SF/UTP copper cable is constructed of 24/7AWG stranded copper conductors with HDPE polyethylene insulation. The copper conductors are twisted in pairs and wrapped with a foam polypropylene tape to form a core. All four pairs are surrounded by an overall braided shield and metallic foil and covered with a thermoplastic elastomer (TPE) jacket. The cable is supplied 305 meters (1,000 feet) to a reel and teal.

ISFCH6X04ATL-UG

The Cat 6A SF/UTP copper cable is constructed of 24/7AWG stranded copper conductors with HDPE polyethylene insulation. The copper conductors are twisted in pairs and wrapped with a foam polypropylene tape to form a core. All four pairs are surrounded by an overall braided shield and metallic foil and covered with a thermoplastic elastomer (TPE) jacket. The cable is supplied 305 meters (1,000 feet) to a reel and teal.

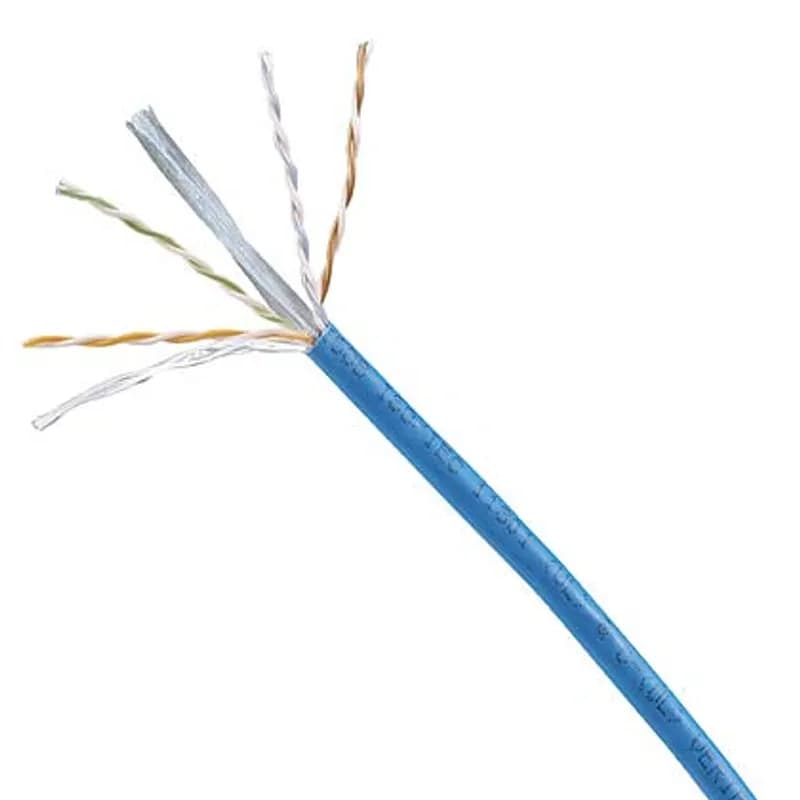

Category 6 cable shall meet ANSI/TIA-568.2-E Category 6 component standard. The conductors shall be 24 AWG construction with HDPE insulation. The copper conductors shall be twisted in pairs and covered by a low smoke, flame-retardant PVC (CMR) jacket.

PUR6004GR-WZ

Category 6 cable shall meet ANSI/TIA-568.2-E Category 6 component standard. The conductors shall be 24 AWG construction with HDPE insulation. The copper conductors shall be twisted in pairs and covered by a low smoke, flame-retardant PVC (CMR) jacket.
The Cat 5e SF/UTP copper cable is constructed of 24/7 AWG stranded copper conductors with a High Density Polyethylene (HDPE) insulation. The twisted pair copper conductors are wrapped with a foam polypropylene tape to form a core. All four pairs are surrounded by an overall braided shield and metallic foil and covered with a thermoplastic elastomer (TPE) jacket. The cable is supplied 305 meters (1,000 feet) to a reel and black jacketing.

ISFCH5C04ABL-XG

The Cat 5e SF/UTP copper cable is constructed of 24/7 AWG stranded copper conductors with a High Density Polyethylene (HDPE) insulation. The twisted pair copper conductors are wrapped with a foam polypropylene tape to form a core. All four pairs are surrounded by an overall braided shield and metallic foil and covered with a thermoplastic elastomer (TPE) jacket. The cable is supplied 305 meters (1,000 feet) to a reel and black jacketing.
The TX6A-SD Cat 6A U/UTP Copper Cable with MaTriX technology constructed of 26 AWG copper conductors with PVC (CM) insulation. The copper conductors are twisted in pairs, separated by an integrated pair divider, surrounded by a patented MaTriX tape and protected by a flame-retardant jacket. The blue, riser (CMR) cable is supplied 305 meters (1,000 feet) to a reel.

PUR6ASD04BU-CG

The TX6A-SD Cat 6A U/UTP Copper Cable with MaTriX technology constructed of 26 AWG copper conductors with PVC (CM) insulation. The copper conductors are twisted in pairs, separated by an integrated pair divider, surrounded by a patented MaTriX tape and protected by a flame-retardant jacket. The blue, riser (CMR) cable is supplied 305 meters (1,000 feet) to a reel.
Copper cable, premium category 6 UTP, riser (CMR), 4-pair, conductors are 23 AWG construction with HDPE insulation, twisted in pairs, separated by an integrated pair divider and protected by a flame-retardant PVC jacket, white.

PUR6504WH-UY

Copper cable, premium category 6 UTP, riser (CMR), 4-pair, conductors are 23 AWG construction with HDPE insulation, twisted in pairs, separated by an integrated pair divider and protected by a flame-retardant PVC jacket, white.
Copper cable, premium category 6 UTP, riser (CMR), 4-pair, conductors are 23 AWG construction with HDPE insulation, twisted in pairs, separated by an integrated pair divider and protected by a flame-retardant PVC jacket, blue.

PUR6504BU-UY

Copper cable, premium category 6 UTP, riser (CMR), 4-pair, conductors are 23 AWG construction with HDPE insulation, twisted in pairs, separated by an integrated pair divider and protected by a flame-retardant PVC jacket, blue.

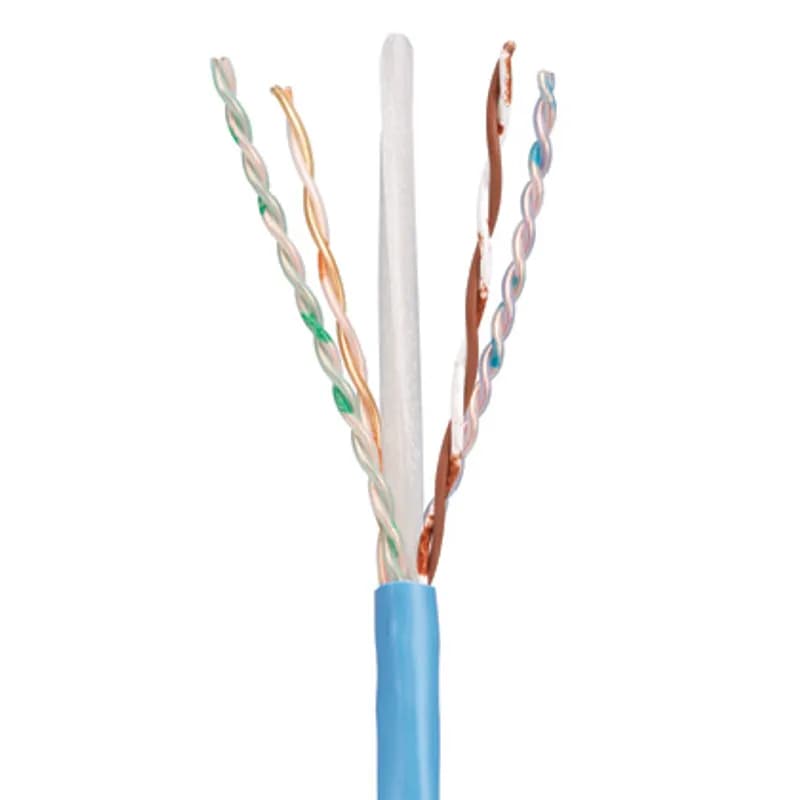

Copper cable, enhanced category 6 UTP, plenum, 4-pair, conductors are 23 AWG construction with FEP insulation, twisted in pairs, separated by an integrated pair divider, and protected by a low smoke, flame-retardant PVC jacket, blue.

PUP6004BU-UY

Copper cable, enhanced category 6 UTP, plenum, 4-pair, conductors are 23 AWG construction with FEP insulation, twisted in pairs, separated by an integrated pair divider, and protected by a low smoke, flame-retardant PVC jacket, blue.

Frequently Asked Questions

What are the temperature ratings for this cable?

The cable operates within a temperature range of -40°C to 80°C (-40°F to 167°F).

What standards does this cable comply with?

The cable meets IEC 61156-6, ANSI/TIA-568-C.2 Category 5e, and ODVA EtherNet/IP standards.

What is the maximum operating voltage?

The maximum operating voltage for the cable is 80V.

What is the maximum installation tension?

The maximum installation tension for the cable is 80 N (18 lbf).

What is the cable's flame rating?

The cable is flame retardant and halogen-free, compliant with IEC 60332-1-2.

What is the cable's weight per 500 meters?

The cable weighs 22.5 kg per 500 meters (50 lbs per 1640 ft).

How is the cable packaged?

The cable is packaged on a reel, with a length of 500 meters (1640 feet).

What is the cable's diameter?

The nominal diameter of the cable is 6.4mm (0.252 in.).

What is the minimum bend radius for installation?

The minimum bend radius for the cable is 8 times the cable diameter.

What type of insulation does the cable use?

The cable uses foamed polyethylene (PE) insulation for its conductors.
