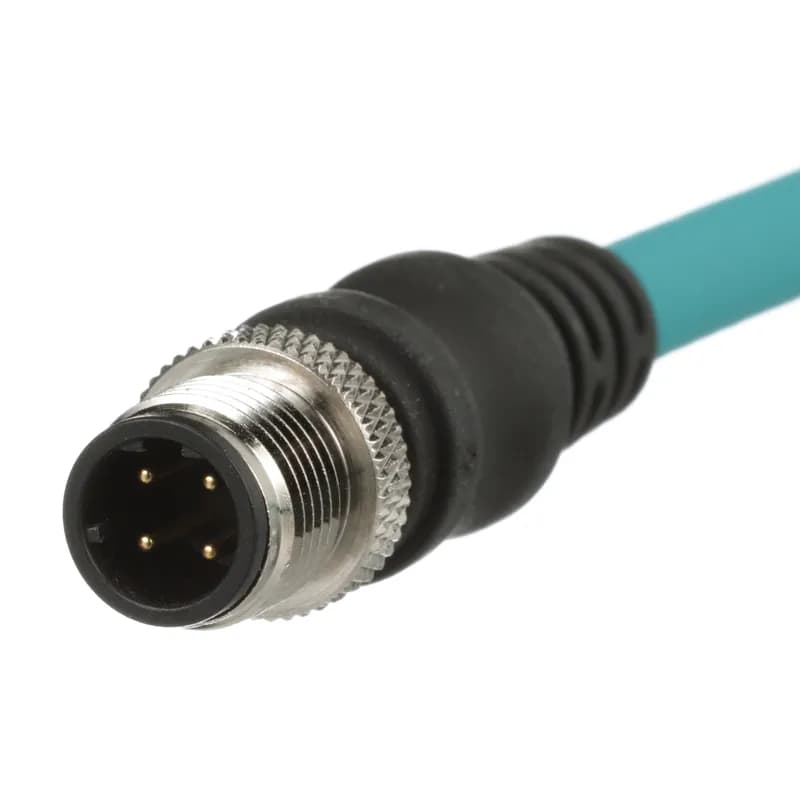

Panduit ICD12T1NTL10M - The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male to angled male preterminated with a straight connector and an angled connector. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 10 meters and teal.
Panduit

ICD12T1NTL10M

UPC: 613056755161

Documents & Media
Technical DrawingFull Engineering DrawingSpecification Sheet

Contact for Pricing

Overview

The Panduit IndustrialNet M12 D-Code Category 5e Overmolded Cordset, identified by SKU ICD12T1NTL10M, is engineered for robust industrial Ethernet connectivity. This preterminated cordset is designed for shielded twisted pair (STP) installations, ensuring reliable data transmission in demanding environments. It features a male connector on one end and an angled male connector on the other, facilitating versatile cable management and installation in tight spaces. The internal construction utilizes stranded, twisted pair cable, a key component for effective signal integrity in STP configurations. This cordset boasts a 600 V rating, indicating its suitability for applications requiring higher voltage tolerance. The jacket is made of Thermoplastic Polyurethane (TPU), a material chosen for its resilience and suitability for high-flex applications. This high-flex capability contributes to increased reliability by withstanding repeated bending and movement without compromising performance. The cordset has a total length of 10 meters, providing ample reach for various industrial setups. Its distinctive teal color aids in identification and organization within complex wiring systems.
  • Male-to-angled-male M12 D-Code connectors for flexible routing
  • Shielded twisted pair (STP) construction for reliable data transmission up to 100 MHz
  • 600V-rated TPU jacket resists abrasion, oil, and extreme temperatures
  • 10-meter length with teal color coding for easy identification
  • Preterminated assembly for quick installation in industrial environments

Specifications

Cable Entry
NA
Color
Teal
Connection Type
Male to angled male
Connection Type
M12 D-code
Frequency
100 MHz
Material
TPU
Poles
4P
Series
IndustrialNet M12 D-Code Category 5e Overmolded Cordset
Series
IndustrialNet M12 D-Code Category 5e
Series
IndustrialNet M12 D-Code
Size
10 m
Standard
UL Type 12, RoHS, Meets IEEE 802.3af and IEEE 802.3at for PoE applications, NEMA, 1, 3 ,4, 6, 6P and IEC IP67, can be used in 600V AWM rated applications
Type
Industrial Ethernet Cordset
Voltage Rating
600 V
Package Dimensions (L x W x H)
14 IN x 10 IN x 1.5 IN
Package Weight (Imperial)
1.82 lbs
The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male to male preterminated with angled connectors. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 2 meters and teal.

ICD22T1NTL2M

The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male to male preterminated with angled connectors. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 2 meters and teal.
The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male to angled male preterminated with a straight connector and an angled connector. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 0.5 meters and teal.

ICD12T1NTL0.5M

The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male to angled male preterminated with a straight connector and an angled connector. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 0.5 meters and teal.

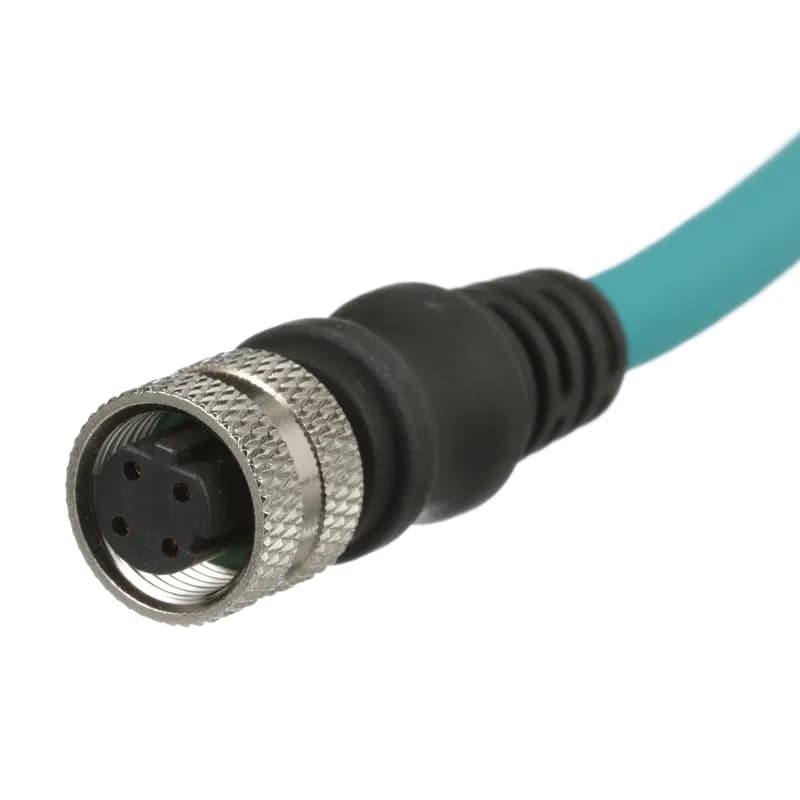

The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male to female preterminated with angled connectors. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 5 meters and teal.

ICD35T1NTL5M

The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male to female preterminated with angled connectors. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 5 meters and teal.
The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male with an angled connector to an unterminated pigtail. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 0.5 meters and teal.

ICD25T1NTL0.5M

The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male with an angled connector to an unterminated pigtail. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 0.5 meters and teal.

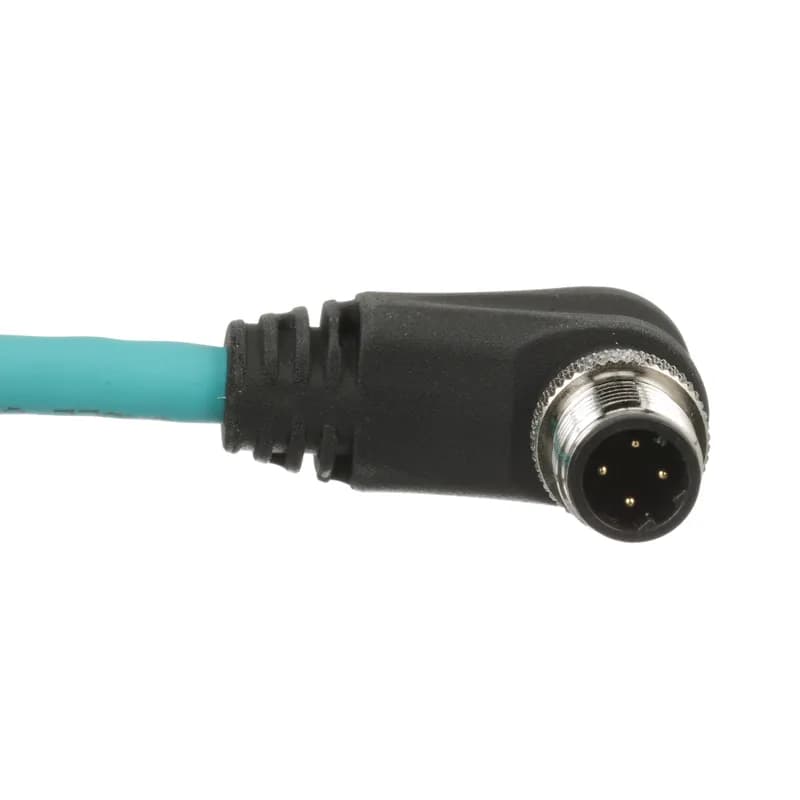

The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male to female preterminated with angled connectors. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 0.5 meters and teal.

ICD26T1NTL0.5M

The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male to female preterminated with angled connectors. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 0.5 meters and teal.
The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male to angled male preterminated with a straight connector and an angled connector. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 20 meters and teal.

ICD12T1NTL20M

The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male to angled male preterminated with a straight connector and an angled connector. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 20 meters and teal.
The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male to female preterminated with angled connectors. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 3 meters and teal.

ICD26T1NTL3M

The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male to female preterminated with angled connectors. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 3 meters and teal.
The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male to female preterminated with angled connectors. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 20 meters and teal.

ICD26T1NTL20M

The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male to female preterminated with angled connectors. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 20 meters and teal.
The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male to angled male preterminated with a straight connector and an angled connector. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 15 meters and teal.

ICD12T1NTL15M

The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male to angled male preterminated with a straight connector and an angled connector. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 15 meters and teal.
The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male to female preterminated with angled connectors. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 3 meters and teal.

ICD35T1NTL3M

The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male to female preterminated with angled connectors. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 3 meters and teal.
The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male to female preterminated with angled connectors. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 5 meters and teal.

ICD26T1NTL5M

The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male to female preterminated with angled connectors. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 5 meters and teal.
The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male preterminated with a straight connector to an unterminated pigtail. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 10 meters and teal.

ICD15T1NTL10M

The IndustrialNet M12 D-Code Category 5e Overmolded Cordset is male preterminated with a straight connector to an unterminated pigtail. It is constructed of stranded, twisted pair cable for STP installations. The cordset is 600 V rated. The TPU jacket makes it suitable for high-flex applications for increased reliability. The cordset is 10 meters and teal.

Frequently Asked Questions

Can this cordset withstand harsh industrial conditions?

Yes, in mated conditions, these cordsets can withstand high temperature and high vibration commonly found in harsh industrial applications.

What is the cable gauge for the cordset?

The cordset is constructed of 24 AWG STP stranded industrial grade TPU cable.

What protection does the TPU jacket offer?

The TPU jacket protects the cable against weld splatter, chemicals, and abrasions, making it suitable for high-flex applications.

What wiring standards do the cordsets follow?

The cordsets are wired according to the T568B and IEC 60603-7-41 standards.

Are the cordsets factory terminated?

Yes, the cordsets are factory terminated and overmolded, which helps reduce termination errors and saves time in the field.

What applications are supported by these cordsets?

These cordsets provide reliable connections for Ethernet, PROFINET, Modbus, and EtherCAT applications on the plant floor.

What material are the contact pins made of?

The contact pins are gold plated over copper-zinc alloy for superior performance.

What is the flex cycle rating of the cordset?

The cordset has a robust construction rated to 35 million plus flex cycles, providing durability and reliability.

Is the cordset suitable for Power over Ethernet (PoE)?

Yes, the cordset meets IEEE 802.3af and IEEE 802.3at standards for PoE applications.

What are the compliance standards for this cordset?

It meets ANSI/TIA-568.2-D Category 5e, ISO11801 Class D, ANSI/TIA-1005-A, IEC 61076-2-101, NEMA 1, 3, 4, 6, 6P, UL Type 12, and RoHS.
