Panduit HTMLT2.7WEH-LP - Panduit Heat Trace MLT Wave-Ty Ties are designed for superior electric heat trace installation and built with a locking head design to increase productivity. Their wide, flat profile eliminates the puncture risk of wire ties and also reduces the risk of damaging the Mineral Insulated Electric Heat Trace, causing downtime. They can even be installed in 1/3 the time. 304 Stainless steel is non-flammable and UV-resistant. Extra Heavy, 10.2L (259mm), Tensile Strength: 2670, 50pc.
Panduit

HTMLT2.7WEH-LP

UPC: 613056015425

Documents & Media
Technical BulletinTechnical DrawingFull Engineering Drawing

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Overview

Panduit HTMLT2.7WEH-LP Heat Trace MLT Wave-Ty Ties are engineered for superior electric heat trace installations, significantly enhancing productivity with their innovative locking head design. These ties are constructed from durable 304 stainless steel, offering inherent non-flammability and excellent UV resistance, crucial for demanding industrial environments. Their unique wide, flat profile is a key safety feature, effectively eliminating the puncture risk associated with traditional wire ties. This design also minimizes the potential for damaging sensitive Mineral Insulated Electric Heat Trace (MI EHT) systems, thereby preventing costly downtime. Installation efficiency is dramatically improved, with these ties capable of being installed in approximately one-third the time of conventional methods. Each tie measures 10.2 inches (259mm) in length and is classified as Extra Heavy duty, boasting an impressive tensile strength of 2670 lbs. This product is supplied in packs of 50 pieces. The UNSPSC code for this item is 39121703. Manufactured in the USA.
  • Designed for superior electric heat trace installation
  • Locking head design increases productivity
  • Wide, flat profile eliminates puncture risk and prevents MI EHT damage
  • 304 Stainless steel construction: non-flammable and UV-resistant
  • Extra Heavy duty, 10.2" (259mm) length, 2670lb tensile strength

Specifications

Application
General
Bundle Diameter, Maximum
2.7 in
Bundle Diameter, Maximum
68.58 mm
Bundle Diameter, Minimum
2.7 in
Bundle Diameter, Minimum
68.58 mm
Decorative Color
Natural
Length
10.2 in
Length
259.08 mm
Lock Mechanism
Self-Locking
Material Quality
Stainless Steel Type 304
Special Features
Indoor/Outdoor
Standard
UL
Tensile Strength
600 lb
Tensile Strength
2668.8 N
Thickness
NA in
Type
Cable Tie
Package Dimensions (L x W x H)
10.5 IN x 4.2 IN x 3.4 IN
Package Weight (Imperial)
2.75 lbs
Panduit MLT Wave-Ty Ties readily expand and contract to accommodate electric heat trace applications. Plus, ties are built with 304 stainless steel, so it is perfectly suited for indoor and outdoor environments. Light-heavy, 10.2L (259mm), Tensile Strength: 1112, Bundles up to 2.7 (69mm), 50pc.

MLT2.7WLH-LP

Panduit MLT Wave-Ty Ties readily expand and contract to accommodate electric heat trace applications. Plus, ties are built with 304 stainless steel, so it is perfectly suited for indoor and outdoor environments. Light-heavy, 10.2L (259mm), Tensile Strength: 1112, Bundles up to 2.7 (69mm), 50pc.

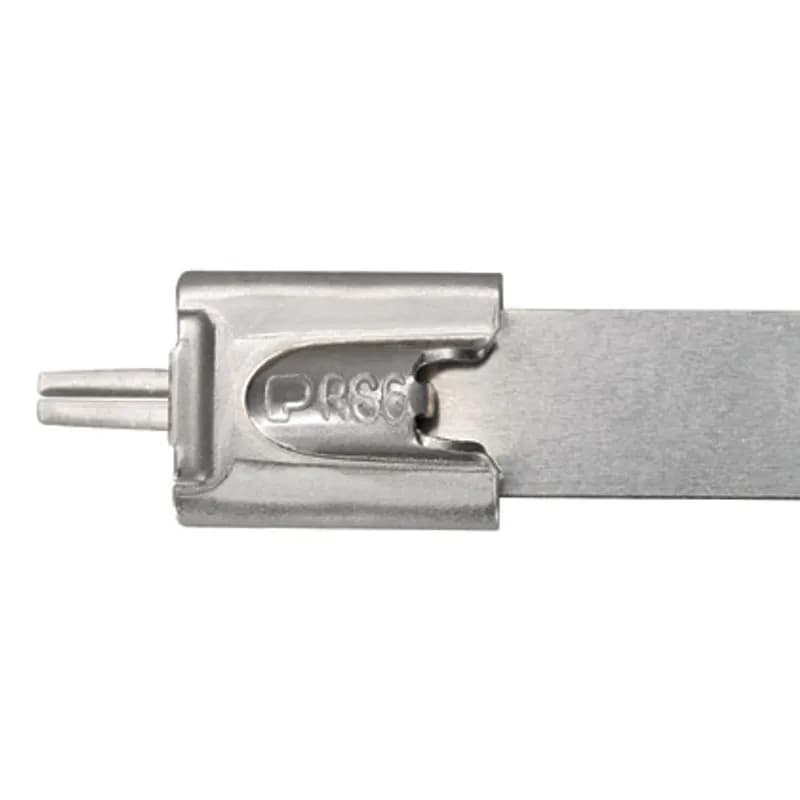

Pan-Steel 360-degree Radial Seal Retained Tension Ties speed up installation with a unique self-locking head design that locks into any part of the 304 stainless steel tie. Plus, the aggressive head and displacement lock provide a quick, tight lock in any position, creating the complete no-gap seal recommended for non-resilient Mechanical Fastening Applications. Light-heavy cross section, Max bundle diameter: 1.5in, 10.6in, Tensile strength: 1000, 50 pc.
