Contact for Pricing
Overview
- Thin wall heat shrink tubing for wire and cable protection
- VW-1 flame retardant rating for safety compliance
- Constructed from durable black cross-linked polyolefin
- Supplied on a 100-foot reel for convenience and economy
- Inner diameter of .09" (2.4mm) before shrinkage
Specifications
Application | For Dry Locations |
Color | Black |
Flammability | VW-1 |
Inside Diameter After Heat-Shrink | 0.046 in |
Inside Diameter After Heat-Shrink | 1.1684 mm |
Inside Diameter Before Heat-Shrink | 0.046 in |
Inside Diameter Before Heat-Shrink | 1.1684 mm |
Material | Cross-Linked Polyolefin |
Minimum Shrink Temperature | 194 F |
Minimum Shrink Temperature | 90 C |
Operating Temperature, Maximum | 275 F |
Operating Temperature, Maximum | 135 C |
Operating Temperature, Minimum | 275 F |
Operating Temperature, Minimum | 135 C |
Outside Diameter | 0.093 in |
Outside Diameter | 2.3622 mm |
Shrink Ratio | 2:1 |
Size | 0.09" (2.4mm) |
Standard | UL Recognized, CSA Approved, MIL SPEC |
Thickness | 0.02 in |
Thickness | 0.508 mm |
Type | Heat-Shrink |
Volume Resistivity | Flame-Retardant |
Package Dimensions (L x W x H) | 12.9 IN x 12.6 IN x 6.7 IN |
Package Weight (Imperial) | 0.415 lbs |

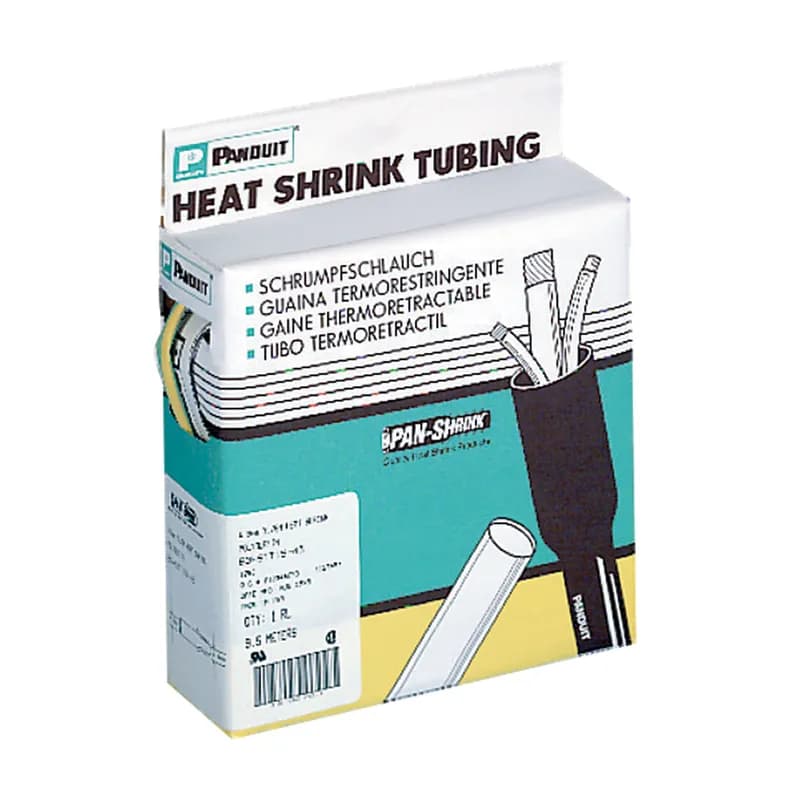

HSTT09-Q
Thin wall heat shrink on 25 foot reel, .09" (2.4mm) diameter, black cross-linked polyolefin.
HSTTV12-C
Thin wall VW-1 heat shrink on 100 foot reel, .12" (3.2mm) diameter, black cross-linked polyolefin.
HSTTV12-M
Thin wall VW-1 heat shrink on bulk reel, .12" (3.2mm) diameter, black cross-linked polyolefin.
HSTT12-M
Thin wall heat shrink, .12" (3.2mm) diameter, black cross-linked polyolefin, 1000 ft. (304.8m) per reel.
HSTT12-Q
Thin wall heat shrink on 25 foot reel, .12" (3.2mm) diameter, black cross-linked polyolefin.
HSTT06-C
Thin wall heat shrink, .06" (1.6mm) diameter, black cross-linked polyolefin, 100 ft. (30.5m) per reel.
HSTTV06-M
Thin wall VW-1 heat shrink on bulk reel, .06" (1.6mm) diameter, black cross-linked polyolefin.
HSTT06-Y
Thin wall heat shrink in 6" pieces, black, single diameter, .06" (1.6mm) diameter, cross-linked polyolefin.
HSTT06-Q
Thin wall heat shrink on 25 foot reel, .06" (1.6mm) diameter, black cross-linked polyolefin.
HSTT05-C
Thin wall heat shrink, .05" (1.2mm) diameter, black cross-linked polyolefin, 100 ft. (30.5m) per reel.

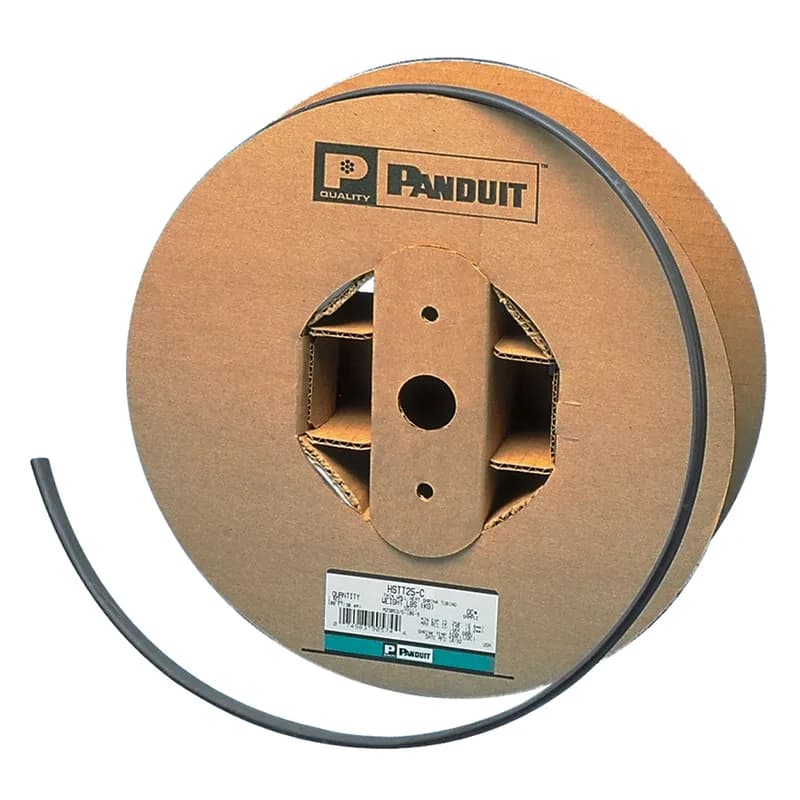

HSTTV05-C
Thin wall VW-1 heat shrink on 100 foot reel, .05" (1.2mm) diameter, black cross-linked polyolefin.

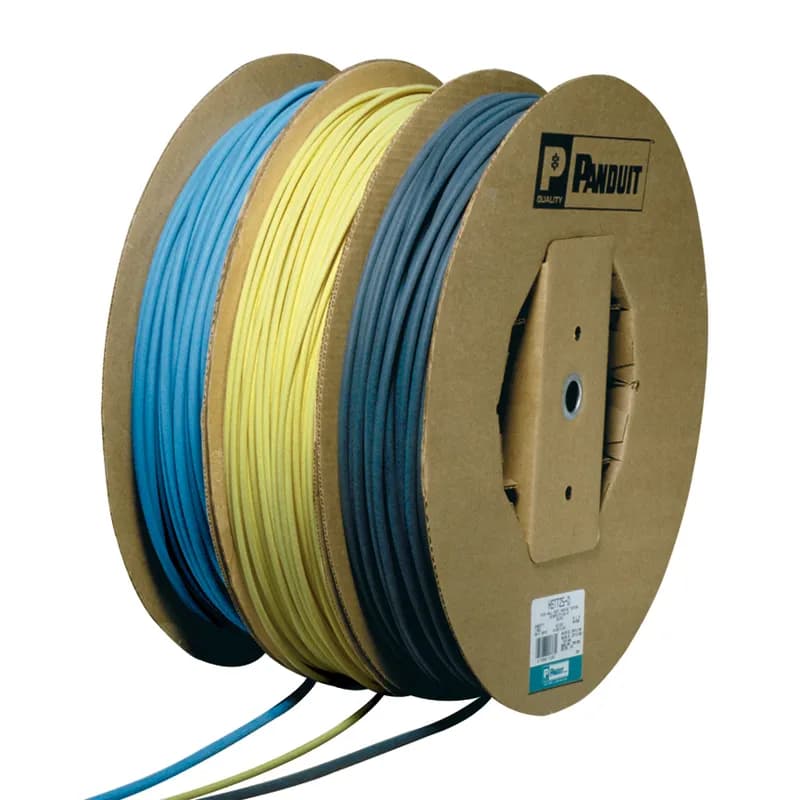

HSTT05-M
Thin wall heat shrink, .05" (1.2mm) diameter, black cross-linked polyolefin, 1000 ft. (304.8) per reel.How to Install Heat Shrink Tubing
This guide provides step-by-step instructions for properly installing heat shrink tubing to ensure effective insulation and protection of electrical connections.
Estimated time: 15m
Tools needed:
Heat gun, Infrared heat source, Soft yellow flame torch, Oven
Supplies needed:
Heat shrink tubing
- Position the heat shrink tubing
Place the heat shrink tubing over the object to be covered without stretching it.
- Heat the tubing
Using a heat gun, infrared heat source, soft yellow flame torch, or oven, evenly heat the tubing until it fully recovers and conforms to the object.
- Avoid charring
Ensure that you do not char or burn the tubing during the heating process.
