Panduit HSTTA38-Y - Thin wall adhesive lined heat shrink in 6" pieces, .38" (9.5mm) diameter, adhesive lined black cross-linked polyolefin, 3 pc. package quantity.
Panduit

HSTTA38-Y

UPC: 074983703586

Documents & Media
Technical DrawingFull Engineering DrawingVideo Clip

Contact for Pricing

Minimum Qty: 10

Multiplier: 1

*Contact for lower quantities*

Overview

The Panduit HSTTA38-Y is a high-quality, thin-wall heat shrink tubing designed for reliable electrical insulation and mechanical protection. Manufactured by Panduit, a trusted name in industrial connectivity, this product offers a robust solution for wire and cable management. Constructed from cross-linked polyolefin, the HSTTA38-Y provides excellent resistance to abrasion, chemicals, and moisture, ensuring long-term performance in demanding environments. The inner surface is lined with a specialized adhesive that melts and flows during the heat shrink process, creating a strong, environmentally sealed bond to the substrate. This adhesive lining is crucial for preventing the ingress of contaminants and providing strain relief at connection points. Each piece of the HSTTA38-Y measures 6 inches in length and has a nominal diameter of 0.38 inches (9.5mm). This size is suitable for a variety of wire gauges and cable bundles commonly found in industrial, automotive, and telecommunications applications. The thin-wall construction allows for flexibility and ease of installation, especially in space-constrained areas, while still offering significant protection. The tubing is supplied in a convenient 3-piece package quantity, making it ideal for both small-scale projects and larger installations. The black color provides a clean, professional appearance and aids in color-coding or identification if needed. Key Specifications: * **SKU:** HSTTA38-Y * **Manufacturer:** Panduit * **Material:** Cross-linked polyolefin * **Color:** Black * **Diameter:** 0.38" (9.5mm) * **Length:** 6" * **Package Quantity:** 3 pieces * **Features:** Adhesive lined, thin wall Applications for the Panduit HSTTA38-Y include wire termination sealing, cable bundling, strain relief for connectors, and general insulation of electrical splices. Its adhesive lining ensures a secure, watertight seal, vital for maintaining signal integrity and preventing electrical failures. Trust Panduit for your critical wire management needs with the reliable HSTTA38-Y heat shrink tubing.
  • Thin wall construction for flexibility and ease of installation
  • Adhesive lined for a strong, environmentally sealed bond
  • Made from durable black cross-linked polyolefin material
  • 0.38" (9.5mm) diameter and 6" length suitable for various applications
  • 3 pieces per package for convenient inventory management

Specifications

Application
3:1 shrink ratio for damp applications. Provides excellent abrasion protection. Flexible
Color
Black
Flammability
Flame retardant outer wall meets UL 224 VW-1
Inside Diameter After Heat-Shrink
0.12 in
Inside Diameter After Heat-Shrink
3.048 mm
Inside Diameter Before Heat-Shrink
0.12 in
Inside Diameter Before Heat-Shrink
3.048 mm
Minimum Shrink Temperature
248 F
Minimum Shrink Temperature
120 C
Operating Temperature, Maximum
230 F
Operating Temperature, Maximum
110 C
Operating Temperature, Minimum
230 F
Operating Temperature, Minimum
110 C
Outside Diameter
0.37 in
Outside Diameter
9.398 mm
Shrink Ratio
3:1
Standard
UL Recognized, MIL SPEC
Thickness
0.055 in
Thickness
1.397 mm
Type
Heat-Shrink
Package Dimensions (L x W x H)
7.5 IN x 2.7 IN x 0.7 IN
Package Weight (Imperial)
0.062 lbs
Thin wall adhesive lined heat shrink 4' pieces, .38" (9.5mm) diameter, adhesive lined black cross-linked polyolefin, 25 pc. package quantity.

HSTTA38-48-Q

Thin wall adhesive lined heat shrink 4' pieces, .38" (9.5mm) diameter, adhesive lined black cross-linked polyolefin, 25 pc. package quantity.
Thin wall adhesive lined heat shrink 4' pieces, .38" (9.5mm) diameter, adhesive lined black cross-linked polyolefin, 250 pc. package quantity.

HSTTA38-48-TL

Thin wall adhesive lined heat shrink 4' pieces, .38" (9.5mm) diameter, adhesive lined black cross-linked polyolefin, 250 pc. package quantity.
Semi-Rigid adhesive lined heat shrink, .38" (9.5mm) diameter, adhesive lined black cross-linked polyolefin, 25 pc. package quantity.

HSTTRA38-48-Q

Semi-Rigid adhesive lined heat shrink, .38" (9.5mm) diameter, adhesive lined black cross-linked polyolefin, 25 pc. package quantity.
Flexible adhesive lined heat shrink in 4' pieces, .38" (9.5mm) diameter, adhesive lined black cross-linked polyolefin, 25 pc. package quantity.

HSTTVA38-48-Q

Flexible adhesive lined heat shrink in 4' pieces, .38" (9.5mm) diameter, adhesive lined black cross-linked polyolefin, 25 pc. package quantity.
Flexible adhesive lined heat shrink in 6" pieces, .38" (9.5mm) diameter, adhesive lined black cross-linked polyolefin, 4 pc. package quantity.

HSTTVA38-Y

Flexible adhesive lined heat shrink in 6" pieces, .38" (9.5mm) diameter, adhesive lined black cross-linked polyolefin, 4 pc. package quantity.
Thick wall adhesive lined, .4" (10.2mm) diameter, 3.0" (76.2mm) length, adhesive lined black cross-linked polyolefin, 25 pc. package quantity.

HST0.4-3-QY

Thick wall adhesive lined, .4" (10.2mm) diameter, 3.0" (76.2mm) length, adhesive lined black cross-linked polyolefin, 25 pc. package quantity.
Thick wall adhesive lined, .4" (10.2mm) diameter, 6.0" (152.4mm) length, adhesive lined black cross-linked polyolefin, 10 pc. package quantity.

HST0.4-6-XY

Thick wall adhesive lined, .4" (10.2mm) diameter, 6.0" (152.4mm) length, adhesive lined black cross-linked polyolefin, 10 pc. package quantity.
The HST0.4-48-5Y Thick Wall Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in outdoor, wet locations. Thick wall for direct burial. Voltage rating: UL 486D Listed for 600 V 90 C continuous use. Shrink ratio: 3:1. Temperature range: -67 F to 230 F (-55 C to 110 C). Cross-linked Polyolefin. 0.4" (10.2mm) dia. 48.0" (1219.2mm) length. Color Black. 5 per package.

HST0.4-48-5Y

The HST0.4-48-5Y Thick Wall Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in outdoor, wet locations. Thick wall for direct burial. Voltage rating: UL 486D Listed for 600 V 90 C continuous use. Shrink ratio: 3:1. Temperature range: -67 F to 230 F (-55 C to 110 C). Cross-linked Polyolefin. 0.4" (10.2mm) dia. 48.0" (1219.2mm) length. Color Black. 5 per package.
The HSTTRA50-48-5 Semi-Rigid Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in damp locations. Voltage rating: 600 V. Shrink ratio: 42.5:1. Temperature range: -67 F to 230 F (-55 C to 110 C). Cross-linked Polyolefin. 0.5" (12.7 mm) diameter, 4' (1.2 m) length. Color Black. 5 per package.

HSTTRA50-48-5

The HSTTRA50-48-5 Semi-Rigid Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in damp locations. Voltage rating: 600 V. Shrink ratio: 42.5:1. Temperature range: -67 F to 230 F (-55 C to 110 C). Cross-linked Polyolefin. 0.5" (12.7 mm) diameter, 4' (1.2 m) length. Color Black. 5 per package.
Semi-Rigid adhesive lined heat shrink, .25" (6.4mm) diameter, adhesive lined black cross-linked polyolefin, 25 pc. package quantity.

HSTTRA25-48-Q

Semi-Rigid adhesive lined heat shrink, .25" (6.4mm) diameter, adhesive lined black cross-linked polyolefin, 25 pc. package quantity.
4:1 Thin wall adhesive lined heat shrink, .315" (8.0mm) diameter, 4' (1.2m) length, adhesive lined black cross-linked polyolefin, 25 pc. package quantity.

HSTT4A31-48-Q

4:1 Thin wall adhesive lined heat shrink, .315" (8.0mm) diameter, 4' (1.2m) length, adhesive lined black cross-linked polyolefin, 25 pc. package quantity.

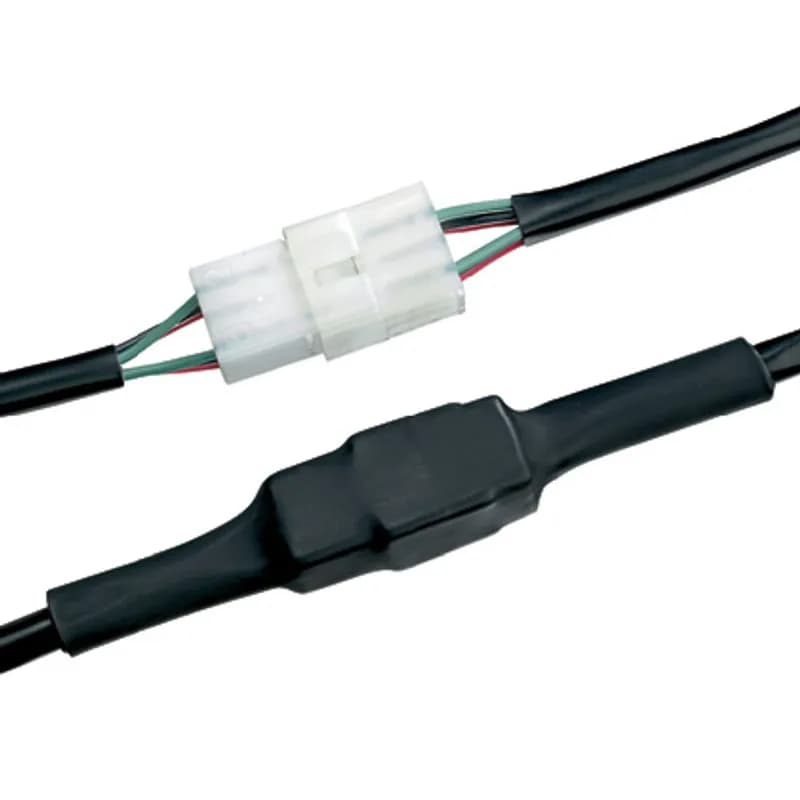

4:1 Thin wall adhesive lined heat shrink, .472" (12.0mm) diameter, 4' (1.2m) length, adhesive lined black cross-linked polyolefin, 25 pc. package quantity.
