Panduit HSTTA100-Y - Thin wall adhesive lined heat shrink in 6" pieces, 1" (25.4mm) diameter, adhesive lined black cross-linked polyolefin, 2 pc. package quantity.
Panduit

HSTTA100-Y

UPC: 074983703616

Documents & Media
Technical DrawingFull Engineering DrawingVideo Clip

Contact for Pricing

Minimum Qty: 10

Multiplier: 1

*Contact for lower quantities*

Overview

Panduit HSTTA100-Y thin wall adhesive lined heat shrink tubing provides reliable insulation and protection for wires and cables in demanding industrial environments. This 1" (25.4mm) diameter tubing is supplied in 6" (152.4mm) pieces, with a 2-piece package quantity for flexibility in small to medium installations. The adhesive-lined inner wall creates a moisture-resistant seal, protecting components from corrosion and environmental contaminants in damp or wet locations. Engineered with cross-linked polyolefin, the tubing meets Mil Spec AMS-DTL-23053/4 Class 3 (material performance only) and is UL recognized (E342365) for 600V applications. With a 3:1 shrink ratio, it conforms tightly to irregular shapes, ensuring long-term stability and electrical integrity. The flame-retardant outer wall enhances safety, while the operating temperature range of -67°F to 230°F (-55°C to 110°C) supports use in extreme conditions. Ideal for insulating and protecting splices, terminals, and cable assemblies, this tubing is a cost-effective solution for electrical infrastructure, manufacturing, and maintenance applications. The 5-year shelf life ensures reliability when stored properly. The tubing’s cross-linked polyolefin construction delivers high tensile strength and resistance to abrasion, chemicals, and UV exposure, making it suitable for harsh outdoor and industrial settings. Its adhesive lining melts during shrinking, forming a waterproof barrier that prevents moisture ingress and electrical shorts. The tubing’s flexibility allows easy installation over connectors and splices without cracking or splitting, even in tight spaces. Compliance with Mil Spec AMS-DTL-23053/4 Class 3 ensures consistent performance in military and aerospace applications, while the UL recognition confirms its suitability for high-voltage electrical systems. The 3:1 shrink ratio enables secure fitting over a range of wire diameters, from 0.33" to 1.0" (8.4mm to 25.4mm), providing versatility across different cable sizes.
  • 1" (25.4mm) diameter, 6" (152.4mm) length tubing in 2-piece package
  • Adhesive-lined inner wall seals against moisture and corrosion in damp locations
  • 3:1 shrink ratio for tight conformance to irregular shapes and components
  • UL recognized (E342365) for 600V applications; Mil Spec AMS-DTL-23053/4 Class 3 (material performance only)
  • Operating temperature range: -67°F to 230°F (-55°C to 110°C); flame-retardant outer wall
  • Cross-linked polyolefin material with 5-year shelf life when stored properly

Specifications

Application
3:1 shrink ratio for damp applications. Provides excellent abrasion protection. Flexible
Color
Black
Flammability
Flame retardant outer wall meets UL 224 VW-1
Inside Diameter After Heat-Shrink
0.32 in
Inside Diameter After Heat-Shrink
8.128 mm
Inside Diameter Before Heat-Shrink
0.32 in
Inside Diameter Before Heat-Shrink
8.128 mm
Minimum Shrink Temperature
248 F
Minimum Shrink Temperature
120 C
Operating Temperature, Maximum
230 F
Operating Temperature, Maximum
110 C
Operating Temperature, Minimum
230 F
Operating Temperature, Minimum
110 C
Outside Diameter
1 in
Outside Diameter
25.4 mm
Shrink Ratio
3:1
Standard
UL Recognized, MIL SPEC
Thickness
0.1 in
Thickness
2.54 mm
Type
Heat-Shrink
Package Dimensions (L x W x H)
6.95 IN x 3.65 IN x 1 IN
Package Weight (Imperial)
0.099 lbs
Thin wall adhesive lined heat shrink 4' pieces, 1" (25.4mm) diameter, adhesive lined black cross-linked polyolefin, 50 pc. package quantity.

HSTTA100-48-L

Thin wall adhesive lined heat shrink 4' pieces, 1" (25.4mm) diameter, adhesive lined black cross-linked polyolefin, 50 pc. package quantity.
The HSTTA100-48-5 Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in damp locations. Voltage rating: 600 V. Shrink ratio: 3:1. Temperature range: -67 F to 230 F (-55 C to 110 C). Cross-linked Polyolefin. 1" (25.4 mm) diameter, 4' (1.2 m) length. Color Black. 5 per package.

HSTTA100-48-5

The HSTTA100-48-5 Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in damp locations. Voltage rating: 600 V. Shrink ratio: 3:1. Temperature range: -67 F to 230 F (-55 C to 110 C). Cross-linked Polyolefin. 1" (25.4 mm) diameter, 4' (1.2 m) length. Color Black. 5 per package.
Thick wall adhesive lined, 1.1" (27.9mm) diameter, 9.0" (228.6mm) length, adhesive lined black cross-linked polyolefin, 10 pc. package quantity.

HST1.1-9-XY

Thick wall adhesive lined, 1.1" (27.9mm) diameter, 9.0" (228.6mm) length, adhesive lined black cross-linked polyolefin, 10 pc. package quantity.
Thick wall adhesive lined, 1.1" (27.9mm) diameter, 6.0" (152.4mm) length, adhesive lined black cross-linked polyolefin, 10 pc. package quantity.

HST1.1-6-XY

Thick wall adhesive lined, 1.1" (27.9mm) diameter, 6.0" (152.4mm) length, adhesive lined black cross-linked polyolefin, 10 pc. package quantity.
Thick wall adhesive lined, 1.1" (27.9mm) diameter, 12.0" (304.8mm) length, adhesive lined black cross-linked polyolefin, 5 pc. package quantity.

HST1.1-12-5Y

Thick wall adhesive lined, 1.1" (27.9mm) diameter, 12.0" (304.8mm) length, adhesive lined black cross-linked polyolefin, 5 pc. package quantity.
Thick wall adhesive lined, 1.1" (27.9mm) diameter, 9.0" (228.6mm) length, adhesive lined black cross-linked polyolefin, 2 pc. package quantity, Black.

HST1.1-9-2Y

Thick wall adhesive lined, 1.1" (27.9mm) diameter, 9.0" (228.6mm) length, adhesive lined black cross-linked polyolefin, 2 pc. package quantity, Black.
The HST1.1-48-5Y Thick Wall Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in outdoor, wet locations. Thick wall for direct burial. Voltage rating: UL 486D Listed for 600 V 90 C continuous use. Shrink ratio: 3:1. Temperature range: -67 F to 230 F (-55 C to 110 C). Cross-linked Polyolefin. 1.1" (27.9 mm) dia. 48" (1219.2 mm) length. Color Black. 5 per package.

HST1.1-48-5Y

The HST1.1-48-5Y Thick Wall Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in outdoor, wet locations. Thick wall for direct burial. Voltage rating: UL 486D Listed for 600 V 90 C continuous use. Shrink ratio: 3:1. Temperature range: -67 F to 230 F (-55 C to 110 C). Cross-linked Polyolefin. 1.1" (27.9 mm) dia. 48" (1219.2 mm) length. Color Black. 5 per package.
Semi-Rigid adhesive lined heat shrink, 1" (25.4mm) diameter, adhesive lined black cross-linked polyolefin, 5 pc. package quantity.

HSTTRA100-48-5

Semi-Rigid adhesive lined heat shrink, 1" (25.4mm) diameter, adhesive lined black cross-linked polyolefin, 5 pc. package quantity.

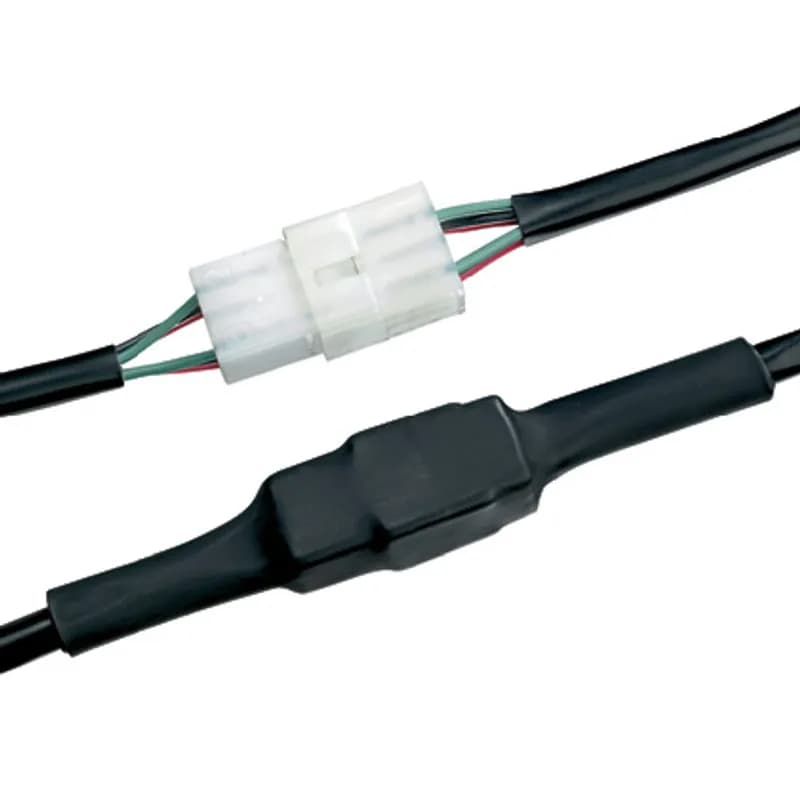

4:1 Thin wall adhesive lined heat shrink, .945" (24.0mm) diameter, 4' (1.2m) length, adhesive lined black cross-linked polyolefin, 5 pc. package quantity.
