Panduit HSTT06-C2 - Thin wall heat shrink, .06" (1.6mm) diameter, red cross-linked polyolefin, 100 ft. (30.5m) per reel.
Panduit

HSTT06-C2

UPC: 074983747078

Documents & Media
Technical DrawingFull Engineering DrawingInstallation InstructionsVideo Clip

Contact for Pricing

Overview

The Panduit HSTT06-C2 is a high-quality, thin-wall heat shrink tubing designed for professional wire and cable management. This specific product comes in a vibrant red color, making it ideal for color-coding and identification within complex wiring systems. Manufactured from cross-linked polyolefin, it offers excellent insulation and protection against abrasion, moisture, and chemicals. With a nominal diameter of .06 inches (1.6mm) before shrinkage, it is perfectly suited for insulating small gauge wires, connectors, and splices. Each reel contains 100 feet (30.5 meters) of tubing, providing ample material for numerous applications. The thin-wall construction ensures a low-profile fit, minimizing bulk and allowing for easier routing in confined spaces. Panduit is a trusted name in the industry, known for producing reliable and durable electrical components. The HSTT06-C2 is manufactured in the USA, ensuring adherence to stringent quality control standards. Its cross-linked polyolefin material provides a good balance of flexibility and toughness, making it suitable for a variety of industrial and commercial uses where reliable insulation and strain relief are critical. The red color aids in quick visual identification of circuits or wire types, enhancing safety and maintenance efficiency.
  • Thin wall heat shrink tubing for low-profile applications
  • 0.06" (1.6mm) nominal diameter, ideal for small gauge wires
  • Red cross-linked polyolefin material for insulation and identification
  • 100 ft. (30.5m) per reel for ample supply
  • Manufactured in the USA by Panduit (SKU: HSTT06-C2)

Specifications

Application
For Dry Locations
Color
Red
Continuous Operating Temperature
NA F
Flammability
Flame Retardant
Inside Diameter After Heat-Shrink
0.031 in
Inside Diameter After Heat-Shrink
0.7874 mm
Inside Diameter Before Heat-Shrink
0.031 in
Inside Diameter Before Heat-Shrink
0.7874 mm
Minimum Shrink Temperature
NA F
Outside Diameter
0.06 in
Outside Diameter
1.524 mm
Shrink Ratio
2:1
Thickness
0.017 in
Thickness
0.4318 mm
Type
Heat-Shrink
Package Dimensions (L x W x H)
12.9 IN x 12.6 IN x 6.7 IN
Package Weight (Imperial)
0.311 lbs
Thin wall heat shrink, .06" (1.6mm) diameter, red cross-linked polyolefin, 25 pc. package quantity.

HSTT06-48-Q2

Thin wall heat shrink, .06" (1.6mm) diameter, red cross-linked polyolefin, 25 pc. package quantity.

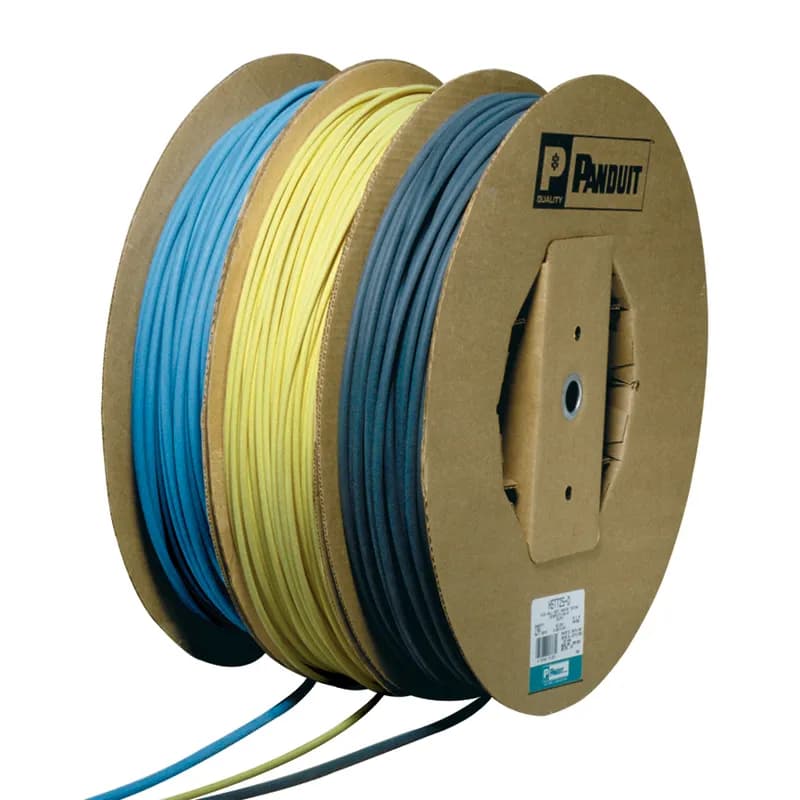

Thin wall heat shrink, .06" (1.6mm) diameter, red cross-linked polyolefin, 1000 ft. (304.8m) per reel.

HSTT06-M2

Thin wall heat shrink, .06" (1.6mm) diameter, red cross-linked polyolefin, 1000 ft. (304.8m) per reel.
Thin wall heat shrink, .05" (1.2mm) diameter, red cross-linked polyolefin, 100 ft. (30.5m) per reel.

HSTT05-C2

Thin wall heat shrink, .05" (1.2mm) diameter, red cross-linked polyolefin, 100 ft. (30.5m) per reel.
Thin wall heat shrink, .09" (2.4mm) diameter, red cross-linked polyolefin, 25 pc. package quantity.

HSTT09-48-Q2

Thin wall heat shrink, .09" (2.4mm) diameter, red cross-linked polyolefin, 25 pc. package quantity.
Thin wall heat shrink, .09" (2.4mm) diameter, red cross-linked polyolefin, 1000 ft. (304.8m) per reel.

HSTT09-M2

Thin wall heat shrink, .09" (2.4mm) diameter, red cross-linked polyolefin, 1000 ft. (304.8m) per reel.
Thin wall heat shrink, .12" (3.2mm) diameter, red cross-linked polyolefin, 100 ft. (30.5m) per reel.

HSTT12-C2

Thin wall heat shrink, .12" (3.2mm) diameter, red cross-linked polyolefin, 100 ft. (30.5m) per reel.
Thin wall heat shrink, .12" (3.2mm) diameter, red cross-linked polyolefin, 25 pc. package quantity.

HSTT12-48-Q2

Thin wall heat shrink, .12" (3.2mm) diameter, red cross-linked polyolefin, 25 pc. package quantity.
Thin wall heat shrink, .12" (3.2mm) diameter, red cross-linked polyolefin, 1000 ft. (304.8m) per reel.

HSTT12-M2

Thin wall heat shrink, .12" (3.2mm) diameter, red cross-linked polyolefin, 1000 ft. (304.8m) per reel.

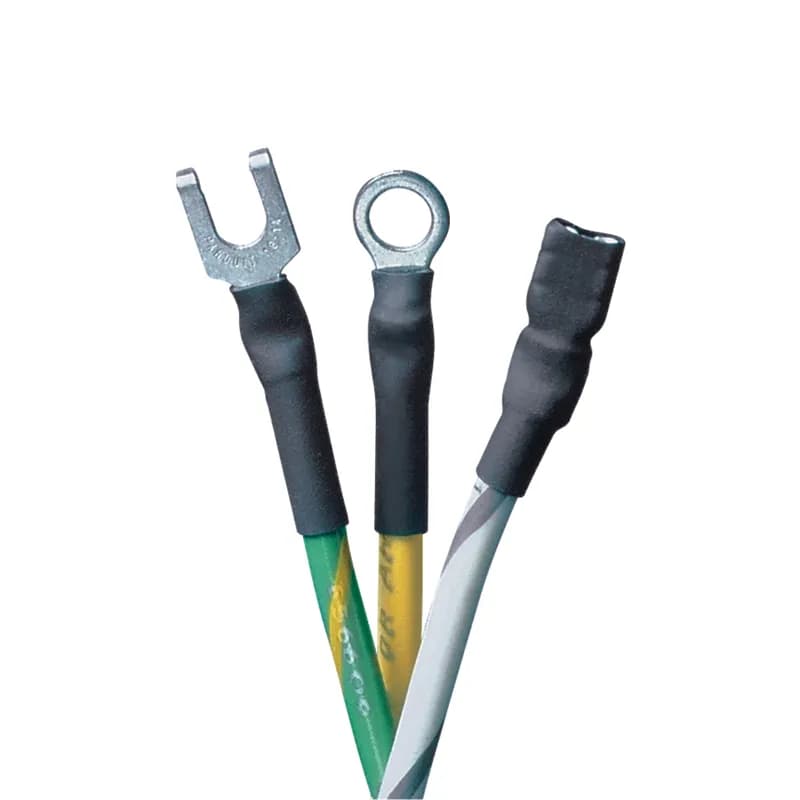

Thin wall heat shrink, .19" (4.8mm) diameter, red cross-linked polyolefin, 25 pc. package quantity.

HSTT19-48-Q2

Thin wall heat shrink, .19" (4.8mm) diameter, red cross-linked polyolefin, 25 pc. package quantity.
Thin wall heat shrink, .19" (4.8mm) diameter, red cross-linked polyolefin, 1000 ft. (304.8m) per reel.

HSTT19-M2

Thin wall heat shrink, .19" (4.8mm) diameter, red cross-linked polyolefin, 1000 ft. (304.8m) per reel.
Thin wall heat shrink, .19" (4.8mm) diameter, red cross-linked polyolefin, 100 ft. (30.5m) per reel.

HSTT19-C2

Thin wall heat shrink, .19" (4.8mm) diameter, red cross-linked polyolefin, 100 ft. (30.5m) per reel.
Thin wall heat shrink, .25" (6.4mm) diameter, red cross-linked polyolefin, 100 ft. (30.5m) per reel.

HSTT25-C2

Thin wall heat shrink, .25" (6.4mm) diameter, red cross-linked polyolefin, 100 ft. (30.5m) per reel.

How to Install Heat Shrink Tubing

This guide provides step-by-step instructions for properly installing heat shrink tubing to ensure effective insulation and protection of electrical connections.

Estimated time: 15m

Tools needed:

Heat gun, Infrared heat source, Soft yellow flame torch, Oven

Supplies needed:

Heat shrink tubing

  1. Position the heat shrink tubing

    Place the heat shrink tubing over the object to be covered without stretching it.

  2. Heat the tubing

    Using a heat gun, infrared heat source, soft yellow flame torch, or oven, evenly heat the tubing until it fully recovers and conforms to the object.

  3. Avoid charring

    Ensure that you do not char or burn the tubing during the heating process.
