Contact for Pricing
Minimum Qty: 100
Multiplier: 100
*Contact for lower quantities*
Overview
- Includes one 12 mm hex nut and one 12 mm lock washer
- Designed for attaching trapeze brackets to threaded rod
- Ensures a secure and vibration-resistant connection
- Manufactured by Panduit for quality and reliability
- Made in the USA
Specifications
Application | Attaching trapeze brackets to threaded rod |
Color* | Silver |
Length | NA In. |
Type | Lockwasher |
Package Dimensions (L x W x H) | 7.8 IN x 3.4 IN x 3.4 IN |
Package Weight (Imperial) | 4.95 lbs |
WG30EZ10

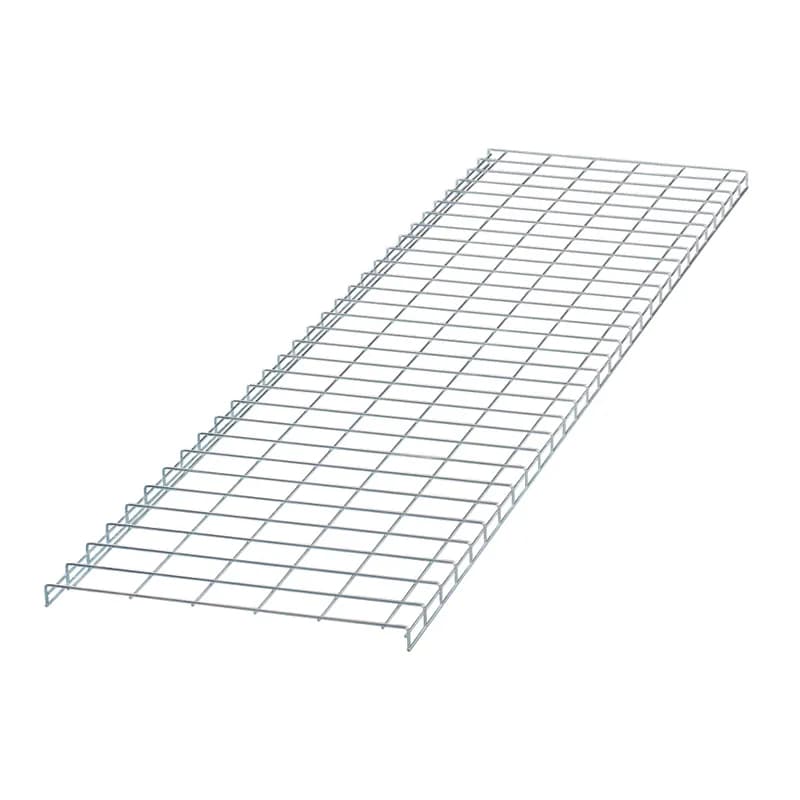

The Wyr-Grid Pathway Section protects cables between the Main Distribution Area and the Equipment Distribution Area. Unlike other pathways, it installs quickly and can be modified easily, optional sidewalls snap on without extra hardware or tools. Splice connector: WGSPL2430BL, Intersection splice: WGINTSPLBL, Steel, 118.4in x 30.5in x 2.1in (3007mm, 775mm, 53mm), Electro Zinc plated.
WGVWMBEZ

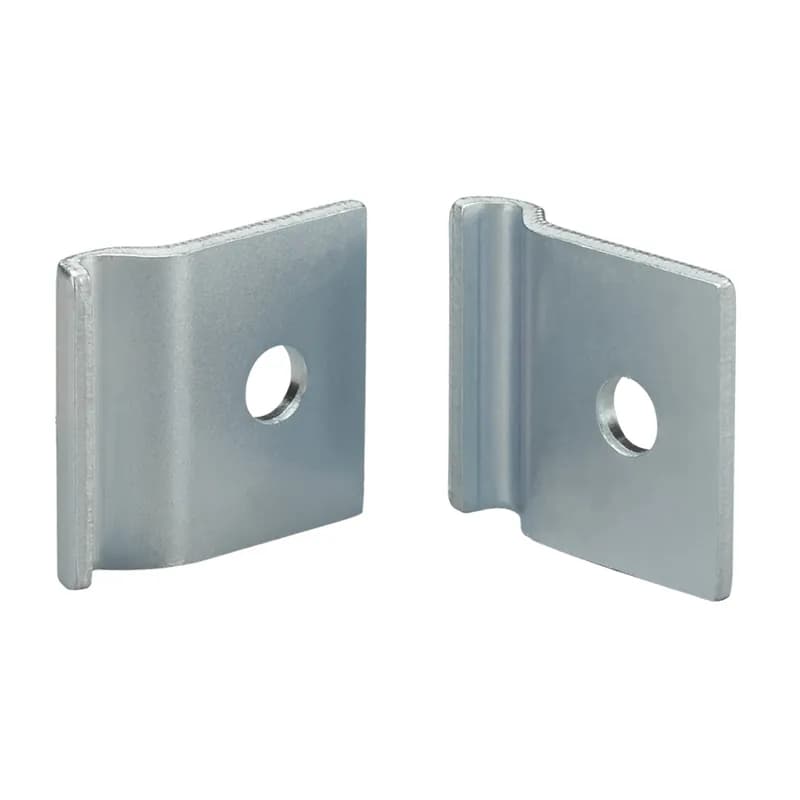

The electro zinc-plated vertical wall mount bracket in silver is .33" (8.4 mm) high, 1.5" (38.1 mm) long, and 1.69" (42.9 mm). It comes in standard packages of one.WGSW6EZ
The Wyr-Grid electro zinc-plated, snap-on sidewall in silver is 6.0" (152 mm) high. It can be attached anywhere along the pathway to retain cables. It comes in standard packages of one.
PWBCB24EZ
The Panduit Cantilever Bracket is used in cable routing system which supports the 24 inch basket. The mounting hardware for attaching the cantilever bracket is sold separately.
WGSPL1218EZ

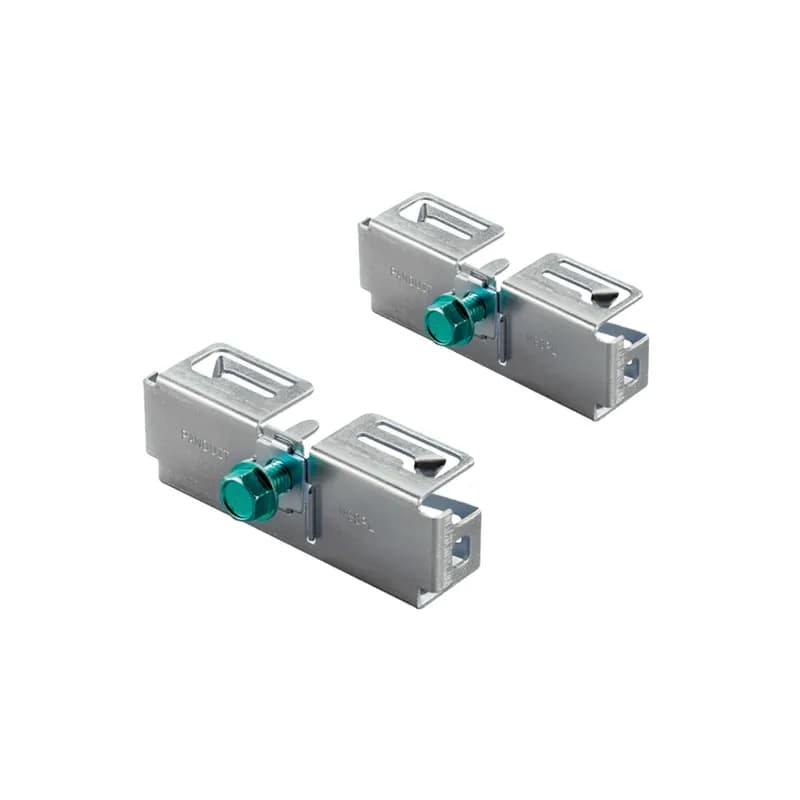

The electro zinc-plated straight splice connector in silver is 1.57" (39.8 mm) high and quickly joins two 8" (203 mm), 12" (305 mm), or 18" (457 mm) wide Wyr-Grid Pathways together. A thread cutting screw pierces through the paint of adjacent pathway sections to provide a completely bonded connection, ensuring electrical continuity between the pathways. The package contains two components needed to join two pathway sections.
WGIBRC4EZ

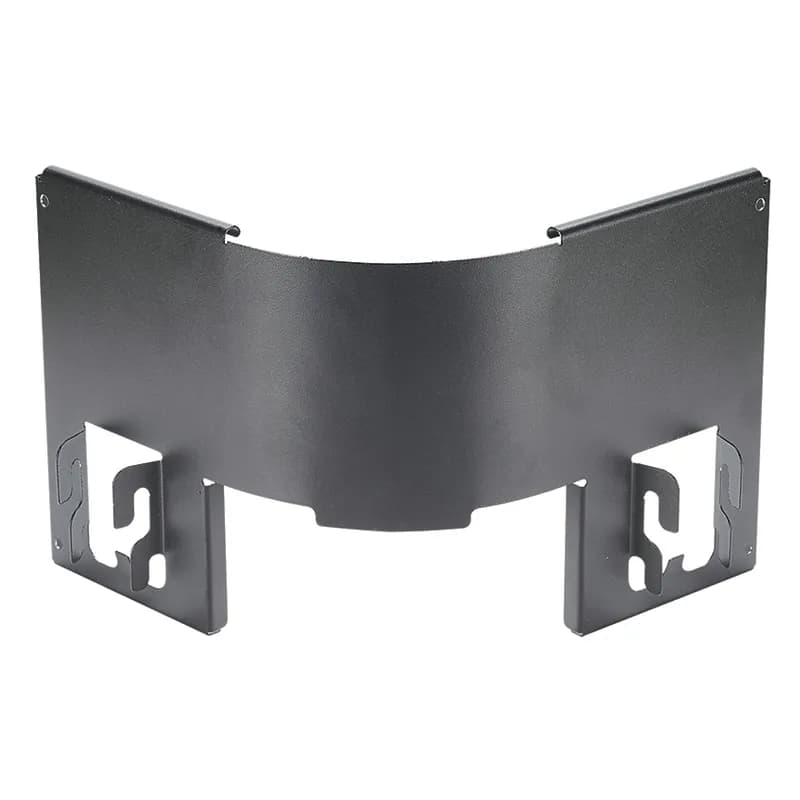

Electro zinc plated Wyr-Grid 4" (50mm) high Snap-On Intersection Bend Radius Control provides 3" (76mm) bend radius control and can be installed without cutting or fabrication at tees, crosses, and right angle intersections.
PWBCB6EZ
The Panduit Cantilever Bracket is used in cable routing system which supports the 6 inch basket. The mounting hardware for attaching the cantilever bracket is sold separately.
PWBCB12EZ
The Panduit Cantilever Bracket is used in cable routing system which supports the 12 inch basket. The mounting hardware for attaching the cantilever bracket is sold separately.
PWBCB4EZ
The Panduit Cantilever Bracket is used in cable routing system which supports the 4 inch basket. The mounting hardware for attaching the cantilever bracket is sold separately.
PWBCB18EZ
The Panduit Cantilever Bracket is used in cable routing system which supports the 18 inch basket. The mounting hardware for attaching the cantilever bracket is sold separately.
PWBCVR18PG
Our Metal Covers conceal cabling for a more aesthetic look, while proctecting cables from debris, condesation, liquid, and falling objects. Designed to securely attach to 18" wire basket pathways. Each cover is comprised of 3 individual sections that will cover one 10 foot length of basket. Comes in pre-galvanized finish.Frequently Asked Questions about Panduit
