Panduit GTW150-250-1 - Bronze Ground Clamp Connector, 3-Wire, Parallel to Pipe, 4 AWG SOL - 250 kcmil, 1-1/2" Pipe Size
Panduit

GTW150-250-1

UPC: 613056685536

Documents & Media
Technical DrawingFull Engineering Drawing

Contact for Pricing

Overview

The Panduit GTW150-250-1 is a robust bronze ground clamp connector designed for secure 3-wire grounding applications. This connector is engineered for parallel connection to a pipe, offering reliable electrical continuity. It accommodates a wide range of conductor sizes, from 4 AWG solid to 250 kcmil, ensuring versatility for various grounding needs. The clamp is specifically designed for 1-1/2" pipe sizes, providing a precise fit for standard industrial piping. Constructed from durable bronze, this connector is built to withstand environmental factors and ensure long-term performance in demanding conditions. Its parallel orientation facilitates straightforward installation and connection to grounding systems. The Panduit GTW150-250-1 is manufactured in the USA, adhering to high production standards. This connector is an essential component for ensuring safety and compliance in electrical grounding systems, particularly where direct connection to piping is required. Its material composition and design ensure excellent conductivity and corrosion resistance, vital for maintaining the integrity of the grounding path over time. The SKU GTW150-250-1 clearly identifies this specific model for procurement and inventory management. This connector is suitable for applications requiring a dependable and robust grounding solution for electrical infrastructure.
  • Durable bronze construction for corrosion resistance and conductivity
  • Designed for 3-wire grounding applications
  • Parallel connection to 1-1/2" pipe size
  • Accommodates conductor sizes from 4 AWG solid to 250 kcmil
  • Manufactured in the USA

Specifications

Application
Utility/Ground Grid
Clamp Material
Bronze
Connection Type
Parallel to Pipe
Length
4.76 In.
Material
Bronze
Poles
3-wire
Series
GTW
Size
4 AWG SOL - 250 kcmil, 1-1/2" Pipe Size
Standard
cULus Listed to UL 467 for Direct Burial Grounding
Type
Ground Clamp
Package Dimensions (L x W x H)
7.75 IN x 4.25 IN x 3.25 IN
Package Weight (Imperial)
1.25 lbs
Bronze Ground Clamp Connector, 2-Wire, Parallel to Pipe, 4 AWG - 250 kcmil,3" Pipe Size

GU-21P-1

Bronze Ground Clamp Connector, 2-Wire, Parallel to Pipe, 4 AWG - 250 kcmil,3" Pipe Size
Bronze Ground Clamp Connector, 3-Wire, Parallel to Pipe, 4 AWG SOL - 250 kcmil, 1-1/4" Pipe Size

GTW125-250-1

Bronze Ground Clamp Connector, 3-Wire, Parallel to Pipe, 4 AWG SOL - 250 kcmil, 1-1/4" Pipe Size
Bronze Ground Clamp Connector, 300-500 kcmil copper wire to 2-1/2" IPS

GPL-41-1

Bronze Ground Clamp Connector, 300-500 kcmil copper wire to 2-1/2" IPS

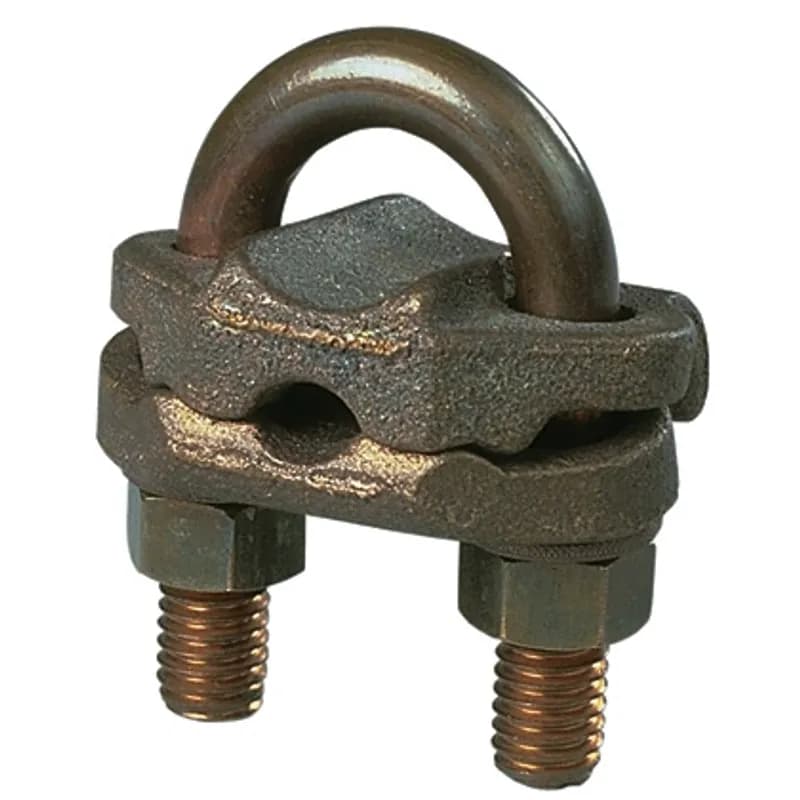

Bronze Ground Clamp Connector, 300-500 kcmil copper wire to 3" IPS

GPL-47-1

Bronze Ground Clamp Connector, 300-500 kcmil copper wire to 3" IPS

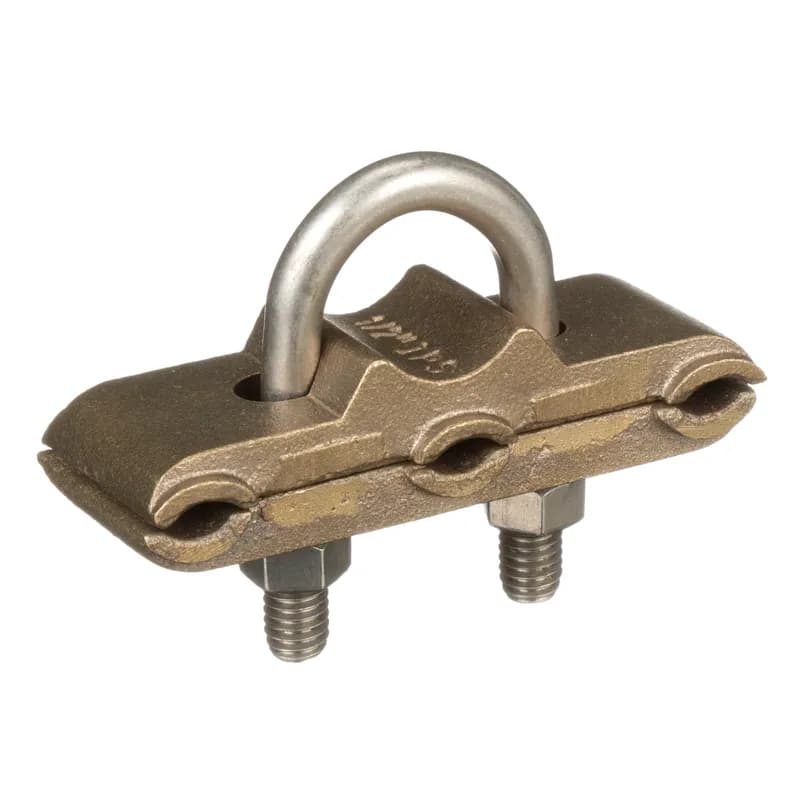

Bronze Ground Clamp Connector, 3-Wire, Parallel to Pipe, 4 AWG SOL - 250 kcmil, 2" Pipe Size

GTW200-250-1

Bronze Ground Clamp Connector, 3-Wire, Parallel to Pipe, 4 AWG SOL - 250 kcmil, 2" Pipe Size
Bronze Ground Clamp Connector, 2-Wire, Parallel to Pipe, 4 AWG - 250 kcmil,2-1/2" Pipe Size

GU-15P-1

Bronze Ground Clamp Connector, 2-Wire, Parallel to Pipe, 4 AWG - 250 kcmil,2-1/2" Pipe Size
Bronze Ground Clamp Connector, 8 AWG Sol.-4 AWG Str. copper wire to 2-1/2" IPS

GPL-38-1

Bronze Ground Clamp Connector, 8 AWG Sol.-4 AWG Str. copper wire to 2-1/2" IPS

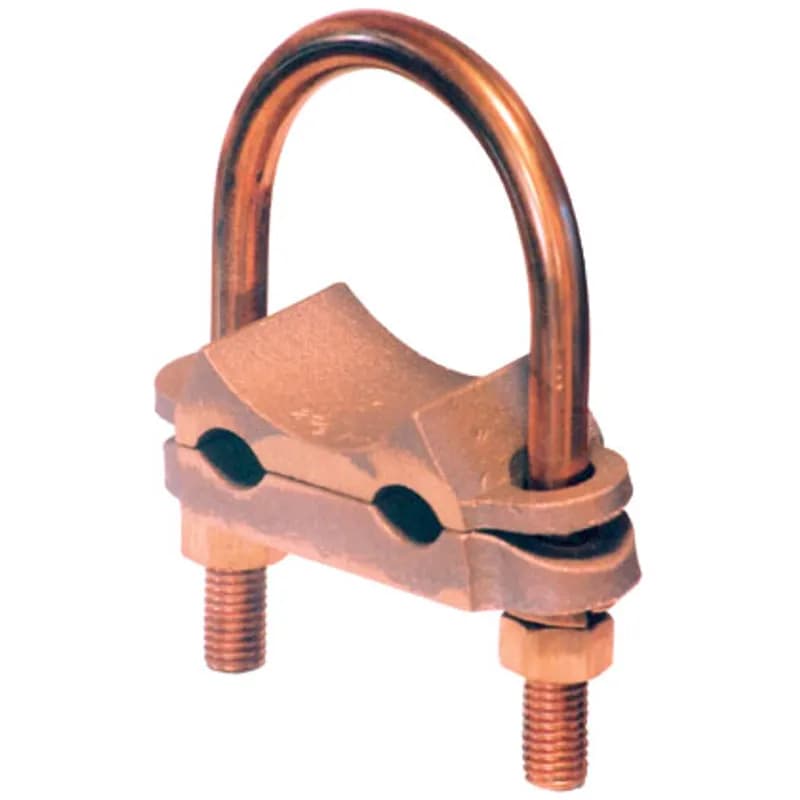

Bronze Ground Clamp Connector, 2-Wire, Parallel to Pipe, 4 AWG - 250 kcmil,3-1/2" Pipe Size
