Panduit GSP1-10-4-C - Bronze, service post connectors, ,#10SOL-#4STR, male, one cable, type GSP1.
Panduit

GSP1-10-4-C

UPC: 613056008892

Documents & Media
Technical BulletinTechnical DrawingFull Engineering Drawing

Contact for Pricing

Minimum Qty: 100

Multiplier: 1

*Contact for lower quantities*

Overview

The Panduit GSP1-10-4-C is a Type GSP1 Bronze Service Post Connector engineered for reliable grounding and bonding applications. Manufactured from high copper content, hard-drawn copper rod, this connector provides exceptional strength and superior wire pull-out resistance thanks to its innovative pressure bar design. This ensures a secure and lasting connection across its specified conductor range. The GSP1-10-4-C is designed for connecting one copper code conductor to steel structures, busbars, or transformers, and can also be used for tapping from a busbar when paired with a hex nut and washer. Its true hex design on both the body and nut facilitates straightforward installation using standard socket, box, or open-end wrenches. This male stud connector accommodates conductor sizes from #10 Solid (SOL) to #4 Stranded (STR) and features a 0.3125-18 UNC threaded stud. Certified cULus 467 Listed, it is approved for grounding and bonding applications and is suitable for direct burial in earth or concrete, making it ideal for demanding environments. SKU: GSP1-10-4-C. UNSPSC: 46182103. Country of Origin: US.
  • Type GSP1 Bronze Service Post Connector
  • Accommodates #10 SOL to #4 STR conductors
  • Male stud with 0.3125-18 UNC threads
  • High copper content for strength and conductivity
  • cULus 467 Listed for grounding and bonding, direct burial

Specifications

Application
Male Stud, For grounding one copper code conductor to steel structures, busbars, or transformers or for tapping busbar with a hex nut and washer
Clamp Material
Copper
Color
Bronze
Length
1.06 In.
Material
High Copper Content Hard Drawn Rod
Material
High copper content, hard-drawn copper rod
Series
GSP1
Size
#10 SOL to #4 STR
Standard
cULus Listed - 467, DB Rated
Type
Grounding Connectors - Service Post, Male Stud
Package Dimensions (L x W x H)
10.3 IN x 6.4 IN x 4.6 IN
Package Weight (Imperial)
9.8 lbs
Bronze, service post connectors, ,#6SOL-#2STR, male, one cable, type GSP1.

GSP1-6-2-C

Bronze, service post connectors, ,#6SOL-#2STR, male, one cable, type GSP1.
Bronze, service post connectors, #4 STR-#2 STR, male, one cable, type SP1.

SP1-2L-C

Bronze, service post connectors, #4 STR-#2 STR, male, one cable, type SP1.
Bronze, service post connectors, ,#4STR-#2STR, male, one cable, type SP1.

SP1-2-C

Bronze, service post connectors, ,#4STR-#2STR, male, one cable, type SP1.
Bronze, service post connector, #10 SOL-#3 STR, stud length 1.13", male, two cable, type SP2.

SP2-3L-C

Bronze, service post connector, #10 SOL-#3 STR, stud length 1.13", male, two cable, type SP2.
Bronze, service post connector, #10 SOL-#3 STR, male, two cable, type SP2.

SP2-3-C

Bronze, service post connector, #10 SOL-#3 STR, male, two cable, type SP2.
Bronze, service post connector, #10 SOL-#4 STR, stud length 1.00", male, two cable, type SP2.

SP2-4L-C

Bronze, service post connector, #10 SOL-#4 STR, stud length 1.00", male, two cable, type SP2.
Bronze, service post connectors, #10 SOL-#4 STR, male, one cable, type SP1.

SP1-4-C

Bronze, service post connectors, #10 SOL-#4 STR, male, one cable, type SP1.

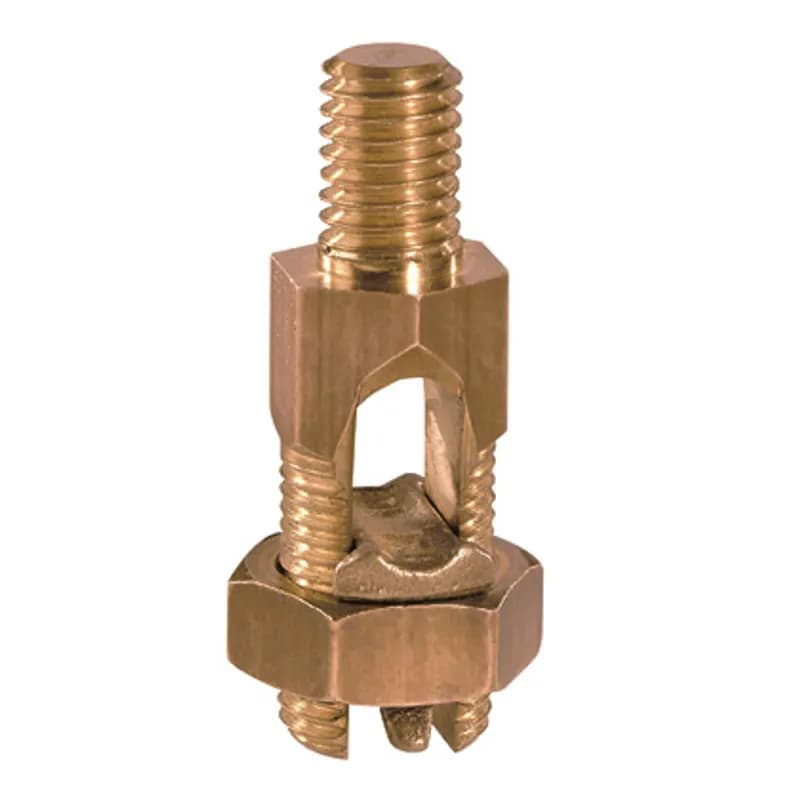

Bronze, service post connectors, ,#12SOL-#6STR, male, one cable, type GSP1.
