Panduit GCESTUD-14-X - Copper Clad Steel Grounding Weld Stud, 1/4"
Panduit

GCESTUD-14-X

UPC: 613056717138

Documents & Media
Technical DrawingFull Engineering Drawing

Contact for Pricing

Minimum Qty: 20

Multiplier: 1

*Contact for lower quantities*

Overview

The Panduit GCESTUD-14-X is a 1/4" copper clad steel grounding weld stud engineered for secure, high-conductivity electrical grounding applications. Manufactured by Panduit, this stud features a copper-clad steel core for superior strength and corrosion resistance, ensuring long-term performance in demanding industrial environments. The 1/4" size is ideal for grounding systems requiring a durable, low-resistance connection. Designed for compatibility with copper clad, solid copper, and stainless steel ground rods, the GCESTUD-14-X meets UL 467 and UL 486A-486B standards for grounding and bonding applications up to 35kV. Its weld stud design enables fast, reliable installation, reducing labor time while maintaining high mechanical and electrical integrity. The pre-applied conductive antioxidant compound ensures a superior bond, enhancing conductivity and preventing oxidation. Certified for direct burial in earth and concrete when used with select Panduit crimp tools and dies, this stud is a trusted solution for utility, commercial, and industrial grounding systems.
  • 1/4" copper clad steel grounding weld stud for high-conductivity applications
  • Compatible with copper clad, solid copper, and stainless steel ground rods
  • Meets UL 467 and UL 486A-486B standards for grounding and bonding up to 35kV
  • Pre-applied conductive antioxidant compound ensures superior mechanical and electrical bond
  • Designed for direct burial in earth and concrete when crimped with select tools

Specifications

Application
Utility/Ground Grid
Clamp Material
Steel with Copper Clad Finish
Length
4.81 In.
Material
Steel with Copper Clad Finish
Material
Copper Clad Steel
Size
1/4"
Type
Grounding Accessory
Package Dimensions (L x W x H)
7.2 IN x 3.4 IN x 3.4 IN
Package Weight (Imperial)
0.88 lbs
Copper Clad Steel Grounding Weld Stud, 9/16"

GCESTUD-916-X

Copper Clad Steel Grounding Weld Stud, 9/16"

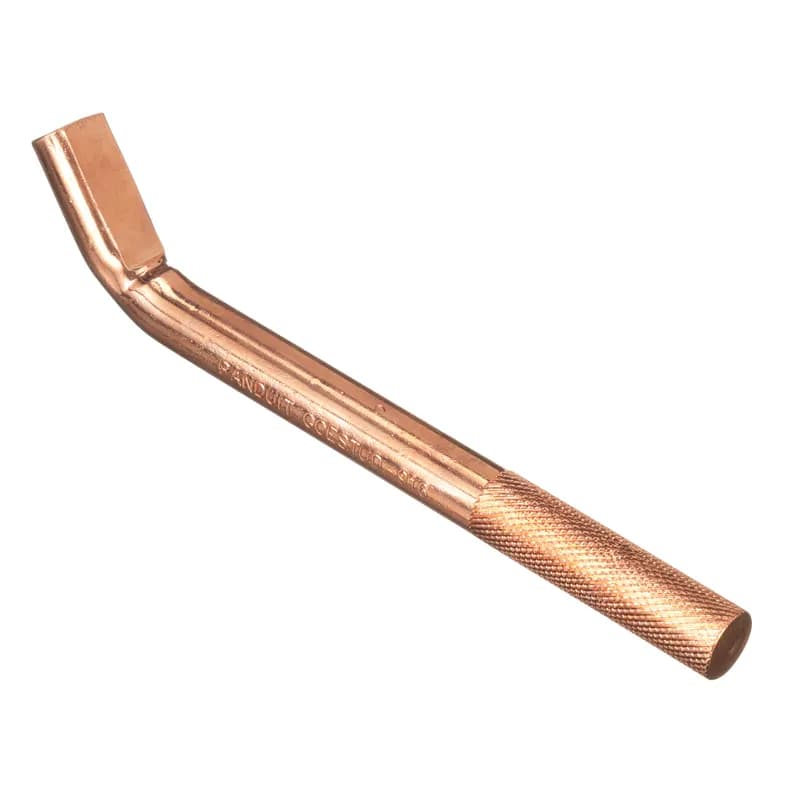

Copper Clad Steel Grounding Weld Stud, 3/4"

GCESTUD-34-X

Copper Clad Steel Grounding Weld Stud, 3/4"
Copper Clad Steel Grounding Weld Stud, 3/8"

GCESTUD-38-X

Copper Clad Steel Grounding Weld Stud, 3/8"
Braided Bonding Strap, one-hole, insulated, 4.00" length x 1.06" width (101.6mm x 27.0mm).

BS100445

Braided Bonding Strap, one-hole, insulated, 4.00" length x 1.06" width (101.6mm x 27.0mm).
Braided Bonding Strap, one-hole, insulated, 6.00" length x 1.06" width (152.4mm x 27.0mm).

BS100645

Braided Bonding Strap, one-hole, insulated, 6.00" length x 1.06" width (152.4mm x 27.0mm).
Braided Bonding Strap, one-hole, non-insulated, 6.00" length x 1.06" width (152.4mm x 27.0mm).

BS100645U

Braided Bonding Strap, one-hole, non-insulated, 6.00" length x 1.06" width (152.4mm x 27.0mm).

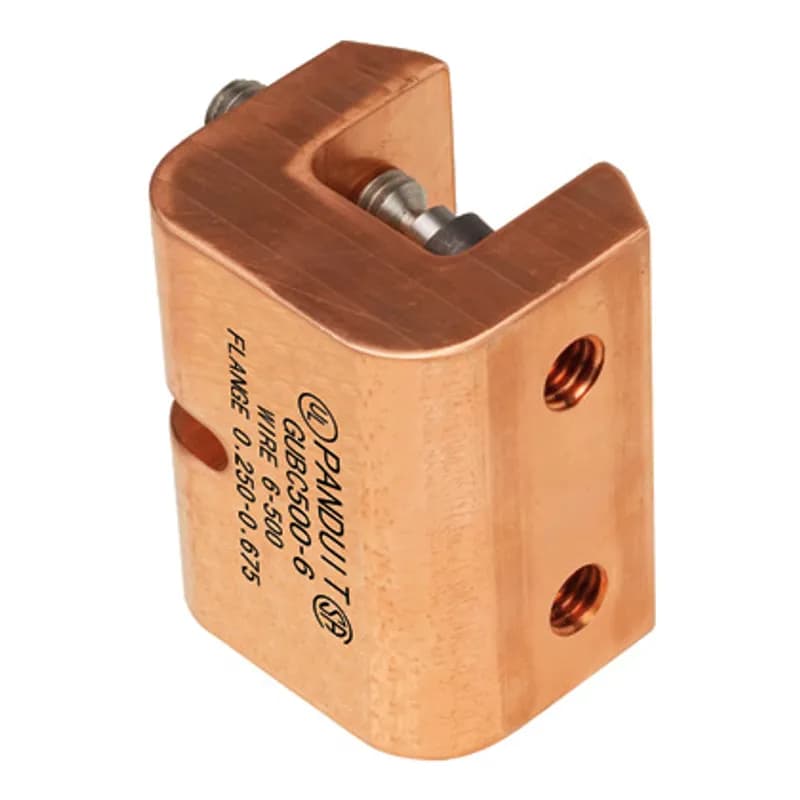

The GUBC500-6 Universal beam grounding clamp fits on a wide range of standard (angled) and wide flange (parallel) structural steel beams providing a mounting pad suitable for a two-hole compression lug. Install quickly and easily with standard 1/4" key hex wrench tooling. Designed to enhance the crimp process using technology that meets IEEE STD 837 - 2002 and REV 2014.

GUBC500-6

The GUBC500-6 Universal beam grounding clamp fits on a wide range of standard (angled) and wide flange (parallel) structural steel beams providing a mounting pad suitable for a two-hole compression lug. Install quickly and easily with standard 1/4" key hex wrench tooling. Designed to enhance the crimp process using technology that meets IEEE STD 837 - 2002 and REV 2014.
Mechanical Grounding Connector, 2 Cables to Bar, 300 kcmil - 500 kcmil, 1/2" Stud

GBC3500-12-X

Mechanical Grounding Connector, 2 Cables to Bar, 300 kcmil - 500 kcmil, 1/2" Stud
The SP1-2/0-Q Service Post Grounding Connector is designed for grounding one copper code conductor to steel structures, busbars, transformers. The true hex design for body and nut hex provides correct fit with socket, box, or open-end wrenches, resulting in proper torquing of the electrical connection. The pressure bar provides a secure connection on a full range of conductor combinations used with each connector providing a premium wire pull-out strength. UL Listed for grounding and bonding.

SP1-2/0-Q

The SP1-2/0-Q Service Post Grounding Connector is designed for grounding one copper code conductor to steel structures, busbars, transformers. The true hex design for body and nut hex provides correct fit with socket, box, or open-end wrenches, resulting in proper torquing of the electrical connection. The pressure bar provides a secure connection on a full range of conductor combinations used with each connector providing a premium wire pull-out strength. UL Listed for grounding and bonding.
Bronze, service post connector, #1 STR-350 kcmil, male, two cable, type SP2.

SP2-350-12

Bronze, service post connector, #1 STR-350 kcmil, male, two cable, type SP2.

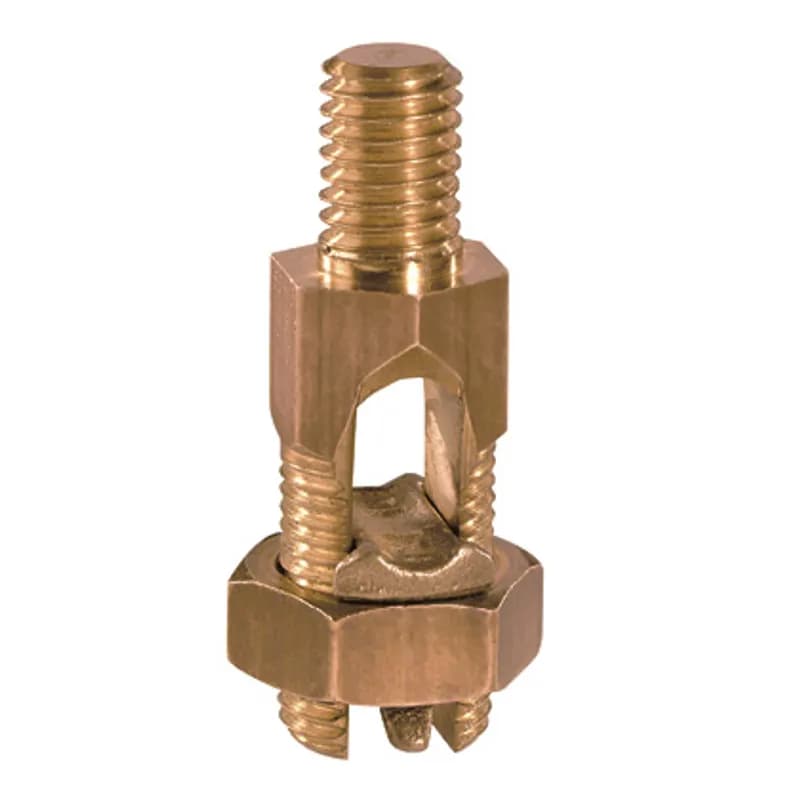

Bronze, service post connector, #1 STR-350 kcmil, stud length 1.50", male, two cable, type SP2.

SP2-350L-12

Bronze, service post connector, #1 STR-350 kcmil, stud length 1.50", male, two cable, type SP2.
3/0 AWG (Str.) - 250 kcmil (Str.) Bronze Ground Clamp Connector, 3/8" Stud, 2 Piece Clamp & 1 Bolt

GL250-38-5

3/0 AWG (Str.) - 250 kcmil (Str.) Bronze Ground Clamp Connector, 3/8" Stud, 2 Piece Clamp & 1 Bolt
