Panduit FZURPENENYNF010 - OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method B, Optimized IL, 10 ft, Aqua
Panduit

FZURPENENYNF010

UPC: 613056188754

Documents & Media
Technical DrawingFull Engineering DrawingSpecification Sheet

Contact for Pricing

Overview

The Panduit FZURPENENYNF010 is a high-density OM4 24-fiber interconnect cable designed for advanced data center and enterprise network applications. This plenum-rated cable ensures compliance with stringent fire safety standards, making it suitable for installation in air-handling spaces. It features two 24F MPO (Multi-fiber Push On) female connectors, configured using Method B for optimal polarity and signal integrity. The OM4 fiber type provides enhanced bandwidth and performance, supporting data rates up to 100 Gbps over shorter distances and 40 Gbps over longer distances, making it ideal for high-speed Ethernet and Fibre Channel applications. This specific configuration utilizes optimized Insertion Loss (IL) for superior signal transmission. The cable measures 10 feet in length and is finished in an aqua color, a standard for OM4 fiber, facilitating easy identification within complex network infrastructures. Manufactured by Panduit, a trusted name in network infrastructure, this interconnect cable offers reliability and performance for critical backbone and horizontal cabling. The SKU FZURPENENYNF010 signifies a precise interconnect solution for structured cabling systems requiring high fiber counts and robust performance characteristics. Its plenum rating, combined with the OM4 fiber's capabilities, positions it as a key component for modern, high-speed network deployments where both safety and performance are paramount. The 24-fiber MPO connectors are designed for efficient termination and high port density, crucial for maximizing space utilization in telecommunications rooms and data closets. This cable is engineered to support the increasing demands of cloud computing, big data analytics, and virtualization environments by providing the necessary bandwidth and low latency.
  • OM4 24-fiber MPO interconnect cable
  • Plenum-rated for air-handling spaces
  • 24F MPO Female to 24F MPO Female connectors
  • Method B polarity for optimal signal integrity
  • 10 ft length, aqua color

Specifications

Application
OM4
Color
Aqua
Connector 1 Type*
MPO Female
Connector 2 Type*
MPO Female
Fiber Compatibility*
OM4 50/125um
Fiber Count*
24
Length
10 FT
Material
Plenum
Standard
Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIC/EIA-568-C.1, RoHS Complaint
Temperature Rating
158 F
Type
Interconnect Cable Assembly
Package Dimensions (L x W x H)
14 IN x 17 IN x 1.5 IN
Package Weight (Imperial)
0.17 lbs

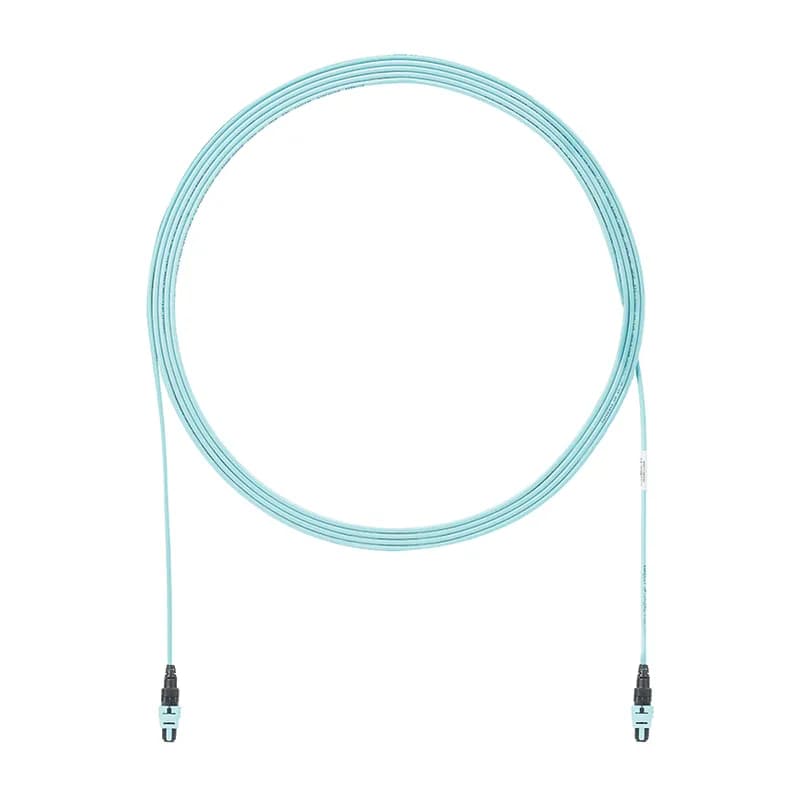

OM4 8 fiber, Interconnect, Plenum, PanMPO Female to PanMPO Female, Method A, Optimized IL, 10 Feet, Aqua

FZ8RPJNJNXNF010

OM4 8 fiber, Interconnect, Plenum, PanMPO Female to PanMPO Female, Method A, Optimized IL, 10 Feet, Aqua
OM4 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO female to MPO female, Method A Std IL, with no pulling eye 10 ft

FZTRP5N5NANF010

OM4 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO female to MPO female, Method A Std IL, with no pulling eye 10 ft
OM4 8 fiber, Interconnect, Plenum, PanMPO Female to PanMPO Female, Method B, Optimized IL, 10 Feet, Aqua

FZ8RPJNJNYNF010

OM4 8 fiber, Interconnect, Plenum, PanMPO Female to PanMPO Female, Method B, Optimized IL, 10 Feet, Aqua
OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 10 ft, Aqua

FZURPENENXNF010

OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 10 ft, Aqua

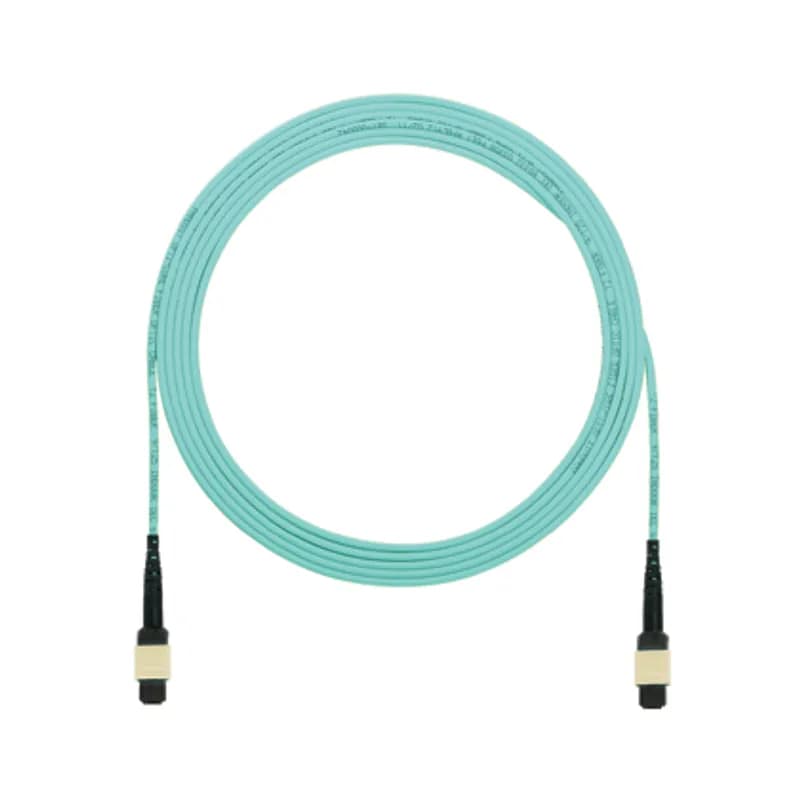

OM4 12 fiber, interconnect cable assembly, low smoke zero halogen (LSZH) rated, MPO female to MPO female, Method A Std IL with no pulling eye, Aqua, 3 meters

FZTRL5N5NANM003

OM4 12 fiber, interconnect cable assembly, low smoke zero halogen (LSZH) rated, MPO female to MPO female, Method A Std IL with no pulling eye, Aqua, 3 meters
OM4 8 fiber, Interconnect, LSZH, PanMPO Female to PanMPO Female, Method A, Optimized IL, 3 Meters, Aqua

FZ8RLJNJNXNM003

OM4 8 fiber, Interconnect, LSZH, PanMPO Female to PanMPO Female, Method A, Optimized IL, 3 Meters, Aqua
OM4 8 fiber, Interconnect, LSZH, PanMPO Female to PanMPO Female, Method B, Optimized IL, 3 Meters, Aqua

FZ8RLJNJNYNM003

OM4 8 fiber, Interconnect, LSZH, PanMPO Female to PanMPO Female, Method B, Optimized IL, 3 Meters, Aqua

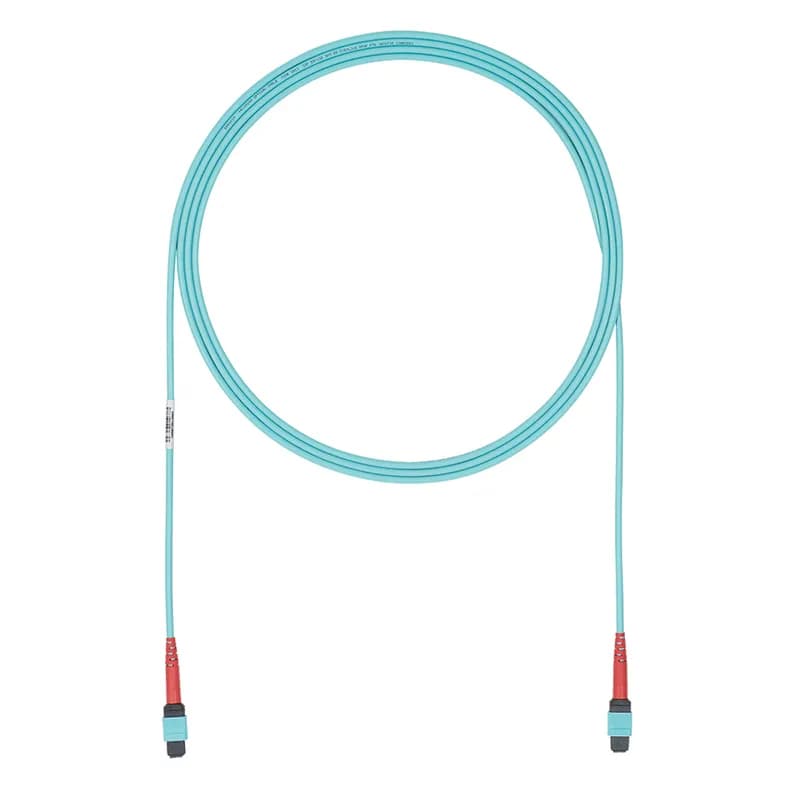

OM4 24 fiber, Interconnect, LSZH, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 3 m, Aqua

FZURLENENXNM003

OM4 24 fiber, Interconnect, LSZH, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 3 m, Aqua
OM4 24 fiber, Interconnect, LSZH, 24F MPO Female to 24F MPO Female, Method B, Optimized IL, 3 m, Aqua

FZURLENENYNM003

OM4 24 fiber, Interconnect, LSZH, 24F MPO Female to 24F MPO Female, Method B, Optimized IL, 3 m, Aqua
OM4 8 fiber, Interconnect, Plenum, PanMPO Female to PanMPO Female, Method B, Optimized IL, 11 Feet, Aqua

FZ8RPJNJNYNF011

OM4 8 fiber, Interconnect, Plenum, PanMPO Female to PanMPO Female, Method B, Optimized IL, 11 Feet, Aqua
OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method B, Optimized IL, 9 ft, Aqua

FZURPENENYNF009

OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method B, Optimized IL, 9 ft, Aqua
OM4 8 fiber, Interconnect, Plenum, PanMPO Female to PanMPO Female, Method A, Optimized IL, 9 Feet, Aqua

FZ8RPJNJNXNF009

OM4 8 fiber, Interconnect, Plenum, PanMPO Female to PanMPO Female, Method A, Optimized IL, 9 Feet, Aqua

Frequently Asked Questions

What is the operating temperature range?

The operating temperature range is 0 °C to +70 °C (32°F to +158°F).

What types of fiber are available?

The product supports Multimode (OM3, OM4) and Singlemode (OS2) fiber types.

What is the maximum cable attenuation for Singlemode?

The maximum cable attenuation for Singlemode is 1.0dB/km at 1310/1550nm.

What is the minimum bend radius for installation?

The minimum bend radius under load is 20 times the cable outside diameter.

How many mating cycles can the connectors endure?

The connectors are durable for up to 500 mating cycles.

What is the cable outside diameter?

The cable outside diameter is 3.6mm.

What are the storage temperature requirements?

The storage and shipping temperature range is -40 °C to +70 °C (-40°F to +158°F).

What standards does this product meet?

The product meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, and RoHS compliance.

What is the maximum connector insertion loss for Multimode?

The maximum connector insertion loss for Multimode is 0.35dB.

What is the tensile strength of the cable?

The cable tensile strength is 50 lbf.
