Contact for Pricing
Overview
- OM4 24-fiber MPO interconnect cable
- Plenum rated for air-handling spaces
- Method A polarity for optimal performance
- Aqua color for easy identification
- 63 ft length
Specifications
Application | OM4 |
Color | Aqua |
Connection Type | MPO Female |
Connection Type | 24F MPO Female to 24F MPO Female |
Connection Type | MPO Female to MPO Female |
Connector 1 Type* | MPO Female |
Connector 2 Type* | MPO Female |
Fiber Compatibility* | OM4 50/125um |
Fiber Count* | 24 |
Length | 63 FT |
Material | OM4 Multimode Fiber |
Material | Plenum |
Poles | 24 |
Poles | 24F |
Poles | 24F MPO Female |
Series | Panduit OM4 MPO Interconnect |
Series | FZURPENENXNF |
Series | Panduit OM4 24F MPO Interconnect |
Size | 24F MPO Female to 24F MPO Female |
Size | 24F |
Size | 63 ft |
Standard | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIC/EIA-568-C.1, RoHS Complaint |
Temperature Rating | 158 F |
Type | Interconnect Cable Assembly |
Package Dimensions (L x W x H) | 14 IN x 17 IN x 1.5 IN |
Package Weight (Imperial) | 0.62 lbs |
FZURPENENYNF027
OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method B, Optimized IL, 27 ft, Aqua
FZURPENENYNF048
OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method B, Optimized IL, 48 ft, Aqua
FZURPENENXNF061
OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 61 ft, Aqua
FZURPENENXNF065
OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 65 ft, Aqua
FZURPENENXNF026
OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 26 ft, Aqua
FZURPENENYNF097
OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method B, Optimized IL, 97 ft, Aqua
FZURPENENYNF064
OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method B, Optimized IL, 64 ft, Aqua
FZURPENENXNF094
OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 94 ft, Aqua
FZURPENENXNF031
OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 31 ft, Aqua
FZURPENENXNF053
OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 53 ft, Aqua
FZURPENENXNF017
OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 17 ft, Aqua

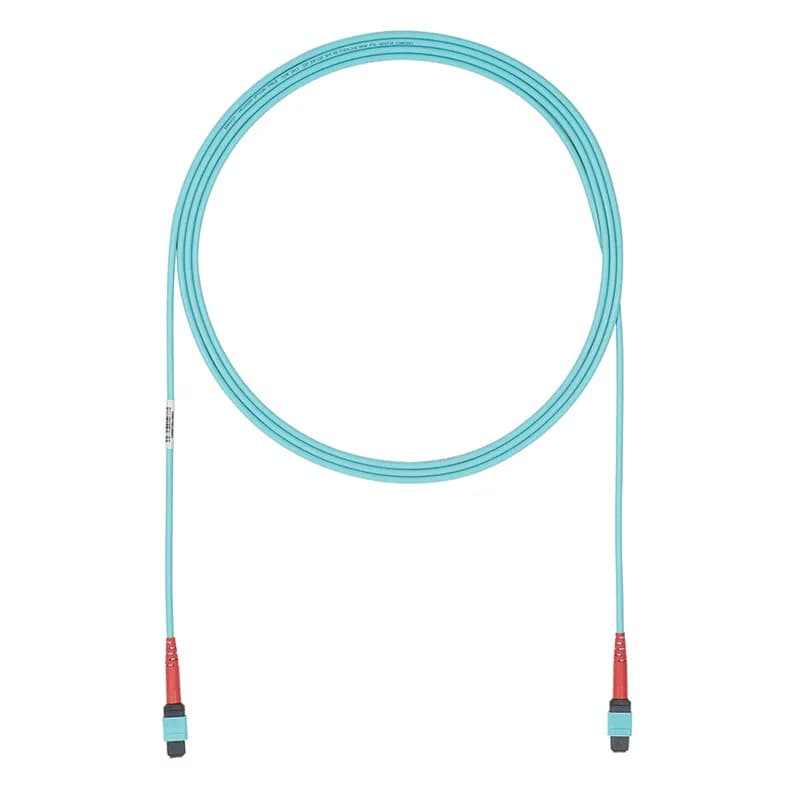

FZURPENENYNF087
OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method B, Optimized IL, 87 ft, AquaFrequently Asked Questions
What is the operating temperature range?
The operating temperature range is 0 °C to +70 °C (32°F to +158°F).
What types of fiber are available?
The product supports Multimode (OM3, OM4) and Singlemode (OS2) fiber types.
What is the maximum cable attenuation for Singlemode?
The maximum cable attenuation for Singlemode is 1.0dB/km at 1310/1550nm.
What is the minimum bend radius for installation?
The minimum bend radius under load is 20 times the cable outside diameter.
How many mating cycles can the connectors endure?
The connectors are durable for up to 500 mating cycles.
What is the cable outside diameter?
The cable outside diameter is 3.6mm.
What are the storage temperature requirements?
The storage and shipping temperature range is -40 °C to +70 °C (-40°F to +158°F).
What standards does this product meet?
The product meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, and RoHS compliance.
What is the maximum connector insertion loss for Multimode?
The maximum connector insertion loss for Multimode is 0.35dB.
What is the tensile strength of the cable?
The cable tensile strength is 50 lbf.
