Overview

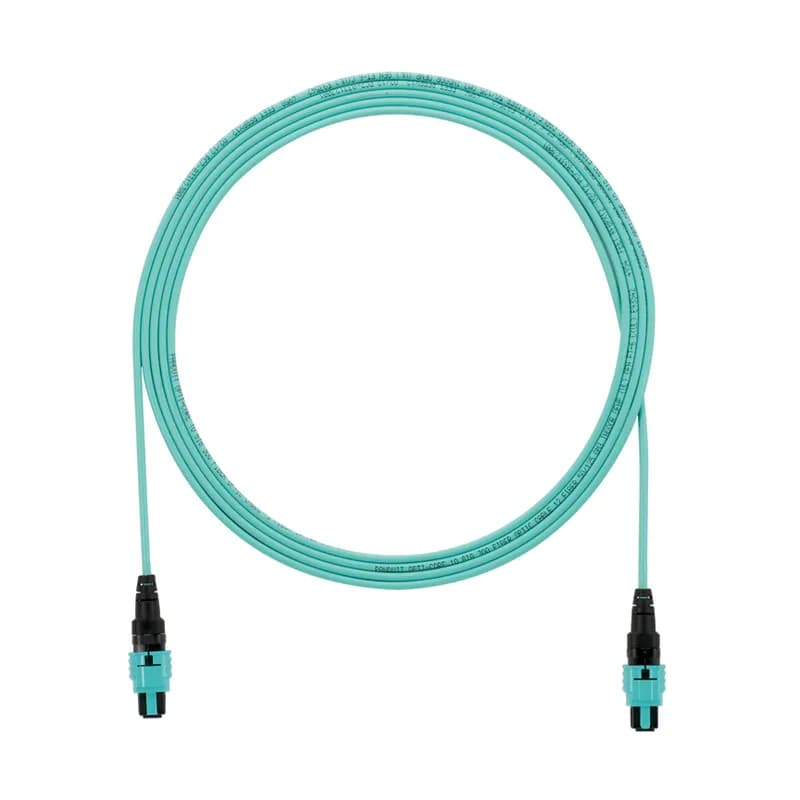

- OM4 12-fiber capacity for high-speed data transmission
- Plenum rated (OFNP) for safe installation in air-handling spaces
- PanMPO Female to PanMPO Female connectors with Method A polarity
- Standard insertion loss (Std IL) for reliable performance
- 9-foot aqua jacketed cable, manufactured in the USA
Specifications
Application | OM4 |
Color | Aqua |
Connection Type | PanMPO Female to PanMPO Female |
Connector 1 Type* | PanMPO Female |
Connector 2 Type* | PanMPO Female |
Fiber Compatibility* | OM4 50/125um |
Fiber Count* | 12 |
Ip Rating | OFNP |
Length | 9 FT |
Material | Plenum |
Size | 12 fiber |
Special Features | Indoor |
Standard | Meets or exceeds TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS Compliant |
Temperature Rating | 140 F |
Type | Interconnect Cable Assembly |
Package Dimensions (L x W x H) | 14 IN x 17 IN x 1.5 IN |
Package Weight (Imperial) | 0.16 lbs |
FZTRL7N7NYNM003

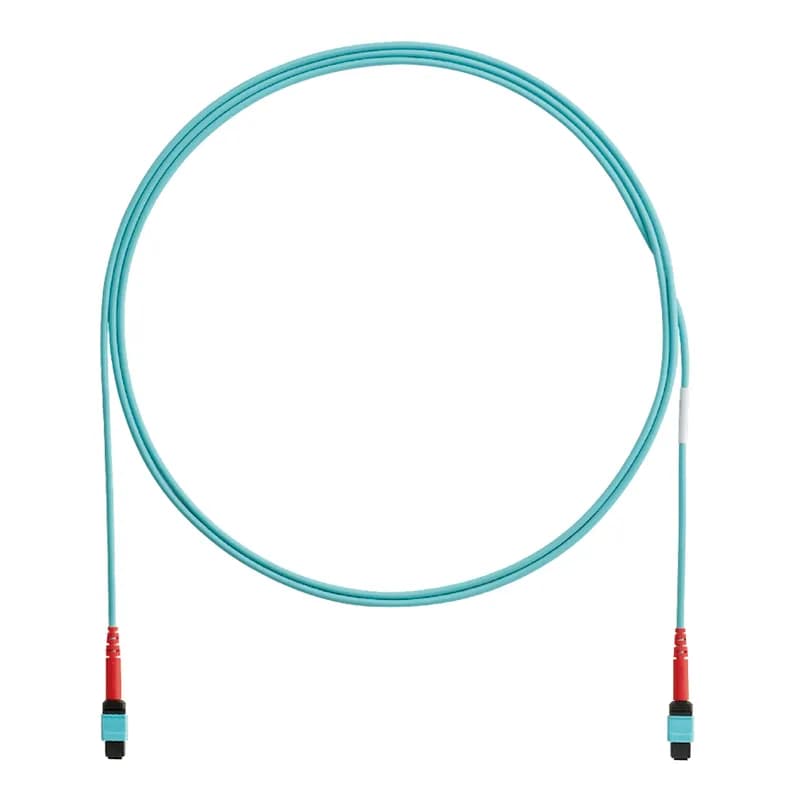

The QuickNet PanMPO 12 fiber cable assembly is an OM4 interconnect cable assembly. It is low smoke zero halogen (LSZH) rated and features MPO Female to MPO Female connectors. It is aqua, 3 meters in length and has Method B optimized insertion loss with no pulling eye.
FZTRL7N7NXNM003
OM4 12 fiber, optimized interconnect cable assembly, low smoke zero halogen (LSZH) rated, PanMPO female to PanMPO female, Method A, Optimized IL, with no pulling eye, Aqua, 3 meters
FZTRP7N7NXNM003
OM4 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Optimized IL, with no pulling eye, Aqua, 3 meters
FZTRP7N7NANF008
OM4 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL with no pulling eye, Aqua, 8 ft
FZTRP7N7NANF010
OM4 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL with no pulling eye, Aqua, 10 ft
FZTRP7N7NANF007
OM4 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL with no pulling eye, Aqua, 7 ft
FZTRP7N7NANF011
OM4 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL with no pulling eye, Aqua, 11 ft
FZURPENENYNF009
OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method B, Optimized IL, 9 ft, Aqua
FZ8RPJNJNXNF009
OM4 8 fiber, Interconnect, Plenum, PanMPO Female to PanMPO Female, Method A, Optimized IL, 9 Feet, Aqua
FZTRP5N5NANF009
OM4 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO female to MPO female, Method A Std IL, with no pulling eye 9 ft
FZURPENENXNF009
OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 9 ft, Aqua
FZ8RPJNJNYNF009
OM4 8 fiber, Interconnect, Plenum, PanMPO Female to PanMPO Female, Method B, Optimized IL, 9 Feet, AquaFrequently Asked Questions
What is the operating temperature range?
The operating temperature range is -10°C to 60°C.
What types of fiber are available for this product?
The product supports OM3 50/125μm and OM4 50/125μm multimode fiber types.
What is the installation temperature requirement?
The installation temperature requirement is between 0°C to 40°C.
What connector types are available for this product?
The product features PanMPO™ Female and PanMPO™ Male connector types.
What standards does this product meet?
The product meets or exceeds TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), and TIA/EIA-568-C.1 standards.
What is the maximum cable attenuation for multimode fiber?
The maximum cable attenuation is 3.5dB/km at 850nm and 1.5dB/km at 1300nm.
What is the minimum bend radius for this cable?
The minimum bend radius for the cable is 30mm.
What is the tensile strength of the cable?
The cable has a tensile strength of 220N.
What are the jacket ratings for the cable?
The cable has Optical Fiber Nonconductive Plenum (OFNP) and Low Smoke Zero Halogen (LSZH) ratings.
What is the maximum connector insertion loss?
The maximum connector insertion loss for multimode is 0.50dB.
How to Install the Panduit MPO Connectors
This guide provides step-by-step instructions for installing and configuring Panduit MPO connectors, including gender changeover and polarity adjustments.
Estimated time: 30m
Tools needed:
Panduit pin retraction tool
Supplies needed:
Panduit MPO connectors
- Remove the outer housing
Squeeze both sides of the outer housing at the back end evenly until you hear an audible click. Pull the outer housing off the connector.
- Change the gender of the connector
Locate the hole in the inner housing on the slotted side. Position the pin retraction tool over the hole, insert the tool, press down gently, and push forward to advance the connector pins to the male state. Repeat the process in the opposite direction to retract pins for the female state.
- Re-install the outer housing
Rotate the outer housing 180° so the arc cut-out is on the opposite side. Re-install the outer housing until you hear a faint audible click.
