Overview
- OM4 12-fiber interconnect cable assembly
- Plenum (OFNP) rated for air-handling spaces
- MPO female to MPO female connectors
- Method A Standard IL for reliable performance
- 5 ft cable length, manufactured in the USA
Specifications
Application | OM4 |
Color | Aqua |
Connector 1 Type* | MPO Female |
Connector 2 Type* | MPO Female |
Fiber Compatibility* | OM4 50/125um |
Fiber Count* | 12 |
Length | 5 FT |
Material | Plenum |
Special Features | Indoor |
Standard | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1 RoHS Compliant |
Temperature Rating | 158 F |
Type | Interconnect Cable Assembly |
Package Dimensions (L x W x H) | 14 IN x 17 IN x 1.5 IN |
Package Weight (Imperial) | 0.13 lbs |
FZURPENENXNF005

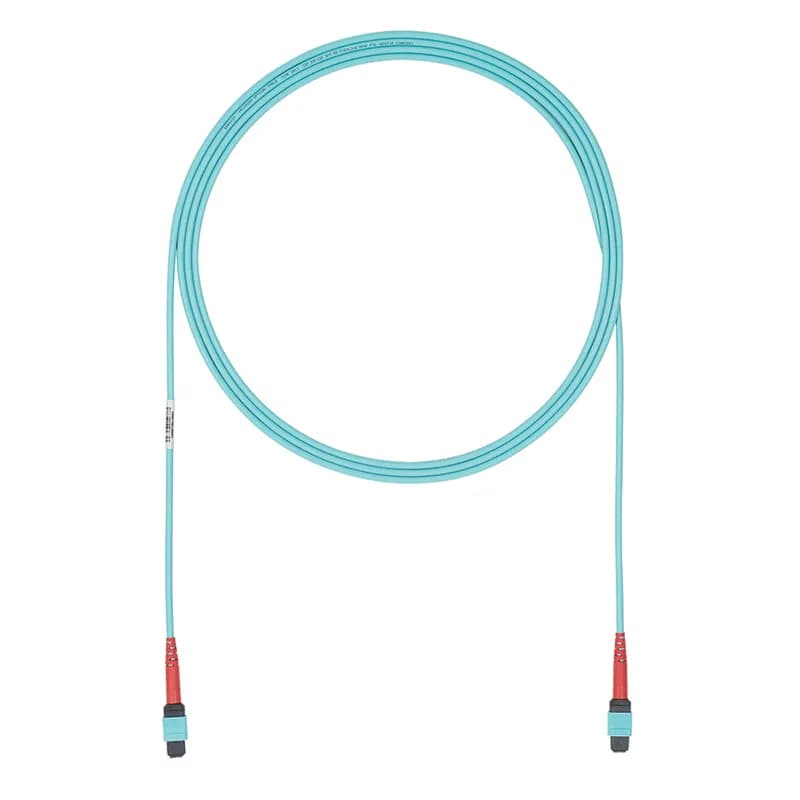

OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 5 ft, Aqua
FZ8RPJNJNXNF005

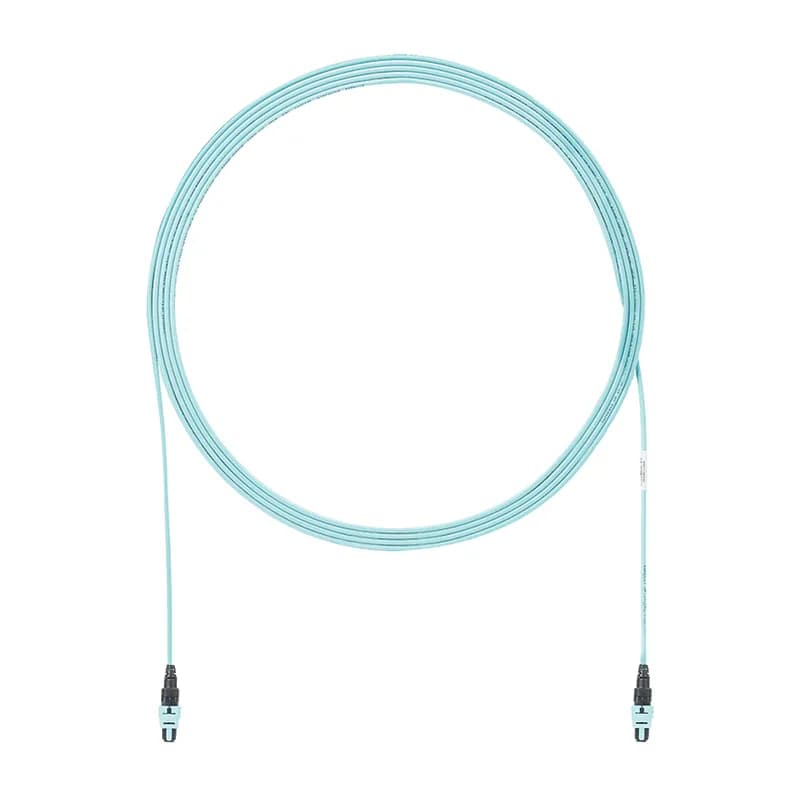

OM4 8 fiber, Interconnect, Plenum, PanMPO Female to PanMPO Female, Method A, Optimized IL, 5 Feet, Aqua
FZ8RPJNJNYNF005
OM4 8 fiber, Interconnect, Plenum, PanMPO Female to PanMPO Female, Method B, Optimized IL, 5 Feet, Aqua
FZURPENENYNF005
OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method B, Optimized IL, 5 ft, Aqua
FZURPENENYNF004
OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method B, Optimized IL, 4 ft, Aqua
FZURPENENXNF004
OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 4 ft, Aqua
FZTRP5N5NANF006

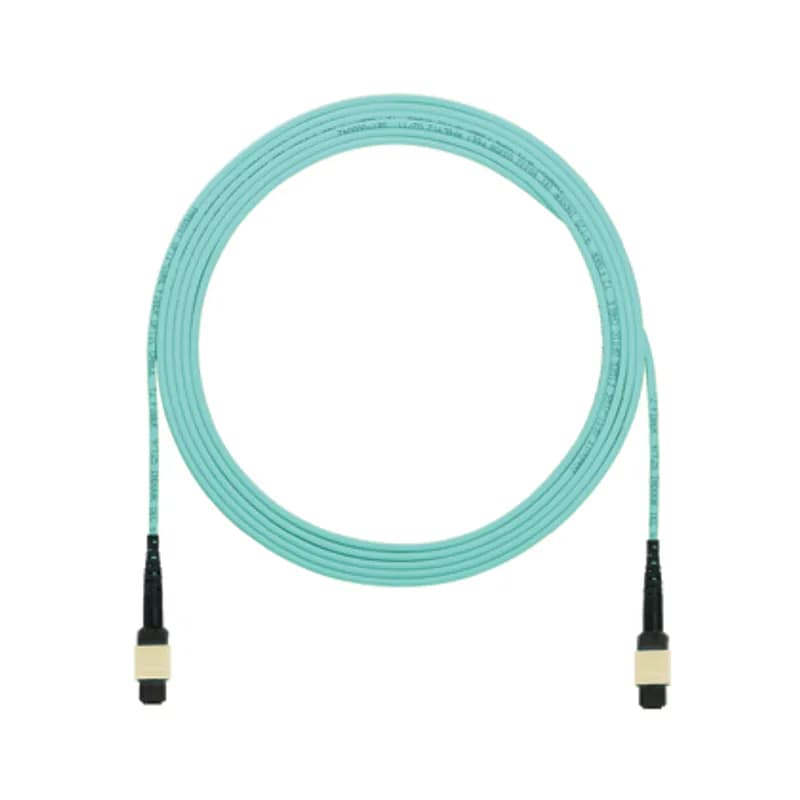

OM4 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO female to MPO female, Method A Std IL, with no pulling eye 6 ft
FZ8RPJNJNXNF006
OM4 8 fiber, Interconnect, Plenum, PanMPO Female to PanMPO Female, Method A, Optimized IL, 6 Feet, Aqua
FZ8RPJNJNXNF004
OM4 8 fiber, Interconnect, Plenum, PanMPO Female to PanMPO Female, Method A, Optimized IL, 4 Feet, Aqua
FZTRP5N5NANF004
OM4 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO female to MPO female, Method A Std IL, with no pulling eye 4 ft
FZ8RPJNJNYNF004
OM4 8 fiber, Interconnect, Plenum, PanMPO Female to PanMPO Female, Method B, Optimized IL, 4 Feet, Aqua
FZ8RPJNJNYNF006
OM4 8 fiber, Interconnect, Plenum, PanMPO Female to PanMPO Female, Method B, Optimized IL, 6 Feet, AquaFrequently Asked Questions
What is the operating temperature range?
The operating temperature range is 0°C to 70°C.
Is this product RoHS compliant?
Yes, the product is RoHS compliant.
What types of fiber are available for this product?
The product supports Singlemode OS1/OS2 9/125μm and Multimode OM3 50/125μm and OM4 50/125μm fiber types.
What is the installation temperature requirement?
The installation temperature requirement is between 0°C to 40°C.
How many mating cycles can the connectors endure?
The connectors can endure up to 500 mating cycles.
What is the tensile strength of the cable?
The cable has a tensile strength of 220N.
What are the jacket ratings for this cable?
The cable jacket ratings are Optical Fiber Nonconductive Plenum (OFNP) and Low Smoke Zero Halogen (LSZH).
What is the minimum bend radius for this cable?
The minimum bend radius is 20 times the cable diameter under load and 10 times the diameter when static.
What is the maximum cable attenuation for Singlemode fiber?
The maximum cable attenuation for Singlemode fiber is 1.0dB/km at 1310/1550nm.
What is the maximum connector insertion loss for Multimode fiber?
The maximum connector insertion loss for Multimode fiber is 0.50dB.
How to Clean and Inspect Fiber Optic Connectors
This guide provides step-by-step instructions for cleaning and inspecting fiber optic connectors to ensure optimal performance and reliability.
Estimated time: 1h
Tools needed:
Fiber Inspection Microscope, Cleaning Swabs, Multimeter
Supplies needed:
Isopropyl Alcohol, Non-woven cloth wipes, Dust caps
- Inspect the connector
Ensure no power is present. Remove any protective caps and inspect the connector end faces using a 200x magnification fiber inspection device.
- Clean the connector
If the end face appears dirty, use a micro fabric-based dry cleaner to clean the fiber. Re-inspect the end face to ensure cleanliness.
- Perform wet cleaning if necessary
If dirt remains after dry cleaning, apply 90+% Isopropyl Alcohol to a cleaning swab and rub over the connector end face. Dry immediately with a dry cleaner and re-inspect.
- Repeat cleaning regimen
If contaminants persist, use a wet cleaning fluid like Chemtronics Electro-Wash PX on a swab, rub the end face, dry it, and re-inspect until clean.
- Cap the connectors
Once the connectors are clean, replace the dust caps to prevent future contamination.
