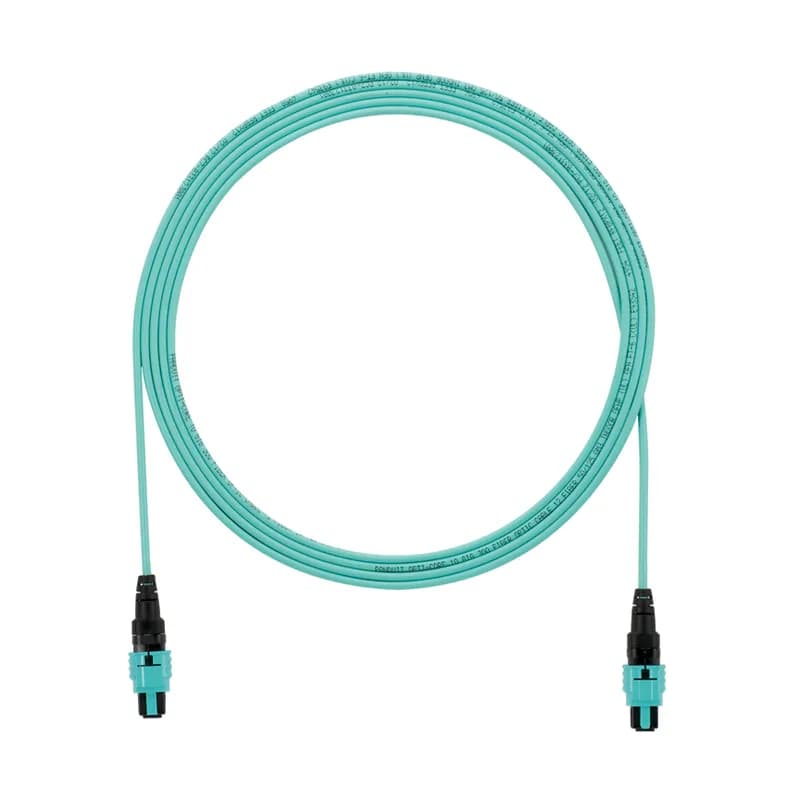

Panduit FZTRL7N7NXNM028 - OM4 12 fiber, optimized interconnect cable assembly, low smoke zero halogen (LSZH) rated, PanMPO female to PanMPO female, Method A, Optimized IL, with no pulling eye, Aqua, 28 meters
Panduit

FZTRL7N7NXNM028

UPC: 074983700158

Documents & Media
Technical DrawingFull Engineering DrawingSpecification Sheet

Contact for Pricing

Overview

Panduit FZTRL7N7NXNM028 is a 12-fiber OM4 optimized interconnect cable assembly designed for high-density data center and enterprise applications. This LSZH-rated cable features PanMPO female connectors on both ends, ensuring low smoke and zero halogen compliance for critical environments. The Method A configuration maintains polarity alignment for seamless integration with existing MPO-based systems. With optimized insertion loss (IL), this cable minimizes signal degradation over long runs, making it ideal for backbone and interconnect deployments. The 28-meter length provides flexibility for rack-to-rack or row-to-row connections without excess slack. The Aqua jacket color adheres to TIA-598-C standards for OM4 multimode fiber identification. Suitable for data centers, campus networks, and industrial environments requiring reliable, high-speed connectivity with fire safety compliance. Meets or exceeds ISO/IEC 11801, ANSI/TIA-568.3-D, and IA/EIA-604 (FOCIS-3 and FOCIS-10) standards. All components are RoHS-compliant per Directive 2002/95/EC. The outer diameter is 0.06 in. (1.6 mm) with a standard insertion loss performance. This cable is optimized for OM4 fiber type, ensuring compatibility with high-speed data transmission requirements.
  • 12-fiber OM4 multimode fiber with optimized insertion loss
  • LSZH-rated for low smoke and zero halogen compliance
  • PanMPO female to PanMPO female connectors (Method A polarity)
  • Aqua jacket color per TIA-598-C standards for OM4 identification
  • 28-meter length with 0.06 in. (1.6 mm) outer diameter

Specifications

Application
OM4
Color
Aqua
Connection Type
PanMPO Female to PanMPO Female
Connector 1 Type*
PanMPO Female
Connector 2 Type*
PanMPO Female
Fiber Compatibility*
OM4 50/125um
Fiber Count*
12
Length
91.86 FT
Material
LSZH
Material
Low Smoke Zero Halogen
Material
Low Smoke Zero Halogen (LSZH)
Material
LSZH (Low Smoke Zero Halogen)
Poles
12
Series
Panduit OM4 Optimized Interconnect Cable Assembly
Series
OM4 Optimized Interconnect
Series
OM4
Size
28 meters
Size
12 fiber
Size
12-fiber OM4
Special Features
Indoor
Standard
Meets or exceeds TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS Compliant
Temperature Rating
140 F
Type
Interconnect Cable Assembly
Package Dimensions (L x W x H)
14 IN x 17 IN x 1.5 IN
Package Weight (Imperial)
0.9 lbs
The QuickNet PanMPO 12 fiber cable assembly is an OM4 interconnect cable assembly. It is low smoke zero halogen (LSZH) rated and features MPO Female to MPO Female connectors. It is aqua, 14 meters in length and has Method A standard insertion loss with no pulling eye.

FZTRL7N7NANM014

The QuickNet PanMPO 12 fiber cable assembly is an OM4 interconnect cable assembly. It is low smoke zero halogen (LSZH) rated and features MPO Female to MPO Female connectors. It is aqua, 14 meters in length and has Method A standard insertion loss with no pulling eye.
OM4 12 fiber, optimized interconnect cable assembly, low smoke zero halogen (LSZH) rated, PanMPO female to PanMPO female, Method A, Optimized IL, with no pulling eye, Aqua, 23 meters

FZTRL7N7NXNM023

OM4 12 fiber, optimized interconnect cable assembly, low smoke zero halogen (LSZH) rated, PanMPO female to PanMPO female, Method A, Optimized IL, with no pulling eye, Aqua, 23 meters
OM4 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL with no pulling eye, Aqua, 67 ft

FZTRP7N7NANF067

OM4 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL with no pulling eye, Aqua, 67 ft
OM4 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Optimized IL, with no pulling eye, Aqua, 19 meters

FZTRP7N7NXNM019

OM4 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Optimized IL, with no pulling eye, Aqua, 19 meters
OM4 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL, with no pulling eye, Aqua, 19 meters

FZTRP7N7NANM019

OM4 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL, with no pulling eye, Aqua, 19 meters
12 fiber OM4 interconnect cable assembly, plenum (OFNP) rated, PanMPO female to PanMPO female Method A Std IL, with no pulling eye, 104 ft.

FZTRP7N7NANF104

12 fiber OM4 interconnect cable assembly, plenum (OFNP) rated, PanMPO female to PanMPO female Method A Std IL, with no pulling eye, 104 ft.
12 fiber OM4 interconnect cable assembly, plenum (OFNP) rated, PanMPO female to PanMPO female Method A Std IL, with no pulling eye, 138 ft.

FZTRP7N7NANF138

12 fiber OM4 interconnect cable assembly, plenum (OFNP) rated, PanMPO female to PanMPO female Method A Std IL, with no pulling eye, 138 ft.
OM4 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL with no pulling eye, Aqua, 66 ft

FZTRP7N7NANF066

OM4 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL with no pulling eye, Aqua, 66 ft
OM4 12 fiber, PanMPO interconnect cable assembly, low smoke zero halogen (LSZH), PanMPO Female To PanMPO Female, method A, Std IL with no pulling eye, Aqua, 19 meters

FZTRL7N7NANM019

OM4 12 fiber, PanMPO interconnect cable assembly, low smoke zero halogen (LSZH), PanMPO Female To PanMPO Female, method A, Std IL with no pulling eye, Aqua, 19 meters
OM4 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Optimized IL, with no pulling eye, Aqua, 27 meters

FZTRP7N7NXNM027

OM4 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Optimized IL, with no pulling eye, Aqua, 27 meters
OM4 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Optimized IL, with no pulling eye, Aqua, 23 meters

FZTRP7N7NXNM023

OM4 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Optimized IL, with no pulling eye, Aqua, 23 meters
OM4 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Optimized IL, with no pulling eye, Aqua, 11 meters

FZTRP7N7NXNM011

OM4 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Optimized IL, with no pulling eye, Aqua, 11 meters

Frequently Asked Questions

What is the operating temperature range?

The operating temperature range is -10°C to 60°C.

What types of fiber are available for this product?

The product supports OM3 50/125μm and OM4 50/125μm multimode fiber types.

What is the installation temperature requirement?

The installation temperature requirement is between 0°C to 40°C.

What connector types are available for this product?

The product features PanMPO™ Female and PanMPO™ Male connector types.

What standards does this product meet?

The product meets or exceeds TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), and TIA/EIA-568-C.1 standards.

What is the maximum cable attenuation for multimode fiber?

The maximum cable attenuation is 3.5dB/km at 850nm and 1.5dB/km at 1300nm.

What is the minimum bend radius for this cable?

The minimum bend radius for the cable is 30mm.

What is the tensile strength of the cable?

The cable has a tensile strength of 220N.

What are the jacket ratings for the cable?

The cable has Optical Fiber Nonconductive Plenum (OFNP) and Low Smoke Zero Halogen (LSZH) ratings.

What is the maximum connector insertion loss?

The maximum connector insertion loss for multimode is 0.50dB.
