Panduit FXURPEN74XNF040 - OM3 24-fiber, Interconnect, Plenum, 24F MPO Female to (2) 12-fiber Female PanMPO, Method A, Optimized IL, 40 Feet, Aqua.
Panduit

FXURPEN74XNF040

UPC: 613056195738

Documents & Media
Technical DrawingFull Engineering Drawing

Contact for Pricing

Overview

The Panduit FXURPEN74XNF040 is a 40-foot OM3 multimode plenum-rated interconnect cable designed for high-density data center and enterprise network infrastructure. This cable facilitates efficient 24-fiber connectivity, featuring a 24F MPO female connector on one end that transitions to two 12-fiber female PanMPO connectors on the other. It adheres to Method A polarity, ensuring proper signal routing for modern high-speed applications. Engineered with OM3 fiber, this cable supports 10 Gigabit Ethernet (10GbE) up to 300 meters and is suitable for 40GbE and 100GbE deployments over OM3-compliant distances. The plenum-rated jacket is essential for installations in air-handling spaces, meeting stringent fire safety codes. Optimized insertion loss is a key feature, minimizing signal degradation and ensuring reliable data transmission. The aqua color coding clearly identifies this as OM3 multimode fiber, operating at an 850nm wavelength with a bandwidth of 2000 MHz·km. Manufactured in the US, this Panduit cable (SKU: FXURPEN74XNF040) provides a robust solution for backbone and horizontal cabling needs in plenum environments.
  • 24-fiber OM3 multimode interconnect cable
  • MPO Female to (2) 12-fiber Female PanMPO connectors
  • Plenum-rated jacket for air-handling spaces
  • Method A polarity
  • Optimized Insertion Loss for signal integrity

Specifications

Application
OM3
Color
Aqua
Connection Type
MPO Female to PanMPO Female
Connector 1 Type*
MPO Female
Connector 2 Type*
PanMPO Female
Fiber Count*
24
Length
40 FT
Material
Plenum
Material
OM3 multimode fiber
Poles
24F MPO Female to (2) 12-fiber Female PanMPO
Series
Panduit OM3 Plenum Interconnect
Size
40 ft
Size
24-fiber
Standard
Meets or exceeds TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS Compliant
Temperature Rating
NA F
Type
Harness Cable Assembly
Package Dimensions (L x W x H)
14 IN x 17 IN x 1.5 IN
Package Weight (Imperial)
0.589 lbs
OM3 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 59 ft, Aqua

FXURPENENXNF059

OM3 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 59 ft, Aqua
OM3 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 6 ft, Aqua

FXURPENENXNF006

OM3 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 6 ft, Aqua
OM3 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO male to MPO male, Method A Std IL with no pulling eye, Aqua, 62 ft

FXTRP6N6NANF062

OM3 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO male to MPO male, Method A Std IL with no pulling eye, Aqua, 62 ft
OM3 8 fiber, Interconnect, LSZH, PanMPO Female to PanMPO Female, Method A, Optimized IL, 16 Meters, Aqua

FX8RLJNJNXNM016

OM3 8 fiber, Interconnect, LSZH, PanMPO Female to PanMPO Female, Method A, Optimized IL, 16 Meters, Aqua
OM4+ Signature Core 50/125 m, 12 fiber, interconnect cable assembly, plenum rated, MPO female to MPO female, Method A, Ultra IL with no pulling eye, Aqua, 50 meters

FSTRP5N5NKNM050

OM4+ Signature Core 50/125 m, 12 fiber, interconnect cable assembly, plenum rated, MPO female to MPO female, Method A, Ultra IL with no pulling eye, Aqua, 50 meters
OM3 24-fiber, Interconnect, Plenum, 24F MPO Female to (2) 12-fiber Female PanMPO, Method B, Optimized IL, 41 Feet, Aqua.

FXURPEN74YNF041

OM3 24-fiber, Interconnect, Plenum, 24F MPO Female to (2) 12-fiber Female PanMPO, Method B, Optimized IL, 41 Feet, Aqua.
OM3 24-fiber, Interconnect, Plenum, 24F MPO Female to (2) 12-fiber Female PanMPO, Method B, Optimized IL, 14 Feet, Aqua.

FXURPEN74YNF014

OM3 24-fiber, Interconnect, Plenum, 24F MPO Female to (2) 12-fiber Female PanMPO, Method B, Optimized IL, 14 Feet, Aqua.
OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method B, Optimized IL, 27 ft, Aqua

FZURPENENYNF027

OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method B, Optimized IL, 27 ft, Aqua
OM3 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 9 ft, Aqua

FXURPENENXNF009

OM3 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 9 ft, Aqua
OM3 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 4 ft, Aqua

FXURPENENXNF004

OM3 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 4 ft, Aqua
OM3 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 87 ft, Aqua

FXURPENENXNF087

OM3 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 87 ft, Aqua

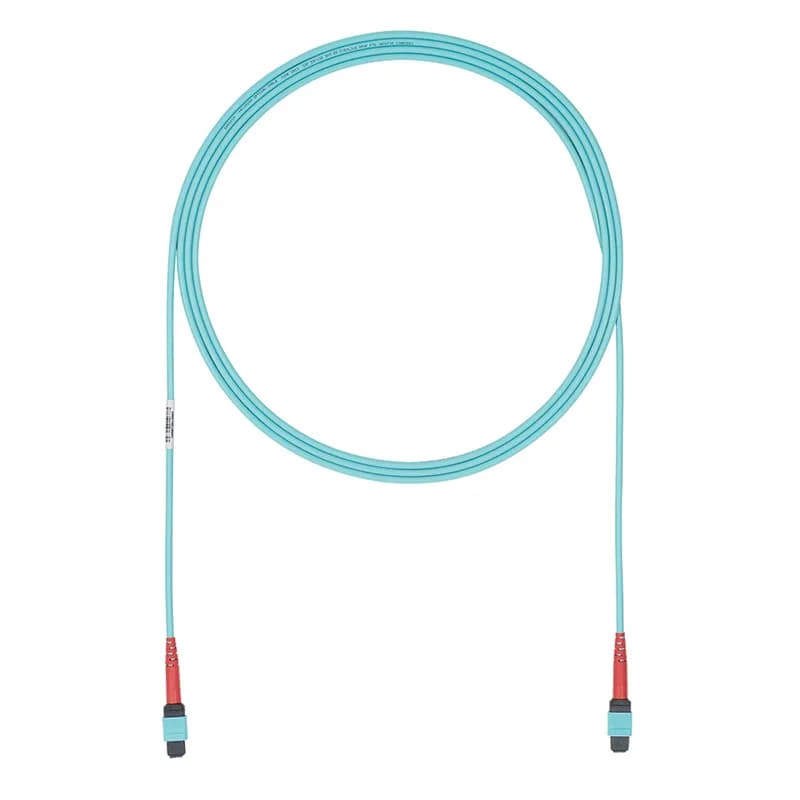

OM3 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method B, Optimized IL, 25 ft, Aqua
