Panduit FXURPEN74XNF024 - OM3 24-fiber, Interconnect, Plenum, 24F MPO Female to (2) 12-fiber Female PanMPO, Method A, Optimized IL, 24 Feet, Aqua.
Panduit

FXURPEN74XNF024

UPC: 613056195592

Documents & Media
Technical DrawingFull Engineering Drawing

Contact for Pricing

Overview

Panduit FXURPEN74XNF024 is a high-density OM3 multimode plenum-rated interconnect cable designed for data center and enterprise network applications. This 24-fiber cable features a 24F MPO Female connector on one end transitioning to two 12-fiber PanMPO Female connectors on the other end, following Method A polarity for seamless integration with existing MPO-based systems. The OM3 fiber type supports 10GbE up to 300 meters and 40GbE/100GbE up to 100 meters, making it ideal for high-speed backbone and horizontal cabling in structured wiring environments. The plenum-rated jacket (CMP) ensures compliance with fire safety codes for air-handling spaces, while the aqua color coding indicates OM3 multimode fiber. The optimized insertion loss design minimizes signal degradation, ensuring reliable performance in critical network infrastructure. With a length of 24 feet, this cable is pre-terminated for rapid deployment and reduces installation time compared to field-terminated solutions. Compatible with Panduit’s MPO-based hardware and patch panels, it provides a cost-effective solution for scalable, future-proof network architectures.
  • 24-fiber OM3 multimode plenum-rated cable (CMP) for air-handling spaces
  • 24F MPO Female to (2) 12F PanMPO Female connectors (Method A polarity)
  • Supports 10GbE up to 300m, 40GbE/100GbE up to 100m
  • Aqua jacket color for OM3 multimode fiber identification
  • 24-foot length for flexible deployment in data centers and enterprise networks

Specifications

Application
OM3
Color
Aqua
Connector 1 Type*
MPO Female
Connector 2 Type*
PanMPO Female
Fiber Count*
24
Length
24 FT
Material
Plenum
Standard
Meets or exceeds TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS Compliant
Temperature Rating
NA F
Type
Harness Cable Assembly
Package Dimensions (L x W x H)
14 IN x 17 IN x 1.5 IN
Package Weight (Imperial)
0.4 lbs
OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method B, Optimized IL, 24 ft, Aqua

FZURPENENYNF024

OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method B, Optimized IL, 24 ft, Aqua

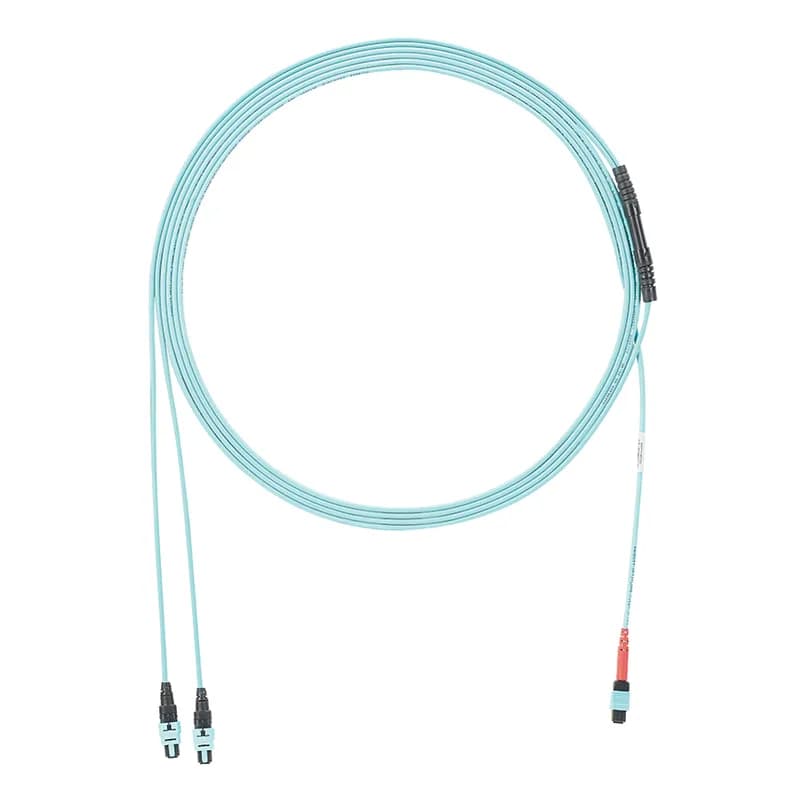

OM4 24-fiber, Interconnect, Plenum, 24F MPO Female to (2) 12-fiber Female PanMPO, Method A, Optimized IL, 24 Feet, Aqua.
