Panduit FXURLEN74YNM004 - OM3 24-fiber, Interconnect, LSZH, 24F MPO Female to (2) 12-fiber Female PanMPO, Method B, Optimized IL, 4 Meters, Aqua.
Panduit

FXURLEN74YNM004

UPC: 613056197879

Documents & Media
Technical DrawingFull Engineering Drawing

Contact for Pricing

Overview

The Panduit FXURLEN74YNM004 is a 24-fiber OM3 multimode fiber optic interconnect cable designed for high-density data center and enterprise network applications. This cable features a 24F MPO female connector on one end and splits into two 12-fiber PanMPO female connectors on the other, following Method B polarity for consistent signal routing. The LSZH (Low Smoke Zero Halogen) jacket ensures fire safety compliance in indoor environments while reducing toxic gas emissions during combustion. The Aqua color coding identifies OM3 multimode fiber, optimized for 10GbE and 40GbE applications with a bandwidth of 500 MHz·km at 850nm. With a 4-meter length, this cable provides flexible connectivity between patch panels, switches, and servers in structured cabling systems. The optimized insertion loss design minimizes signal degradation, ensuring reliable performance in high-bandwidth environments. Ideal for data centers, campus backbones, and enterprise networks requiring high fiber count and efficient space utilization.
  • 24-fiber OM3 multimode fiber with Aqua jacket for 10GbE/40GbE compatibility
  • 24F MPO female to (2) 12F PanMPO female connectors (Method B polarity)
  • LSZH jacket for fire safety and reduced toxic emissions in indoor environments
  • 4-meter length for flexible connectivity in data centers and enterprise networks
  • Optimized insertion loss design for reliable high-bandwidth performance

Specifications

Application
OM3
Color
Aqua
Connection Type
MPO
Connector 1 Type*
MPO Female
Connector 2 Type*
PanMPO Female
Fiber Count*
24
Length
13.12 FT
Material
LSZH
Size
4 meters
Standard
Meets or exceeds TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS Compliant
Temperature Rating
NA F
Type
Harness Cable Assembly
Package Dimensions (L x W x H)
14 IN x 17 IN x 1.5 IN
Package Weight (Imperial)
0.28 lbs

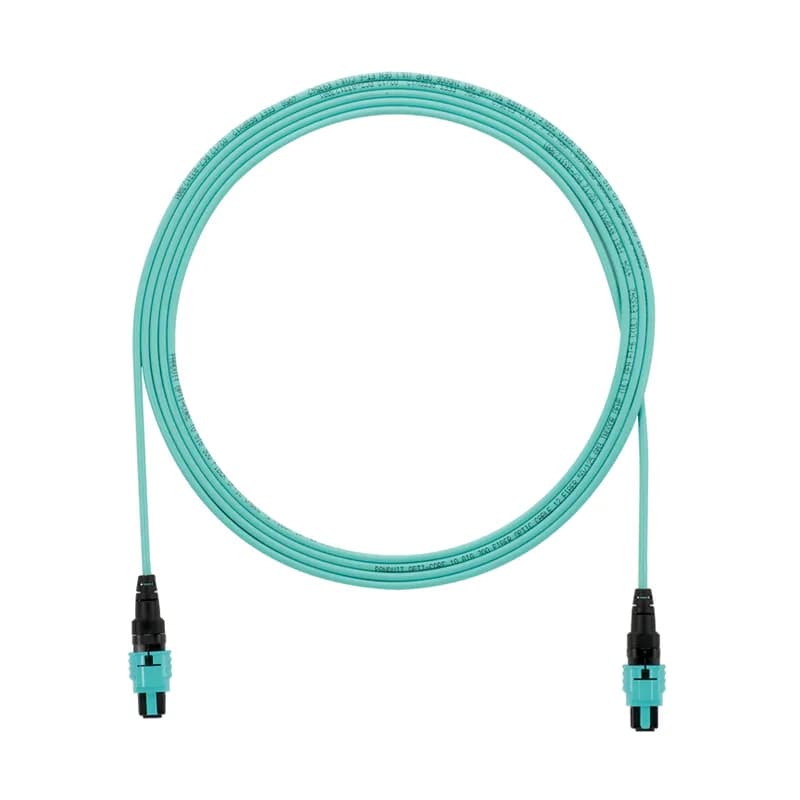

The QuickNet PanMPO 12 fiber cable assembly is an OM4 interconnect cable assembly. It is low smoke zero halogen (LSZH) rated and features MPO Female to MPO Female connectors. It is aqua, 4 meters in length and has Method A standard insertion loss with no pulling eye.

FZTRL7N7NANM004

The QuickNet PanMPO 12 fiber cable assembly is an OM4 interconnect cable assembly. It is low smoke zero halogen (LSZH) rated and features MPO Female to MPO Female connectors. It is aqua, 4 meters in length and has Method A standard insertion loss with no pulling eye.

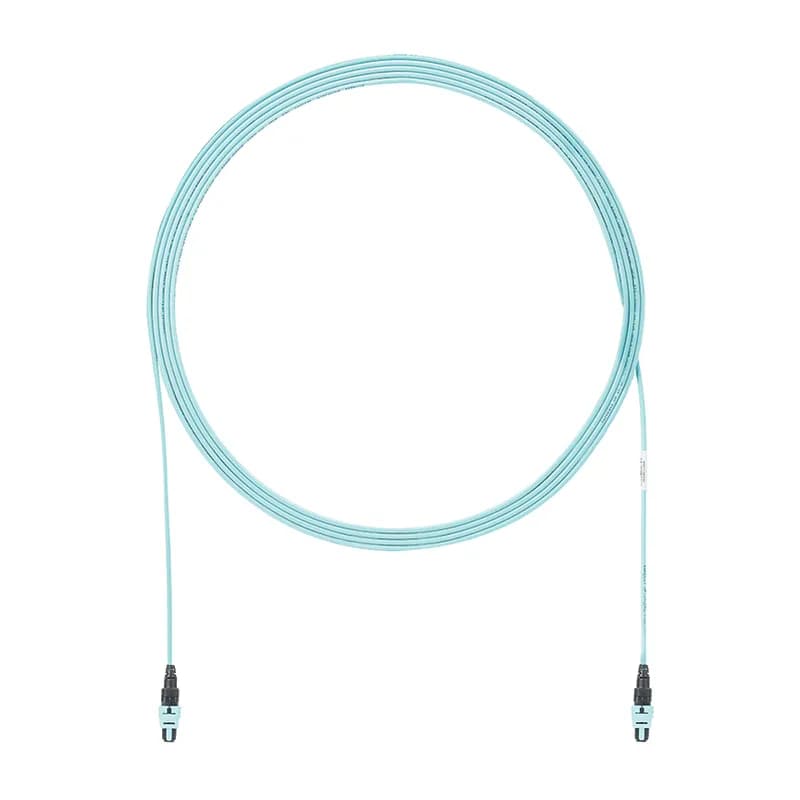

OM4 8 fiber, Interconnect, LSZH, PanMPO Female to PanMPO Female, Method A, Optimized IL, 4 Meters, Aqua

FZ8RLJNJNXNM004

OM4 8 fiber, Interconnect, LSZH, PanMPO Female to PanMPO Female, Method A, Optimized IL, 4 Meters, Aqua

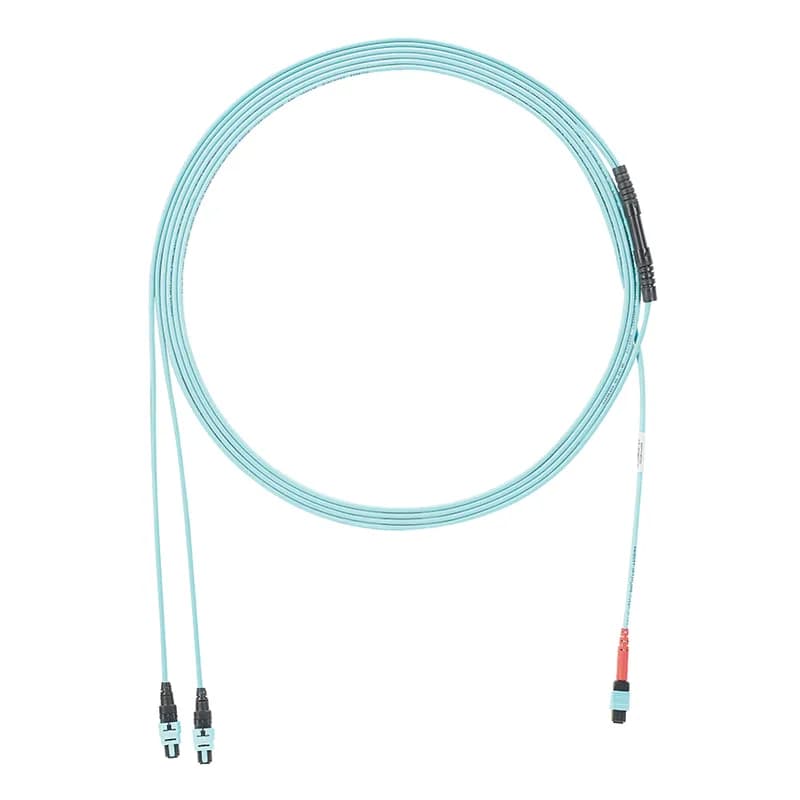

OM4 24-fiber, Interconnect, LSZH, 24F MPO Female to (2) 12-fiber Female PanMPO, Method A, Optimized IL, 4 Meters, Aqua.

FZURLEN74XNM004

OM4 24-fiber, Interconnect, LSZH, 24F MPO Female to (2) 12-fiber Female PanMPO, Method A, Optimized IL, 4 Meters, Aqua.
OM3 24 fiber, Interconnect, LSZH, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 4 m, Aqua

FXURLENENXNM004

OM3 24 fiber, Interconnect, LSZH, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 4 m, Aqua

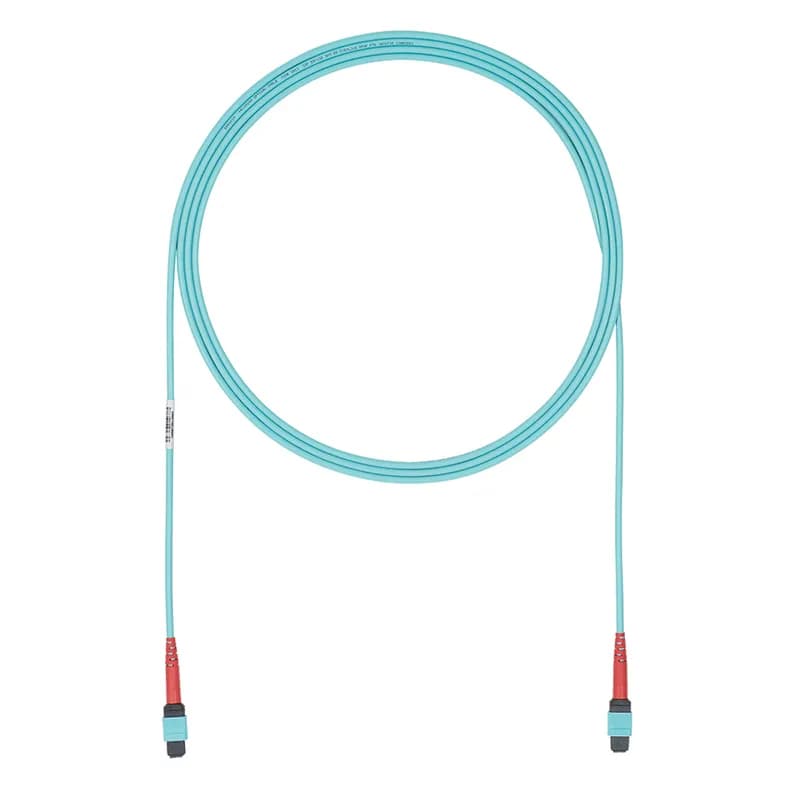

OM4 24 fiber, Interconnect, LSZH, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 4 m, Aqua

FZURLENENXNM004

OM4 24 fiber, Interconnect, LSZH, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 4 m, Aqua

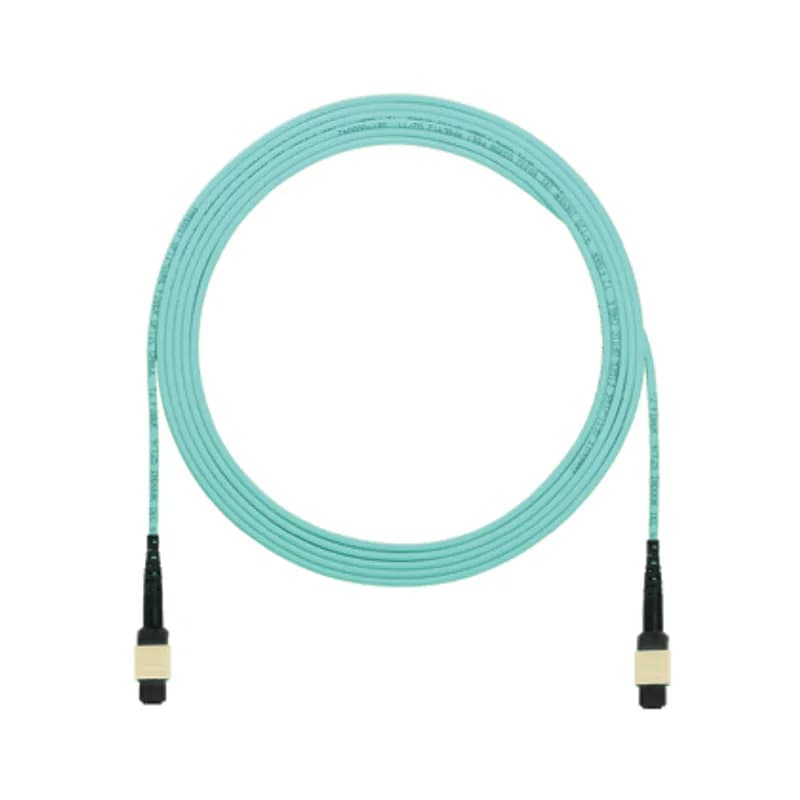

OM3 12 fiber, interconnect cable assembly, low smoke zero halogem (LSZH) rated, MPO female to MPO female, Method A Std IL with no pulling eye, Aqua, 4 meters

FXTRL5N5NANM004

OM3 12 fiber, interconnect cable assembly, low smoke zero halogem (LSZH) rated, MPO female to MPO female, Method A Std IL with no pulling eye, Aqua, 4 meters
OM4 12 fiber, interconnect cable assembly, low smoke zero halogen (LSZH) rated, MPO female to MPO female, Method A Std IL with no pulling eye, Aqua, 4 meters

FZTRL5N5NANM004

OM4 12 fiber, interconnect cable assembly, low smoke zero halogen (LSZH) rated, MPO female to MPO female, Method A Std IL with no pulling eye, Aqua, 4 meters

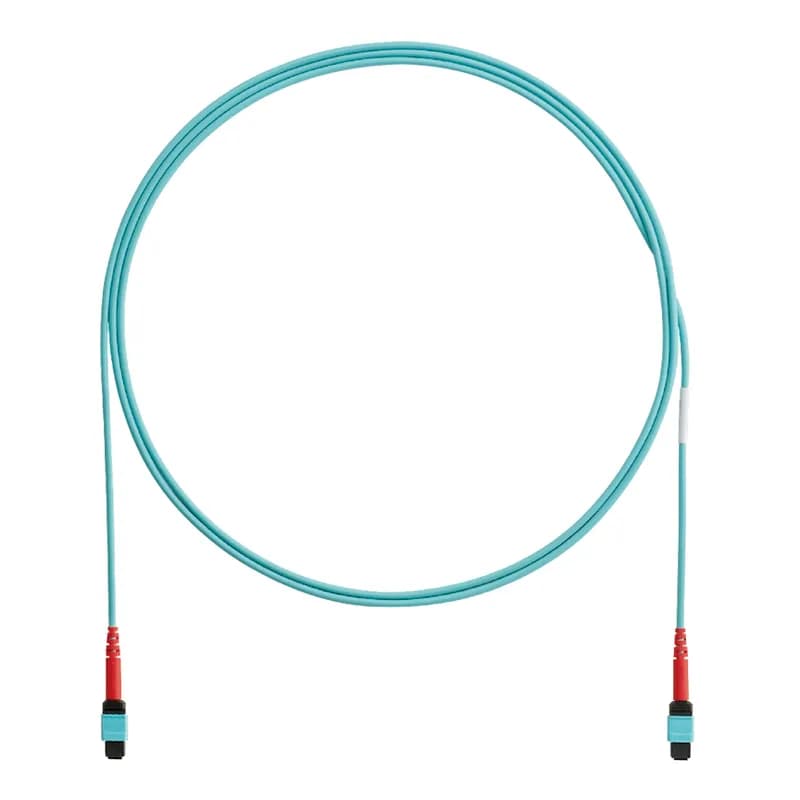

OM4 12 fiber interconnect cable assembly Low Smoke Zero Halogen (LSZH) PanMPO female to PanMPO female Method B Optimized IL, with no pulling eye, 4 meters.
