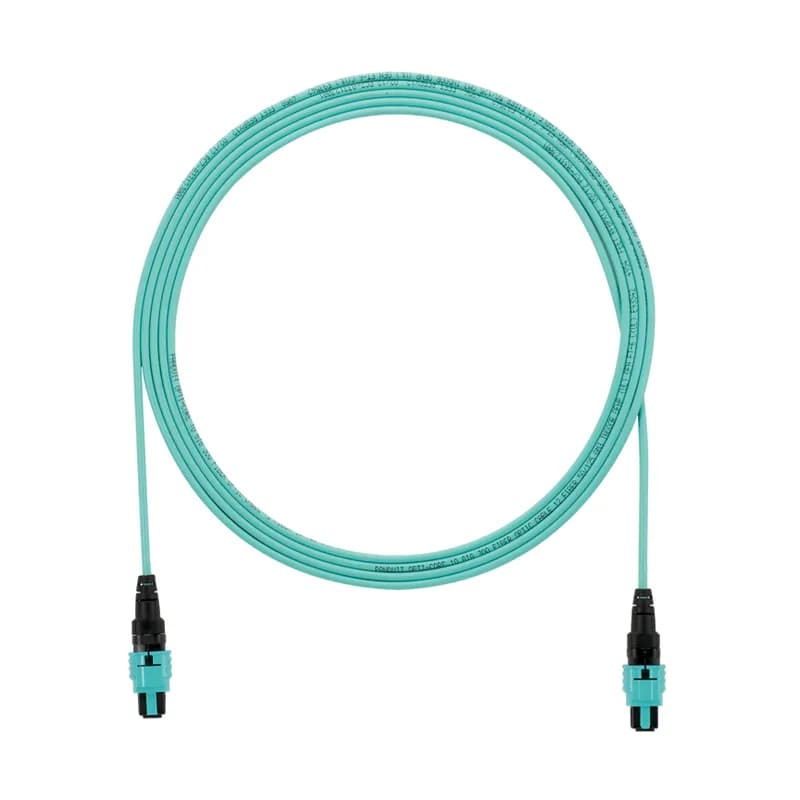

Panduit FXTRP7N7NANF029 - OM3 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL with no pulling eye, Aqua, 29 ft
Panduit

FXTRP7N7NANF029

UPC: 074983569632

Documents & Media
Technical DrawingFull Engineering DrawingInstallation InstructionsSpecification SheetVideo Clip

Contact for Pricing

Overview

The Panduit FXTRP7N7NANF029 is a high-density OM3 12-fiber interconnect cable assembly designed for robust data center and enterprise network applications. Manufactured by Panduit, this plenum-rated (OFNP) cable ensures safety and compliance in air-handling spaces. It features PanMPO connectors on both ends, specifically PanMPO Female to PanMPO Female configurations, facilitating reliable and secure connections within structured cabling systems. The cable utilizes Method A polarity, a standard configuration for many network deployments, ensuring proper signal transmission between devices. This assembly is built with standard insertion loss (Std IL) characteristics, providing predictable optical performance for your network infrastructure. It does not include a pulling eye, making it suitable for installations where direct connection or careful handling is prioritized. The distinctive aqua color clearly identifies it as an OM3 fiber optic cable, aiding in network management and identification. With a length of 29 feet, this cable offers flexibility for various rack and cabinet layouts. The 12-fiber count and PanMPO connector system are optimized for high-speed data transmission, supporting applications such as 10 Gigabit Ethernet and beyond. The OFNP rating signifies its suitability for use in plenum spaces, meeting stringent fire safety codes. This Panduit cable assembly (SKU: FXTRP7N7NANF029) is manufactured in the USA, ensuring quality and adherence to manufacturing standards. Its 12 poles correspond to the 12 fibers within the cable, enabling dense connectivity solutions. The PanMPO series connectors are engineered for high-density interconnectivity, simplifying cable management and maximizing port utilization in critical network environments. Choose the FXTRP7N7NANF029 for reliable, high-performance fiber optic connectivity where plenum rating and dense interconnectivity are paramount.
  • OM3 12-fiber interconnect cable assembly
  • Plenum rated (OFNP) for air-handling spaces
  • PanMPO Female to PanMPO Female connectors
  • Method A polarity for standard network deployments
  • Aqua colored jacket for easy identification

Specifications

Application
OM3
Color
Aqua
Connector 1 Type*
PanMPO Female
Connector 2 Type*
PanMPO Female
Fiber Compatibility*
OM3 50/125um
Fiber Count*
12
Length
29 FT
Material
Plenum
Special Features
Indoor
Standard
Meets or exceeds TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS Compliant
Temperature Rating
140 F
Type
Interconnect Cable Assembly
Package Dimensions (L x W x H)
14 IN x 17 IN x 1.5 IN
Package Weight (Imperial)
0.33 lbs
OM3 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL, with no pulling eye, Aqua, 9 meters

FXTRP7N7NANM009

OM3 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL, with no pulling eye, Aqua, 9 meters
OM3 12 fiber, optimized interconnect cable assembly, low smoke zero halogen (LSZH) rated, PanMPO female to PanMPO female, Method A, Optimized IL, with no pulling eye, Aqua, 9 meters

FXTRL7N7NXNM009

OM3 12 fiber, optimized interconnect cable assembly, low smoke zero halogen (LSZH) rated, PanMPO female to PanMPO female, Method A, Optimized IL, with no pulling eye, Aqua, 9 meters
OM3 12 fiber, PanMPO interconnect cable assembly, low smoke zero halogen (LSZH), PanMPO Female To PanMPO Female, Method A, Std IL, with no pulling eye, Aqua, 9 meters

FXTRL7N7NANM009

OM3 12 fiber, PanMPO interconnect cable assembly, low smoke zero halogen (LSZH), PanMPO Female To PanMPO Female, Method A, Std IL, with no pulling eye, Aqua, 9 meters
OM3 12 fiber, PanMPO interconnect cable assembly, plenum rated, PanMPO Female To PanMPO Female, Method A, Optimized IL, with no pulling eye, Aqua, 9 meters

FXTRP7N7NXNM009

OM3 12 fiber, PanMPO interconnect cable assembly, plenum rated, PanMPO Female To PanMPO Female, Method A, Optimized IL, with no pulling eye, Aqua, 9 meters
OM3 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL with no pulling eye, Aqua, 30 ft

FXTRP7N7NANF030

OM3 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL with no pulling eye, Aqua, 30 ft
OM3 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL with no pulling eye, Aqua, 28 ft

FXTRP7N7NANF028

OM3 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL with no pulling eye, Aqua, 28 ft
OM3 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL with no pulling eye, Aqua, 31 ft

FXTRP7N7NANF031

OM3 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL with no pulling eye, Aqua, 31 ft
OM3 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL with no pulling eye, Aqua, 27 ft

FXTRP7N7NANF027

OM3 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL with no pulling eye, Aqua, 27 ft
OM3 12 fiber, optimized interconnect cable assembly, low smoke zero halogen (LSZH) rated, PanMPO female to PanMPO female, Method A, Optimized IL, with no pulling eye, Aqua, 8 meters

FXTRL7N7NXNM008

OM3 12 fiber, optimized interconnect cable assembly, low smoke zero halogen (LSZH) rated, PanMPO female to PanMPO female, Method A, Optimized IL, with no pulling eye, Aqua, 8 meters
OM3 12 fiber, PanMPO interconnect cable assembly, low smoke zero halogen (LSZH), PanMPO Female To PanMPO Female, Method A, Std IL, with no pulling eye, Aqua, 8 meters

FXTRL7N7NANM008

OM3 12 fiber, PanMPO interconnect cable assembly, low smoke zero halogen (LSZH), PanMPO Female To PanMPO Female, Method A, Std IL, with no pulling eye, Aqua, 8 meters
OM3 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL, with no pulling eye, Aqua, 8 meters

FXTRP7N7NANM008

OM3 12 fiber, PanMPO interconnect cable assembly, plenum rated (OFNP), PanMPO Female To PanMPO Female, Method A, Std IL, with no pulling eye, Aqua, 8 meters
OM3 12 fiber, PanMPO interconnect cable assembly, plenum rated, PanMPO Female To PanMPO Female, Method A, Optimized IL, with no pulling eye, Aqua, 8 meters

FXTRP7N7NXNM008

OM3 12 fiber, PanMPO interconnect cable assembly, plenum rated, PanMPO Female To PanMPO Female, Method A, Optimized IL, with no pulling eye, Aqua, 8 meters

Frequently Asked Questions

What is the operating temperature range?

The operating temperature range is -10°C to 60°C.

What types of fiber are available for this product?

The product supports OM3 50/125μm and OM4 50/125μm multimode fiber types.

What is the installation temperature requirement?

The installation temperature requirement is between 0°C to 40°C.

What connector types are available for this product?

The product features PanMPO™ Female and PanMPO™ Male connector types.

What standards does this product meet?

The product meets or exceeds TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), and TIA/EIA-568-C.1 standards.

What is the maximum cable attenuation for multimode fiber?

The maximum cable attenuation is 3.5dB/km at 850nm and 1.5dB/km at 1300nm.

What is the minimum bend radius for this cable?

The minimum bend radius for the cable is 30mm.

What is the tensile strength of the cable?

The cable has a tensile strength of 220N.

What are the jacket ratings for the cable?

The cable has Optical Fiber Nonconductive Plenum (OFNP) and Low Smoke Zero Halogen (LSZH) ratings.

What is the maximum connector insertion loss?

The maximum connector insertion loss for multimode is 0.50dB.

How to Install the Panduit MPO Connectors

This guide provides step-by-step instructions for installing and configuring Panduit MPO connectors, including gender changeover and polarity adjustments.

Estimated time: 30m

Tools needed:

Panduit pin retraction tool

Supplies needed:

Panduit MPO connectors

  1. Remove the outer housing

    Squeeze both sides of the outer housing at the back end evenly until you hear an audible click. Pull the outer housing off the connector.

  2. Change the gender of the connector

    Locate the hole in the inner housing on the slotted side. Position the pin retraction tool over the hole, insert the tool, press down gently, and push forward to advance the connector pins to the male state. Repeat the process in the opposite direction to retract pins for the female state.

  3. Re-install the outer housing

    Rotate the outer housing 180° so the arc cut-out is on the opposite side. Re-install the outer housing until you hear a faint audible click.

Frequently Asked Questions about Panduit

What environmental ratings do Panduit products have?

Panduit products feature comprehensive environmental ratings across multiple standards, including UL 508A Type 1, 2, 3, 4, 4X, 12, and 13; CSA Type 1, 2, 3, 4, 4X, 12, and 13; and NEMA Type 1, 2, 3, 4, 4X, 12, and 13. They meet IEC 60529 IP66 rating, providing robust protection against dust, water, and corrosion in both indoor and outdoor environments, with operating temperatures ranging from -40°C to 130°C.

What certifications and standards do Panduit products comply with?

Panduit products are certified to multiple critical industry standards, including UL (Underwriters Laboratories) in the USA and Canada, CSA (Canadian Standard Association), EN IEC 61386, LVD 2006/G5/EC, and ARRA standards. Our products meet rigorous certifications for electrical safety, environmental compliance (WEEE and RoHS), and are designed to perform in extreme temperatures ranging from -55°C to 105°C, making them suitable for demanding industrial environments.

What industries and applications are Panduit products used for?

Panduit products are engineered for critical applications across multiple industries, including commercial construction, food and beverage, oil and gas, renewable energy, transportation, and safety-critical environments. Their solutions span electrical infrastructure, wire management, cable ties, power connectors, and safety systems designed to withstand extreme conditions like high vibration, temperature variations, UV exposure, and corrosive agents. Key industries include solar and wind energy, aerospace, heavy trucking, military, commercial transportation, and industrial manufacturing.

What are the main product lines offered by Panduit?

Panduit offers a comprehensive range of electrical infrastructure products including power connectors, cable ties, grounding connectors, identification products, safety solutions, terminals, cable cleats, wiring duct, and cable tie accessories. These products are engineered for industrial environments across multiple sectors like commercial construction, food and beverage, oil and gas, renewable energy, transportation, and safety applications.

What are the key features of Panduit products?

Panduit products are engineered for robust performance in heavy-duty industrial environments, featuring a comprehensive range of solutions including cable ties, power connectors, terminals, and identification products. Key features include proven quality performance, subject matter expertise, and customer-driven innovation across multiple industrial sectors such as commercial construction, food and beverage, oil and gas, renewable energy, transportation, and safety applications. The product line is designed to maximize productivity, reliability, and safety while meeting stringent industry standards.

What is Panduit's warranty policy?

Panduit provides a comprehensive Limited Product Warranty that can be fully reviewed on their official website at www.panduit.com/warranty. All Panduit products are subject to the terms, conditions, and limitations of this current warranty. Customers are advised to review the specific warranty details for their particular product, as Panduit requires buyers to determine product suitability for their intended use and assumes all associated risks.

What technical support does Panduit offer?

Panduit offers comprehensive technical support through their dedicated customer service team, accessible via phone at 1-800-777-3300. They provide expert assistance for their full range of industrial infrastructure products, including cable ties, power connectors, terminals, and identification solutions. Customers can also access additional technical resources and product information through their website at www.panduit.com.

What accessories are available for Panduit products?

Panduit offers a wide range of accessories across multiple product lines, including cable ties, cable tie accessories, cable tie tools, identification products, cable cleats, grounding connectors, and VeriSafe accessories like the VeriSafe Network Module and Insulation Piercing Connectors. For a comprehensive view of all available accessories, customers are recommended to visit www.panduit.com for the full product catalog.

How are Panduit products typically installed?

Panduit products are engineered for comprehensive installation across industrial environments, utilizing specialized tools and techniques for precise mounting. Installation methods vary by product line - from cable ties and power connectors to terminals and identification solutions - but all are designed for robust performance in heavy-duty settings. Technicians typically use Panduit's dedicated installation tools and follow manufacturer guidelines available at www.panduit.com to ensure proper fitting and maximum infrastructure reliability.
