Overview

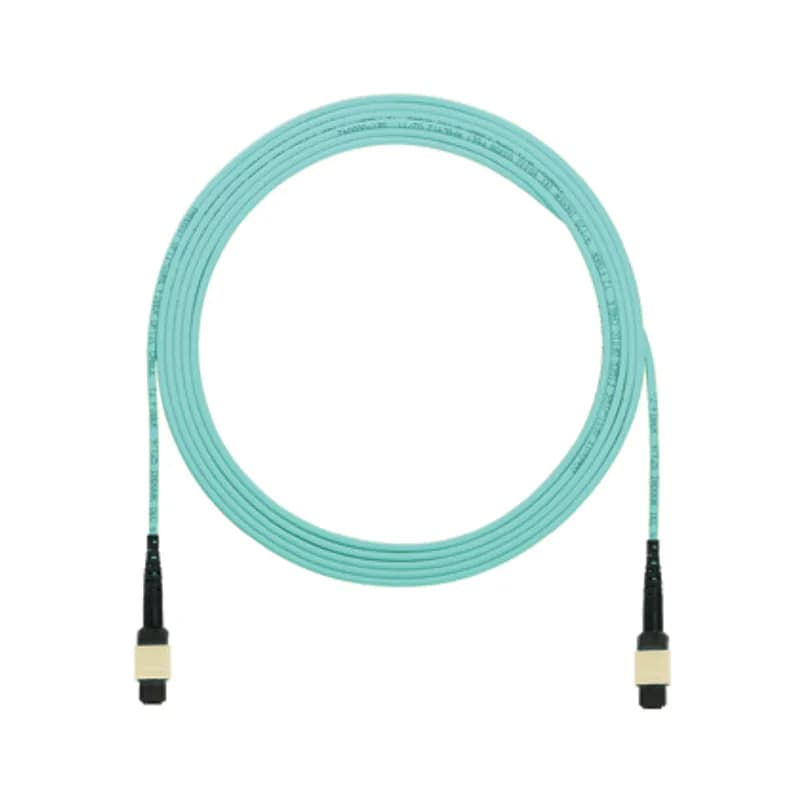

- 12-fiber OM3 multimode cable with aqua jacket for OM3 compliance
- MPO male to MPO male connectors adhering to Method A Standard IL
- OFNP (plenum) rated for fire safety in air-handling spaces
- 111-foot length for flexible deployment without excessive slack
- Manufactured in the USA with no pulling eye for simplified installation
Specifications
Application | OM3 |
Color | Aqua |
Connection Type | MPO male to MPO male |
Connector 1 Type* | MPO Male |
Connector 2 Type* | MPO Male |
Fiber Compatibility* | OM3 50/125um |
Fiber Count* | 12 |
Ip Rating | OFNP |
Length | 111 FT |
Material | Plenum |
Material | Fiber Optic |
Poles | 12 |
Series | OM3 |
Size | 12 fiber |
Special Features | Indoor |
Standard | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1RoHS Compliant |
Temperature Rating | 158 F |
Type | Interconnect Cable Assembly |
Package Dimensions (L x W x H) | 14 IN x 17 IN x 1.5 IN |
Package Weight (Imperial) | 1.05 lbs |
FXTRP5N5NANF121
OM3 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO female to MPO female, Method A Std IL, with no pulling eye 121 ft
FXTRP6N6NANF116
OM3 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO male to MPO male, Method A Std IL with no pulling eye, Aqua, 116 ft
FXTRP5N5NANF125
OM3 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO female to MPO female, Method A Std IL, with no pulling eye 125 ft
FXTRP6N6NANF131
OM3 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO male to MPO male, Method A Std IL with no pulling eye, Aqua, 131 ft
FXTRP6N6NANF063
OM3 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO male to MPO male, Method A Std IL with no pulling eye, Aqua, 63 ft
FXTRP6N6NANF066
OM3 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO male to MPO male, Method A Std IL with no pulling eye, Aqua, 66 ft
FXTRP5N5NANF009
OM3 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO female to MPO female, Method A Std IL, with no pulling eye 9 ft
FXTRP5N5NANF052
OM3 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO female to MPO female, Method A Std IL, with no pulling eye 52 ft
FXTRP6N6NANF096
OM3 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO male to MPO male, Method A Std IL with no pulling eye, Aqua, 96 ft
FXTRP6N6NANF004
OM3 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO male to MPO male, Method A Std IL with no pulling eye, Aqua, 4 ft
FXTRP6N6NANF012
OM3 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO male to MPO male, Method A Std IL with no pulling eye, Aqua, 12 ft
FXTRP5N5NANF098
OM3 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO female to MPO female, Method A Std IL, with no pulling eye 98 ftFrequently Asked Questions
What types of fiber are available for this product?
The product supports Singlemode (OS1/OS2 9/125μm) and Multimode (OM3 50/125μm, OM4 50/125μm) fiber types.
What is the operating temperature range for this cable?
The operating temperature range for this cable is 0°C to 70°C.
What are the cable jacket ratings?
The cable jacket ratings include Optical Fiber Nonconductive Plenum (OFNP) and Low Smoke Zero Halogen (LSZH).
Is this product RoHS compliant?
Yes, the product is RoHS compliant.
What is the maximum cable attenuation for Singlemode fiber?
The maximum cable attenuation for Singlemode fiber is 1.0dB/km at 1310/1550nm.
What is the installation temperature requirement?
The installation temperature requirement is between 0°C to 40°C.
How many mating cycles can the connectors endure?
The connectors can endure up to 500 mating cycles.
What is the tensile strength of the cable?
The cable tensile strength is rated at 220N.
What connector types are available for this product?
The product is available with MPO Female or MPO Male connectors at both ends.
What is the minimum bend radius for this cable?
The minimum bend radius is 20 times the cable diameter under load and 10 times the cable diameter when static.
How to Clean and Inspect Fiber Optic Connectors
This guide provides step-by-step instructions for cleaning and inspecting fiber optic connectors to ensure optimal performance and reliability.
Estimated time: 1h
Tools needed:
Fiber Inspection Microscope, Cleaning Swabs, Multimeter
Supplies needed:
Isopropyl Alcohol, Non-woven cloth wipes, Dust caps
- Inspect the connector
Ensure no power is present. Remove any protective caps and inspect the connector end faces using a 200x magnification fiber inspection device.
- Clean the connector
If the end face appears dirty, use a micro fabric-based dry cleaner to clean the fiber. Re-inspect the end face to ensure cleanliness.
- Perform wet cleaning if necessary
If dirt remains after dry cleaning, apply 90+% Isopropyl Alcohol to a cleaning swab and rub over the connector end face. Dry immediately with a dry cleaner and re-inspect.
- Repeat cleaning regimen
If contaminants persist, use a wet cleaning fluid like Chemtronics Electro-Wash PX on a swab, rub the end face, dry it, and re-inspect until clean.
- Cap the connectors
Once the connectors are clean, replace the dust caps to prevent future contamination.
