Overview

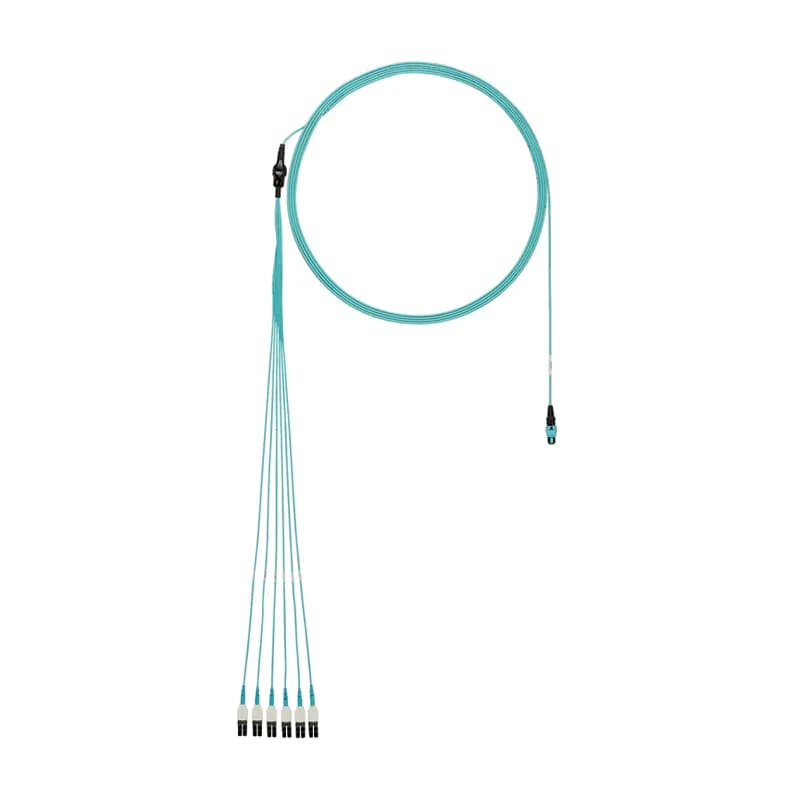

- OM3 8-fiber round harness for 40G to 10G transitions
- PanMPO female connector to 8 LC Uniboot connectors
- 60cm (24 inch) equal breakout length
- Plenum-rated cable for air handling spaces
- 57 feet cable length, standard insertion loss
Specifications
Application | OM3 |
Color | Aqua |
Color | Other |
Connection | Ribbon cable (fibre optic) |
Connector 1 Type* | PanMPO -12 Female |
Connector 1 Type* | PanMPO™-12 Female |
Connector 2 Type* | LC Duplex Uniboot |
Fiber Compatibility* | OM3 10 GbE 50/125?m |
Fiber Count* | 8 |
Length | 57 FT |
Material | Plenum (OFNP) |
Special Features | Indoor |
Standard | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, TIA/EIA 604-12 (FOCIS-12) and RoHS Compliant |
Temperature Rating | 122 F |
Type | Harness Cable Assembly |
Package Dimensions (L x W x H) | 10 IN x 14 IN x 1 IN |
Package Weight (Imperial) | 0.534 lbs |
FX8RP7NUSQNF049
OM3 8 fiber round harness plenum PanMPO female To LC Uniboot 60cm (24 inch) equal breakout 40G to 10G Std. IL - 49 feet.
FX8RP7NUSQNF034
OM3 8 fiber round harness plenum PanMPO female To LC Uniboot 60cm (24 inch) equal breakout 40G to 10G Std. IL -34 feet.
FX8RP7NUSQNF054
OM3 8 fiber round harness plenum PanMPO female To LC Uniboot 60cm (24 inch) equal breakout 40G to 10G Std. IL - 54 feet.
FX8RP7NUSQNF018
OM3 8 fiber round harness plenum PanMPO female To LC Uniboot 60cm (24 inch) equal breakout 40G to 10G Std. IL -18 feet.
FX8RP7NUSQNF031
OM3 8 fiber round harness plenum PanMPO female To LC Uniboot 60cm (24 inch) equal breakout 40G to 10G Std. IL - 31 feet.
FX8RP7NUSQNF059
OM3 8 fiber round harness plenum PanMPO female To LC Uniboot 60cm (24 inch) equal breakout 40G to 10G Std. IL - 59 feet.
FX8RP7NUSQNF014
OM3 8 fiber round harness plenum PanMPO female To LC Uniboot 60cm (24 inch) equal breakout 40G to 10G Std. IL - 14 feet.
FX8RP7NUSQNF024
OM3 8 fiber round harness plenum PanMPO female To LC Uniboot 60cm (24 inch) equal breakout 40G to 10G Std. IL - 24 feet.
FX8RP7NUSQNF026
OM3 8 fiber round harness plenum PanMPO female To LC Uniboot 60cm (24 inch) equal breakout 40G to 10G Std. IL - 26 feet.
FX8RP7NUSQNF092
OM3 8 fiber round harness plenum PanMPO female To LC Uniboot 60cm (24 inch) equal breakout 40G to 10G Std. IL - 92 feet.
FX8RP7NUSQNF006
OM3 8 fiber round harness plenum PanMPO female To LC Uniboot 60cm (24 inch) equal breakout 40G to 10G Std. IL - 6 feet.
FX8RP7NUSQNF005
OM3 8 fiber round harness plenum PanMPO female To LC Uniboot 60cm (24 inch) equal breakout 40G to 10G Std. IL - 5 feetFrequently Asked Questions
What is the operating temperature range?
The operating temperature range is 0°C to 50°C.
How many fibers does the harness contain?
The harness contains 8 fibers.
What is the storage temperature range?
The storage and shipping temperature range is -40°C to 65°C.
What types of fiber does the harness support?
The harness supports Bend Insensitive OM3 and OM4 fiber types.
What is the maximum connector insertion loss?
The maximum connector insertion loss is 0.75dB.
What are the jacket ratings for the cable?
The cable has Optical Fiber Nonconductive Plenum (OFNP) and Low Smoke Zero Halogen (LSZH) ratings.
What standards does this product meet?
The product meets or exceeds ISO/IEC 11801 and TIA/EIA standards.
What is the minimum bend radius for installation?
The minimum bend radius for installation is 76.2mm.
What is the cable tensile strength?
The cable tensile strength is 220N.
What is the cable's compressive load capacity?
The cable compressive load capacity is 35N/cm.
How to Install the PanMPO Connector
This guide provides step-by-step instructions for installing and configuring the PanMPO Connector, ensuring proper connection and functionality.
Estimated time: 30m
Tools needed:
Panduit pin retraction tool, Screwdriver
Supplies needed:
Heat shrink, Electrical tape, Expandable sleeve
- Remove the outer housing
Squeeze both sides of the outer housing at the back end evenly until you hear an audible click. Pull the outer housing off the connector.
- Change the polarity
Rotate the outer housing 180° so the arc cut-out is on the opposite side. Re-install the outer housing until you hear a faint audible click.
- Prepare the connectors
Close the loop on the nylon ripcord and pull it through the slot in the heat shrink towards the front of the assembly. Remove the heat shrink and unwrap any electrical tape if present.
- Install the expandable sleeve
Slide the expandable sleeve over the split loom tube containing the connectors. Carefully remove the split loom tube.
