Contact for Pricing
Overview

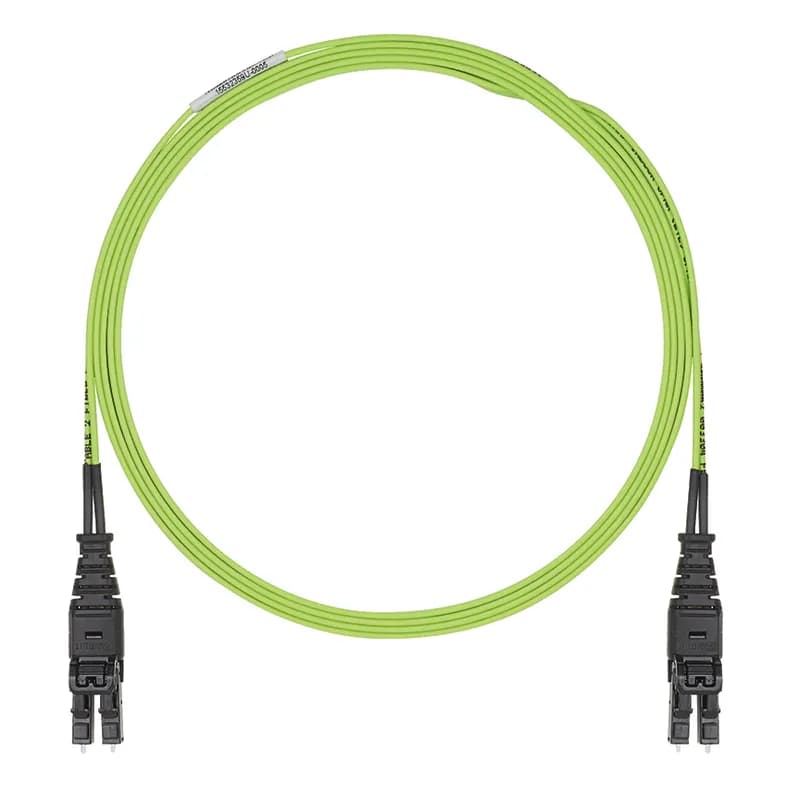

- 2-fiber OM5 laser-optimized multimode fiber for 400Gbps data rates
- 1.6mm diameter with OFNR (Optical Fiber Nonconductive Riser) rating
- PushPull LC connectors on both ends for quick, secure, tool-free connections
- Standard polarity ensures compatibility with existing network infrastructure
- 47-meter length optimized for rack-to-rack and inter-cabinet connections
Specifications
Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunication rooms, data centers, and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distributio |
Color | Lime Green |
Connection Type | PushPull LC connectors |
Connection Type | PushPull LC |
Depth | 1850.39 IN |
Enclosure | Low Smoke Zero Halogen (LSZH) |
Height | 0.06 in |
Ip Rating | OFNR |
Material | OM5 multimode fiber, 1.6mm diameter cable |
Material | OM5 multimode fiber, PC, OFNR jacket |
Material | OM5 multimode fiber, PC (Polycarbonate), OFNR jacket |
Material | OFNR |
Material | Fiber Optic Cable |
Model | LC Push-Pull |
Poles | 2-fiber |
Poles | 2 |
Series | OM5 |
Series | Ultra Performance |
Series | FW2ELQ1Q1NNM |
Series | FW2ELQ1Q1 |
Size | 1.6mm |
Size | 1.6mm diameter |
Size | 1.6mm diameter, 47 meters |
Slot Capacity | NA |
Standard | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-10), TIA/EIA-568-C.1, RoHS compliant for OM4 ANSI/TIA-492AAAE, IEC 60793-2-10 Ed 6, TIA 568.3-D, ISO 11801 Ed 3, RoHS compliant for OM5 |
Type | Fiber Optic Patch Cord |
Width | 0.06 IN |
Package Dimensions (L x W x H) | 0.001 IN x 0.001 IN x 0.001 IN |
Package Weight (Imperial) | 0.685 lbs |
Frequently Asked Questions
How do I change the patch cord polarity?
Squeeze the boot sides, slide it back, remove connectors from the duplex clip, and switch A/B positions on one end.
What fiber types are available?
OM4 Signature Core™ and OM5 Signature Core™ fiber types are available for these patch cords.
What connector type is used on these patch cords?
These patch cords utilize Duplex LC connectors on both End 'A' and End 'B'.
What cable jacket ratings are available?
Available cable jacket ratings include Plenum (OFNP), Riser (OFNR), and Low Smoke Zero Halogen (LSZH).
What is the operating temperature range?
The operating and installation temperature range is -10°C to 60°C (14°F to 140°F).
What is the minimum bend radius for the cable?
The minimum bend radius is 32mm, with a long-term minimum bend radius of 16mm.
What is the maximum connector insertion loss?
The maximum connector insertion loss for these patch cords is 0.10dB.
What is the connector durability rating?
The connectors have a durability rating of 500 cycles.
Are these patch cords RoHS compliant?
Yes, all patch cord components meet the requirements of Directive 2002/95/EC for RoHS compliance.
What is the cable's outside diameter?
The cable's outside diameter (OD) is 1.6mm duplex.
