Contact for Pricing
Minimum Qty: 1640
Multiplier: 1
*Contact for lower quantities*
Overview
- 48-fiber OS2 single-mode stranded tube cable
- Riser (OFNR) rated for indoor installations
- Indoor/outdoor versatility with dry water blocking technology
- Eliminates transition points, saving cost and preserving optical budget
- All-dielectric construction requires no grounding or bonding
Specifications
Bend Radius | NA in |
Color | Black |
Fiber Size | 9/125 m |
Fiber Size | 9/125µm |
Fiber Type | OS2 |
Flammability Rating | Riser (OFNR) |
Flammability Rating* | Riser (OFNR) |
Number of Fibers | 48 |
Tensile Strength | 600 lb |
Type | Bulk Fiber Optic Indoor/Outdoor Cable |
Package Dimensions (L x W x H) | 36 IN x 36 IN x 18 IN |
Package Weight (Imperial) | 0.218 lbs |

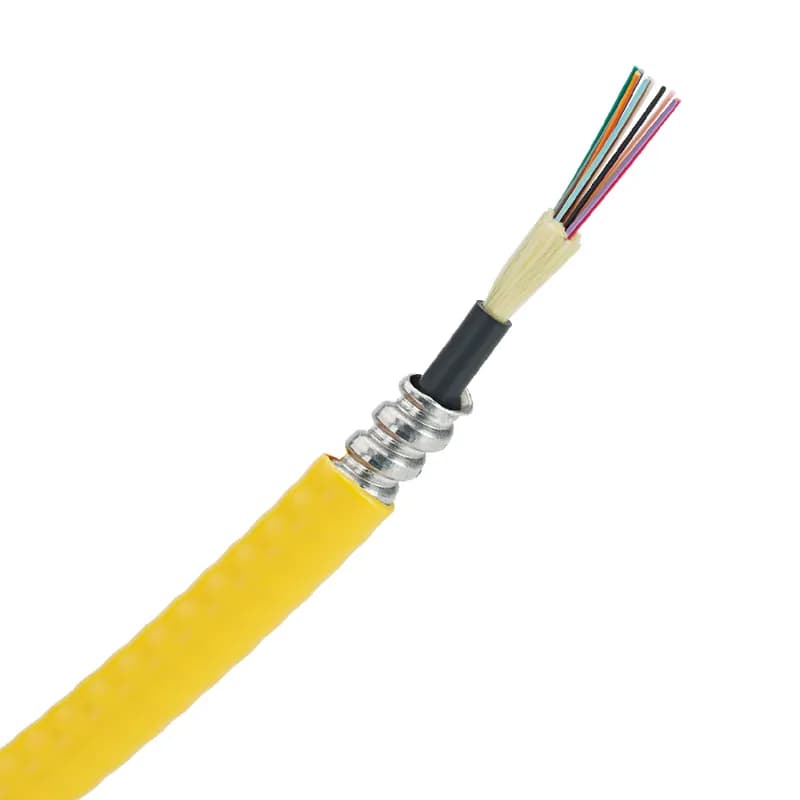

FSLR906
The 6 fiber indoor/outdoor armored tight buffered cable is OS2, Riser (OFCR) rated and features features 900 buffered fibers.
FSMR948Y
The 48 fiber indoor/outdoor armored stranded cable is OS2, Riser (OFCR) rated and features 250 m fibers.
FSLR912
The 12 fiber indoor/outdoor armored tight buffered cable is OS2, Riser (OFCR) rated and features features 900 buffered fibers.
FSNR924Y
The 24 fiber indoor/outdoor stranded tube cable is OS2, Riser (OFNR) rated and features 250 m fibers.
FSKR906
The 6 fiber indoor/outdoor tight buffered cable is OS2, Riser (OFNR) rated and features 900 buffered fibers.

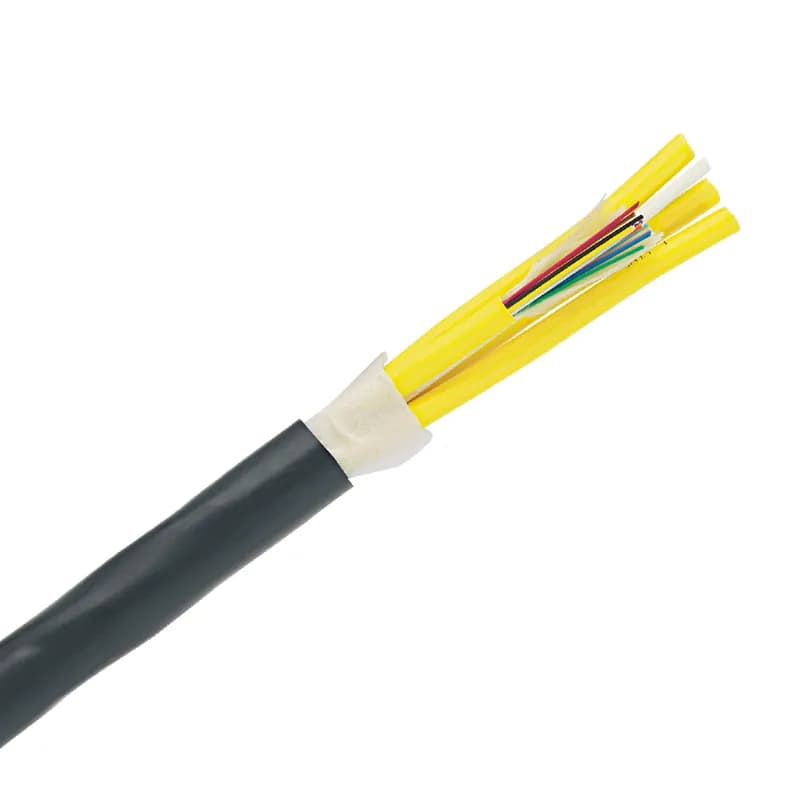

FSKR912
The 12 fiber indoor/outdoor tight buffered cable is OS2, Riser (OFNR) rated and features 900 buffered fibers.
FSLR924
The 24 fiber indoor/outdoor armored tight buffered cable is OS2, Riser (OFCR) rated and features features 900 buffered fibers.
FSKR948
The 48 fiber indoor/outdoor tight buffered cable is OS2, Riser (OFNR) rated and features 900 buffered fibers.
FSLR948
The 48 fiber indoor/outdoor armored tight buffered cable is OS2, Riser (OFCR) rated and features features 900 buffered fibers.
FSLR972
The 72 fiber indoor/outdoor armored tight buffered cable is OS2, Riser (OFCR) rated and features features 900 buffered fibers.

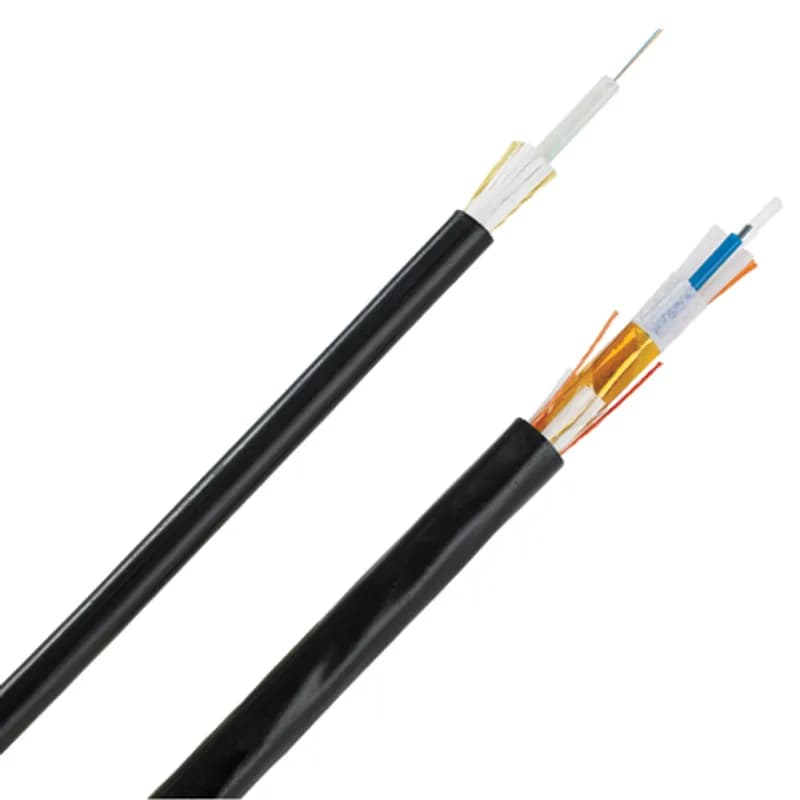

FSNR996Y
The 96 fiber indoor/outdoor stranded tube cable is OS2, Riser (OFNR) rated and features 250 m fibers.Frequently Asked Questions
What is the operating temperature range?
The operating temperature range is -40°F to 167°F (-40°C to 75°C).
Is the cable suitable for outdoor use?
Yes, the Opti-Core Gel-Free Cable is designed for both indoor and outdoor applications.
What are the installation temperature requirements?
The installation temperature range is -4°F to 140°F (-20°C to 60°C).
What is the tensile strength for installation?
The tensile strength for installation is 300 lbs. for up to 12 fibers and 600 lbs. for more than 12 fibers.
What types of fiber does the cable support?
The cable supports OM3 and OM4 laser optimized fiber for 10 Gb/s applications.
What materials are used for the outer sheath?
The outer sheath is made of PVC or PVDF.
What compliance standards does the cable meet?
The cable complies with TIA/EIA-568, Telcordia GR-20, and RoHS standards.
Can the cable be used in plenum spaces?
Yes, the cable is available in plenum-rated versions for use in plenum spaces.
What is the maximum cabled attenuation at 850nm?
The maximum cabled attenuation at 850nm for OM3 and OM4 is 3.5 dB/km.
What is the crush strength for the cable?
The crush strength is 57 for up to 12 fibers and 125 for more than 12 fibers.
How to Prepare Fiber Optic Indoor/Outdoor Stranded Loose Tube Cable
This guide provides step-by-step instructions for the preparation of fiber optic cables, including sheath removal, core preparation, and fiber preparation.
Estimated time: 1h
Tools needed:
Eye and Hand Protection, Approved Cable Cutters, Needle Nose Pliers, Scissors/Snips, Sheath Knife, Buffer Tube Removal Tool, Primary Coating Stripping Tool, Tape Measure
Supplies needed:
Clean Cotton Cloths, Water Absorbent Tape, Flame Barrier Tape, Binder Strings
- Remove the cable sheath
Mark a length of six feet (2 meters) from the end of the cable on the outer sheath. Use a sheath knife to ring the circumference of the sheath at this mark and gently flex the cable to separate the sheath. Discard the removed sheath section.
- Prepare the cable core
Cut the ripcord to expose the color-coded buffer tubes. Unwrap and cut the outer strength members, flame barrier tape, and water absorbent tape. Remove the binder strings and separate the buffer tubes from the central strength member.
- Prepare the buffer tubes
Check the blade setting on the buffer tube removal tool by scoring a small section of the tube. Measure the length of the tube to be removed, mark it, and ring the tube in 1-2 ft sections. Remove the desired amount of fiber and wipe any excess thixotropic gel from the exposed fibers with a clean cloth.
- Access the optical fibers
Using scissors, cut the fibers to be terminated at the appropriate length. Strip the primary coating from the fibers using the primary coating stripping tool, and wipe with an alcohol-dampened cloth to remove any residual debris.
