Overview

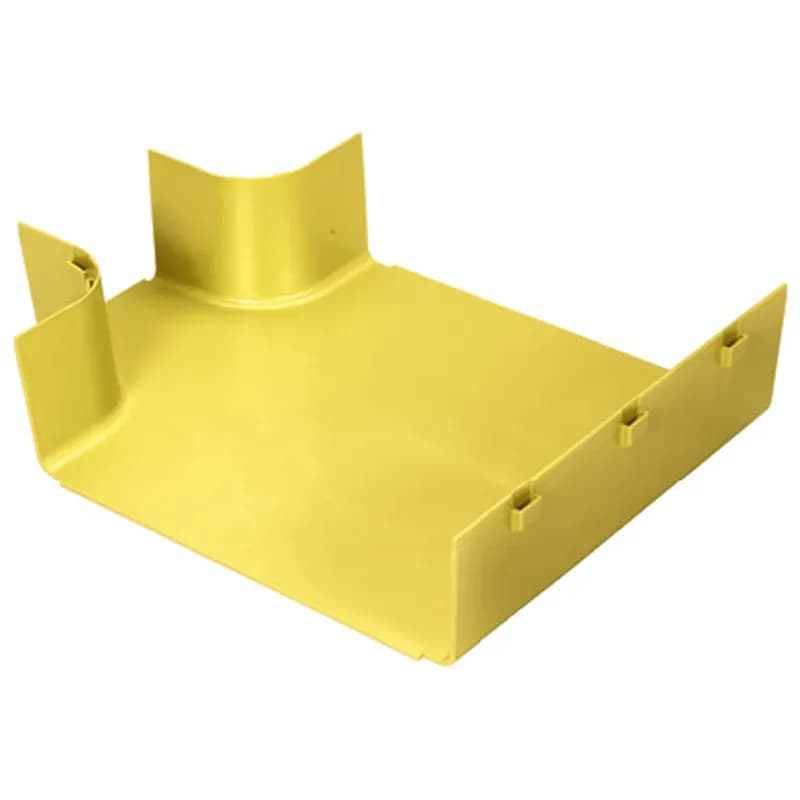

- Creates 90-degree horizontal branches from 12x4 channel
- Provides a 4x4 exit from straight horizontal runs
- Compatible with Panduit 12x4 channel and fittings
- Accepts optional split cover FRTSC12W4YL for protection
- Manufactured in the USA
Specifications
Application | Segregate, Route, and Protect Fiber Optic and High Performance Copper Cabling. It is Suited for Data Center Applications where Cable is Routed from Distribution Areas to Equipment Cabinets or Racks. It is Used in Telco Central Offices to Route Fiber Optic |
Cable Specification | 12 x 4 FiberRunner Fitting |
Height | 4.22 In. |
Length | 17.61 In. |
Material | ABS |
Standard | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
Type | Tee Fitting |
Width | 12.96 In. |
Package Dimensions (L x W x H) | 23.4 IN x 16.2 IN x 6.3 IN |
Package Weight (Imperial) | 2.75 lbs |
FRT12X4W4OR
Attaches to 12x4 channel and/or fittings to create a 90 horizontal branch with a 4x4 exit from straight horizontal run. Accepts optional split cover FRTSC12W4OR.
FRT12X4W6YL
The FiberRunner 12x4 Horizontal Tee attaches to the 12x4 channel and/or fittings to create a 90 horizontal branch with a 6x4 exit from a straight horizontal run.
FRFWC6X4BL
Attaches to 6x4 channel and/or fittings to create a horizontal four way cross intersection. Accepts optional split cover FRFWCSC6BL.
FRFWC6X4YL
The FiberRunner 4-Way Cross Channel Fitting is used in cable management to create a horizontal 4-way cross intersection with two 6 inch x 4 inch exits. It also attaches to 6x4 channels and/or fittings. The 4-way cross channel fitting accepts the optional split cover.
FRFWC4X4YL
Attaches to 4x4 channel and/or fittings to create a horizontal four way cross intersection. Accepts optional split cover FRFWCSC4YL.

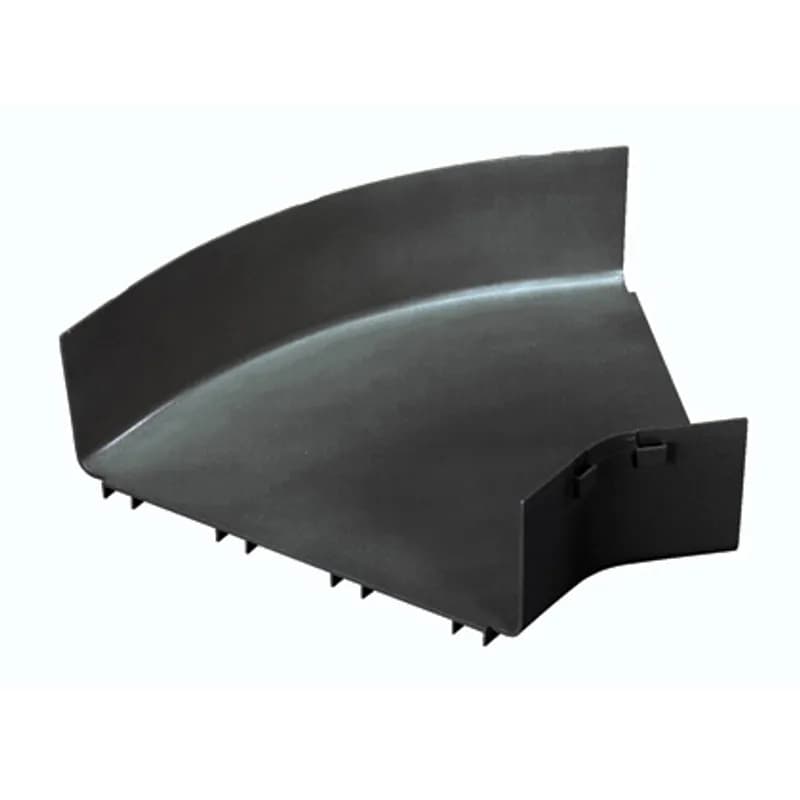

FRH4512X4BL
Attaches to 12x4 channel and/or fitting to create a 45 horizontal turn from a straight horizontal run. Accepts optional split cover FRH45SC12BL.
FRH4512X4YL
Attaches to 12x4 channel and/or fitting to create a 45 horizontal turn from a straight horizontal run. Accepts optional split cover FRH45SC12YL.
FRTSC12W4BL
Optional split cover for the horizontal tee with 4x4 exit fitting FRT12X4W6BL. Snap-on feature allows cover to be installed and removed with no tools required. Creates radiused 3/4 (19 mm) opening for easy access to add or remove cables.

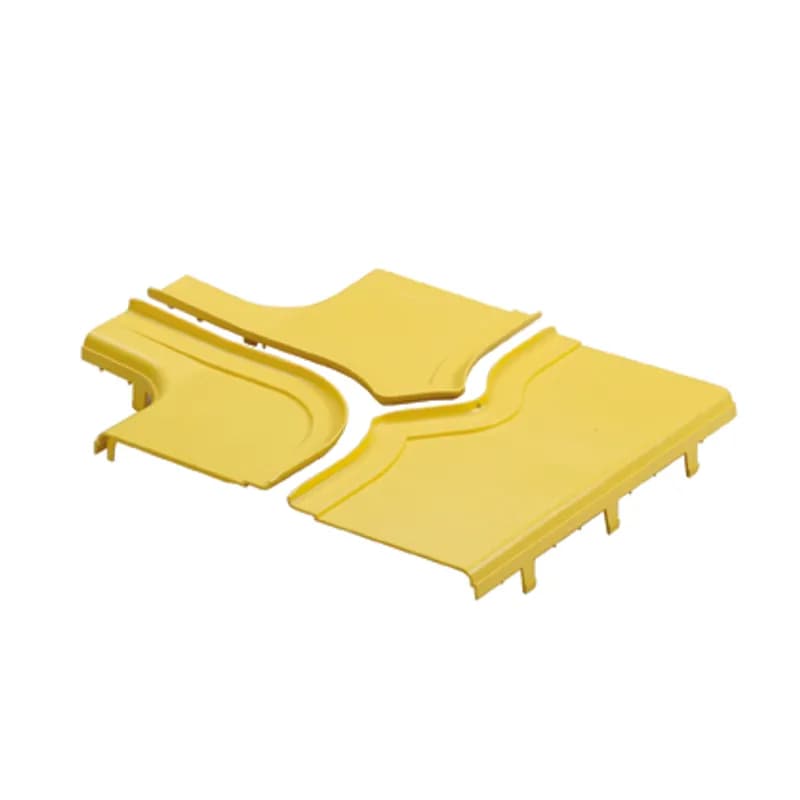

FRTSC12W4YL
Optional split cover for the horizontal tee with 4x4 exit fitting FRT12X4W6YL. Snap-on feature allows cover to be installed and removed without tools. Creates radiused 3/4 (19mm) opening for easy access to add or remove cables.
FRRA12X4YL

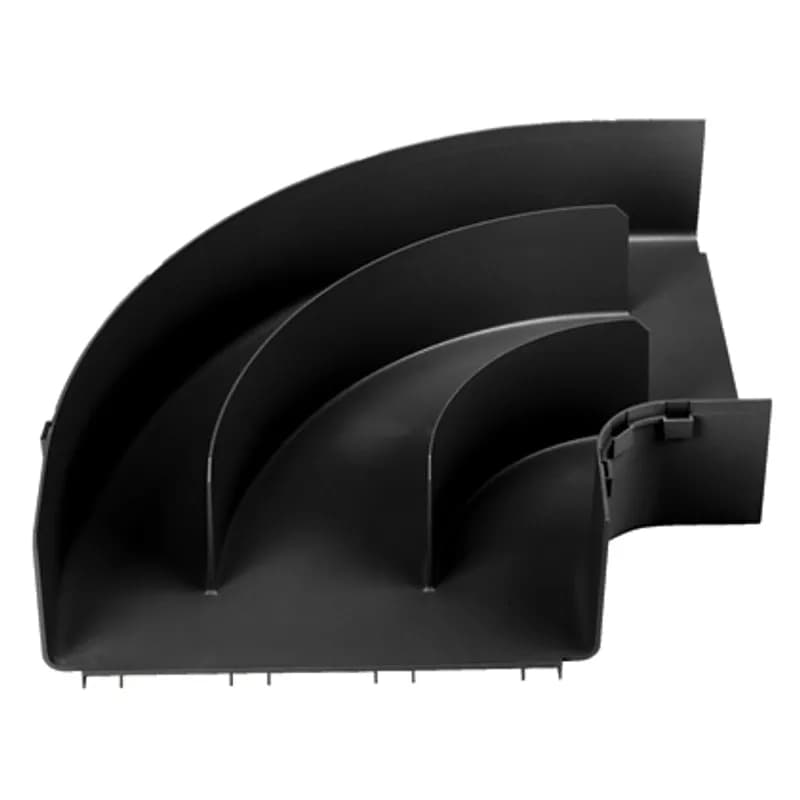

The FiberRunner Horizontal Right-Angle Fitting attaches to the 12x4 channel and/or fitting to create a 90 horizontal turn from a straight horizontal run. The horizontal right-angle fitting has inside divider walls to manage cables routed around horizontal right angles.
FRRA12X4OR
Attaches to 12x4 channel and/or fitting to create a 90 horizontal turn from a straight horizontal run. Inside divider walls manage cables routed around horizontal right angles. Accepts optional split cover FRRASC12OR.
FRRA12X4BL
Attaches to 12x4 channel and/or fitting to create a 90 horizontal turn from a straight horizontal run. Inside divider walls manage cables routed around horizontal right angles. Accepts optional split cover FRRASC12BL.Frequently Asked Questions
What is the minimum bend radius for cables?
The system maintains a minimum bend radius of 2 inches to protect fiber optic cabling.
What is the installation time for the QuikLock Coupler?
The QuikLock Coupler can be installed in less than five seconds without tools.
What types of cabling can the system accommodate?
The system is designed to accommodate fiber optic and high-performance copper cabling.
How are the components of the system assembled?
Components are assembled using pre-assembled Panduit QuikLock Couplers for quick installation.
What materials are used in the FiberRunner system?
The channel is made of rigid PVC, while the fittings are made of ABS.
What is the flammability rating of the materials?
The materials have a flammability rating of 94V-0.
What approvals does the FiberRunner system have?
It is UL Listed to 2024A Optical Fiber Cable Routing Assemblies and complies with Telcordia GR-63-CORE.
Is the FiberRunner system suitable for data centers?
Yes, it is designed for data center applications to route cables from distribution areas to equipment cabinets.
Can the system be used in underfloor applications?
Yes, the FiberRunner system can be deployed in approved underfloor applications.
What colors are available for the FiberRunner system?
The available system colors are yellow, orange, and black.
