Overview
- Assembles onto 4x4, 6x4, 12x4, or 24x4 FiberRunner Channels
- No modifications required to existing installations
- Spill-over design manages excess cable lengths
- Made in the USA with UNSPSC code 39131705
- Compact 2x2 configuration for efficient cable redirection
Specifications
Application | Data Centers and Telco Central Offices |
Height | 5.61 in |
Height | 142.494 mm |
Length | 8.78 in |
Length | 223.012 mm |
Material | Polycarbonate/ABS |
Mounting Type | Direct Mount |
Series | FiberRunner |
Size | 2x2 |
Standard | RoHS Compliant, UL Listed to 2024 Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
Type | Fiber Routing Spill-Over Junction |
Width | 4.9 in |
Width | 124.46 mm |
Package Dimensions (L x W x H) | 10.75 IN x 9.25 IN x 6.75 IN |
Package Weight (Imperial) | 1.7 lbs |
FRSPJ4X4LYL
The FiberRunner 4x4 Spill-Over Junction is used to fully enclose 4x4, 6x4, 12x4, or 24x4 channels. It mounts directly to the existing installation with no alteration required.

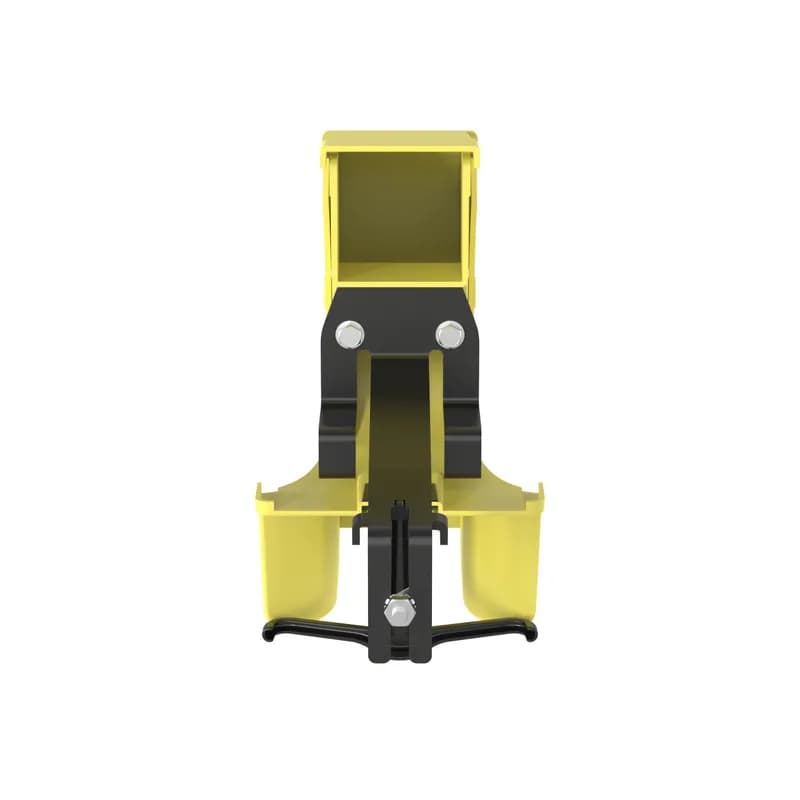

FRSPJ2X2LYL
The FiberRunner 2x2 Spill-Over Junction Fitting is used in cable routing systems. It assembles onto 4x4, 6x4, 12x4, or 24x4 FiberRunner Channels. It mounts directly to the existing installation with no alteration required.

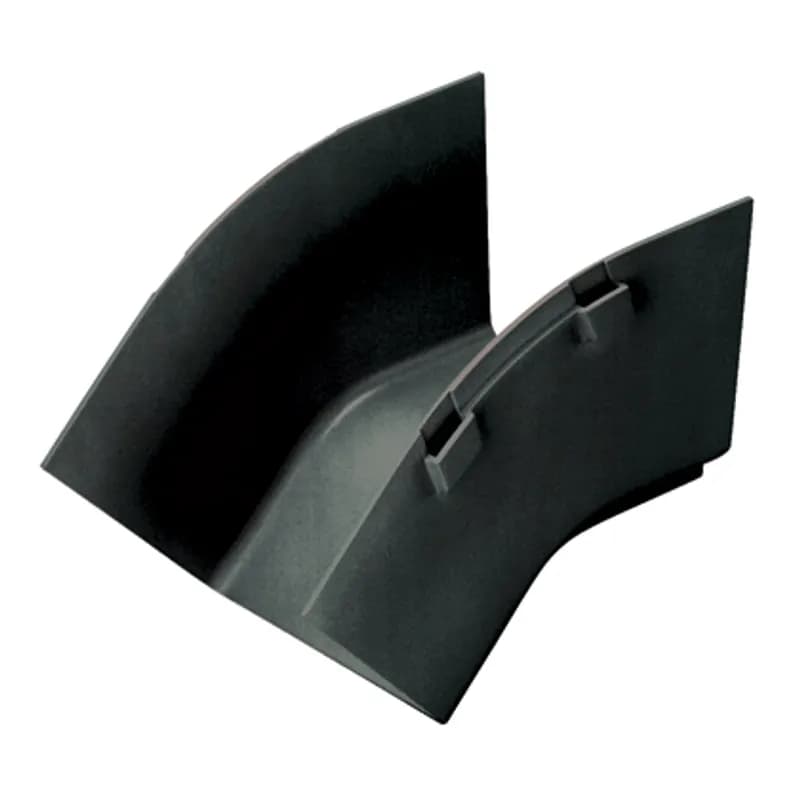

FROV454X4LBL
The FiberRunner 4x4 Outside Vertical attaches to a 4x4 channel and/or fitting to create a 45 downward angle from a horizontal run. It is used with inside vertical 45 angle fitting FRIV454X4LBL to change the level of a straight horizontal run.
FROV454X4LYL
The FiberRunner 4x4 Outside Vertical attaches to a 4x4 channel and/or fitting to create a 45 downward angle from a horizontal run. It is used with inside vertical 45 angle fitting FRIV454X4LYL to change the level of a straight horizontal run.

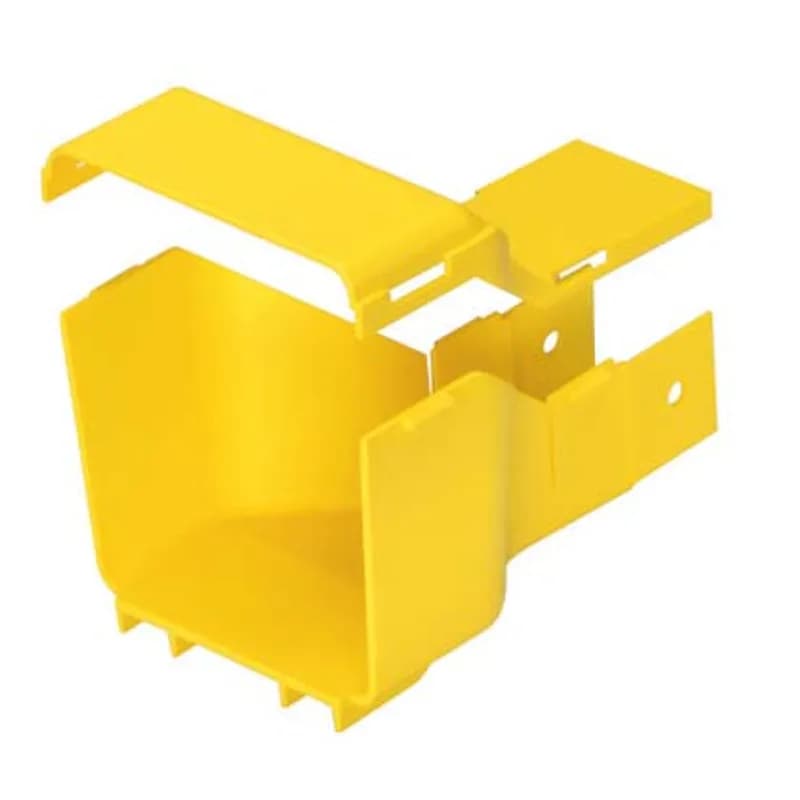

FRRF4FD2LYL
The FiberRunner Fitting and Cover attaches a 4x4 FiberRunner fitting or channel to a 2x2 FiberRunner fitting or channel.

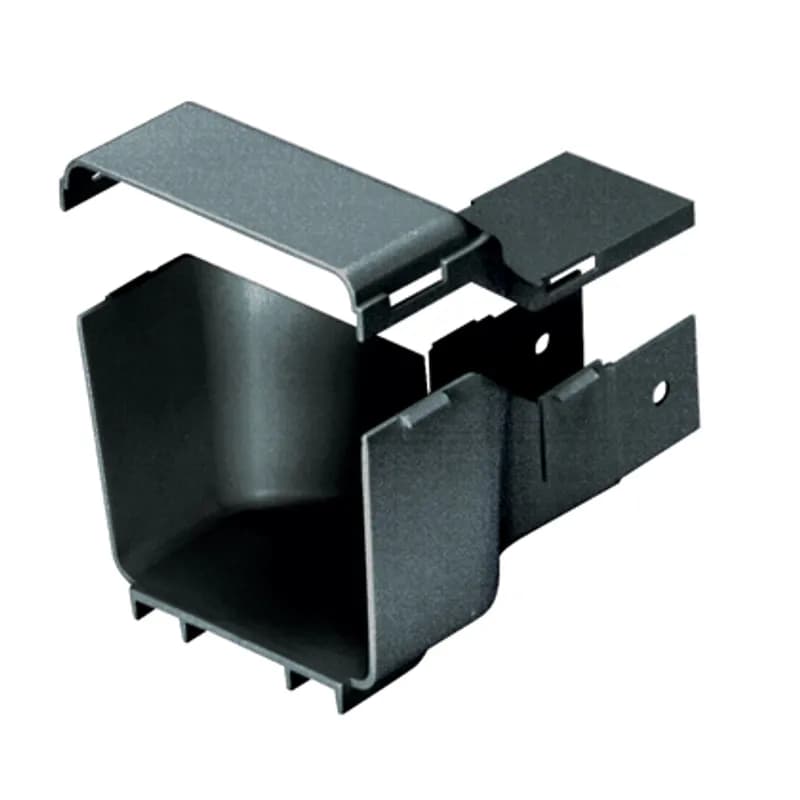

FRRF4FD2LBL
The FiberRunner Fitting and Cover attaches a 4x4 FiberRunner fitting or channel to a 2x2 FiberRunner fitting or channel.

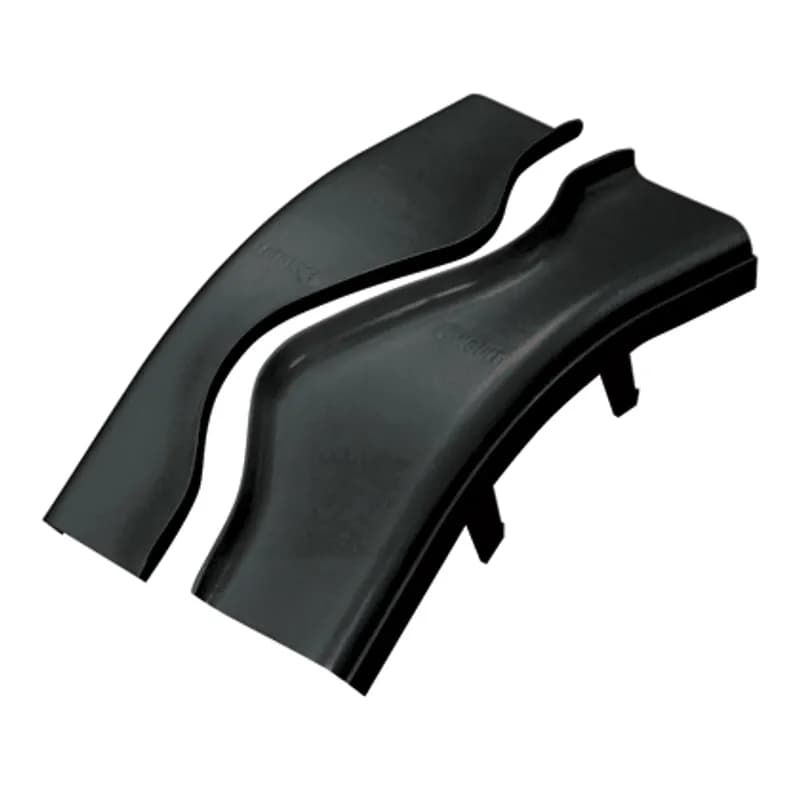

FROV45SC4LBL
The FiberRunner 4x4 Outside Vertical Cover creates openings for easy access to add or remove cables.

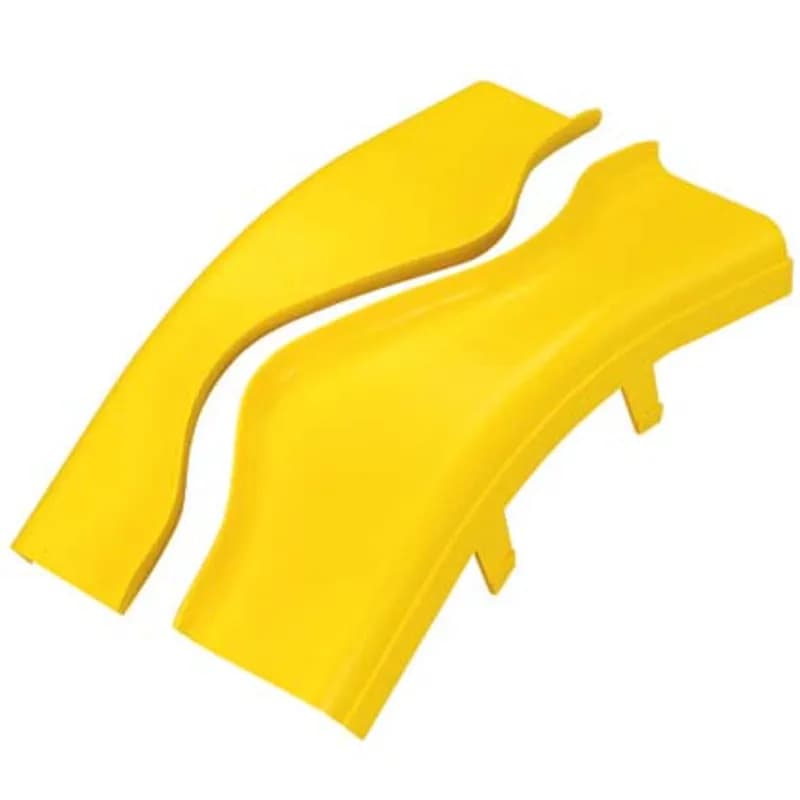

FROV45SC4LYL
The FiberRunner 4x4 Outside Vertical Cover creates openings for easy access to add or remove cables.
FRIV454X4LBL
The FiberRunner 4x4 Inside Vertical creates a 45 upward angle from a straight horizontal run. It is used with outside vertical 45 angle fitting FROV454X4LBL to change the level of a straight horizontal run.
FRIV454X4LYL
The FiberRunner 4x4 Inside Vertical creates a 45 upward angle from a straight horizontal run. It is used with outside vertical 45 angle fitting FROV454X4LYL to change the level of a straight horizontal run.
FROVRASC4LYL
The FiberRunner 4x4 Outside Vertical Right-Angle Cover creates openings for easy access to add or remove cables.
FROVRASC4LBL
The FiberRunner 4x4 Outside Vertical Right-Angle Cover creates openings for easy access to add or remove cables.Frequently Asked Questions
What structures can the FiberRunner 2x2 system attach to?
System components can attach to ladder rack, threaded rod, auxiliary framing, strut, equipment racks, and raised floor pedestals.
What bend radius do FiberRunner 2x2 fittings maintain?
Fittings maintain a minimum 2 inch bend radius to protect against signal loss from excessive cable bends.
Where is the FiberRunner 2x2 system typically used?
It is suited for data center applications and Telco Central Offices to route fiber optic and high performance copper cabling.
What materials are used for the FiberRunner 2x2 system?
The channel is made of Rigid PVC, and the fittings are made of PC/ABS.
What is the FiberRunner 2x2 system designed for?
It segregates, routes, and protects fiber optic and high performance copper cabling.
What is the flammability rating of the system?
The system has a flammability rating of 94V-0.
What are the FiberRunner 2x2 system's approvals?
The system is UL Listed to 2024 Optical Fiber Cable Routing Assemblies.
What is the FiberRunner 2x2 system designed for?
It segregates, routes, and protects fiber optic and high performance copper cabling.
Where is the FiberRunner 2x2 system typically used?
It is suited for data center applications and Telco Central Offices to route fiber optic and high performance copper cabling.
What are the FiberRunner 2x2 system's approvals?
The system is UL Listed to 2024 Optical Fiber Cable Routing Assemblies.
How to Install the FiberRunner Spill-Over Junction
This guide provides step-by-step instructions for installing the FiberRunner Spill-Over Junction, ensuring proper mounting and secure connections.
Estimated time: 45m
Tools needed:
Screwdriver, Torque wrench, Drill
Supplies needed:
¼-20 T-Bolts, ¼-20 Hex KEPS Lock Nuts, ¼-14x½ Hex Washer Head Tapping Screws
- Mount the Spill-Over Junction
Secure the Spill-Over Junction to the FiberRunner system using ¼-20 T-Bolts and ¼-20 Hex KEPS Lock Nuts. Ensure the head of the T-Bolt is completely seated flush against the support bracket.
- Tighten the Fasteners
Using a torque wrench, tighten the T-Bolts to a maximum torque of 5 ft./lbs. to ensure a secure installation.
- Install the Junction Channel Cover
Attach the Junction Channel Cover to the Spill-Over Junction. Ensure it is properly aligned and secured to prevent any accidental dislodging.
