Contact for Pricing
Minimum Qty: 5
Multiplier: 1
*Contact for lower quantities*
Overview
- Facilitates easy cable addition and removal
- Designed for FiberRunner 6x4 channel systems
- Creates accessible openings for cable management
- Ensures organized fiber optic infrastructure
- Manufactured in the USA
Specifications
Application | Data Centers and Telco Central Offices |
Height | 4.28 in |
Height | 108.712 mm |
Length | 7.84 in |
Length | 199.136 mm |
Material | Polycarbonate/ABS |
Standard | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
Type | Angled Fitting Cover |
Width | 6.86 in |
Width | 174.244 mm |
Package Dimensions (L x W x H) | 13 IN x 10 IN x 2 IN |
Package Weight (Imperial) | 1.54 lbs |
FROV45SC6LYL
The FiberRunner 6x4 Outside Vertical Cover creates openings for easy access to add or remove cables.

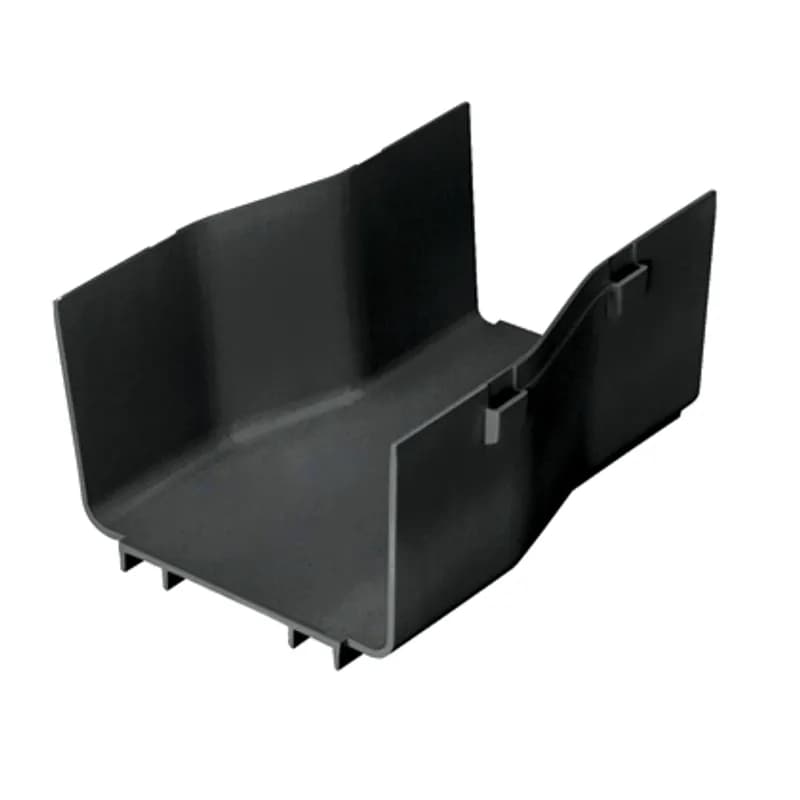

FRRF6FR4LBL
The FiberRunner Fitting attaches to a 6x4 FiberRunner fitting or channel to a 4x4 FiberRunner fitting or channel.

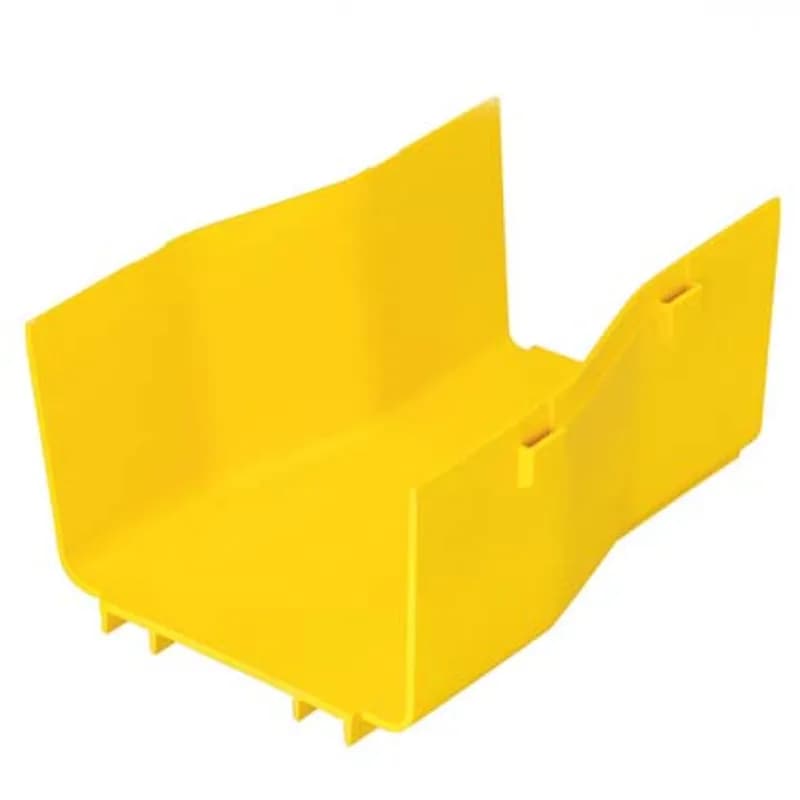

FRRF6FR4LYL
The FiberRunner Fitting attaches to a 6x4 FiberRunner fitting or channel to a 4x4 FiberRunner fitting or channel.
FROV45SC4LBL
The FiberRunner 4x4 Outside Vertical Cover creates openings for easy access to add or remove cables.
FROV45SC4LYL
The FiberRunner 4x4 Outside Vertical Cover creates openings for easy access to add or remove cables.
FRRF4FD2LYL
The FiberRunner Fitting and Cover attaches a 4x4 FiberRunner fitting or channel to a 2x2 FiberRunner fitting or channel.
FRRF4FD2LBL
The FiberRunner Fitting and Cover attaches a 4x4 FiberRunner fitting or channel to a 2x2 FiberRunner fitting or channel.
FRH454X4LYL
The FiberRunner 4x4 Horizontal Fitting attaches to a 4x4 channel and/or fittings to create a 45 horizontal turn from a straight horizontal run.

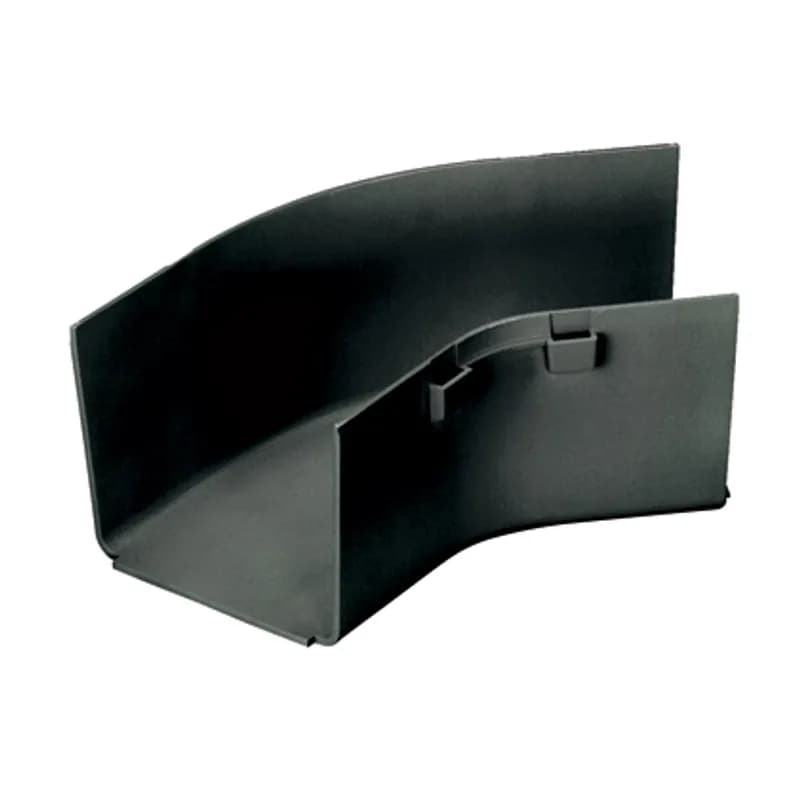

FRH454X4LBL
The FiberRunner 4x4 Horizontal Fitting attaches to a 4x4 channel and/or fittings to create a 45 horizontal turn from a straight horizontal run.
FRLPR42LBL
The FiberRunner Reducer is assembled into the 6x4 or 4x4 vertical tee. It allows for the transition to 2x2 FiberRunner Channel with minimal space required.

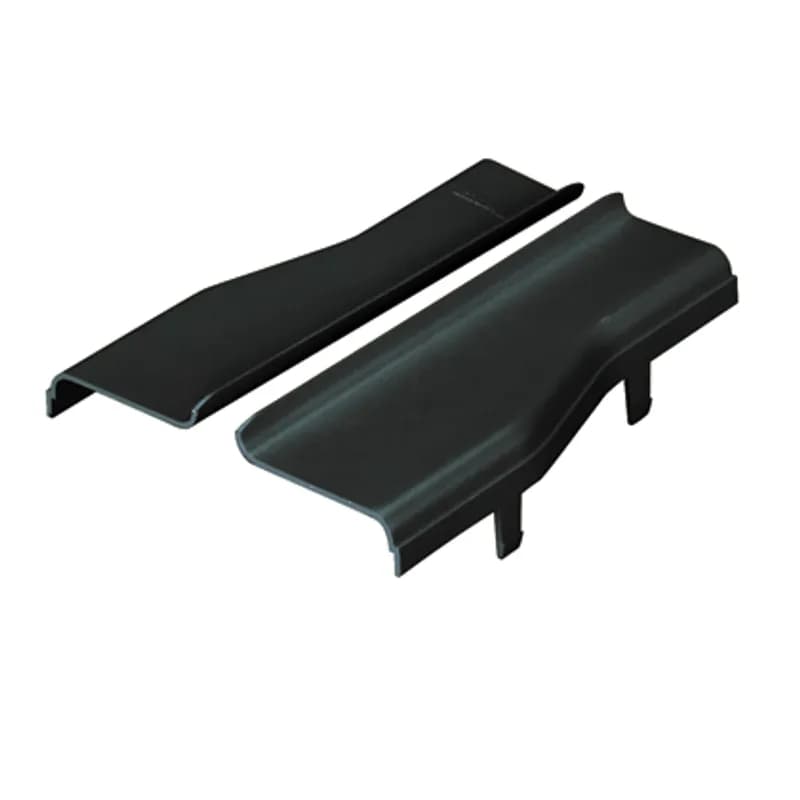

FRRF6FR4SCLBL
The FiberRunner Split Cover is for the 6x4 to 4x4 reducer fitting. The split cover has a snap-on feature that allows the cover to be installed and removed with no tools required. It creates a radiused 0.75 inch (19mm) opening for easy access to add or remove cables.

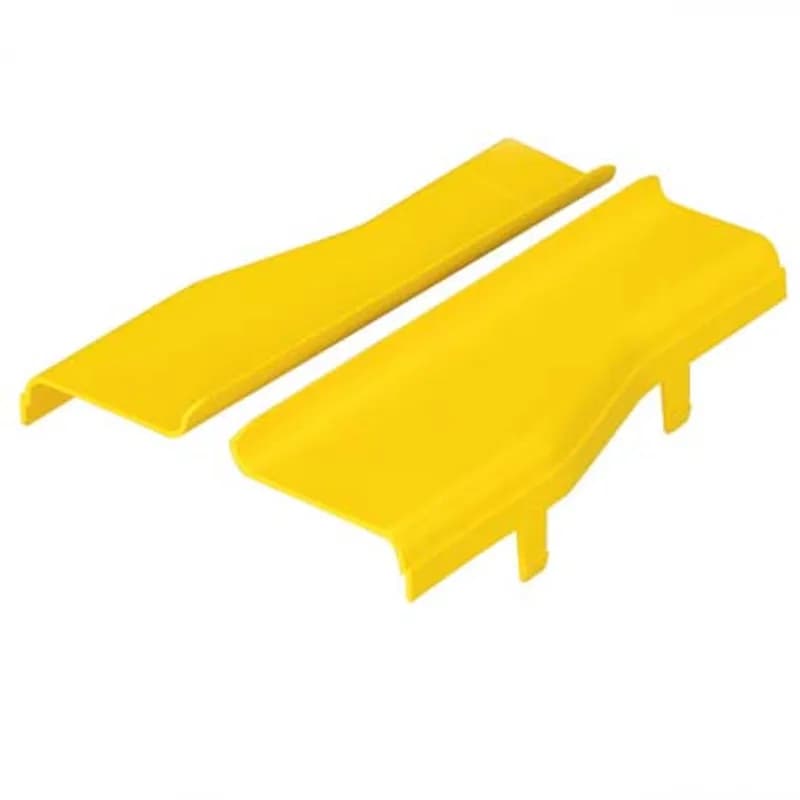

FRRF6FR4SCLYL
The FiberRunner Split Cover is for the 6x4 to 4x4 reducer fitting. The split cover has a snap-on feature that allows the cover to be installed and removed with no tools required. It creates a radiused 0.75 inch (19mm) opening for easy access to add or remove cables.Frequently Asked Questions
Is the FiberRunner 4x4 system compatible with other Panduit systems?
Yes, it is part of the complete Panduit fiber distribution system. This includes FiberRunner 24x4, 12x4, 6x4, and 2x2 Routing Systems.
What types of structures can the system attach to?
The system components can attach to ladder rack, threaded rod, auxiliary framing, strut, equipment racks, cabinets, and raised floor pedestals.
What is the open channel fill capacity of the 4x4 system?
The open channel 50% fill capacity for the 4x4 system is 17.6 square inches (11,354 mm²).
What certifications does the FiberRunner 4x4 system have?
The FiberRunner 4x4 routing system is UL Listed to 2024 Optical Fiber Cable Routing Assemblies.
What is the flammability rating of the system?
The FiberRunner 4x4 system has a flammability rating of 94V-0.
What is the bend radius maintained by the fittings?
All fittings in the FiberRunner 4x4 system maintain a minimum 2-inch bend radius. This prevents excessive bends in fiber optic cabling and protects against signal loss.
What colors are available for the FiberRunner 4x4 system?
The FiberRunner 4x4 routing system components are available in yellow and black.
What materials are used in the FiberRunner 4x4 system?
The channel components are made from rigid PVC. Fittings, including covers, are constructed from PC/ABS material.
What is the FiberRunner 4x4 system designed for?
The FiberRunner 4x4 routing system segregates, routes, and protects fiber optic and high-performance copper cabling. It is used in data centers and Telco Central Offices.
What materials are used in the FiberRunner 4x4 system?
The channel components are made from rigid PVC. Fittings, including covers, are constructed from PC/ABS material.
How to Install the FR4X4 Cable Routing System
This guide provides step-by-step instructions for installing the FR4X4 Cable Routing System, ensuring proper mounting and configuration.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Mount the FR4X4 system
Secure the FR4X4 system to the designated location using the provided mounting screws. Ensure that it is level and firmly attached.
- Connect the couplers
Attach the QuikLock couplers to the FR4X4 system by aligning them properly and pressing until you hear a click. Ensure that they are securely locked in place.
- Verify connections
Use a multimeter to check all electrical connections for continuity. Ensure that there are no loose wires or faulty connections.
