Contact for Pricing
Minimum Qty: 5
Multiplier: 1
*Contact for lower quantities*
Overview
- Creates a 45-degree upward angle from horizontal runs.
- Designed for use with FROV456X4LBL Outside Vertical fitting.
- Facilitates level changes in straight horizontal runs.
- Part of the Panduit FiberRunner 6x4 cable management system.
- Manufactured in the USA.
Specifications
Application | Data Centers and Telco Central Offices |
Height | 6.83 in |
Height | 173.482 mm |
Length | 7.04 in |
Length | 178.816 mm |
Material | Polycarbonate/ABS |
Standard | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
Type | Angled Fitting |
Width | 8.11 in |
Width | 205.994 mm |
Package Dimensions (L x W x H) | 18 IN x 13.5 IN x 6 IN |
Package Weight (Imperial) | 0.875 lbs |
FRIV456X4LYL
The FiberRunner 6x4 Inside Vertical creates a 45 upward angle from a straight horizontal run. It is used with outside vertical 45 angle fitting FROV456X4LYL to change the level of a straight horizontal run.
FROV456X4LYL

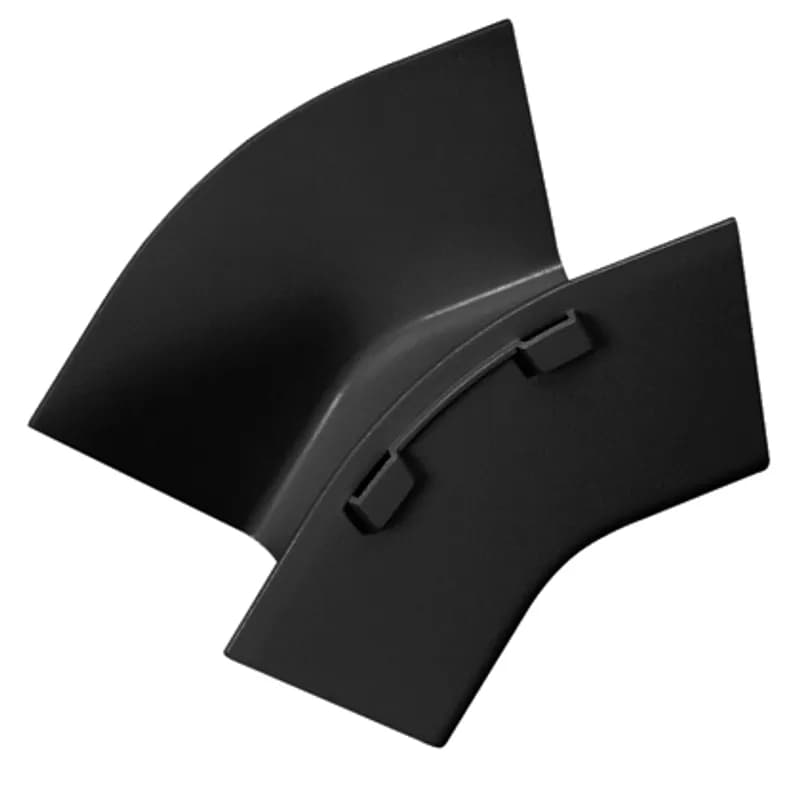

The FiberRunner 6x4 Outside Vertical creates a 45 downward angle from a horizontal run. It is used with inside vertical 45 angle fitting FRIV456X4LYL to change the level of a horizontal run.
FROV456X4LBL
The FiberRunner 6x4 Outside Vertical creates a 45 downward angle from a horizontal run. It is used with inside vertical 45 angle fitting FRIV456X4LBL to change the level of a horizontal run.
FRSPJC26LBL
The FiberRunner Spill-Over Junction Cover is used to fully enclose 6x4 channel in conjunction with the FiberRunner Spill-Over Junction FRSPJ2X2LBL. The cover snaps onto the channel base. The hinged feature provides easy access to add or remove cables.
FRSPJC26LYL
The FiberRunner Spill-Over Junction Cover is used to fully enclose a 6x4 channel in conjunction with the 2x2 spill-over junction. The spill-over junction cover snaps onto the channel base. It has a hinged feature that allows easy access to add or remove cables.
FROV454X4LBL
The FiberRunner 4x4 Outside Vertical attaches to a 4x4 channel and/or fitting to create a 45 downward angle from a horizontal run. It is used with inside vertical 45 angle fitting FRIV454X4LBL to change the level of a straight horizontal run.
FROV454X4LYL
The FiberRunner 4x4 Outside Vertical attaches to a 4x4 channel and/or fitting to create a 45 downward angle from a horizontal run. It is used with inside vertical 45 angle fitting FRIV454X4LYL to change the level of a straight horizontal run.
FRIV454X4LBL
The FiberRunner 4x4 Inside Vertical creates a 45 upward angle from a straight horizontal run. It is used with outside vertical 45 angle fitting FROV454X4LBL to change the level of a straight horizontal run.
FRIV454X4LYL
The FiberRunner 4x4 Inside Vertical creates a 45 upward angle from a straight horizontal run. It is used with outside vertical 45 angle fitting FROV454X4LYL to change the level of a straight horizontal run.
FROVRA4X4LYL
The FiberRunner 4x4 Outside Vertical creates a 90 vertical turn down from a straight horizontal run. It is used with inside vertical 90 angle fitting FRIVRA4X4LYL to change the level of a straight horizontal run.
FROVRA4X4LBL
The FiberRunner 4x4 Outside Vertical creates a 90 vertical turn down from a straight horizontal run. It is used with inside vertical 90 angle fitting FRIVRA4X4LBL to change the level of a straight horizontal run.
FRIV4512X4LYL
The FiberRunner 12x4 Inside Vertical creates a 45 upward angle from a straight horizontal run. It is used with outside vertical 45 angle fitting FROV4512X4LYL to change the level of a straight horizontal run.Frequently Asked Questions
What mounting options are available for the FiberRunner 6x4 system?
A full complement of brackets is available for attaching components to ladder rack, threaded rod, auxiliary framing, strut, equipment racks, cabinets, and raised floor pedestals.
What approvals does the FiberRunner 6x4 system have?
The FiberRunner 6x4 system is UL Listed to 2024 Optical Fiber Cable Routing Assemblies.
What is the flammability rating of the FiberRunner 6x4 system?
The FiberRunner 6x4 system has a flammability rating of 94V-0.
What materials are used for the FiberRunner 6x4 system?
The channel is made of PVC, and the fittings are made of PC/ABS.
What colors are available for the FiberRunner 6x4 system?
The FiberRunner 6x4 routing system components are available in yellow and black.
What bend radius does the FiberRunner 6x4 system maintain?
The FiberRunner 6x4 system maintains a minimum 2-inch bend radius throughout all fittings. This protects against signal loss from excessive cable bends.
How are FiberRunner 6x4 system components assembled?
Channel and fittings are assembled using pre-assembled QuikLock™ Couplers. No bolts or tools are required, and connections take less than five seconds.
What is the FiberRunner 6x4 system designed for?
The FiberRunner 6x4 routing system segregates, routes, and protects fiber optic and high-performance copper cabling. It is suitable for data centers and Telco Central Offices.
What mounting options are available for the FiberRunner 6x4 system?
A full complement of brackets is available for attaching components to ladder rack, threaded rod, auxiliary framing, strut, equipment racks, cabinets, and raised floor pedestals.
What is the FiberRunner 6x4 system designed for?
The FiberRunner 6x4 routing system segregates, routes, and protects fiber optic and high-performance copper cabling. It is suitable for data centers and Telco Central Offices.
How to Install the FIBER RUNNER 6 X 4 Cable Routing System
This guide provides step-by-step instructions for installing the FIBER RUNNER 6 X 4 Cable Routing System, ensuring proper mounting and connection.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Mount the cable routing system
Secure the FIBER RUNNER 6 X 4 to the designated surface using the provided mounting screws. Ensure it is level and firmly attached.
- Connect the couplers
Install the Q UIKL OCK couplers by aligning them with the cable routing system and pressing them into place until you hear a click.
- Verify connections
Use a multimeter to check the integrity of the connections. Ensure there are no loose wires or improper connections before proceeding.
Frequently Asked Questions about Panduit
What environmental ratings do Panduit products have?
Panduit products feature comprehensive environmental ratings across multiple standards, including UL 508A Type 1, 2, 3, 4, 4X, 12, and 13; CSA Type 1, 2, 3, 4, 4X, 12, and 13; and NEMA Type 1, 2, 3, 4, 4X, 12, and 13. They meet IEC 60529 IP66 rating, providing robust protection against dust, water, and corrosion in both indoor and outdoor environments, with operating temperatures ranging from -40°C to 130°C.
What certifications and standards do Panduit products comply with?
Panduit products are certified to multiple critical industry standards, including UL (Underwriters Laboratories) in the USA and Canada, CSA (Canadian Standard Association), EN IEC 61386, LVD 2006/G5/EC, and ARRA standards. Our products meet rigorous certifications for electrical safety, environmental compliance (WEEE and RoHS), and are designed to perform in extreme temperatures ranging from -55°C to 105°C, making them suitable for demanding industrial environments.
What industries and applications are Panduit products used for?
Panduit products are engineered for critical applications across multiple industries, including commercial construction, food and beverage, oil and gas, renewable energy, transportation, and safety-critical environments. Their solutions span electrical infrastructure, wire management, cable ties, power connectors, and safety systems designed to withstand extreme conditions like high vibration, temperature variations, UV exposure, and corrosive agents. Key industries include solar and wind energy, aerospace, heavy trucking, military, commercial transportation, and industrial manufacturing.
What are the main product lines offered by Panduit?
Panduit offers a comprehensive range of electrical infrastructure products including power connectors, cable ties, grounding connectors, identification products, safety solutions, terminals, cable cleats, wiring duct, and cable tie accessories. These products are engineered for industrial environments across multiple sectors like commercial construction, food and beverage, oil and gas, renewable energy, transportation, and safety applications.
What are the key features of Panduit products?
Panduit products are engineered for robust performance in heavy-duty industrial environments, featuring a comprehensive range of solutions including cable ties, power connectors, terminals, and identification products. Key features include proven quality performance, subject matter expertise, and customer-driven innovation across multiple industrial sectors such as commercial construction, food and beverage, oil and gas, renewable energy, transportation, and safety applications. The product line is designed to maximize productivity, reliability, and safety while meeting stringent industry standards.
What is Panduit's warranty policy?
Panduit provides a comprehensive Limited Product Warranty that can be fully reviewed on their official website at www.panduit.com/warranty. All Panduit products are subject to the terms, conditions, and limitations of this current warranty. Customers are advised to review the specific warranty details for their particular product, as Panduit requires buyers to determine product suitability for their intended use and assumes all associated risks.
What technical support does Panduit offer?
Panduit offers comprehensive technical support through their dedicated customer service team, accessible via phone at 1-800-777-3300. They provide expert assistance for their full range of industrial infrastructure products, including cable ties, power connectors, terminals, and identification solutions. Customers can also access additional technical resources and product information through their website at www.panduit.com.
What accessories are available for Panduit products?
Panduit offers a wide range of accessories across multiple product lines, including cable ties, cable tie accessories, cable tie tools, identification products, cable cleats, grounding connectors, and VeriSafe accessories like the VeriSafe Network Module and Insulation Piercing Connectors. For a comprehensive view of all available accessories, customers are recommended to visit www.panduit.com for the full product catalog.
How are Panduit products typically installed?
Panduit products are engineered for comprehensive installation across industrial environments, utilizing specialized tools and techniques for precise mounting. Installation methods vary by product line - from cable ties and power connectors to terminals and identification solutions - but all are designed for robust performance in heavy-duty settings. Technicians typically use Panduit's dedicated installation tools and follow manufacturer guidelines available at www.panduit.com to ensure proper fitting and maximum infrastructure reliability.
