Contact for Pricing
Minimum Qty: 5
Multiplier: 1
*Contact for lower quantities*
Overview
- Creates horizontal 4-way cross intersections with two 12x4 exits
- Compatible with 12x4 channels and fittings for standardized fit
- Plastic construction for durable, lightweight installation
- Facilitates directional changes and branching in cable pathways
- Manufactured in the US for reliable performance
Specifications
Application | Data Centers and Telco Central Offices |
Height | 4.22 in |
Height | 107.188 mm |
Length | 22.25 in |
Length | 565.15 mm |
Material | Plastic |
Material | Poly |
Material | Polycarbonate/ABS |
Mounting Type | Channel attachment |
Series | FiberRunner |
Size | 12x4 |
Standard | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
Type | Four Way Cross |
Width | 22.25 in |
Width | 565.15 mm |
Package Dimensions (L x W x H) | 22.7 IN x 22.7 IN x 5.3 IN |
Package Weight (Imperial) | 5.1 lbs |
FRT12X4LBL
The FiberRunner 12x4 Horizontal Tee creates a 90 horizontal branch from straight horizontal runs. The horizontal tee provides versatility due to multiple spillout options that include spill-over fittings and the vertical tee which accepts a three-sided trumpet, transition to corrugated tubing and the FiberRunner System.
FRT12X4LYL
The FiberRunner 12x4 Horizontal Tee creates a 90 horizontal branch from straight horizontal runs. The horizontal tee provides versatility due to multiple spillout options that include spill-over fittings and the vertical tee which accepts a three-sided trumpet, transition to corrugated tubing and the FiberRunner System.

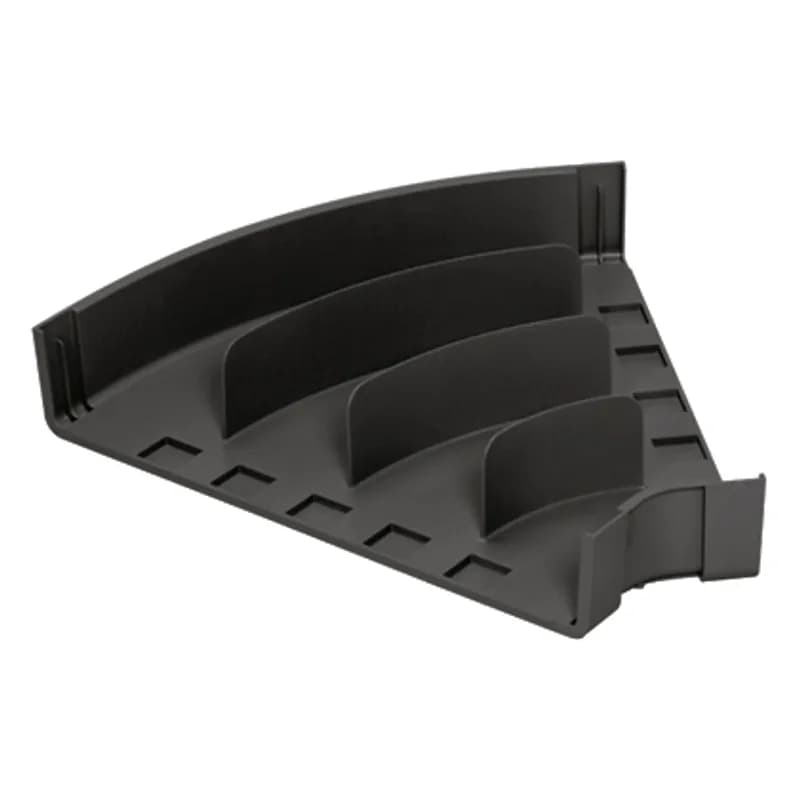

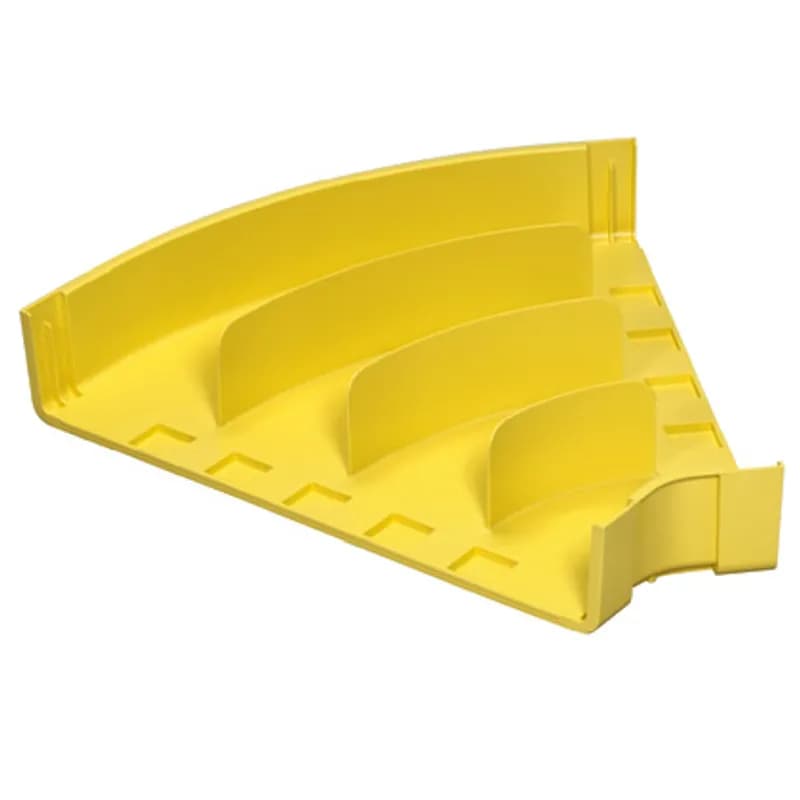

FRH4524X4LYL
The FiberRunner 24x4 Horizontal Fitting attaches to a 24x4 channel and/or fittings to create a 45 horizontal turn from a straight horizontal run.
FRH4524X4LBL
The FiberRunner 24x4 Horizontal Fitting attaches to a 24x4 channel and/or fittings to create a 45 horizontal turn from a straight horizontal run.
FRFWC12X4W6LBL
The FiberRunner 12x4 4-Way Cross Fitting attaches to 12x4 channel and/or fittings to create a horizontal 4-way cross intersection with two 6x4 exits.
FRFWC12X4W6LYL
The FiberRunner 12x4 4-Way Cross Fitting attaches to 12x4 channel and/or fittings to create a horizontal 4-way cross intersection with two 6x4 exits.
FRFWC12X4W4LBL
The FiberRunner 12x4 4-Way Cross Fitting attaches to 12x4 channel and/or fittings to create a horizontal 4-way cross intersection with two 4x4 exits.
FRFWC12X4W4LYL
The FiberRunner 12x4 4-Way Cross Fitting attaches to 12x4 channel and/or fittings to create a horizontal 4-way cross intersection with two 4x4 exits.
FRT24X4W12LYL
The FiberRunner 24x4 Horizontal Tee creates a 90 horizontal branch with a 12x4 exit from straight horizontal run.

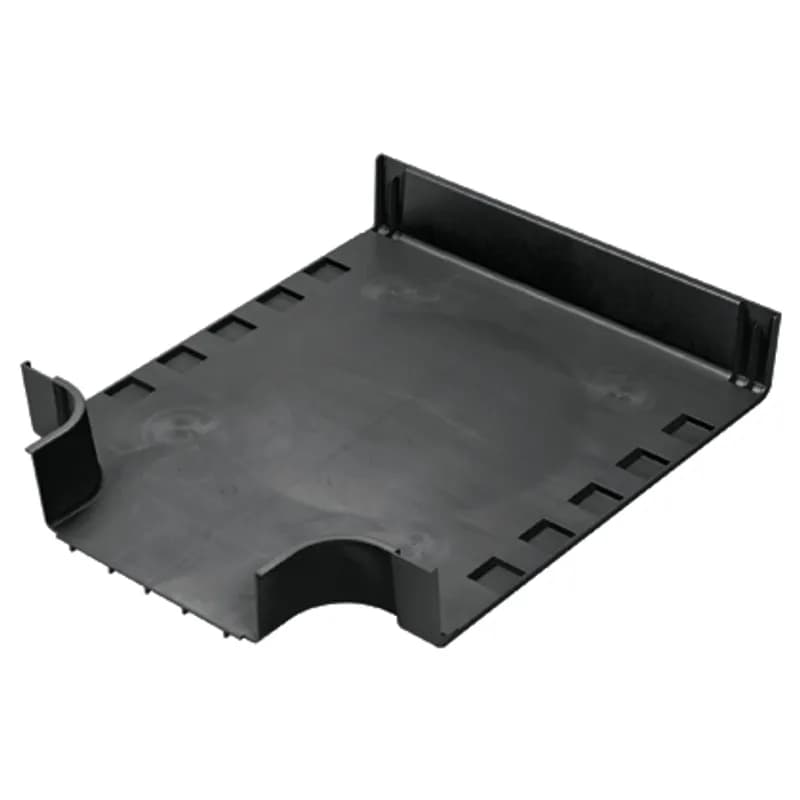

FRT24X4W12LBL
The FiberRunner 24x4 Horizontal Tee creates a 90 horizontal branch with a 12x4 exit from a straight horizontal run. The horizontal tee provides versatility due to multiple spillout options that include spill-over fittings and the vertical tee which accepts a three-sided trumpet, transition to corrugated tubing and the FiberRunner System.

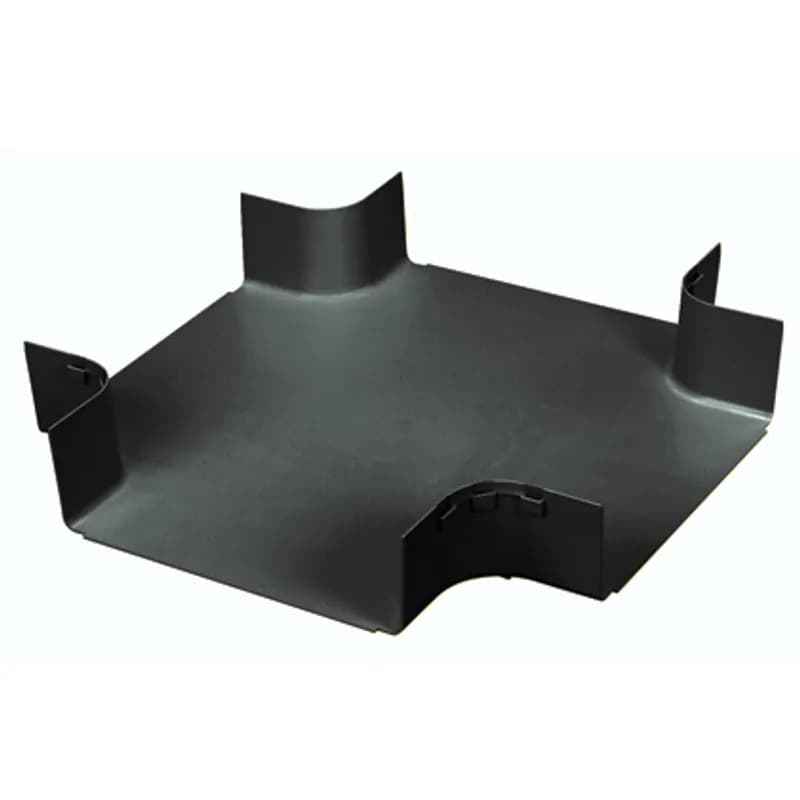

FRFWC12X4LBL
The FiberRunner 12x4 4-Way Cross Fitting attaches to 12x4 channels and/or fittings to create a horizontal 4-way cross intersection with two 12x4 exits.
FRTSC12LBL
The FiberRunner 12x4 Split Cover is optional for the horizontal tee fitting FRT12X4LBL. The snap-on feature allows the cover to be installed and removed with no tools required. The split cover creates a radiused 0.75 inch (19mm) opening for easy access to add or remove cables.Frequently Asked Questions
What are the system's safety approvals?
The FiberRunner 12x4 system is UL Listed to 2024 Optical Fiber Cable Routing Assemblies.
What is the flammability rating?
The flammability rating for the system is 94V-0.
What materials are used for the system?
The channel is made of Rigid PVC, and the fittings are made of PC/ABS.
How fast is the installation process?
Installation is fast; QuikLock™ Couplers and Brackets require no tools or bolts and take less than five seconds for a secure connection.
What other Panduit systems is it compatible with?
The FiberRunner 12x4 system is part of the Panduit fiber distribution system, compatible with other FiberRunner systems, Wyr-Grid™ Overhead Cable Tray, cable management, and racks.
What structures can the system attach to?
The system components can attach to ladder rack, threaded rod, auxiliary framing, strut, equipment racks, cabinets, and raised floor pedestals using available brackets.
What colors are available for the system?
The FiberRunner 12x4 routing system components are available in yellow and black colors.
What bend radius do fittings maintain?
All fittings in the FiberRunner 12x4 system maintain a minimum 2-inch bend radius to protect against signal loss.
What is the FiberRunner 12x4 system designed for?
The FiberRunner 12x4 routing system is designed to segregate, route, and protect fiber optic and high performance copper cabling.
What couplers are used for assembly?
Channel and fittings are assembled using timesaving Panduit QuikLock™ Couplers.
