Panduit FREC12X4LBL - The FiberRunner 12x4 End Cap Fitting is used for closing off open ends of the channel or fittings. The end caps assist in creating a structure that protects fiber optic and high-performance copper data cabling from physical damage.
Panduit

FREC12X4LBL

UPC: 613056764057

Documents & Media
Technical DrawingFull Engineering DrawingInstallation InstructionsSpecification SheetVideo Clip

Contact for Pricing

Minimum Qty: 5

Multiplier: 1

*Contact for lower quantities*

Overview

The Panduit FiberRunner 12x4 End Cap Fitting (SKU: FREC12X4LBL) is specifically designed to provide a secure and protective closure for open ends of the FiberRunner 12x4 channel system and associated fittings. This essential component plays a critical role in establishing a complete and robust pathway for sensitive data cabling. By capping off exposed channel sections, the end cap prevents the ingress of dust, debris, and other environmental contaminants that could compromise cable performance and longevity. Furthermore, it safeguards fiber optic and high-performance copper data cabling from potential physical damage, such as crushing, abrasion, or impact, which are common concerns in industrial and data center environments. The FiberRunner system, including its end cap fittings, is engineered to manage and protect high-density cabling infrastructure, ensuring signal integrity and minimizing downtime. The 12x4 dimension indicates its compatibility with the specific size of the FiberRunner channel it is designed to terminate. Manufactured in the USA, this fitting adheres to stringent quality standards, contributing to the overall reliability and durability of your structured cabling system. Its straightforward design facilitates quick and easy installation, reducing labor costs and installation time.
  • Closes off open ends of FiberRunner 12x4 channel and fittings.
  • Protects fiber optic and high-performance copper data cabling.
  • Prevents physical damage to cables within the channel.
  • Contributes to a complete and protected cabling pathway.
  • Manufactured in the USA.

Specifications

Application
Data Centers and Telco Central Offices
Height
5.28 in
Height
134.112 mm
Length
0.94 in
Length
23.876 mm
Material
Polycarbonate/ABS
Standard
RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3
Type
End Cap
Width
13.79 in
Width
350.266 mm
Package Dimensions (L x W x H)
15.3 IN x 6.4 IN x 1.8 IN
Package Weight (Imperial)
0.6 lbs
The FiberRunner 12x4 End Cap Fitting is used for closing off open ends of the channel or fittings. The end caps assist in creating a structure that protects fiber optic and high-performance copper data cabling from physical damage.

FREC12X4LYL

The FiberRunner 12x4 End Cap Fitting is used for closing off open ends of the channel or fittings. The end caps assist in creating a structure that protects fiber optic and high-performance copper data cabling from physical damage.
The FiberRunner 24x4 End Cap Fitting is used for closing off open ends of the channel or fittings. The end caps assist in creating a structure that protects fiber optic and high-performance copper data cabling from physical damage.

FREC24X4LBL

The FiberRunner 24x4 End Cap Fitting is used for closing off open ends of the channel or fittings. The end caps assist in creating a structure that protects fiber optic and high-performance copper data cabling from physical damage.
The FiberRunner 24x4 End Cap Fitting is used for closing off open ends of the channel or fittings. The end caps assist in creating a structure that protects fiber optic and high-performance copper data cabling from physical damage.

FREC24X4LYL

The FiberRunner 24x4 End Cap Fitting is used for closing off open ends of the channel or fittings. The end caps assist in creating a structure that protects fiber optic and high-performance copper data cabling from physical damage.
The FiberRunner 6x4 End Cap Fitting is used for closing off open ends of the channel or fittings. The end caps assist in creating a structure that protects fiber optic and high-performance copper data cabling from physical damage.

FREC6X4LBL

The FiberRunner 6x4 End Cap Fitting is used for closing off open ends of the channel or fittings. The end caps assist in creating a structure that protects fiber optic and high-performance copper data cabling from physical damage.
The FiberRunner 6x4 End Cap Fitting is used for closing off open ends of the channel or fittings. The end caps assist in creating a structure that protects fiber optic and high-performance copper data cabling from physical damage.

FREC6X4LYL

The FiberRunner 6x4 End Cap Fitting is used for closing off open ends of the channel or fittings. The end caps assist in creating a structure that protects fiber optic and high-performance copper data cabling from physical damage.

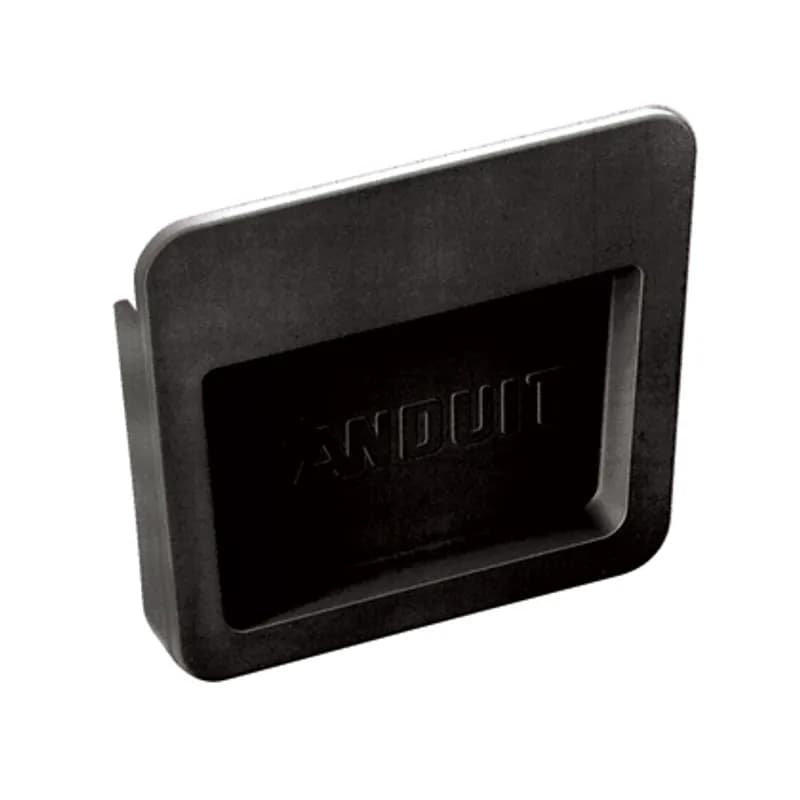

The FiberRunner 4x4 End Cap Fitting is used for closing off open ends of the channel or fittings. The end caps assist in creating a structure that protects fiber optic and high-performance copper data cabling from physical damage.

FREC4X4LBL

The FiberRunner 4x4 End Cap Fitting is used for closing off open ends of the channel or fittings. The end caps assist in creating a structure that protects fiber optic and high-performance copper data cabling from physical damage.
The FiberRunner 4x4 End Cap Fitting is used for closing off open ends of the channel or fittings. The end caps assist in creating a structure that protects fiber optic and high-performance copper data cabling from physical damage.

FREC4X4LYL

The FiberRunner 4x4 End Cap Fitting is used for closing off open ends of the channel or fittings. The end caps assist in creating a structure that protects fiber optic and high-performance copper data cabling from physical damage.

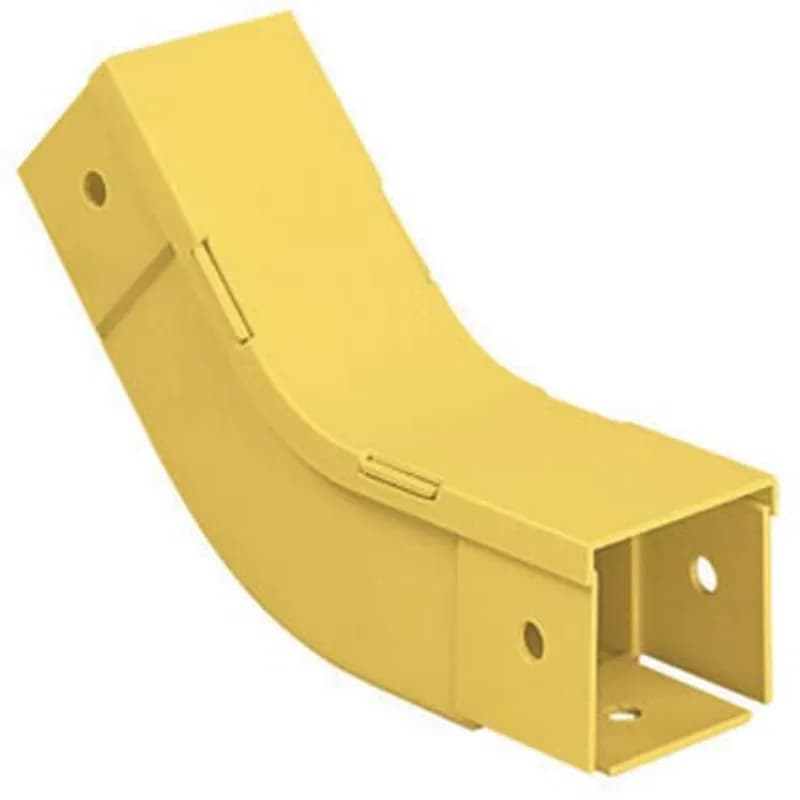

The FiberRunner 2x2 Inside Vertical creates a 45 upward angle from a straight horizontal run. It is used with outside vertical 45 angle fitting FOV452X2LYL to change the level of a straight horizontal run.

FIV452X2LYL

The FiberRunner 2x2 Inside Vertical creates a 45 upward angle from a straight horizontal run. It is used with outside vertical 45 angle fitting FOV452X2LYL to change the level of a straight horizontal run.

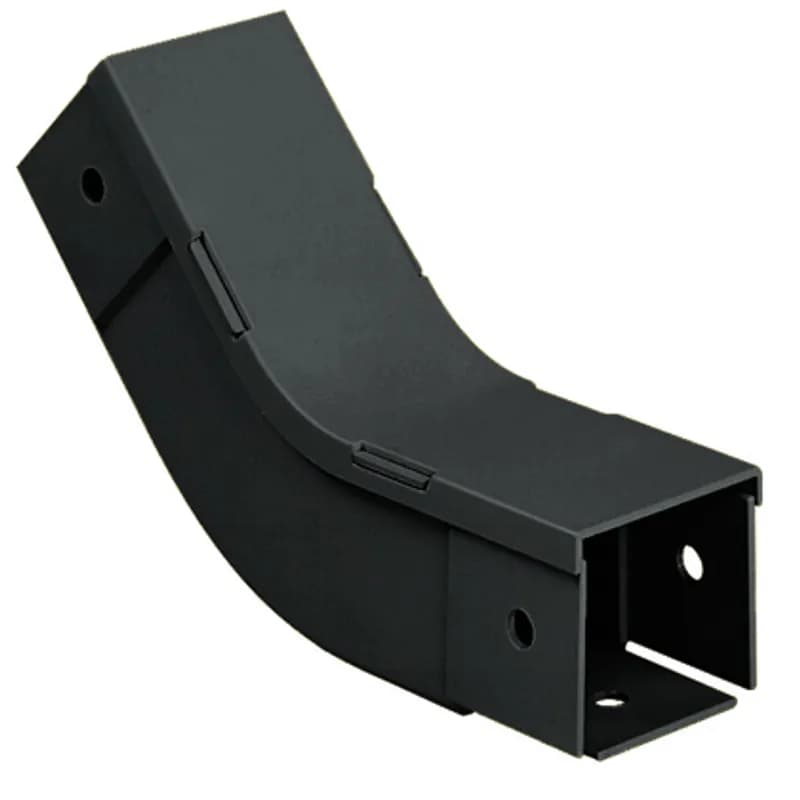

The FiberRunner 2x2 Inside Vertical creates a 45 upward angle from a straight horizontal run. It is used with outside vertical 45 angle fitting FOV452X2LBL to change the level of a straight horizontal run.

FIV452X2LBL

The FiberRunner 2x2 Inside Vertical creates a 45 upward angle from a straight horizontal run. It is used with outside vertical 45 angle fitting FOV452X2LBL to change the level of a straight horizontal run.
The FiberRunner 12x4 Outside Vertical Right-Angle Cover creates openings for easy access to add or remove cables.

FROVRASC12LYL

The FiberRunner 12x4 Outside Vertical Right-Angle Cover creates openings for easy access to add or remove cables.

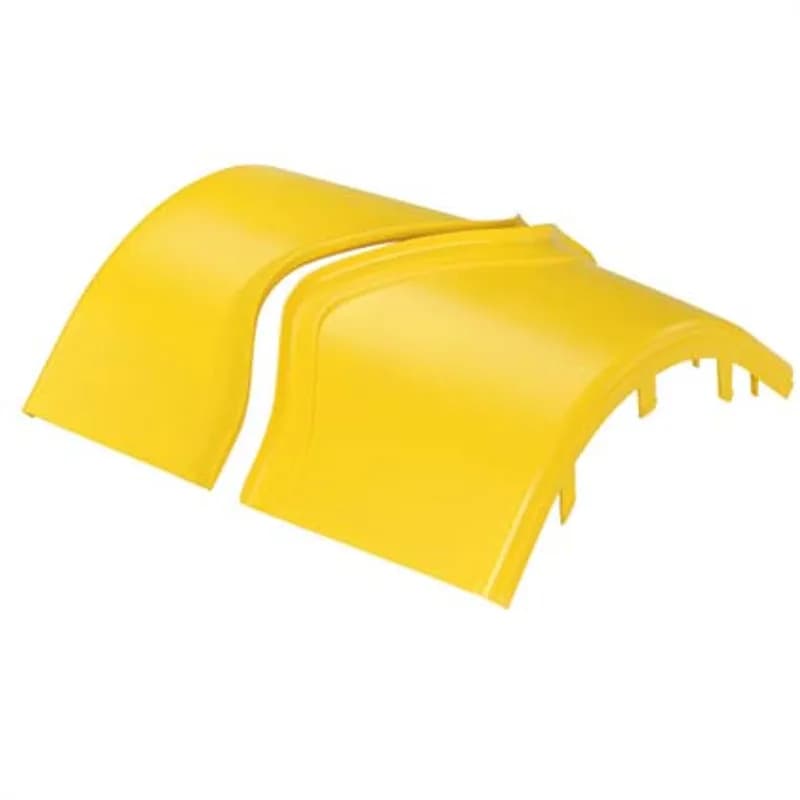

The FiberRunner 12x4 Outside Vertical Right-Angle Cover creates openings for easy access to add or remove cables.

FROVRASC12LBL

The FiberRunner 12x4 Outside Vertical Right-Angle Cover creates openings for easy access to add or remove cables.

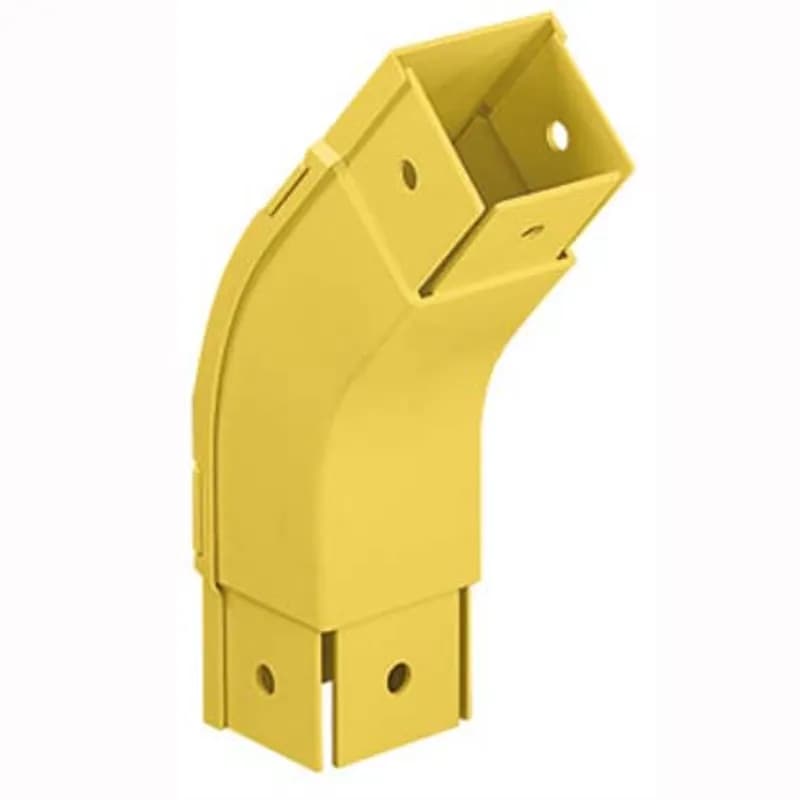

The FiberRunner 2x2 Outside Vertical attaches to a channel to create a 45 downward angle from a straight horizontal run. It is used with inside vertical 45 angle fitting FIV452X2LYL to change the level of straight horizontal runs.

FOV452X2LYL

The FiberRunner 2x2 Outside Vertical attaches to a channel to create a 45 downward angle from a straight horizontal run. It is used with inside vertical 45 angle fitting FIV452X2LYL to change the level of straight horizontal runs.

Frequently Asked Questions

Is the FiberRunner 12x4 system compatible with other Panduit systems?

Yes, it is part of the Panduit complete fiber distribution system, including FiberRunner 24x4, 6x4, 4x4, and 2x2 Routing Systems.

What types of structures can the system attach to?

System components can attach to ladder rack, threaded rod, auxiliary framing, strut, equipment racks, cabinets, and raised floor pedestals.

What is the UL listing for the FiberRunner 12x4 system?

The system is UL Listed to 2024 Optical Fiber Cable Routing Assemblies.

How does the system provide easy access for cable maintenance?

Hinged channel covers and split fitting covers provide fast and easy access for future cabling moves, adds, and changes.

How does the QuikLock Coupler simplify installation?

QuikLock Couplers and Brackets require no tools or bolts, allowing for mechanically secure connections in less than five seconds.

What colors are available for the FiberRunner 12x4 system?

The FiberRunner 12x4 system is available in yellow and black.

What is the minimum bend radius maintained by the fittings?

All fittings maintain a minimum 2 inch bend radius to protect against signal loss due to excessive cable bends.

What is the flammability rating of the system components?

The system components have a flammability rating of 94V-0.

What materials are used for the FiberRunner 12x4 system?

The channel is made of rigid PVC, and the fittings are made of PC/ABS.

What is the FiberRunner 12x4 system designed for?

The system is designed to segregate, route, and protect fiber optic and high-performance copper cabling. It is suitable for data centers and Telco Central Offices.

How to Install the FREC6X4 End Cap Fitting

This guide provides step-by-step instructions for installing the FREC6X4 End Cap Fitting in a Panduit Fiberrunner routing system.

Estimated time: 30m

Tools needed:

Screwdriver, Wire strippers

Supplies needed:

Mounting screws, End cap fittings

  1. Prepare the installation area

    Ensure that the installation area is clean and free of debris. Verify that the Fiberrunner routing system is properly mounted and accessible.

  2. Attach the end cap fitting

    Align the FREC6X4 end cap fitting with the end of the Fiberrunner system. Secure it in place using the provided mounting screws.

  3. Verify the installation

    Check that the end cap fitting is securely attached and that there are no gaps between the fitting and the Fiberrunner. Ensure that all screws are tightened properly.
