Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Overview
- Snap-on cover design for tool-free attachment and secure retention.
- Reusable construction supports repeated installation and removal without deformation.
- Lead-free PVC construction meets material compliance requirements.
- Black color for a professional aesthetic.
- Supplied in four 30-inch pieces for flexible coverage.
Specifications
Application | (1)The Fiber-Runner 24X4 Routing Systems are Comprised of Channel, Fittings, and Brackets Designed to Segregate, Route, and Protect Fiber Optic Cable and Copper Cabling.(2) It is Suited for Data Center Applications where Cable is Routed from Distribution |
Application | (1)The Fiber-Runner™24X4 Routing Systems are Comprised of Channel, Fittings, and Brackets Designed to Segregate, Route, and Protect Fiber Optic Cable and Copper Cabling.(2) It is Suited for Data Center Applications where Cable is Routed from Distribution |
Color | Black |
Color* | Black |
Length | NA In. |
Material | Polymer |
Series | FR24X4BL10 |
Size | 30 inches (4 pieces) |
Standard | UL Listed to 2024A,RoHS Compliant |
Type | Fiber Routing Cover |
Package Dimensions (L x W x H) | 26.25 IN x 4.374 IN x 31.3712 IN |
Package Weight (Imperial) | 54.8 lbs |
FRSPJ2X2BL
The FiberRunner 2x2 Spill-Over Junction Fitting is used in cable routing systems. It assembles onto 4x4, 6x4, 12x4, or 24x4 FiberRunner Channels. It mounts directly to the existing installation with no alteration required. The spill-over junction fitting includes mounting hardware.
FRSPJC412BL
Used to fully enclose 12x4 channel in conjunction with the Spill-Over Junction FRSPJ4X4BL. Cover snaps onto the channel base. Hinged feature allows easy access to add or remove cables.
FRSPJC212BL
Used to fully enclose 12x4 channel in conjunction with the Spill-Over Junction FRSPJ2X2BL. Cover snaps onto the channel base. Hinged feature allows easy access to add or remove cables.
FRH45CV24BL
Optional solid cover for the horizontal 45 angle fitting FRH4524X4BL. Snap-on feature allows cover to be installed and removed with no tools required.
FRVT6X4BL
The FiberRunner 6x4 Vertical Tee Fitting attaches to a 6x4 channel and/or fitting to create a 90 vertical drop from a horizontal run. A hinged door is included. The vertical tee fitting requires a coupler to attach a trumpet or 3-port spillout to a vertical exit. It accepts the optional snap-on cover in conjunction with the channel.

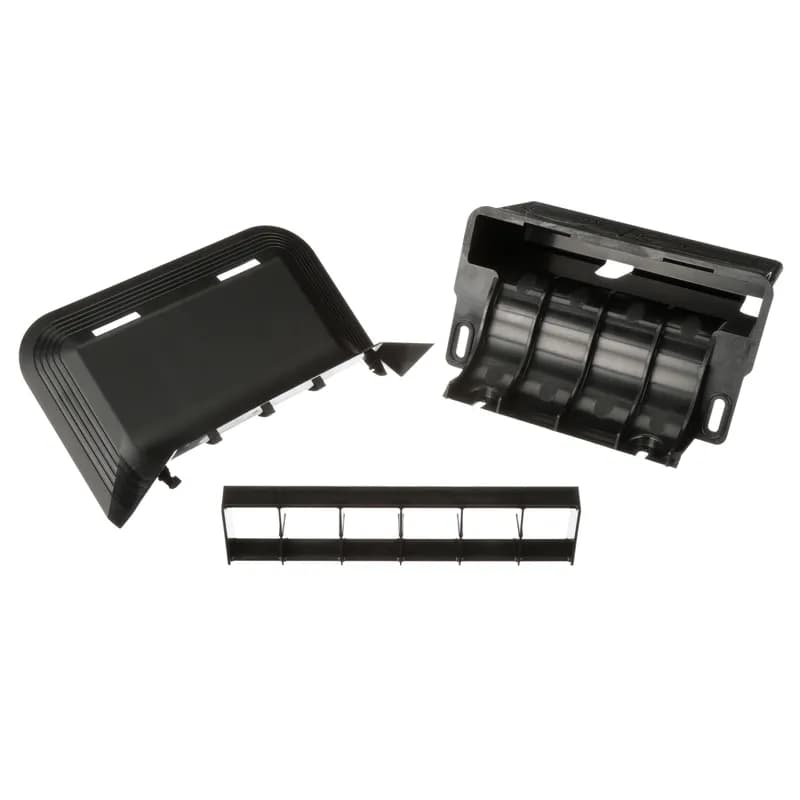

AFR4WTRBL
The above floor raceway wall transition fitting is a fitting designed for use with the above floor raceway channel AFR4BCBL6. The above floor raceway wall transition fitting helps to run cables from the floor directly into the wall. It is black.

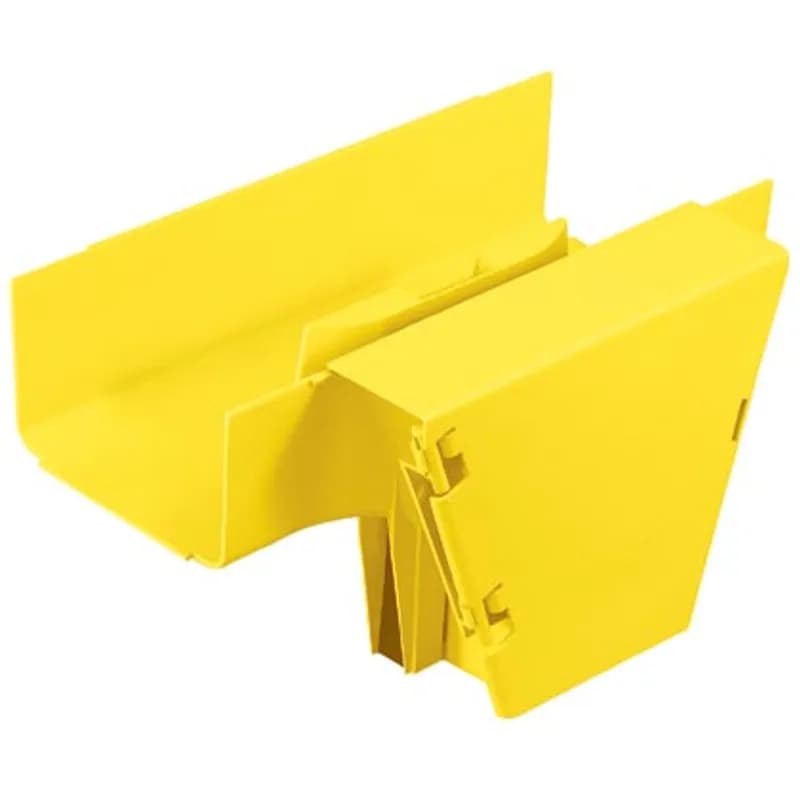

FRVT6X4YL
The FiberRunner 6x4 Vertical Tee Fitting attaches to a 6x4 channel and/or fitting to create a 90 vertical drop from a horizontal run. A hinged door is included. The vertical tee fitting requires a coupler to attach a trumpet or 3-port spillout to a vertical exit. It accepts the optional snap-on cover in conjunction with the channel.
FRSPJC212YL
Used to fully enclose 12x4 channel in conjunction with the spill-over junction FRSPJ2X2YL. Cover snaps onto the channel base. Hinged feature allows easy access to add or remove cables.
FRFWCCV24W12YL
Optional cover for the four way cross fitting FRFWC24X4W12YL. Cover can be installed and removed with no tools required.
Frequently Asked Questions
What is the length of the channel provided?
The channel is provided in solid one-piece lengths of 10 ft.
Is the product UL listed?
Yes, the product is UL Listed to 2024 Optical Fiber Cable Routing Assemblies.
How are the fittings installed?
Fittings are installed using pre-assembled QuikLock Couplers, requiring no tools.
What types of cables can be routed?
The system is designed to route fiber optic and high performance copper cabling.
What is the application of the FR24TBN12?
It is used to route, manage, and protect cabling above network racks in data centers.
What materials are used in the FR24TBN12?
The FR24TBN12 is made from rigid PVC for the channel and PC/ABS for the fittings.
What is the flammability rating of the materials?
The materials have a flammability rating of 94V-0.
What is the installation requirement for brackets?
Brackets are available for attaching system components to 1/2 in threaded rod.
Can the system handle high cable counts?
Yes, the 24x4 system is designed to route higher cable counts efficiently.
What is the maximum cable bend radius?
The system maintains a minimum bend radius of 3 in to protect fiber optic cabling.
How to Install the FIBER RUNNER 24x4 System
This guide provides step-by-step instructions for installing the FIBER RUNNER 24x4 cable routing system, including mounting and connecting components.
Estimated time: 45m
Tools needed:
Screwdriver
Supplies needed:
Mounting screws, Fitting covers
- Mount the channel
Secure the FIBER RUNNER 24x4 channel to the desired location using mounting screws. Ensure it is level and firmly attached.
- Connect fittings
Attach the fittings to the channel by aligning them properly and securing them using the provided quick-lock couplers. Ensure all connections are tight.
- Install covers
Snap on the FIBER RUNNER 24x4 covers over the fittings and channel. Ensure that all latches are closed securely to protect the cables.
