Contact for Pricing
Overview
- Supports 12x4 system from below using 5/8in threaded rod
- Secured to threaded rod with two nuts for stability
- Pre-assembled slide clamps enable fast assembly to channel
- Requires 7/16in nut driver for slide clamps
- Can be secured directly to the top of cabinets
Specifications
Application | (1) The Fiberrunner 12X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High PerformanceCopper Cabling, (2) It is Suited for Data Center Applicationswhere Cable is Routed from Distr |
Cable Specification | 12 x 4 FiberRunner Brackets |
Height | 3 in |
Height | 76.2 mm |
Length | 4 in |
Length | 101.6 mm |
Material | Steel |
Standard | Ul Listed to 2024 Optical Fiber Cable Routing Assemblies UL Recognized (File No. E147128) Slotted Wall Csa Certified (File No. 016446 0 000) Slotted Wall |
Type | Center Support |
Width | 15.7 in |
Width | 398.78 mm |
Package Dimensions (L x W x H) | 20.5 IN x 5.5 IN x 4 IN |
Package Weight (Imperial) | 3.12 lbs |
FR12CS12
Used to support the 12x4 system from below with new threaded rod. Bracket is secured to threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16in nut driver on slide clamps. Also can be secured directly to the top of cabinets, For 1/2in threaded rod.
FR12CS58M
Used to supporting the 12x4 system from below with new threaded rod. Bracket is secured to threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16" nut driver on slide clamps. Also can be secured directly to the top of cabinets.
FR12CS12M
Used to support the 12x4 system from below with new threaded rod. Bracket is secured to threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16in nut driver on slide clamps. Also can be secured directly to the top of cabinets, For 12mm threaded rod.
FRNWT12

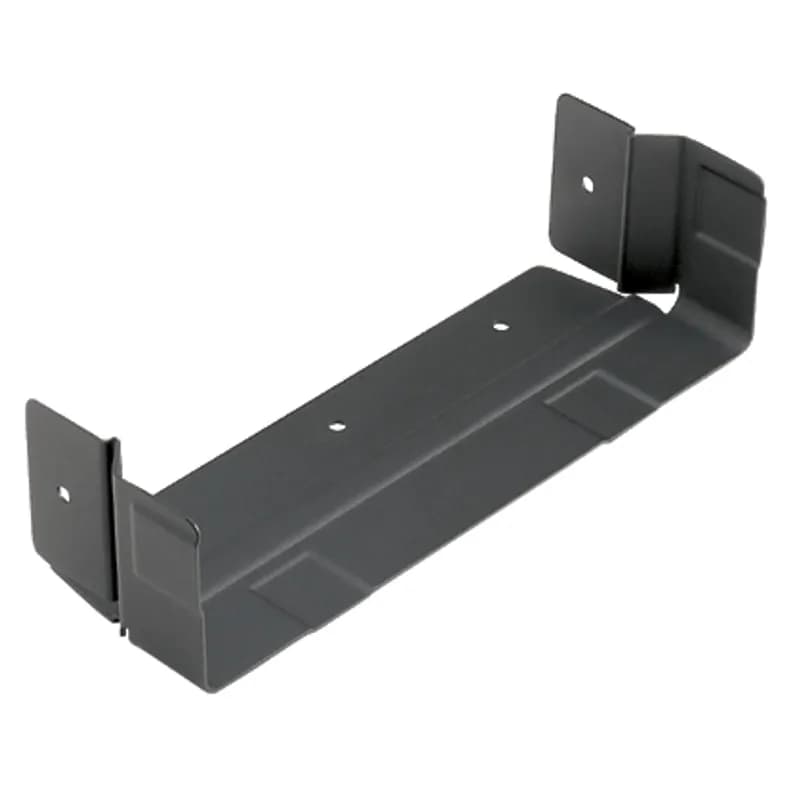

The fitting transitions from the Tyton 12x4 Lightguide Channel, Newton 12x4 Channel, or Ditel 12x4 Lightrax Channel to the Panduit 12x4 FiberRunner System. It is black and made of metal. Attachment hardware is included.
FR6CS58

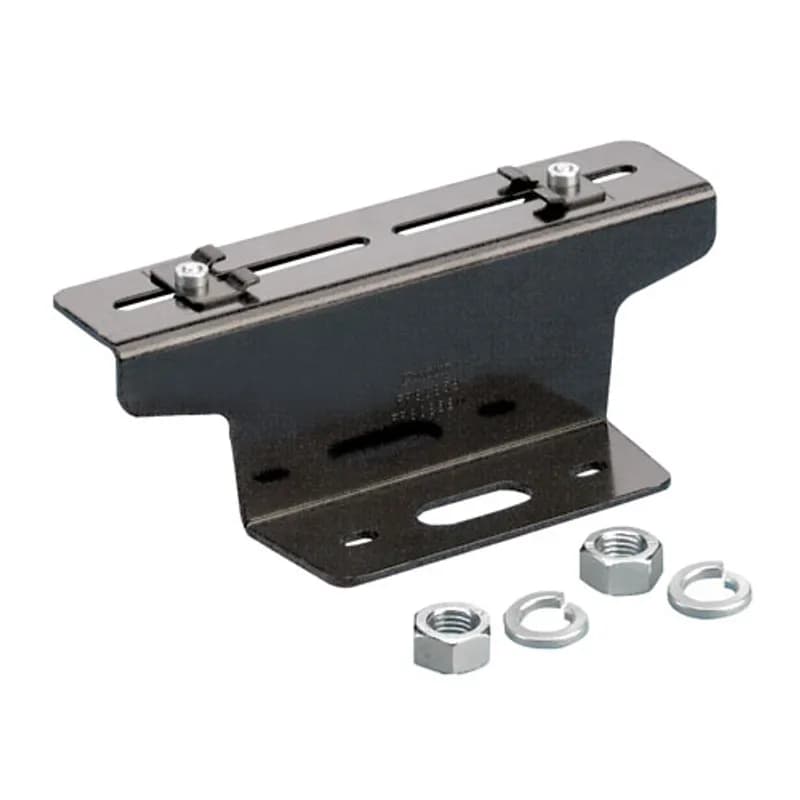

Used to support the 6x4 and 4x4 systems from below with new threaded rod. Bracket is secured to threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16in nut driver on slide clamps. Also can be secured directly to the top of cabinets, For 5/8in threaded rod.
FR6CS58M
Used to support the 6x4 and 4x4 systems from below with new threaded rod. Bracket is secured to threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16in nut driver on slide clamps. Also can be secured directly to the top of cabinets, For 16mm threaded rod.
FR6CS12
Used to support the 6x4 and 4x4 systems from below with new threaded rod. Bracket is secured to threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16in nut driver on slide clamps. Also can be secured directly to the top of cabinets, For 1/2in threaded rod.
FR6CS58N
The FiberRunner Center Support Bracket is used to support the 6x4 or 4x4 systems from below with new threaded rod. Bracket is secured to threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16-inch nut driver on slide clamps. Also can be secured directly to the top of cabinets for 5/8-inch or 16mm threaded rod.
FRADC12X4BL
The fitting transitions from CommScope s 12x4 FiberGuide System to the Panduit 12x4 FiberRunner System. It is black and made of metal. Attachment hardware is included.
FVTHD2X2LYL
The FiberRunner 2x2 Vertical Tee creates a 90 vertical drop from a horizontal run. The vertical tee attaches to a 2x2 channel and/or fittings to create a 90 vertical drop from a horizontal run. The vertical tee fitting accepts a channel cover in conjunction with the channel. It can be used with the QuikLock Coupler or Channels, snap rivets or bolts with channels, and the 1-port spillout. This product includes a hinged door.
FVTHD2X2YL
The vertical tee fitting is compatible with both FiberRunner and FiberRunner Systems. It attaches to a 2x2 channel and/or fittings to create a 90 vertical drop from a horizontal run. The vertical tee fitting includes a hinged door.
FVTHD2X2BL
Attaches to 2x2 channel to create a 90 vertical drop from a horizontal run. Hinged door included. Accepts channel cover in conjunction with channel. Use QuikLock Coupler FBC2X2BL with HS2X2BL6 or H2X2BL6 channels. Use snap rivets NR2WH-L or bolts F14PN-L with S2X2BL6 or E2X2BL6 channels.Frequently Asked Questions
What is the minimum bend radius for cables?
The system maintains a minimum bend radius of 2 inches to protect fiber optic cabling.
Is the FR12CS58 UL listed?
Yes, it is UL Listed to 2024A Optical Fiber Cable Routing Assemblies.
What types of cabling does the system protect?
The system is designed to segregate, route, and protect fiber optic and high-performance copper cabling.
What materials are used in the FR12CS58?
The channel is made of rigid PVC, while the fittings are made of ABS.
How are the components assembled?
Components are assembled using pre-assembled Panduit QuikLock Couplers for quick installation.
Can the system be used in data centers?
Yes, it is suited for data center applications to route cables from distribution areas to equipment racks.
What installation tools are required?
No tools are required for installation as the QuikLock Couplers do not need tightening.
What colors are available for the FiberRunner system?
The available system colors are yellow, orange, and black.
What is the maximum cable fill capacity?
The maximum fill capacity for 1.6mm cables is 8183, and for 2.0mm cables, it is 5237.
What safety standards does the system comply with?
It complies with applicable tests in Telcordia GR-63-CORE and Network Equipment Building Systems Level 3.
