FQMAP65RD

Standard multimode has 0.50dB Max IL and 20dB Min RL. Optimized multimode (OM3, OM4, OM4+, OM5) has 0.35dB Max IL and 26dB Min RL. Singlemode APC has 0.75dB Max IL and 55dB Min RL.

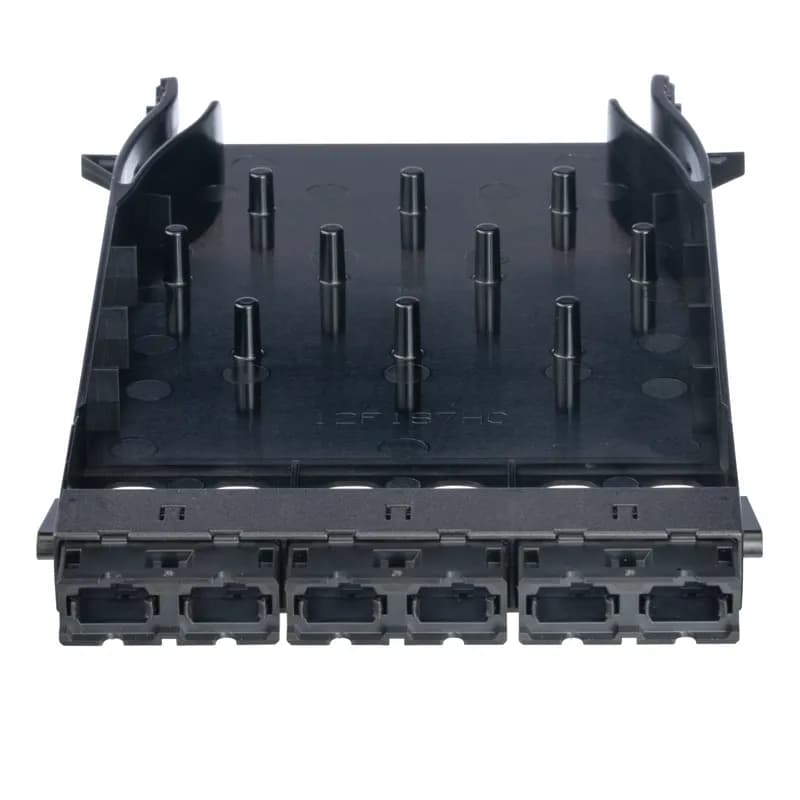

The FQMAP65RD is a Fiber Adapter Panel with 6 MPO key-up/key-up adapters.

SFQ MPO FAPs meet or exceed TIA/EIA-568-C.3 requirements, TIA-604-5-D, and contain FOCIS 5 compatible fiber optic adapters.

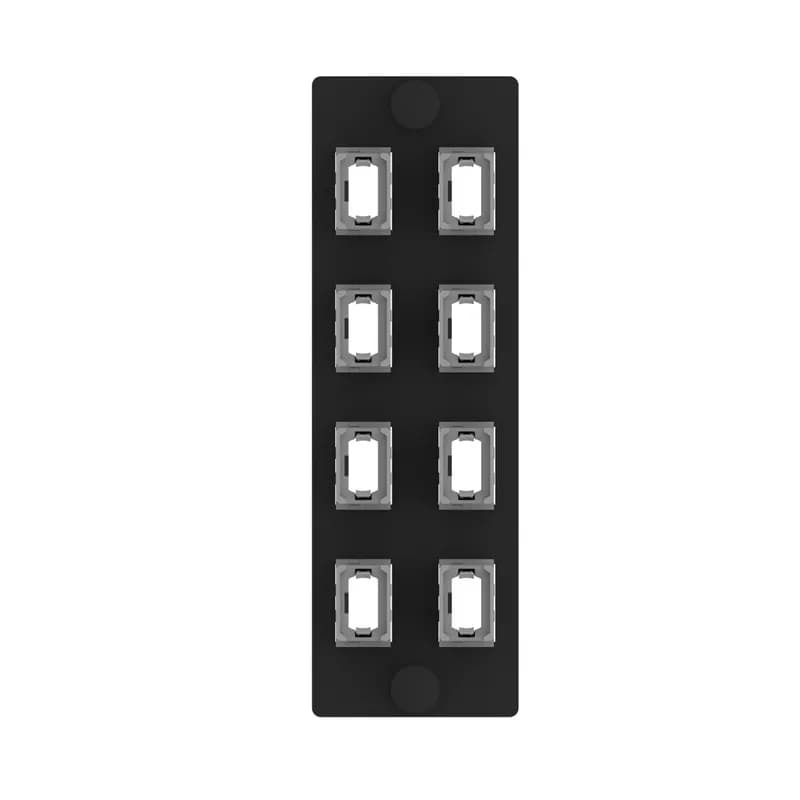

Panels are available with 4, 6, or 8 MPO adapters in either key-up to key-up or key-up to key-down configurations.

SFQ FAPs allow for a maximum density of 64 MPO ports in a 1RU space when used with QuickNet™ Patch Panels.

All SFQ FAPs snap quickly into the rear of QuickNet™ Patch Panels, ensuring easy network deployment.

SFQ FAPs are used in high-density network applications for cross connects in main, horizontal, and equipment distribution areas, as specified in TIA 942.

The QuickNet™ Pre-Terminated Cabling System, including SFQ FAPs, is compatible with high-speed Fibre Channel, Ethernet, Fast Ethernet, and ATM systems.

Yes, SFQ MPO FAPs are interchangeable with QuickNet™ SFQ Series Fiber Optic Cassettes and Copper Cable Assemblies within QuickNet™ Angled and Standard Patch Panels.

QuickNet™ SFQ Series Fiber Adapter Panels are a component of the QuickNet™ Fiber Optic Cabling System.
