Contact for Pricing
Minimum Qty: 10
Multiplier: 1
*Contact for lower quantities*
Overview
- Singlemode 9/125µm OS1/OS2 simplex fiber connector
- Designed for 900-micron tight-buffered fiber installation
- Field termination in approx. 2 minutes with OptiCam 2 Termination Tool
- Pre-polished fiber endface eliminates field polishing
- Natural body, blue backbone, 900µm boot
Specifications
Application | Maintenance or emergency restoration of fiber networks and retrofit/initial install in both behind-the-wall (BTW) and in the permanent side of panelized interconnect and cross-connect. |
Boot Color* | Blue |
Color | Blue |
Connection | LC |
Connector 1 Type* | LC |
Connector 2 Type* | Ceramics |
Fiber Size | 900 m |
Fiber Size | 900µm |
Fiber Type | OS2 |
Insertion Loss | NA |
Standard | exceeds TIA/EIA-568-D.3 requirements;RoHS Compliant;TIA/EIA-604 FOCIS-10 compliant |
Temperature Rating, Maximum | 140 F |
Temperature Rating, Maximum | 60 C |
Temperature Rating, Minimum | 140 F |
Temperature Rating, Minimum | 60 C |
Type | Fiber Optic Connector |
Package Dimensions (L x W x H) | 3.5 IN x 5 IN x 1 IN |
Package Weight (Imperial) | 0.008 lbs |
FLCSS3.0BU
The simplex field polish LC Fiber Optic Connector is intended for installation onto singlemode 9/125?m, 3mm jacketed fiber. The LC connector has a blue body with a blue 3mm boot.
FLCDSCBUY
The OptiCam LC Fiber Optic Connector is a singlemode 9/125?m OS1/OS2 duplex fiber connector, intended for 900-micron tight-buffered fiber installation. Field termination can be done in about two minutes using the OptiCam 2 Termination Tool. The pre-polished fiber endface eliminates time-consuming field polishing, reducing installation costs. The LC connector has a natural-colored body with a blue-colored backbone and 900?m boot.
FLCDS900BUY
The duplex field polish LC Fiber Optic Connector is intended for installation onto singlemode 9/125?m, 900 m tight-buffered fiber. The LC connector has a blue body with a blue 900 m boot.
FLCSSBUY
The field polish LC fiber optic connector is a singlemode 9/125?m OS1/OS2 simplex fiber connector, intended for 900-micron tight-buffered fiber installation. The LC connector has a blue-colored body, backbone, and 900?m boot.

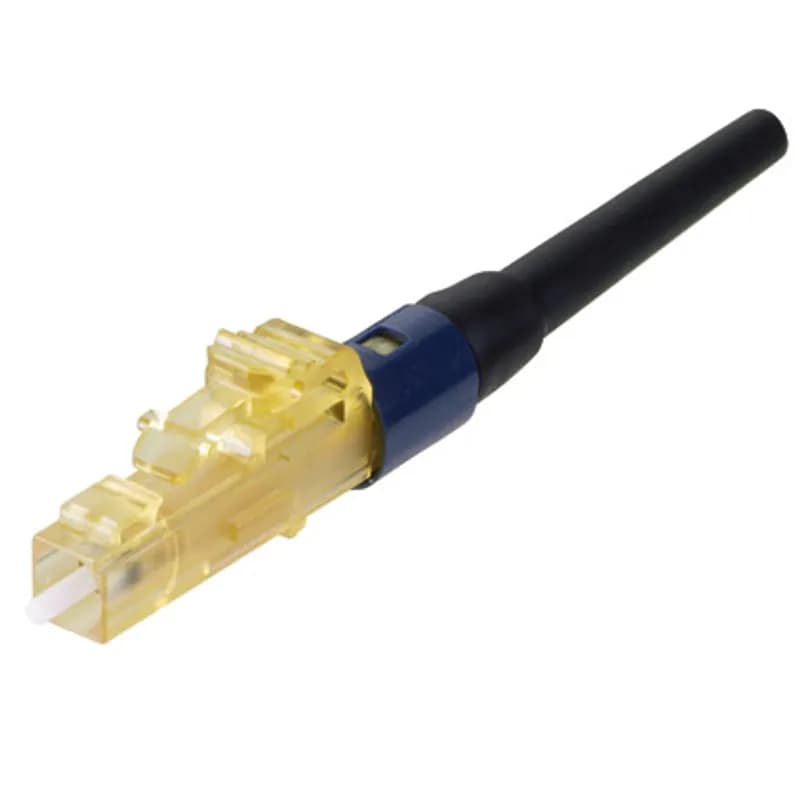

FLCSMCXFDB
The OptiCam Keyed LC Fiber Optic Connector is a multimode 50/125?m OM3/OM4/OM5 simplex fiber connector, intended for 900-micron tight-buffered fiber installation. The connector is keyed (Keyed F, Dark Blue) for network security when used with other Keyed LC products. The LC connector has a natural-colored body with a dark blue-colored backbone and aqua 900?m boot.

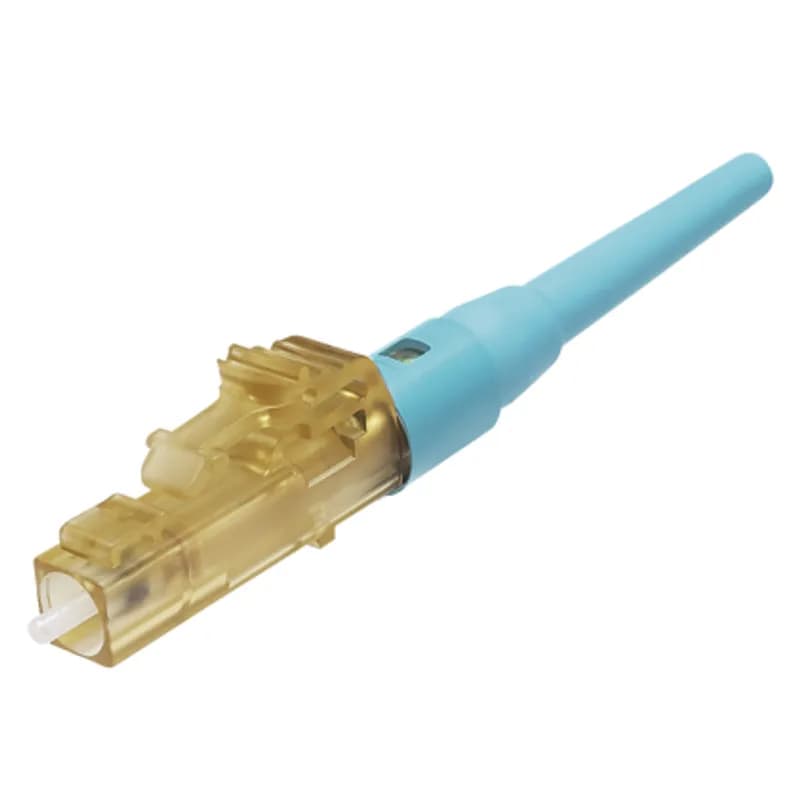

FLCSMCXAQY
The OptiCam LC Fiber Optic Connector is a multimode 50/125?m OM3/OM4/OM5 simplex fiber connector, intended for 900-micron tight-buffered fiber installation. Field termination can be done in about two minutes using the OptiCam 2 Termination Tool. The pre-polished fiber endface eliminates time-consuming field polishing, reducing installation costs. The LC connector has a natural-colored body with an aqua-colored backbone and 900?m boot.
FLCSMCXAQY-C
The OptiCam LC Fiber Optic Connector is a multimode 50/125?m OM3/OM4/OM5 simplex fiber connector, intended for 900-micron tight-buffered fiber installation. Field termination can be done in about two minutes using the OptiCam 2 Termination Tool. The pre-polished fiber endface eliminates time-consuming field polishing, reducing installation costs. The LC connector has a natural-colored body with an aqua-colored backbone and 900?m boot, and is sold as a pack of 100.

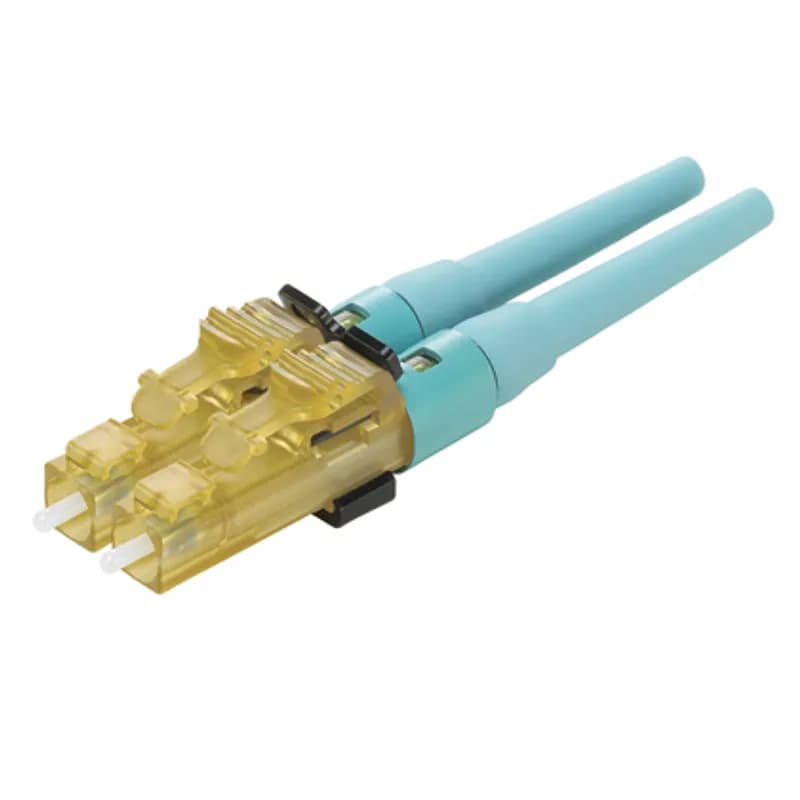

FLCDMCXAQY
The OptiCam LC Fiber Optic Connector is a multimode 50/125?m OM3/OM4/OM5 duplex fiber connector, intended for 900-micron tight-buffered fiber installation. Field termination can be done in about two minutes using the OptiCam 2 Termination Tool. The pre-polished fiber endface eliminates time-consuming field polishing, reducing installation costs. The LC connector has a natural-colored body with an aqua-colored backbone and 900?m boot.

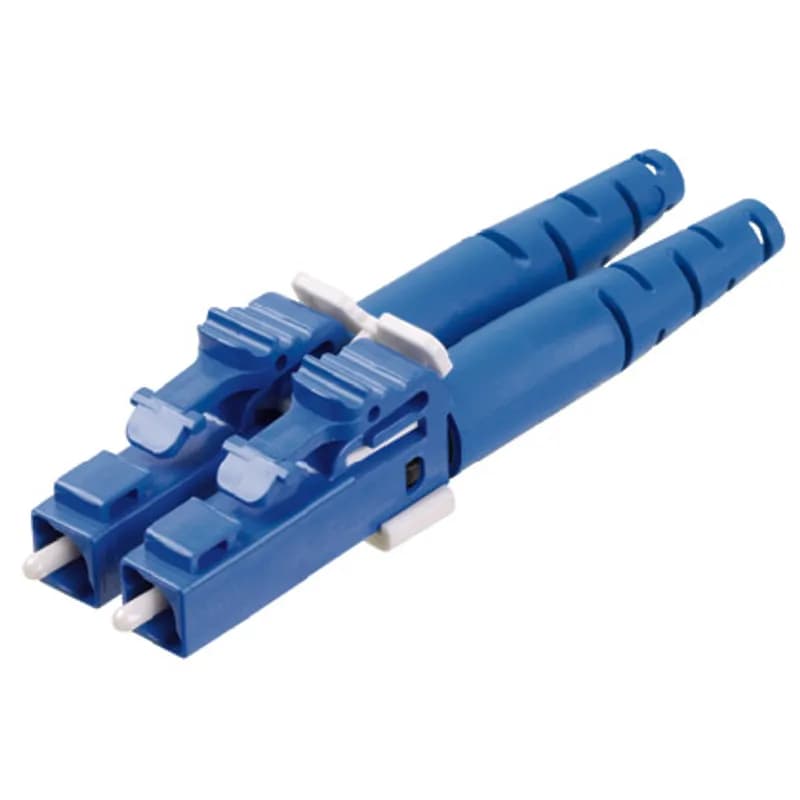

FLCDSBUY
The duplex field polish LC Fiber Optic Connector is intended for installation onto singlemode 9/125?m, 1.6mm jacketed fiber. The LC connector has a blue body with a blue 1.6mm boot.
FLCDMCXHAQ
Pre-Polished Keyed LC Duplex OptiCam OM3/OM4 Connector (Keyed H, Aqua) with 900um Aqua boot

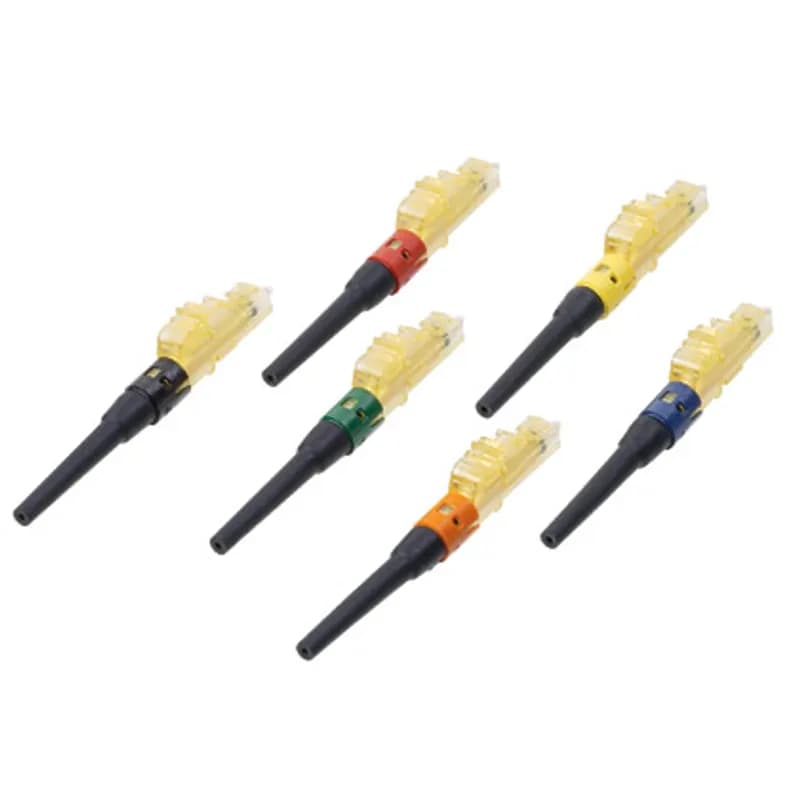

FLCSSCFDB
The OptiCam Keyed LC Fiber Optic Connector is a singlemode 9/125?m OS1/OS2 simplex fiber connector, intended for 900-micron tight-buffered fiber installation. The connector is keyed (Keyed F, Dark Blue) for network security when used with other Keyed LC products. The LC connector has a natural-colored body with a dark blue-colored backbone and blue 900?m boot.

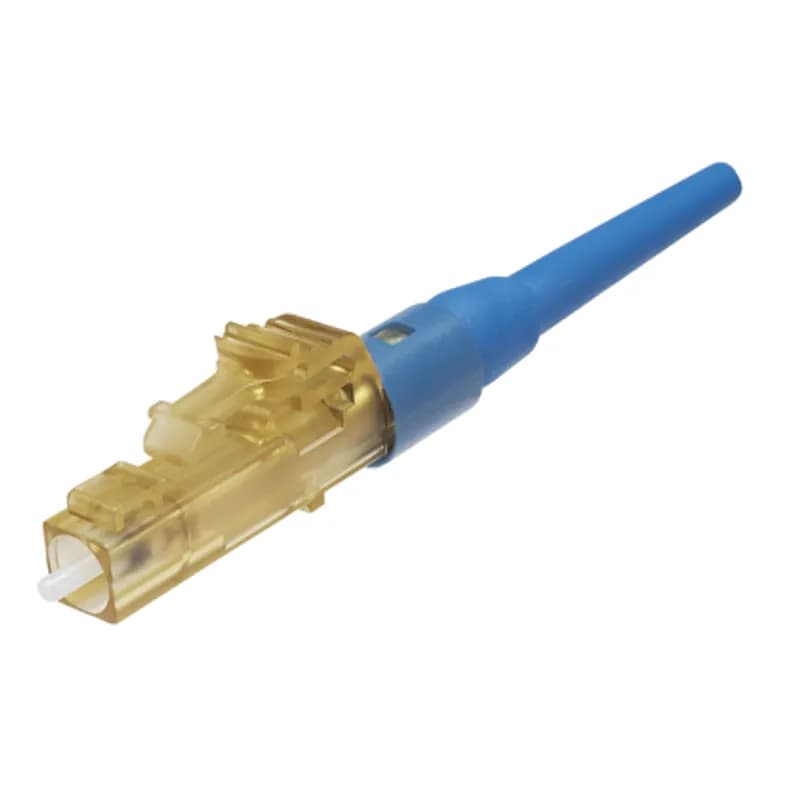

FLCSSCBUY-C
The OptiCam LC Fiber Optic Connector is a singlemode 9/125?m OS1/OS2 simplex fiber connector, intended for 900-micron tight-buffered fiber installation. Field termination can be done in about two minutes using the OptiCam 2 Termination Tool. The pre-polished fiber endface eliminates time-consuming field polishing, reducing installation costs. The LC connector has a natural-colored body with a blue-colored backbone and 900?m boot, and is sold as a pack of 100.Frequently Asked Questions
What is the average insertion loss for the connectors?
The average insertion loss for the connectors is 0.3dB per mated pair for both multimode and singlemode fiber.
What is the operating temperature range?
The operating temperature range for the connectors is 32°F to 140°F (0°C to 60°C).
What types of fiber are compatible with the connectors?
The connectors are compatible with 62.5/125μm OM1, 50/125μm OM2, 10Gig™ 50/125μm OM3/OM4/OM5, and 9/125μm OS1/OS2 fibers.
How many re-terminations can be done?
The connectors allow for up to two re-terminations with no degradation in performance.
What is the return loss for singlemode fiber?
The return loss for singlemode fiber is greater than 50dB.
What cable sizes are compatible with the connectors?
The connectors are compatible with 1.6mm to 2.0mm and 3.0mm jacketed cable.
What is the mechanical cable retention capability?
The connectors provide higher than industry standard cable retention, exceeding ANSI/TIA-568.3-D requirements.
What tools are needed for installation?
Installation requires the OptiCam Termination Tool, available in various kits.
What is the connector type for FLCDMCXAQY?
The FLCDMCXAQY is a duplex connector type.
What is the maximum insertion loss after repeated mating?
The maximum insertion loss after 500 mate/unmate cycles is 0.75dB.
