Panduit FC4ZU-24-NMNMB2 - DARK FIBER CONVERSION CASSETTE WITH OM4 FIBER;ULTRA LOW LOSS;24 FIBERS TOTAL;FRONT MALE MPO; REAR MALE MPO;METHOD B CONNECTIVITY; END 2 CASSETTE
Panduit

FC4ZU-24-NMNMB2

UPC: 074983070510

Documents & Media
Technical DrawingFull Engineering DrawingSpecification SheetVideo Clip

Contact for Pricing

Overview

The Panduit FC4ZU-24-NMNMB2 is a high-density 24-fiber Dark Fiber Conversion Cassette designed for efficient MPO to LC connectivity within data center and enterprise network infrastructures. This cassette utilizes OM4 multimode fiber, offering a 50/125µm core/cladding diameter, optimized for high-speed data transmission up to 100 Gigabit Ethernet and beyond. Engineered with ultra-low loss performance, it ensures minimal signal degradation, crucial for maintaining network integrity and maximizing reach. The cassette features male MPO connectors on both the front and rear interfaces, employing Method B polarity for direct cross-connect applications. This configuration allows for a straightforward conversion from a 24-fiber MPO trunk cable to 12 duplex LC connectors (24 individual fibers), facilitating easy patching and management. Designed for seamless integration into Panduit's Fiber Management Systems, the FC4ZU-24-NMNMB2 provides a plug-and-play solution, simplifying installation and reducing deployment time. Each cassette includes front port identification and a labeling field on the top for clear fiber documentation, enhancing manageability and reducing troubleshooting efforts. Manufactured in the USA, this cassette exemplifies Panduit's commitment to quality and performance in advanced fiber optic solutions. Its robust construction and precise optical termination make it ideal for mission-critical applications where reliability and performance are paramount, including data centers, storage area networks, and high-performance computing environments. The 24-fiber capacity in a compact form factor maximizes rack space utilization, a key consideration in modern, high-density deployments. This cassette is a key component for building scalable and efficient fiber optic networks.
  • 24-Fiber OM4 Multimode Fiber (50/125µm)
  • Ultra-Low Loss Performance
  • Front Male MPO and Rear Male MPO Connectors
  • Method B Polarity for Direct Cross-Connects
  • Converts MPO to 12 Duplex LC Connectors

Specifications

Application
OM4
Connector 1 Type*
MPO-8 Male
Connector 2 Type*
MPO-12 Male
Fiber Compatibility*
Ultra OM4 50/125 m
Fiber Compatibility*
Ultra OM4 50/125µm
Fiber Count*
24
Length
NA In.
Type
Fiber Cassette
Package Dimensions (L x W x H)
7.8 IN x 4.5 IN x 1.5 IN
Package Weight (Imperial)
0.45 lbs
OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method B, Optimized IL, 27 ft, Aqua

FZURPENENYNF027

OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method B, Optimized IL, 27 ft, Aqua
12 fiber OM4 interconnect cable assembly, plenum (OFNP) rated, PanMPO female to PanMPO female Method A Std IL, with no pulling eye, 112 ft.

FZTRP7N7NANF112

12 fiber OM4 interconnect cable assembly, plenum (OFNP) rated, PanMPO female to PanMPO female Method A Std IL, with no pulling eye, 112 ft.
12 fiber OM4 interconnect cable assembly, plenum (OFNP) rated, PanMPO female to PanMPO female Method A Std IL, with no pulling eye, 137 ft.

FZTRP7N7NANF137

12 fiber OM4 interconnect cable assembly, plenum (OFNP) rated, PanMPO female to PanMPO female Method A Std IL, with no pulling eye, 137 ft.
The QuickNet PanMPO 12 fiber cable assembly is an OM4 interconnect cable assembly. It is low smoke zero halogen (LSZH) rated and features MPO Female to MPO Female connectors. It is aqua, 14 meters in length and has Method A standard insertion loss with no pulling eye.

FZTRL7N7NANM014

The QuickNet PanMPO 12 fiber cable assembly is an OM4 interconnect cable assembly. It is low smoke zero halogen (LSZH) rated and features MPO Female to MPO Female connectors. It is aqua, 14 meters in length and has Method A standard insertion loss with no pulling eye.
OM4 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO female to MPO female, Method A Std IL, with no pulling eye 5 ft

FZTRP5N5NANF005

OM4 12 fiber, interconnect cable assembly, plenum (OFNP) rated, MPO female to MPO female, Method A Std IL, with no pulling eye 5 ft
OM4 8 fiber, Interconnect, Plenum, PanMPO Female to PanMPO Female, Method A, Optimized IL, 40 Feet, Aqua

FZ8RPJNJNXNF040

OM4 8 fiber, Interconnect, Plenum, PanMPO Female to PanMPO Female, Method A, Optimized IL, 40 Feet, Aqua
OM4 8 fiber, Interconnect, LSZH, PanMPO Female to PanMPO Female, Method B, Optimized IL, 7 Meters, Aqua

FZ8RLJNJNYNM007

OM4 8 fiber, Interconnect, LSZH, PanMPO Female to PanMPO Female, Method B, Optimized IL, 7 Meters, Aqua
OM4 12 fiber interconnect cable assembly Low Smoke Zero Halogen (LSZH) PanMPO female to PanMPO female Method B Optimized IL, with no pulling eye, 28 meters.

FZTRL7N7NYNM028

OM4 12 fiber interconnect cable assembly Low Smoke Zero Halogen (LSZH) PanMPO female to PanMPO female Method B Optimized IL, with no pulling eye, 28 meters.
OM4 12 fiber interconnect cable assembly plenum (OFNP) rated Pan MPO female to Pan MPO female, Method B Optimized IL, with no pulling eye, Aqua, 30 meters

FZTRP7N7NYNM030

OM4 12 fiber interconnect cable assembly plenum (OFNP) rated Pan MPO female to Pan MPO female, Method B Optimized IL, with no pulling eye, Aqua, 30 meters

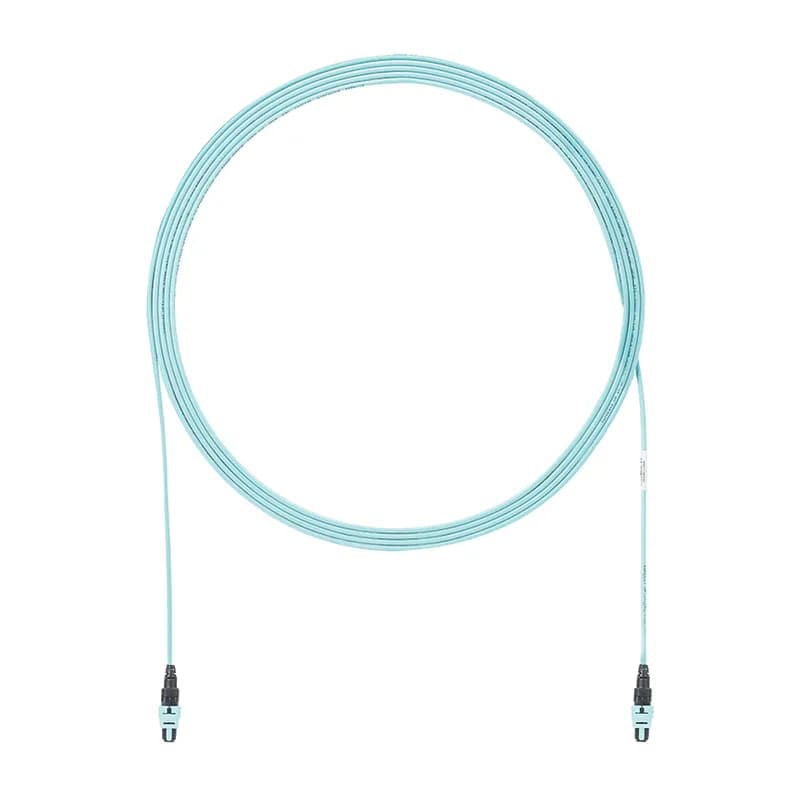

OM4 8 fiber, Interconnect, Plenum, PanMPO Female to PanMPO Female, Method A, Optimized IL, 56 Feet, Aqua

FZ8RPJNJNXNF056

OM4 8 fiber, Interconnect, Plenum, PanMPO Female to PanMPO Female, Method A, Optimized IL, 56 Feet, Aqua
OM4 8 fiber, Interconnect, Plenum, PanMPO Female to PanMPO Female, Method B, Optimized IL, 51 Feet, Aqua

FZ8RPJNJNYNF051

OM4 8 fiber, Interconnect, Plenum, PanMPO Female to PanMPO Female, Method B, Optimized IL, 51 Feet, Aqua
OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 23 ft, Aqua

FZURPENENXNF023

OM4 24 fiber, Interconnect, Plenum, 24F MPO Female to 24F MPO Female, Method A, Optimized IL, 23 ft, Aqua

Frequently Asked Questions

What is the fiber count of the product?

The product is available in 24 and 48 fiber counts.

What standards does this product comply with?

It complies with TIA/EIA-568-C.3 performance requirements and ROHS 2002/95/EC.

What types of fibers does this cassette support?

It supports multimode fibers, specifically OM4 50/125μm.

How many mating cycles can the connectors endure?

The MTP connector can endure up to 500 mating cycles.

What types of connectivity does the cassette provide?

It provides MTP connectivity with male ferrules (pins) and PC polish.

What is the maximum insertion loss per channel?

The maximum insertion loss per channel is 0.35 dB.

What is the storage temperature range?

The storage temperature ranges from -40°C to +75°C (-40°F to 167°F).

What applications is this cassette designed for?

It is designed for data center cabling as specified in TIA-942 standards.

What is the operating temperature range?

The operating temperature is 23°C (73°F).

What is the return loss specification?

The return loss per channel is greater than 30 dB for multimode.
