Contact for Pricing
Minimum Qty: 10
Multiplier: 1
*Contact for lower quantities*
Overview

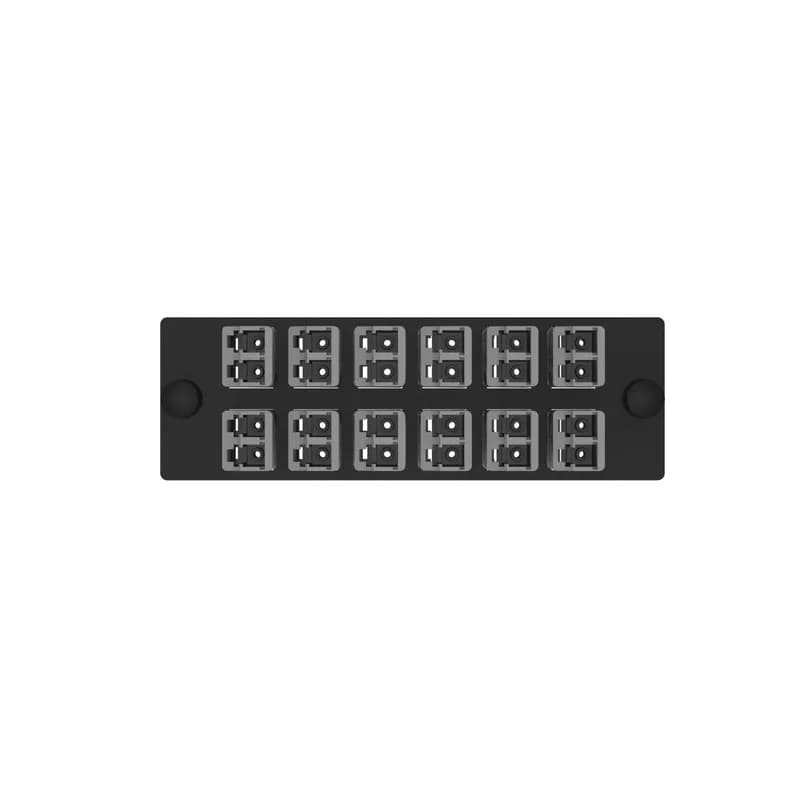

- 12 LC duplex fiber optic adapters for OM4 multimode fiber
- User-side adapters are Keyed A-Black for polarity control
- Service-side adapters are non-keyed for universal compatibility
- Zirconia split sleeves for low insertion loss and high return loss
- Designed for high-density patching in 19-inch racks or cabinets
Specifications
Color | Black |
Material | Zirconia |
Series | Opticom LC |
Package Dimensions (L x W x H) | 6.1 IN x 4.9 IN x 1 IN |
Package Weight (Imperial) | 0.191 lbs |
FAP6WABLBLDLCZ
The Opticom LC fiber adapter panel is OM4 and is loaded with 6 LC duplex fiber optic adapters. The fiber optic adapters are Keyed A-Black on the user side and Non-keyed on the service side and has zirconia split sleeves.
FAP8WFDBDBDLCZ
The Opticom LC fiber adapter panel is OM4 and is loaded with 8 LC duplex fiber optic adapters. The fiber optic adapters are Keyed F-Dark Blue on the user side and Non-keyed on the service side and has zirconia split sleeves.
FAP6WEISCZ
The Opticom SC fiber adapter panel is OM1 and is loaded with 6 SC simplex fiber optic adapters. The fiber optic adapters are electric ivory with zirconia split sleeves.
FAP6WCGRGRDLCZ
The Opticom LC fiber adapter panel is OM4 and is loaded with 6 LC duplex fiber optic adapters. The fiber optic adapters are Keyed C-Green on the user side and Non-keyed on the service side and has zirconia split sleeves.
FAP6WEIDLCZ
The Opticom LC fiber adapter panel is OM1 and is loaded with 6 LC duplex fiber optic adapters. The fiber optic adapters are electric ivory with zirconia split sleeves.

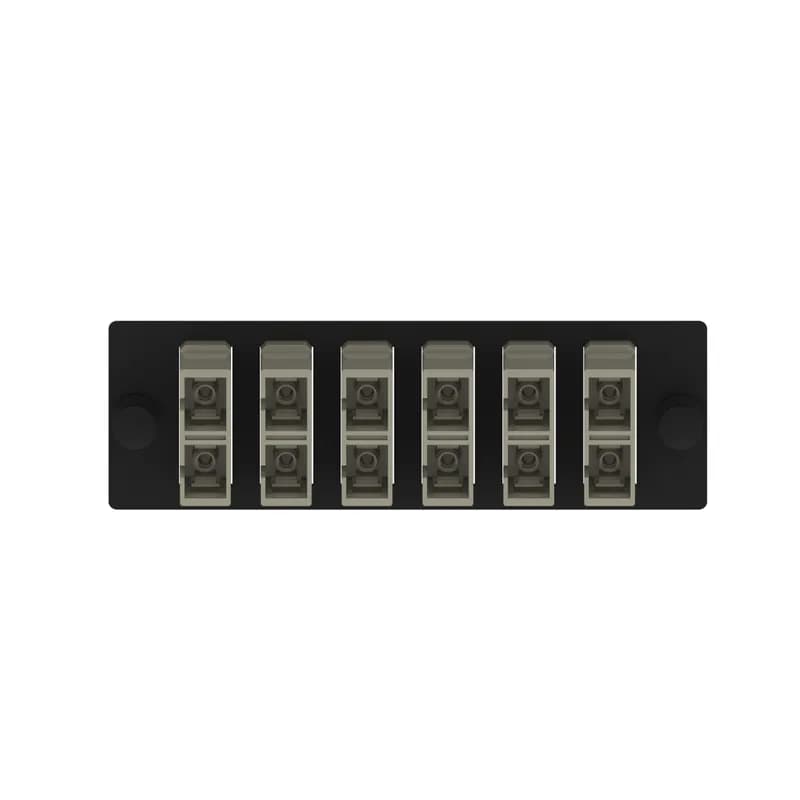

FAP6WEIDSCZ
The Opticom SC fiber adapter panel is OM1 and is loaded with 6 SC duplex fiber optic adapters. The fiber optic adapters are electric ivory with zirconia split sleeves.
FAP12WKIGIGDLCZ
The Opticom LC fiber adapter panel is OM4 and is loaded with 12 LC duplex fiber optic adapters. The fiber optic adapters are Keyed K-Int'l Gray on the user side and Non-keyed on the service side and has zirconia split sleeves.
FAP6WPWTWTDLCZ
The Opticom LC fiber adapter panel is OM4 and is loaded with 6 LC duplex fiber optic adapters. The fiber optic adapters are Keyed P-Keyed White on the user side and Non-keyed on the service side and has zirconia split sleeves.
FAP8WKIGIGDLCZ
The Opticom LC fiber adapter panel is OM4 and is loaded with 8 LC duplex fiber optic adapters. The fiber optic adapters are Keyed K-International Gray on the user side and Non-keyed on the service side and has zirconia split sleeves.
FAP8WBRDRDDLCZ
The Opticom LC fiber adapter panel is OM4 and is loaded with 8 LC duplex fiber optic adapters. The fiber optic adapters are Keyed B-Red on the user side and Non-keyed on the service side and has zirconia split sleeves.
FHSBBL12W
The HD Flex 12-Port Blanking Panel allows you to save space for future use inside of any HD Flex enclosure or HD Flex port. The blanking panel is black.
FAPV0412BLMPO
The Opticom MPO fiber adapter panel is loaded with 4 MPO fiber optic adapters. The fiber optic adapters are in the key-up/key-down position, type a polarity and are black in color. The MPOs are positioned in a vertical arrangement when looking head-on on a vertical-orientated faceplate.Frequently Asked Questions
What standards do Opticom Fiber Adapter Panels meet?
Opticom Fiber Adapter Panels meet or exceed TIA/EIA-568-C.3 requirements and contain TIA/EIA-604 FOCIS compliant or compatible adapters.
What material are the split sleeves made from?
The split sleeves are made from zirconia ceramic, suitable for OM1/OM4/OM5 multimode and OS2 singlemode adapters.
How are Opticom FAPs installed?
Fiber adapter panels snap quickly into the front of fiber optic patch panels and enclosures for easy network deployment or moves, adds, and changes.
What enclosures are compatible with Opticom FAPs?
FAPs are used with Opticom Rack and Wall Mount Enclosures, Fiber Adapter Patch Panels, and Opticom Zero RU Fiber Adapter Panel Brackets.
What is the FAP12WABLBLDLCZ product type?
FAP12WABLBLDLCZ is a Keyed and Colored Opticom Fiber Adapter Panel with 12 duplex LC adapters.
What fiber types does FAP12WABLBLDLCZ support?
The FAP12WABLBLDLCZ supports all fiber types, including OM1, OM4, OM5 multimode, and OS2 singlemode.
What is the key and color for FAP12WABLBLDLCZ?
The FAP12WABLBLDLCZ features a Key A and is black in color.
What is the split sleeve material for FAP12WABLBLDLCZ?
The FAP12WABLBLDLCZ uses zirconia ceramic for its split sleeves.
What types of fiber optic adapters are available?
Available adapters include horizontal MPO, LC, Shuttered LC, keyed LC, and SC fiber optic adapters. Multimedia modular panels also integrate fiber and copper.
How do FAPs ensure easy fiber type identification?
LC and SC adapter housing colors follow the TIA/EIA-568-C.3 suggested identification color scheme for easy fiber type recognition.
