Panduit ESV14BX-Q - StrongHold ESV14BX-Q Contractor Grade Vinyl Insulated Butt Splices are a reliable and economical option that withstand a wide range of general-purpose applications. They are designed to splice two solid or stranded wires together to repair or lengthen wires. Accommodates 16-14 AWG, are blue in color, and come in packages of 25.
Panduit

ESV14BX-Q

UPC: 613056366169

Documents & Media
Technical DrawingFull Engineering DrawingVideo Clip

Contact for Pricing

Minimum Qty: 250

Multiplier: 25

*Contact for lower quantities*

Overview

The Panduit StrongHold ESV14BX-Q Contractor Grade Vinyl Insulated Butt Splices (SKU: ESV14BX-Q) are engineered for reliable, economical wire splicing in general-purpose applications. Designed to join two solid or stranded wires for repairs or extensions, these butt splices accommodate 16-14 AWG conductors and feature a blue color code for easy identification. Each package includes 25 splices, making them ideal for bulk installations or contractor-grade projects. Key features include a brazed seam that prevents terminal barrel splitting during crimping, ensuring long-term durability. An internal wire stop guarantees proper insertion depth, eliminating guesswork and reducing installation errors. The vinyl insulation is UL 94V-0 rated for flammability resistance and can withstand a maximum insulation temperature of 221°F (105°C). These splices are UL and CSA certified for up to 600V per UL 486C, meeting stringent safety and performance standards for electrical applications. The expanded wire entry design accommodates wires with larger insulation thickness, providing flexibility for various wire types. The seamless tubular barrel ensures consistent, high-performance crimps with a single crimp operation, streamlining the installation process. With a maximum wire insulation diameter of 0.200 inches and an overall length of 1.04 inches, these splices are optimized for compact spaces while delivering robust electrical connectivity. Ideal for use in construction, maintenance, and repair projects, the ESV14BX-Q splices are distributed by Gross Automation and compatible with standard crimping tools such as the CT-100, CT-1550, CT-1551, CT-2300/ST, CT-2500/L, and UP14ZLW. Their contractor-grade construction ensures reliability in demanding environments, making them a trusted choice for professionals seeking durable and cost-effective wire splicing solutions.
  • Accommodates 16-14 AWG solid or stranded wires for repairs or extensions
  • Brazed seam prevents terminal barrel splitting during crimping
  • Internal wire stop ensures proper insertion depth for consistent performance
  • UL 94V-0 flammability rated and UL/CSA certified up to 600V
  • Blue color-coded for easy identification; 25-pack quantity

Specifications

Color
Blue
Connection
Expanded
Finish
Tinned
Insulation
Vinyl
Material
Copper
Mounting
5/16 In.
Standard
UL Listed, CSA Certified
Type
Butt Splice
Wire Size
16 - 14
Package Dimensions (L x W x H)
9.1 IN x 4.35 IN x 4.35 IN
Package Weight (Imperial)
0.5 lbs
Fork Terminal, nylon insulated, funnel entry, 16- 14 AWG, #6 stud size, standard package.

PNF14-6F-C

Fork Terminal, nylon insulated, funnel entry, 16- 14 AWG, #6 stud size, standard package.
Ring Terminal, narrow tongue, nylon insulated, funnel entry, metal sleeve, 16 14 AWG, #6 stud size.

PNF14-6RN-3K

Ring Terminal, narrow tongue, nylon insulated, funnel entry, metal sleeve, 16 14 AWG, #6 stud size.
Heat Shrink Ring Terminal 16 14 AWG, #6 stud size.

PH14-6R-Q

Heat Shrink Ring Terminal 16 14 AWG, #6 stud size.
Locking Fork Terminal, nylon insulated, funnel entry, 18-14 AWG, #10 stud size, standard package.

PNF14-10LF-C

Locking Fork Terminal, nylon insulated, funnel entry, 18-14 AWG, #10 stud size, standard package.
Ring Terminal, large wire, 6 AWG, 3/8" stud size, vinyl expanded insulation, standard package.

PV6-38RX-X

Ring Terminal, large wire, 6 AWG, 3/8" stud size, vinyl expanded insulation, standard package.
Polypropylene insulated ferrules single wire blue DIN color expanded short circuit protection end sleeve, 14 AWG (2.5mm ), .47(12.0mm) pin length.

FSDXL80-12-C

Polypropylene insulated ferrules single wire blue DIN color expanded short circuit protection end sleeve, 14 AWG (2.5mm ), .47(12.0mm) pin length.

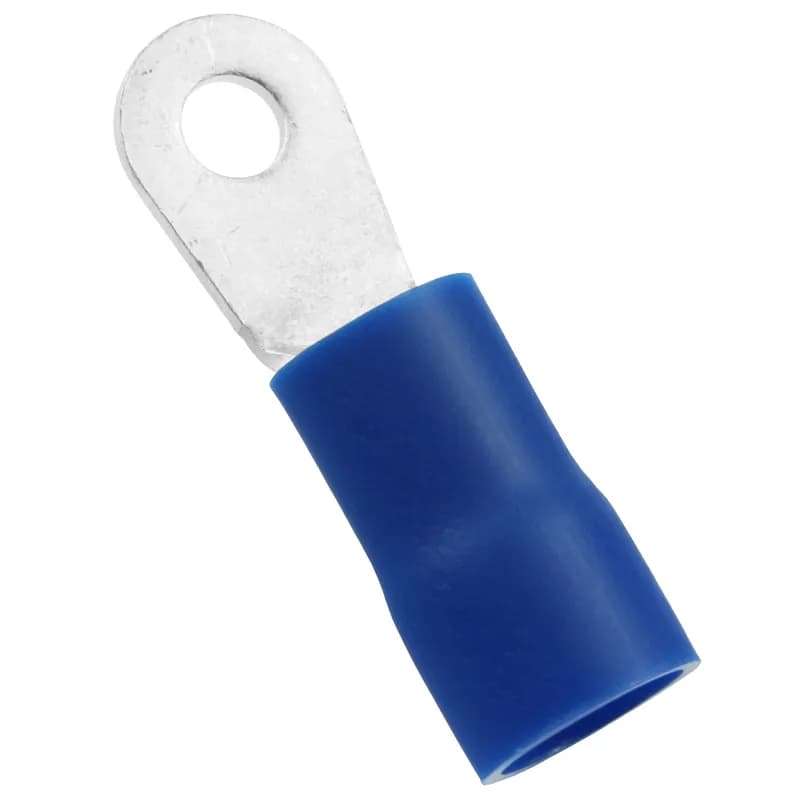

StrongHold Ring Terminal, vinyl insul, 6 AWG, #10 Stud Size
