Panduit EMS-A-C - The epoxy applied cable tie mount in natural color is affixed with EMA epoxy adhesive. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with miniature, intermediate, and standard cable ties. It is designed for indoor environments and comes in packages of 100.
Panduit

EMS-A-C

UPC: 074983580156

Documents & Media
Technical DrawingFull Engineering DrawingInstallation InstructionsVideo Clip

Contact for Pricing

Minimum Qty: 1000

Multiplier: 100

*Contact for lower quantities*

Overview

The Panduit EMS-A-C epoxy applied cable tie mount is a high-strength, weather-resistant solution designed for secure cable management in indoor environments. Constructed from durable nylon 6.6, this mount delivers exceptional mechanical strength, heat resistance, and stiffness, ensuring long-term reliability for cable ties. The black finish provides contrast for easy inspection and identification. Key specifications include compatibility with miniature, intermediate, and standard cross-section cable ties, making it a versatile choice for various cable bundling needs. The mount is affixed using EMA epoxy adhesive (sold separately), which provides a strong, permanent bond to most surfaces without the need for drilling or mechanical fasteners. Each package contains 100 mounts, with bulk options available for larger projects. The EMS-A-C is engineered for indoor applications, offering a reliable and cost-effective method to secure cables to walls, panels, or other surfaces. The design includes four inspection holes to verify adhesive coverage, ensuring proper installation and load distribution. This product is ideal for industrial, commercial, and infrastructure applications where cable organization and stability are critical. For outdoor or more demanding environments, consider the EMS-A-C0 variant, which is weather-resistant and suitable for outdoor use. The EMS-A-C is part of Panduit's comprehensive wire routing and management portfolio, trusted by professionals for its quality and performance.
  • Made of nylon 6.6 for high mechanical strength, heat, and wear resistance
  • Compatible with miniature, intermediate, and standard cross-section cable ties
  • Epoxy adhesive (EMA-X) provides strong, permanent bonding without drilling
  • Four inspection holes for verifying adhesive coverage and proper installation
  • Designed for indoor environments; 100 mounts per package

Specifications

Application
Epoxy Applied Mounts to Secure Wire/Cable to Most Surfaces;Indoor
Cable Size
NA
Cable Type
Cable Tie Mount
Color
Natural
Insulation
Polyamide (PA)
Material Quality
Nylon 6.6
Mounting
Adhesive
Operating Temperature, Maximum
185 F
Operating Temperature, Maximum
85 C
Operating Temperature, Minimum
185 F
Operating Temperature, Minimum
85 C
Screw Holes
NA
Standard
RoHS Compliant
Type
Cable Tie Mount
Used With Cable Ties*
M, I, S
Package Dimensions (L x W x H)
11.2 IN x 9.05 IN x 7.2 IN
Package Weight (Imperial)
6.3 lbs
Panduit ASMS-A-X Epoxy Applied Swivel Mounts are affixed with user supplied EMA epoxy. They swivel 360? in order to assure proper orientation with harness and have four inspection holes to observe adhesive coverage. Mounts are 1.125 x 1.125 (28.6 x 28.6mm) in size and are for use in indoor environments. The mount is made of Nylon and the base is made of Aluminum. They are natural in color and come in packages of 10.

ASMS-A-X

Panduit ASMS-A-X Epoxy Applied Swivel Mounts are affixed with user supplied EMA epoxy. They swivel 360? in order to assure proper orientation with harness and have four inspection holes to observe adhesive coverage. Mounts are 1.125 x 1.125 (28.6 x 28.6mm) in size and are for use in indoor environments. The mount is made of Nylon and the base is made of Aluminum. They are natural in color and come in packages of 10.
Panduit ASMS-A-T Epoxy Applied Swivel Mounts are affixed with user supplied EMA epoxy. They swivel 360? in order to assure proper orientation with harness and have four inspection holes to observe adhesive coverage. Mounts are 1.125 x 1.125 (28.6 x 28.6mm) in size and are for use in indoor environments. The mount is made of Nylon and the base is made of Aluminum. They are natural in color and come in packages of 200.

ASMS-A-T

Panduit ASMS-A-T Epoxy Applied Swivel Mounts are affixed with user supplied EMA epoxy. They swivel 360? in order to assure proper orientation with harness and have four inspection holes to observe adhesive coverage. Mounts are 1.125 x 1.125 (28.6 x 28.6mm) in size and are for use in indoor environments. The mount is made of Nylon and the base is made of Aluminum. They are natural in color and come in packages of 200.
The cable tie mount in natural color is applied with user-supplied adhesive and is 0.43" (10.9 mm) wide. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It comes in packages of 1000.

TM2A-M

The cable tie mount in natural color is applied with user-supplied adhesive and is 0.43" (10.9 mm) wide. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It comes in packages of 1000.
The epoxy applied cable tie mount in natural color is affixed with EMA epoxy adhesive. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with cable miniature, intermediate, and standard cable ties. It is designed for indoor environments and comes in packages of 500.

EMS-A-D

The epoxy applied cable tie mount in natural color is affixed with EMA epoxy adhesive. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with cable miniature, intermediate, and standard cable ties. It is designed for indoor environments and comes in packages of 500.
The low profile cable tie mount in natural is designed to keep cable bundles close to mounting surface where overhead space is limited. It is 1.22" long x 1.22" wide (30.1 x 30.1 mm) and is mounted with a user supplied adhesive. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with miniature, intermediate, and standard cable ties. It is designed for indoor environments and comes in packages of 100.

AM2-C

The low profile cable tie mount in natural is designed to keep cable bundles close to mounting surface where overhead space is limited. It is 1.22" long x 1.22" wide (30.1 x 30.1 mm) and is mounted with a user supplied adhesive. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with miniature, intermediate, and standard cable ties. It is designed for indoor environments and comes in packages of 100.
The low profile cable tie mount in natural is designed to keep cable bundles close to mounting surface where overhead space is limited. It is 1.22" long x 1.22" wide (30.1 x 30.1 mm) and is mounted with a user supplied adhesive. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with miniature, intermediate, and standard cable ties. It is designed for indoor environments and comes in packages of 1000.

AM2-M

The low profile cable tie mount in natural is designed to keep cable bundles close to mounting surface where overhead space is limited. It is 1.22" long x 1.22" wide (30.1 x 30.1 mm) and is mounted with a user supplied adhesive. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with miniature, intermediate, and standard cable ties. It is designed for indoor environments and comes in packages of 1000.

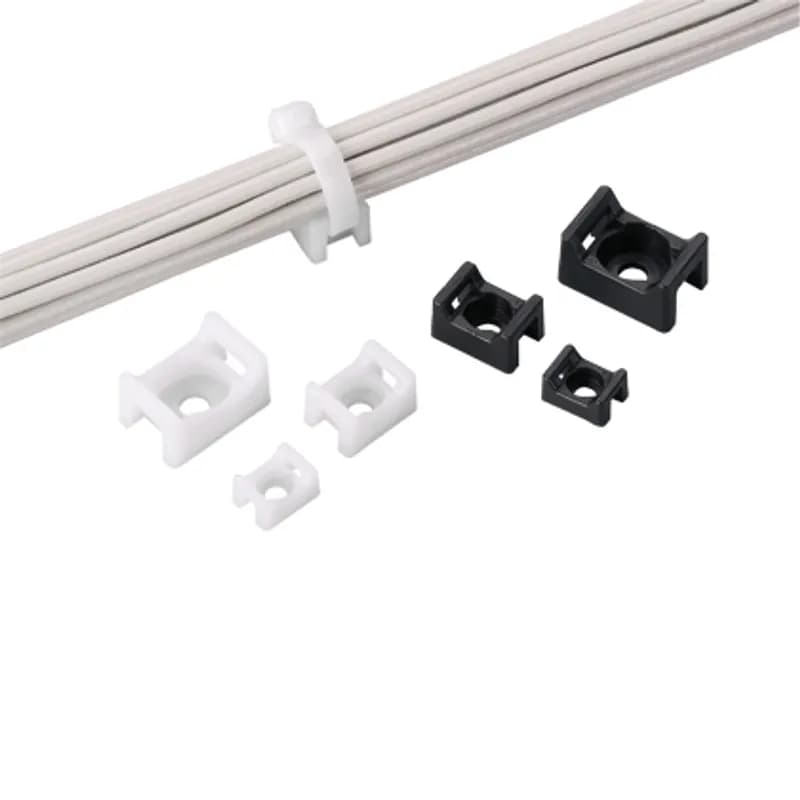

The cable tie mount in natural color is applied with user-supplied adhesive and is 0.61" (15.5 mm) wide. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It comes in packages of 100.

TM3A-C

The cable tie mount in natural color is applied with user-supplied adhesive and is 0.61" (15.5 mm) wide. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It comes in packages of 100.
The cable tie mount in natural color is applied with user-supplied adhesive and is 0.61" (15.5 mm) wide. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It comes in packages of 1000.

TM3A-M

The cable tie mount in natural color is applied with user-supplied adhesive and is 0.61" (15.5 mm) wide. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It comes in packages of 1000.
The cable tie mount in natural color is applied with user-supplied adhesives and is 0.32" (8.1 mm) wide. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It comes in packages of 1000.

TM1A-M

The cable tie mount in natural color is applied with user-supplied adhesives and is 0.32" (8.1 mm) wide. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It comes in packages of 1000.
The cable tie mount in natural color is applied with user-supplied adhesive and is 0.43" (10.9 mm) wide. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It comes in packages of 100.

TM2A-C

The cable tie mount in natural color is applied with user-supplied adhesive and is 0.43" (10.9 mm) wide. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It comes in packages of 100.

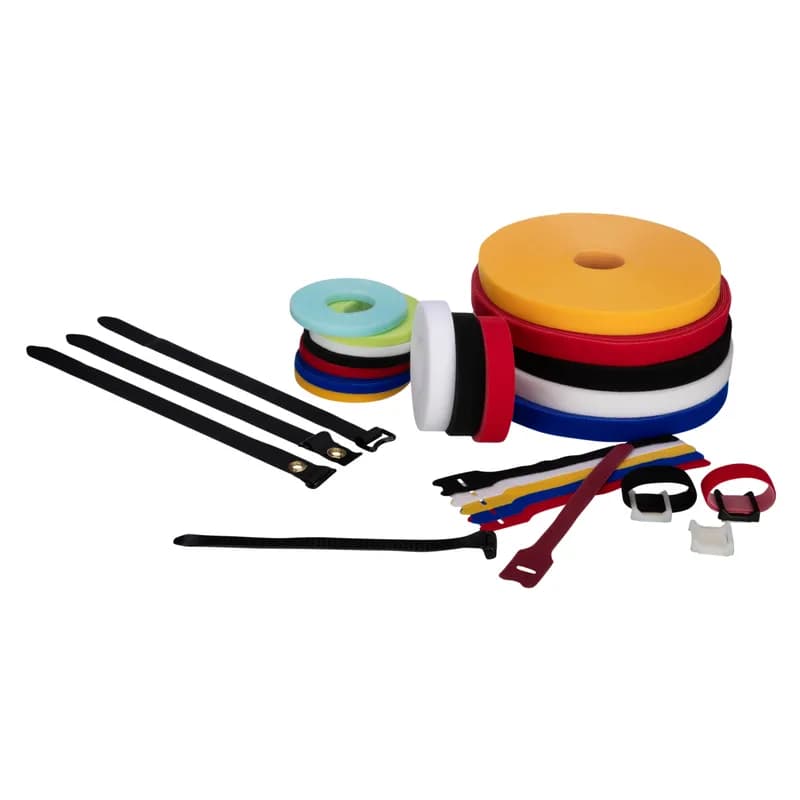

The Tak-Ty hook and loop cable tie mount in natural is mounted with a rubber adhesive. It is 1.12" long x 1.12" wide (28.5 x 28.5 mm) and made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with HLT/HLS Tak-Ty hook and loop cable ties, is designed for indoor environments, and comes in packages of 25.

ABMT-A-Q

The Tak-Ty hook and loop cable tie mount in natural is mounted with a rubber adhesive. It is 1.12" long x 1.12" wide (28.5 x 28.5 mm) and made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with HLT/HLS Tak-Ty hook and loop cable ties, is designed for indoor environments, and comes in packages of 25.
The Tak-Ty Hook and Loop Cable Tie Mount is mounted with a rubber adhesive. The cable tie mount is made of nylon 6.6 and increases mechanical strength, heat and wear resistance, and stiffness. It is used with HLT/HLS Tak-Ty Hook and Loop Cable Ties. The cable tie mount is 1.12 inches L x 1.12 inches W (28.5mm x 28.5mm). It comes in packages of 100.

ABMT-A-C

The Tak-Ty Hook and Loop Cable Tie Mount is mounted with a rubber adhesive. The cable tie mount is made of nylon 6.6 and increases mechanical strength, heat and wear resistance, and stiffness. It is used with HLT/HLS Tak-Ty Hook and Loop Cable Ties. The cable tie mount is 1.12 inches L x 1.12 inches W (28.5mm x 28.5mm). It comes in packages of 100.

How to Install the EMA Epoxy Adhesive

This guide provides step-by-step instructions for properly mixing and applying EMA Epoxy Adhesive for secure bonding.

Estimated time: 30m

Tools needed:

Stir stick

Supplies needed:

EMA Epoxy Adhesive, Cable tie mounts

  1. Prepare the bonding surface

    Ensure the bonding surface is clean and free of any loose particles, dirt, grease, and other contaminants.

  2. Mix the epoxy

    Remove the protective film from the mixer cup, then scrape the two parts of the epoxy into the center of the cup and mix thoroughly using a stir stick.

  3. Apply the epoxy

    Apply 1/3 of the mixed epoxy to the bottom of a cable tie mount, then press the mount firmly on the surface and twist it back and forth slightly.

  4. Allow the epoxy to set

    Wait for 15 minutes at room temperature for the cable tie mount to be ready for use.
