Panduit DPF18-111FIB-C - The vibration resistant DiscoGrip female disconnect is made of brass and is tin-plated. It is fully insulated in red premium nylon housing. It has a tab size of 0.110 x 0.020" (2.8 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.71" (18 mm) long and 0.19" (4.8 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.
Panduit

DPF18-111FIB-C

UPC: 074983203758

Documents & Media
Technical DrawingFull Engineering Drawing

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

The Panduit DPF18-111FIB-C DiscoGrip female disconnect is a vibration-resistant electrical connector designed for secure wire terminations in industrial and commercial applications. Constructed from tin-plated brass with a fully insulated red premium nylon housing, this disconnect ensures reliable electrical contact and mechanical stability. The 0.110 x 0.020" (2.8 x 0.5 mm) tab size accommodates 22-18 AWG wire (0.5-1.0 mm²), making it ideal for control panels, machinery wiring, and automotive systems where space and durability are critical. The funnel entry barrel configuration with a butted seam barrel design simplifies wire insertion while maintaining a secure fit. Measuring 0.71" (18 mm) long and 0.19" (4.8 mm) wide, the DPF18-111FIB-C is compact yet robust, resisting vibration-induced loosening. Supplied in bottles of 100, this disconnect is manufactured in the USA, ensuring consistent quality and compliance with industry standards. Use it in applications requiring stable, long-lasting connections where environmental factors like vibration, moisture, or mechanical stress are present. Compatible with standard 0.110" tab connectors, it integrates seamlessly into existing wiring systems without additional modifications.
  • Vibration-resistant design prevents loosening in dynamic environments
  • Tin-plated brass construction with red premium nylon insulation
  • Supports 22-18 AWG wire range (0.5-1.0 mm²)
  • Funnel entry barrel with butted seam for secure wire insertion
  • Compact dimensions: 0.71" (18 mm) long, 0.19" (4.8 mm) wide

Specifications

Color
Red
Connection
Funnel Entry
Finish
Tin-Plated
Insulation
Premium Nylon
Material
Brass
Mounting
1932-09-01 In.
Standard
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Temperature Rating
221 Degrees Fahrenheit (105 Degrees Celsius)
Type
Disconnect
Voltage Rating
600 V
Wire Size
#18 AWG
Package Dimensions (L x W x H)
9.9 IN x 3.95 IN x 3.8 IN
Package Weight (Imperial)
1.5 lbs

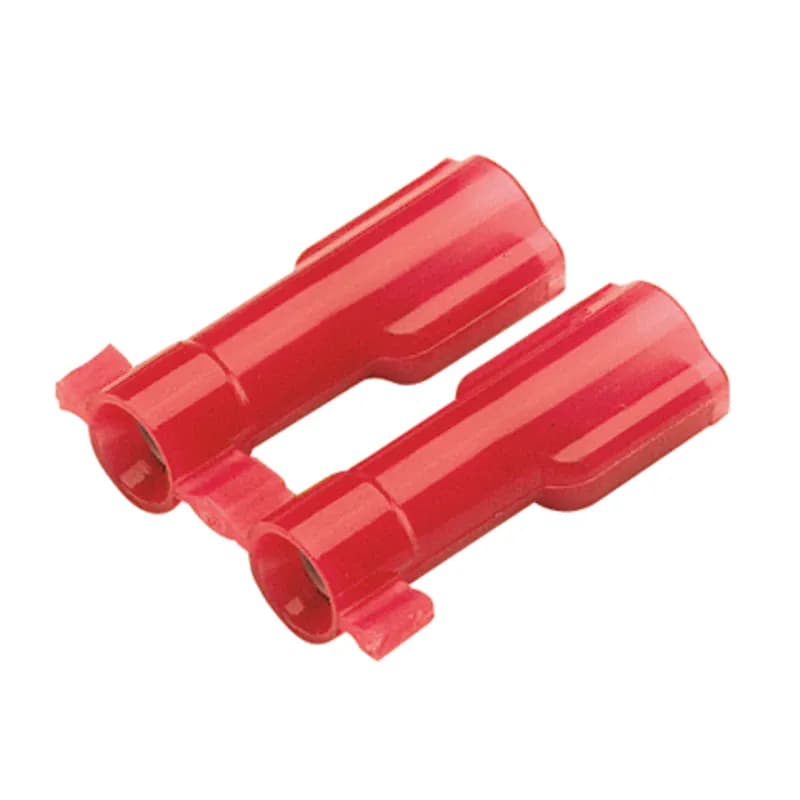

The Supra-Grip female disconnect is made of brass and is tin-plated. It is fully insulated in red nylon. It has a tab size of 0.187 x 0.020 (4.8 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.89" (22.6 mm) long and 0.29" (7.4 mm) wide. The disconnect has a double crimp funnel entry barrel configuration and a butted seam barrel with an integrated metal insulation grip. It comes in reels of 3000 pieces.

DNG18-188FB-3K

The Supra-Grip female disconnect is made of brass and is tin-plated. It is fully insulated in red nylon. It has a tab size of 0.187 x 0.020 (4.8 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.89" (22.6 mm) long and 0.29" (7.4 mm) wide. The disconnect has a double crimp funnel entry barrel configuration and a butted seam barrel with an integrated metal insulation grip. It comes in reels of 3000 pieces.
The vibration resistant DiscoGrip female disconnect is made of brass and is tin-plated. It is fully insulated in red premium nylon housing. It has a tab size of 0.110 x 0.020" (2.8 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.71" (18 mm) long and 0.19" (4.8 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000.

DPF18-111FIB-M

The vibration resistant DiscoGrip female disconnect is made of brass and is tin-plated. It is fully insulated in red premium nylon housing. It has a tab size of 0.110 x 0.020" (2.8 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.71" (18 mm) long and 0.19" (4.8 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000.
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.187/0.205 x 0.02" (4.8/5.2 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.75" (19.1 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000.

DV18-206B-MY

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.187/0.205 x 0.02" (4.8/5.2 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.75" (19.1 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000.
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.187 x 0.02" (4.8 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.76" (19.3 mm) long and 0.23" (5.8 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.

DV18-188B-CY

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.187 x 0.02" (4.8 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.76" (19.3 mm) long and 0.23" (5.8 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in red heat shrink housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 1.44" (36.6 mm) long and 0.35" (8.9 mm) wide. The disconnect has a standard barrel configuration and a butted seam barrel. It comes in bags of 25.

DNH18-250FIB-Q

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in red heat shrink housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 1.44" (36.6 mm) long and 0.35" (8.9 mm) wide. The disconnect has a standard barrel configuration and a butted seam barrel. It comes in bags of 25.
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a red, nylon housing. It has a tab size of 0.187 x 0.032" (4.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.76" (19.3 mm) long and 0.23" (5.9 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in boxes of 1000.

DNF18-187-M

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a red, nylon housing. It has a tab size of 0.187 x 0.032" (4.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.76" (19.3 mm) long and 0.23" (5.9 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in boxes of 1000.
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.187 x 0.02" (4.7 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.76" (19.3 mm) long and 0.23" (5.8 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 100.

DVF18-188-CY

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.187 x 0.02" (4.7 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.76" (19.3 mm) long and 0.23" (5.8 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 100.
StrongHold Female Disconnect, vinyl barrel insulated, 22 - 18 AWG, .187 x .020 tab size.

EDV18-188B-L

StrongHold Female Disconnect, vinyl barrel insulated, 22 - 18 AWG, .187 x .020 tab size.
The Supra-Grip female disconnect is made of brass and is tin-plated. It is fully insulated in red nylon. It has a tab size of 0.187 x 0.032 (4.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.89" (22.6 mm) long and 0.29" (7.4 mm) wide. The disconnect has a double crimp funnel entry barrel configuration and a butted seam barrel with an integrated metal insulation grip. It comes in bottles of 100.

DNG18-187FB-C

The Supra-Grip female disconnect is made of brass and is tin-plated. It is fully insulated in red nylon. It has a tab size of 0.187 x 0.032 (4.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm ). It is 0.89" (22.6 mm) long and 0.29" (7.4 mm) wide. The disconnect has a double crimp funnel entry barrel configuration and a butted seam barrel with an integrated metal insulation grip. It comes in bottles of 100.
Ring Terminal, 22 18 AWG, #6 stud size, narrow tongue, funnel entry, nylon insulated, standard package.

PNF18-6RN-C

Ring Terminal, 22 18 AWG, #6 stud size, narrow tongue, funnel entry, nylon insulated, standard package.
Fork Terminal, nylon insulated, metal insulation grip sleeve, 22 - 18 AWG wire range, #6 stud size.

PN18-6F-3K

Fork Terminal, nylon insulated, metal insulation grip sleeve, 22 - 18 AWG wire range, #6 stud size.
Fork Terminal, vinyl insulated, 22- 18 AWG, #6 stud size, expanded insulation for large wire O.D., standard package.

PV18-6FX-CY

Fork Terminal, vinyl insulated, 22- 18 AWG, #6 stud size, expanded insulation for large wire O.D., standard package.
