Contact for Pricing
Minimum Qty: 100
Multiplier: 10
*Contact for lower quantities*
Overview
- Maximizes rack space with four-space stacking capability for increased cable capacity.
- Constructed from durable glass-filled flame retardant nylon 6.6 for enhanced safety and longevity.
- Accepts cables up to 1.25 inches (31.8mm) in diameter.
- Offers greater resistance to UV light damage for indoor and outdoor use.
- Snaps together to increase spacer heights in 1/2” increments for flexible configuration.
Specifications
Cable Type | Cable Rack Spacers |
Color | Black |
Material Quality | Glass-Filled Nylon 6.6 |
Overall Height* | 1.55 In. |
Standard | RoHS Compliant |
Type | Cable Rack Spacers |
Package Dimensions (L x W x H) | 13.95 IN x 6.65 IN x 3.6 IN |
Package Weight (Imperial) | 0.826 lbs |

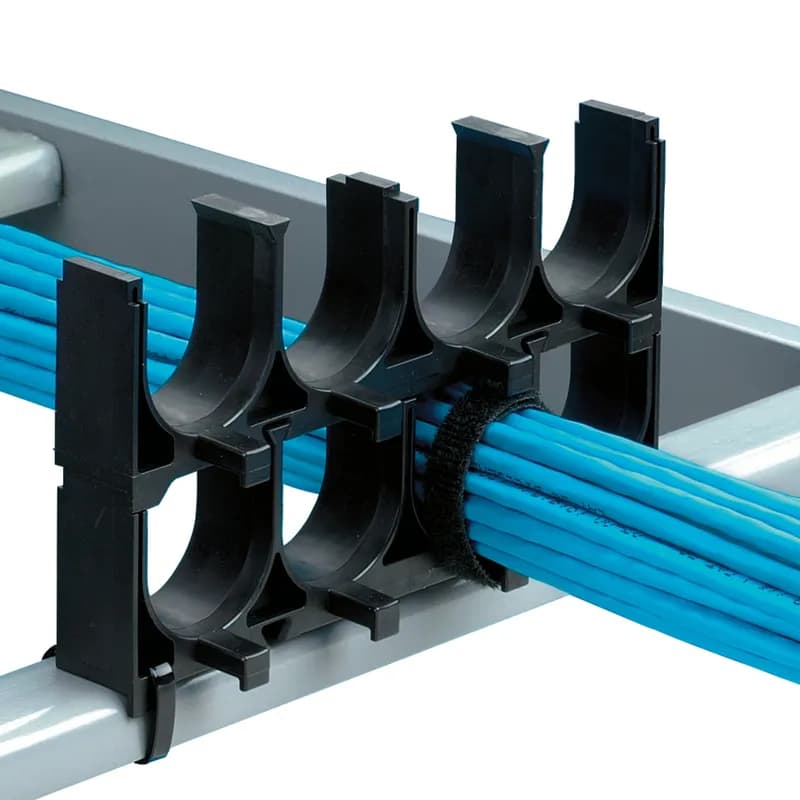

CRS1-125-X
One space stackable cable rack spacer. Manufactured from black glass-filled flame retardant nylon 6.6. Use with CRS4 to fill width of ladder rack. Accepts cable up to 1.25" (31.8mm) diameter.

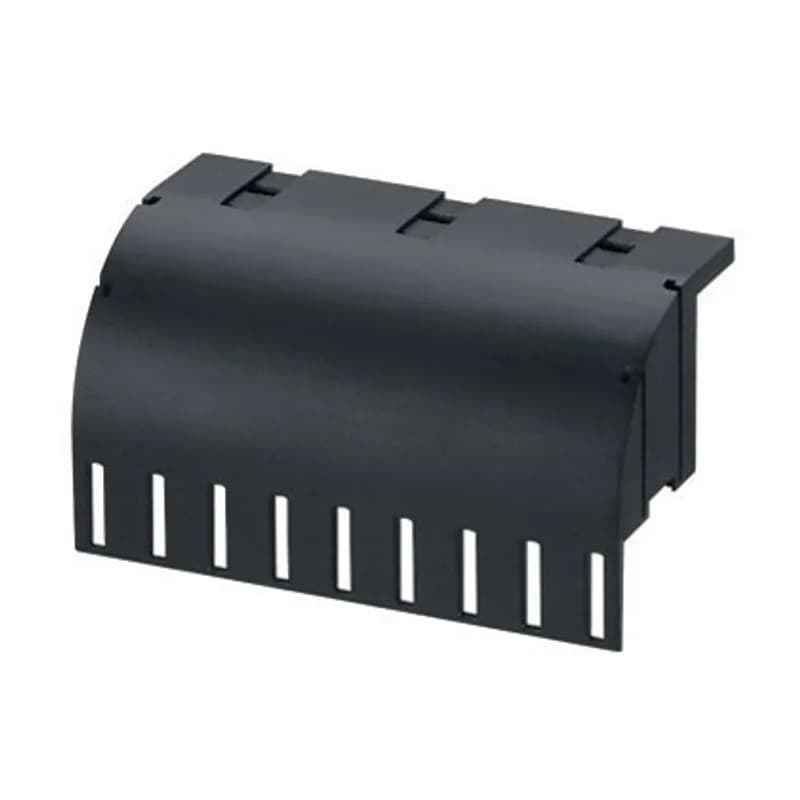

CMWB
The Panduit Cable Management Waterfall Base is designed to improve network reliability. Users can easily install it onto most standard ladder rack rungs and stringers to transfer wires at a safe 1.75in (43mm) vertical bend radius. Glass-filled Nylon, 8.4in x 5.2in x 3.4in (213mm x 133mm x 86mm), Black, 1pc.

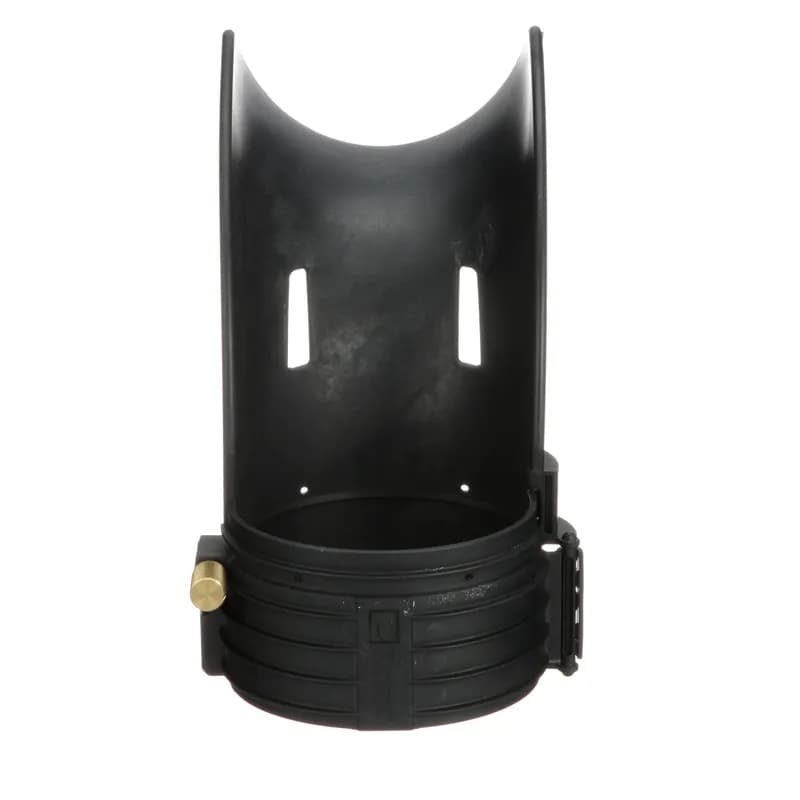

CWF400
The Tak-Ty Conduit Waterfall is designed for 4-inch EMT conduit to cost-effectively manage sensitive network cables in compliance with the TIA/EIA standards. The product allows for installation in retrofit applications where communication cables are already installed. The bend radius control helps prevent degradation of cable performance and prevents pinch points that could damage cable. The conduit waterfall is 8.4 inches x 5.7 inches (213.4mm x 144.8mm).

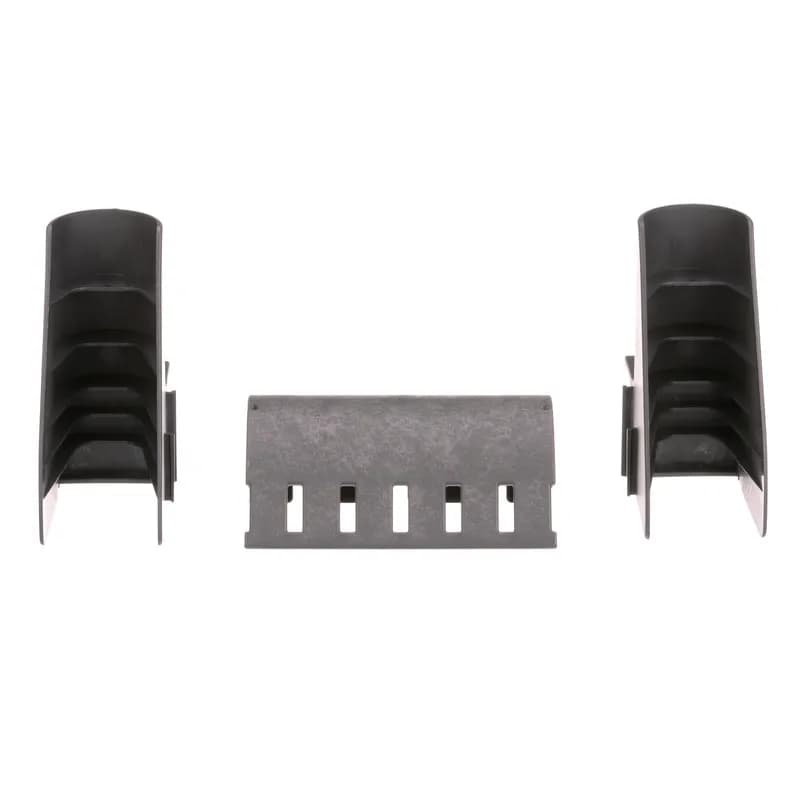

CMW-KIT
Cable management waterfall kit. Provides bend radius control when transferring cables from standard ladder rack. Kit includes CMWB, two CMWW, and cable ties.
CMW-KIT10
Cable management waterfall kit. Provide bend radius control when transferring cables from standard ladder rack. Kit includes CMWB10, two CMWW10 and cable ties.
BR2-1.5-X
Bundle retainer, 1/4" screw (M6), .2" (50.8mm) bundle, .1.59" (40.4mm) standoff height, glass filled nylon 6.6, black.
CCH150-S10-C0
Fixed diameter cable clamp, heavy duty, #10 screw (M5), 1.50" (38.1mm) bundle, black, bulk package.
PC125-H25D-C0
Pan-Clamp heavy duty fixed diameter clamp, 1.25" (31.8mm) bundle, black, standard package.
Frequently Asked Questions
What are the dimensions of CRS4-125-X?
The dimensions of CRS4-125-X are 1.54" H x 5.20" W x 1.19" D.
What is the cable capacity of CRS4-125-X?
CRS4-125-X has four cavities that accept cable bundles up to 1.25" in diameter, accommodating 24 CAT 5 cables.
What is the maximum stack height for CRS4-125-X?
The recommended maximum stack height for CRS4-125-X is four.
What materials are used in CRS4-125-X?
CRS4-125-X is manufactured from a material that meets UL94-V0 specifications.
What types of cable can CRS4-125-X accommodate?
CRS4-125-X can accommodate cable bundles up to 1.25" in diameter, including 24 CAT 5 cables.
What tools are recommended for installation?
Use the GTS Cable Tie Installation Tool for correct tensioning and cut-off during installation.
How are the stackable spacers installed?
Install by securing the bottom level to the ladder rung and stacking additional spacers using dovetail slots.
How do I secure cables to the rack spacers?
Cables can be secured to the cable retaining posts using PANDUIT PAN-TY Cable Ties or TAK-TY Hook & Loop Cable Ties.
What is the packaging quantity for CRS4-125-X?
CRS4-125-X is packaged 10 per bag.
How to Install the CRS4-125-X Stackable Cable Rack Spacer
This guide provides step-by-step instructions for installing the CRS4-125-X Stackable Cable Rack Spacer securely on a ladder rack.
Estimated time: 30m
Tools needed:
Screwdriver, Wire strippers
Supplies needed:
Panduit Pan-Ty Cable Ties, Cable bundles
- Secure the base level
Attach the bottom level of the CRS4-125-X to the ladder rack rung using two Panduit Pan-Ty Cable Ties. Ensure it is level and securely fastened.
- Install cables
Place the cables or cable bundles into each of the designated cable retaining areas within the CRS4-125-X.
- Secure cables
Use Panduit Pan-Ty Cable Ties, Belt-Ty In-Line Cable Ties, or Tak-Ty Hook and Loop Cable Ties to secure the cables to the cable retaining post, ensuring they do not exceed 0.33 inches in width.
- Stack additional levels
To add more levels, slide the male dovetail of the next Stackable Cable Rack Spacer into the female dovetail slot of the installed spacer. Ensure the latch locks into position.
- Repeat installation
Continue to repeat steps 2, 3, and 4 until you reach the maximum recommended stack height of four for the CRS4-125-X.
